ELD Replacement

  1. Remove the PCM (see PCM REPLACEMENT  ).
  2. Remove the under-hood fuse/relay box (see REMOVAL AND INSTALLATION ).
  3. Remove the screw (A).
    Fig 1: Identifying Under-Hood Fuse/Relay Box Screw
    G06228743Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Turn the housing over, then remove the screw (A).
    Fig 2: Identifying Housing Over Screw
    G06228744Courtesy of AMERICAN HONDA MOTOR CO., INC.

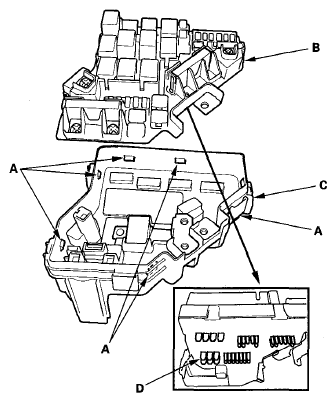

  5. Turn the housing over again. Using two flat-tip screwdrivers, release the tabs (A), and pry up the fuse/relay box base (B) from the fuse/relay box housing (C).
    NOTE: Make sure the terminals (D) are not bent or damaged.
    Fig 3: Identifying Tabs, Fuse/Relay Box Base, Fuse/Relay Box Housing And Terminals
    G06228745Courtesy of AMERICAN HONDA MOTOR CO., INC.

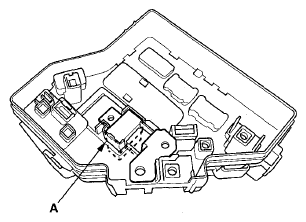

  6. Remove the ELD (A).
    Fig 4: Identifying ELD
    G06228746Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the parts in the reverse order of removal.
