CMP Sensor Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the CMP sensor 3P connector (A).

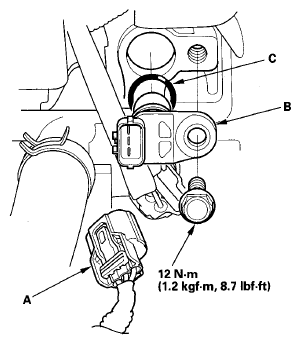

    Fig 1: CMP Sensor 3P Connector, CMP Sensor And O-Ring With Torque Specifications
    G06228737Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the CMP sensor (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
