CKP Sensor Replacement

  1. Disconnect the CKP 3P connector.
  2. Remove the CKP sensor (A).

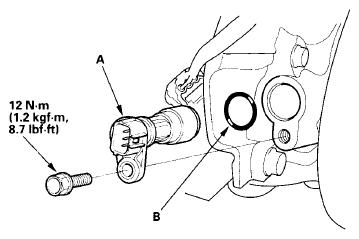

    Fig 1: CKP Sensor And O-Ring With Torque Specifications
    G06228736Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal with a new O-ring (B).
