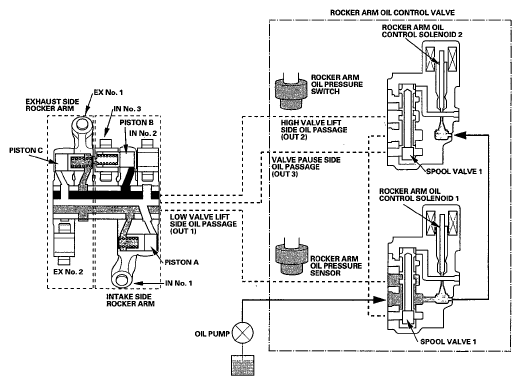

Valve pause operation
Rocker arm oil control solenoids 1 and 2 are both ON. The engine oil pressure from the oil pump is lead to OUT 3 and pushes piston A (inside the intake rocker arm No. 1 and No. 2) to the left side and piston C (inside the exhaust rocker arm No. 1 and No. 2) to the right side. This separates intake rocker arms No. 1 and No. 2 and exhaust rocker arms No. 1 and No. 2 causing the intake valve and the exhaust valve to stop.
VALVE PAUSE OPERATION CHART
| Rocker arm oil control solenoid 1 | Rocker arm oil control solenoid 2 | Rocker arm oil pressure sensor signal | Rocker arm oil pressure switch signal | Rocker arm activation (Rocker arm oil control valve oil pressure output) | |
|---|---|---|---|---|---|
| Low valve lift mode | OFF | OFF | High | OFF | IN side rocker arm: Low lift EX side rocker arm: Normal lift (OUT 1) |
| High valve lift mode | ON | OFF | Low | ON | IN side rocker arm: High lift EX side rocker arm: Normal lift (OUT 2) |
| Valve pause mode | ON | ON | Low | OFF | IN side rocker arm: Pause EX side rocker arm: Pause (OUT 3) |
