PCM Circuit Diagram

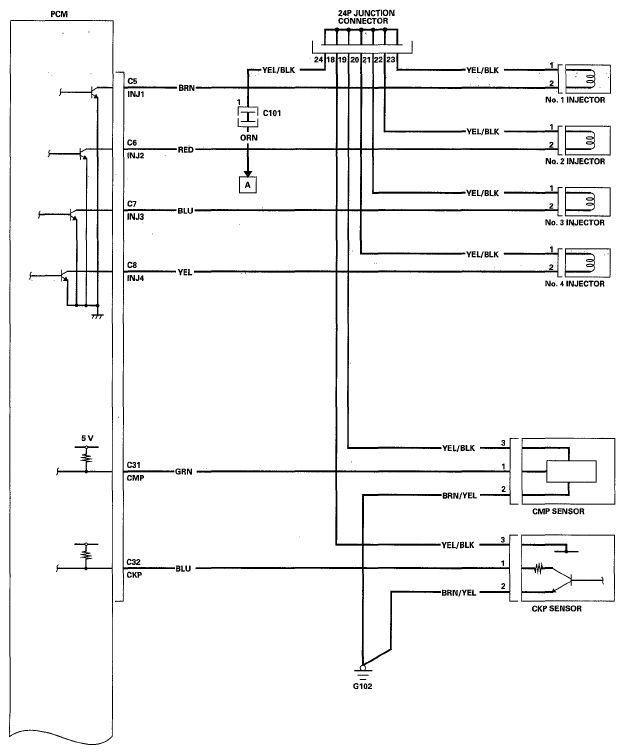

Fig 1: PCM Circuit Diagram (1 Of 13)

G05531788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

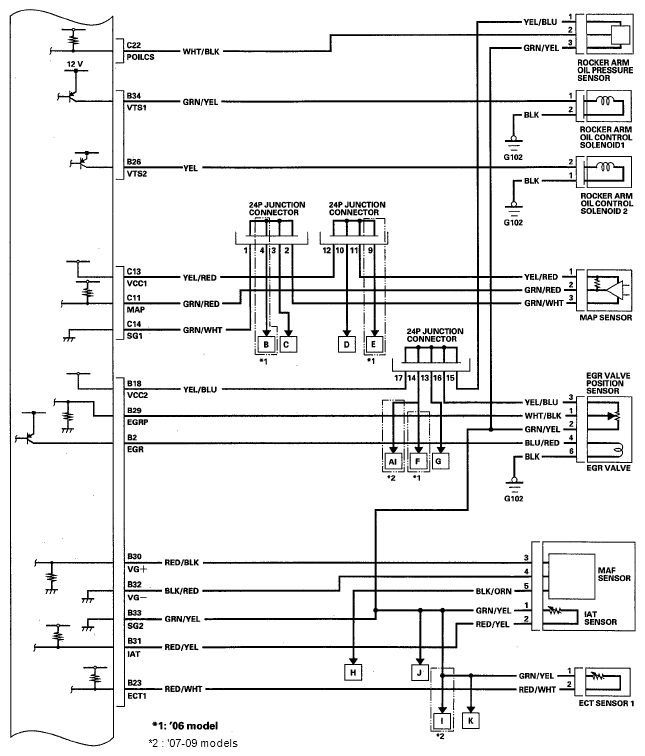

Fig 2: PCM Circuit Diagram (2 Of 13)

G05531789

Courtesy of AMERICAN HONDA MOTOR CO., INC.

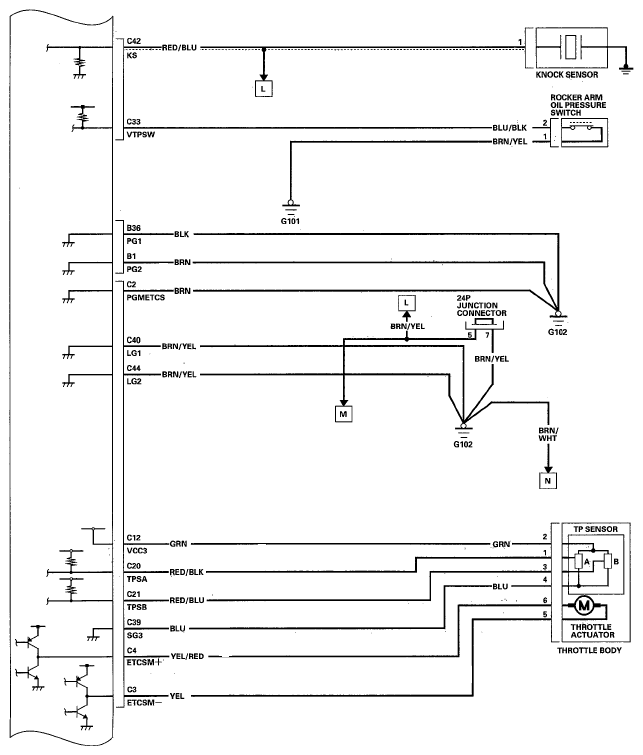

Fig 3: PCM Circuit Diagram (3 Of 13)

G05531790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

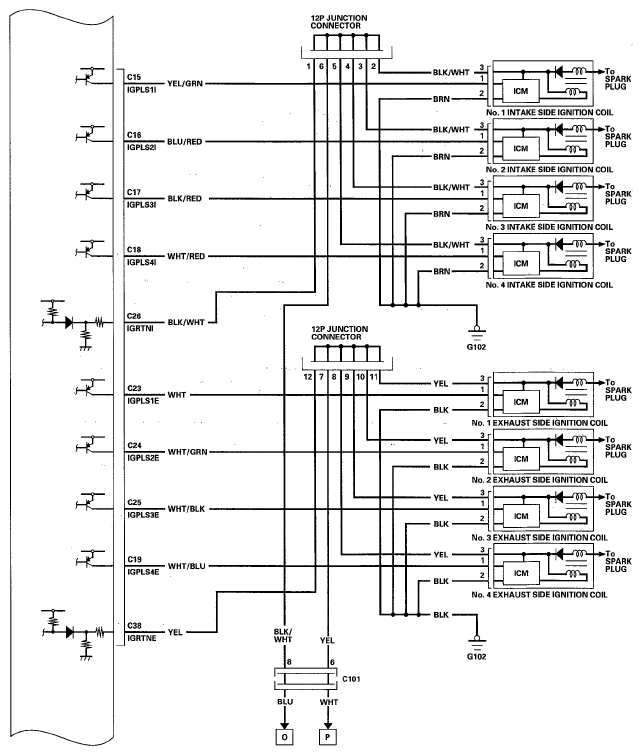

Fig 4: PCM Circuit Diagram (4 Of 13)

G05531791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

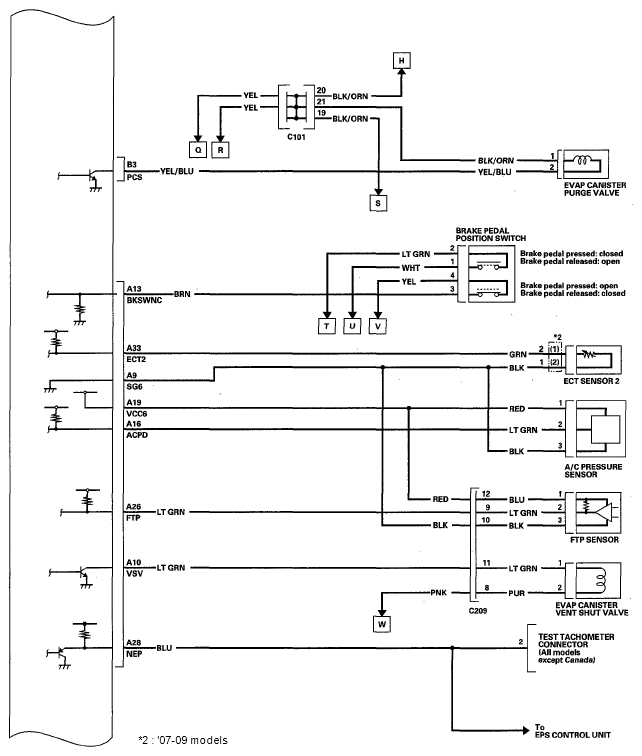

Fig 5: PCM Circuit Diagram (5 Of 13)

G05531792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

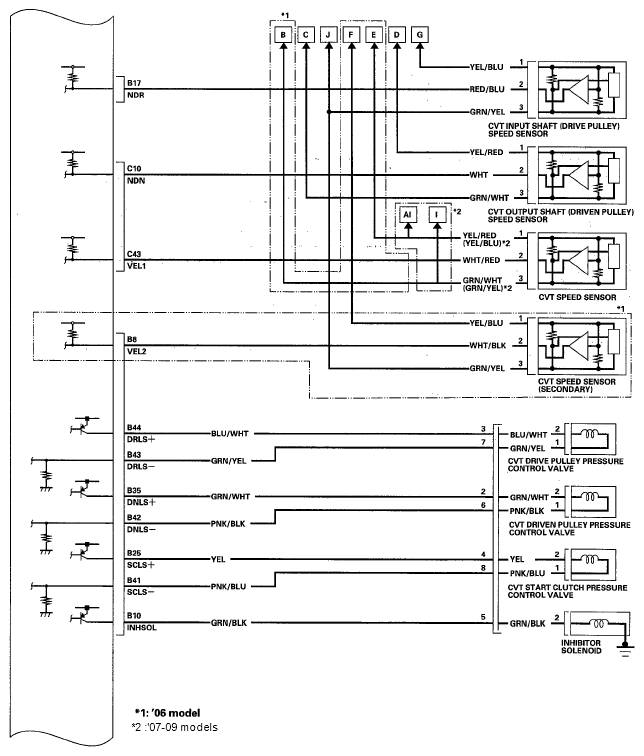

Fig 6: PCM Circuit Diagram (6 Of 13)

G05531793

Courtesy of AMERICAN HONDA MOTOR CO., INC.

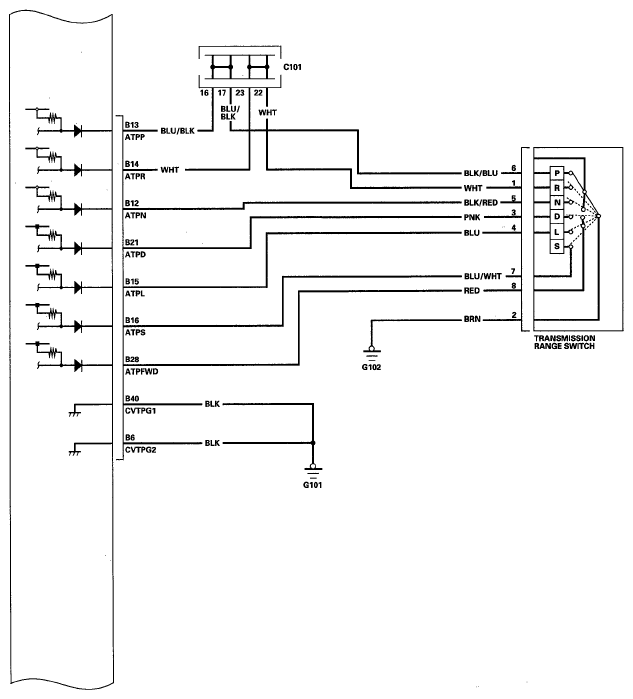

Fig 7: PCM Circuit Diagram (7 Of 13)

G05531794

Courtesy of AMERICAN HONDA MOTOR CO., INC.

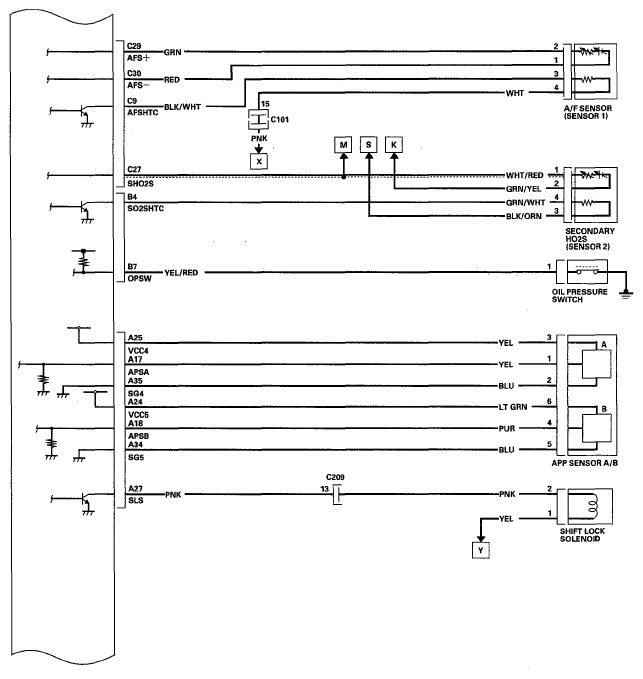

Fig 8: PCM Circuit Diagram (8 Of 13)

G05531795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

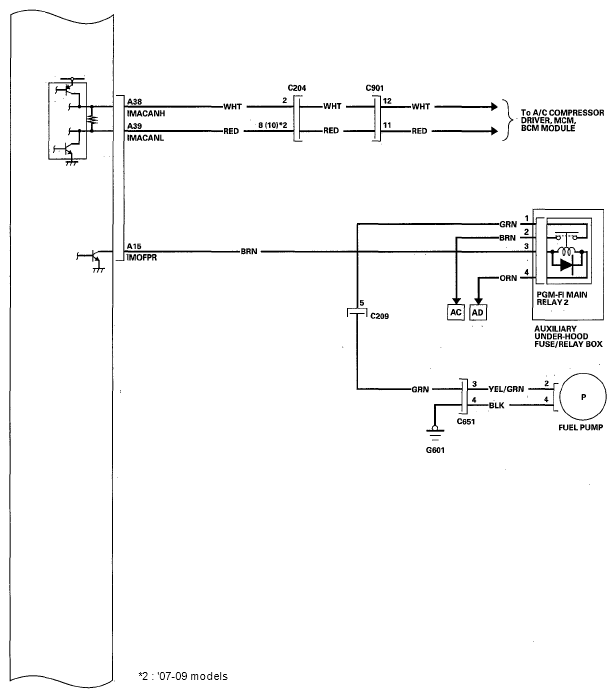

Fig 9: PCM Circuit Diagram (9 Of 13)

G05531796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

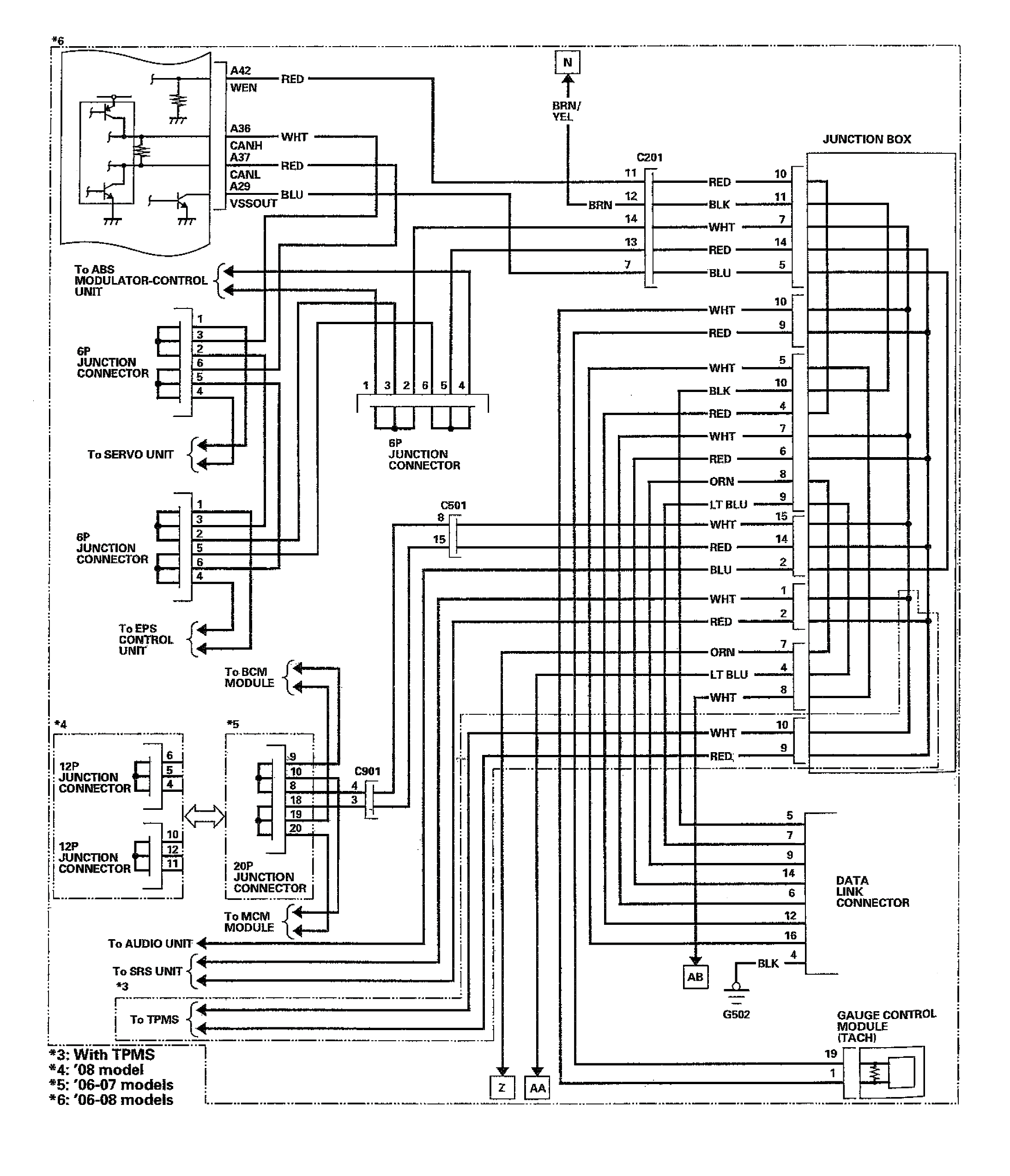

Fig 10: PCM Circuit Diagram (10 Of 13)

G00486034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

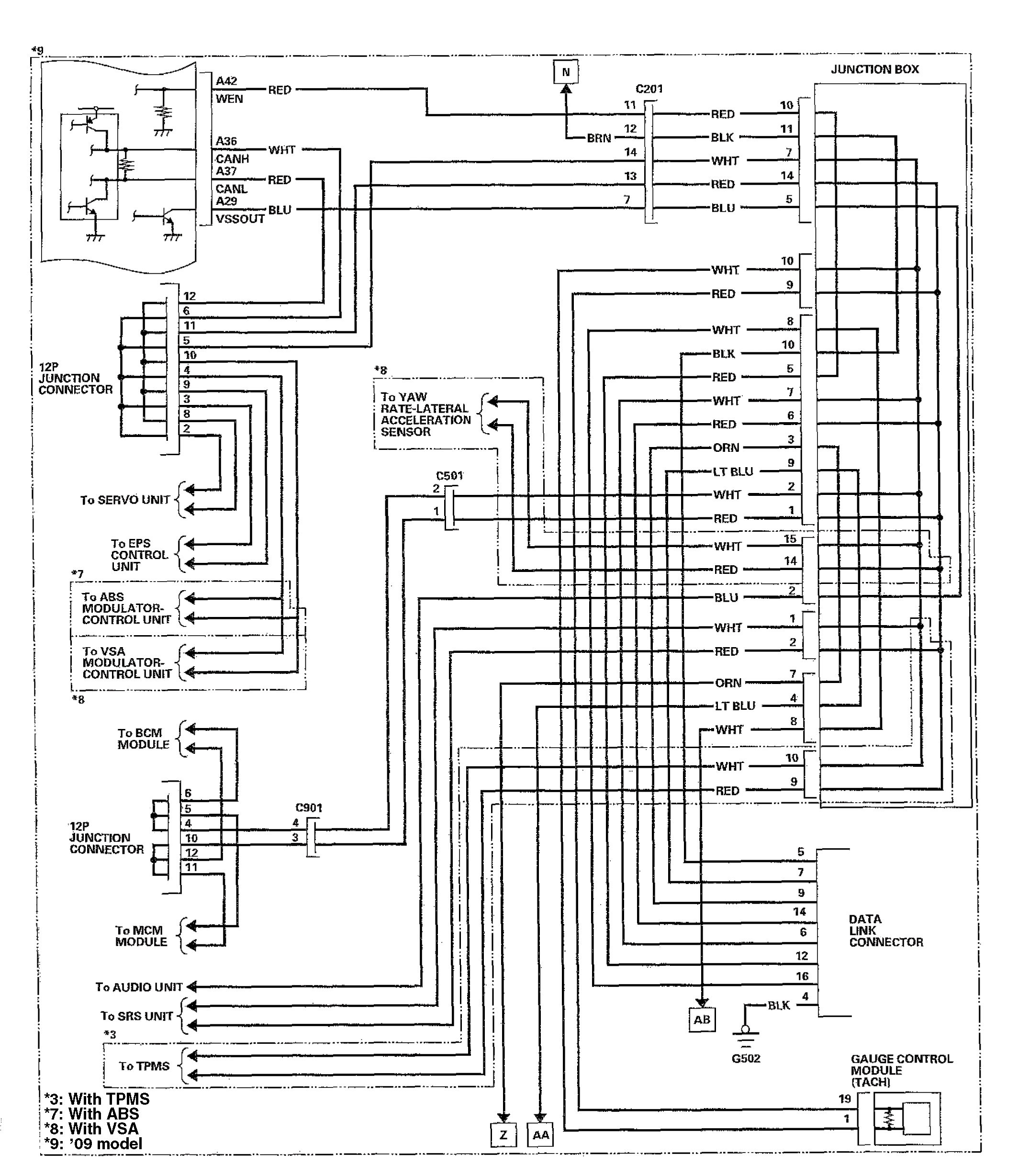

Fig 11: PCM Circut Diagram (11 Of 13)

G00486035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

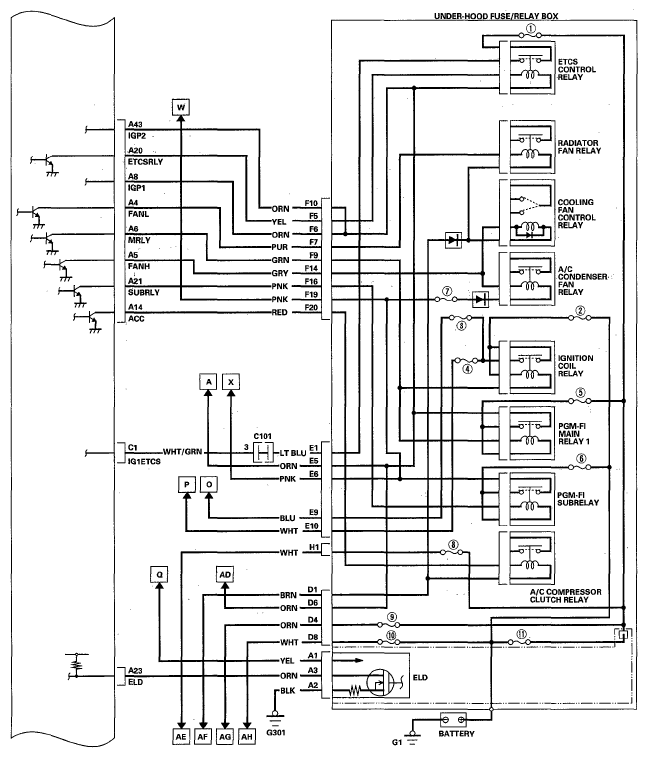

Fig 12: PCM Circuit Diagram (12 Of 13)

G05531798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

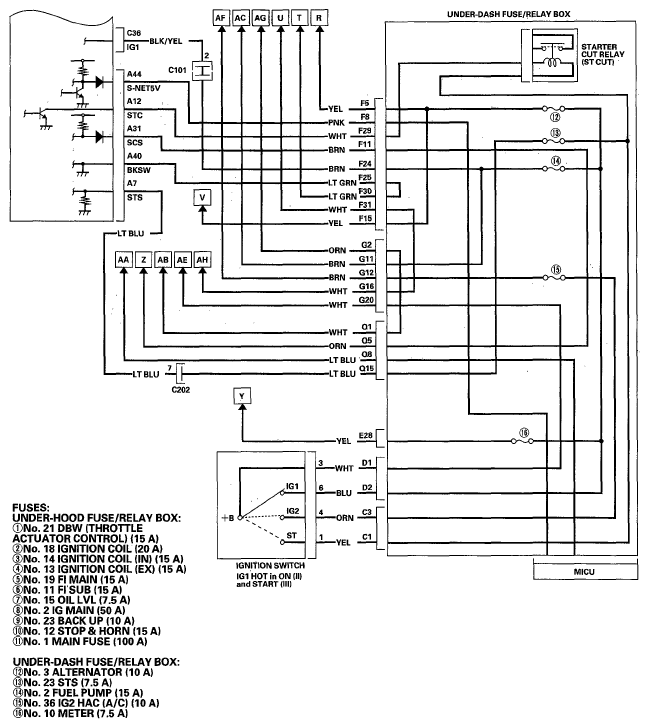

Fig 13: PCM Circuit Diagram (13 Of 13)

G05531799

Courtesy of AMERICAN HONDA MOTOR CO., INC.
