Throttle Body

The throttle body is a single-barrel side draft type. The lower portion of the throttle valve is heated by engine coolant from the cylinder head to prevent icing of the throttle plate.

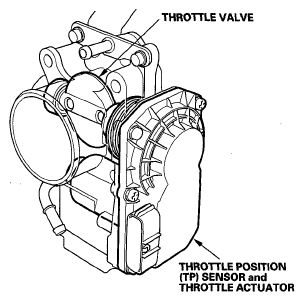

Fig 1: Identifying Throttle Body And Throttle Position Sensor And Actuator

Courtesy of AMERICAN HONDA MOTOR CO., INC.
