Fuel Tank Replacement
- Relieve the fuel pressure; '06 model (see WITH THE HDS ('06 MODEL)
), '07-11 models (see WITH THE HDS ('07-11 MODELS)
).
- Remove the fuel fill cap.
- Jack up the vehicle, and support it with jackstands.

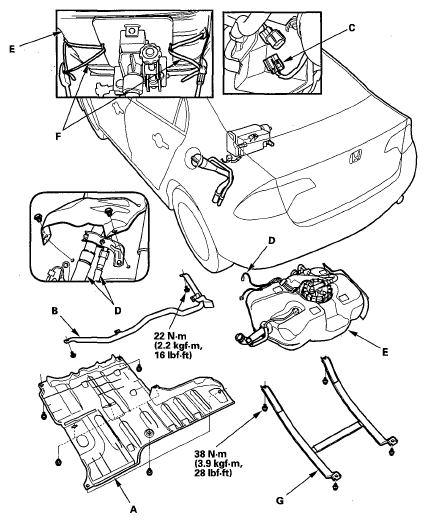

- Remove the cover (A), and the EVAP canister guard pipe (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the fuel tank unit subharness 4P connector (C).
- Disconnect the quick-connect fittings (D).
- Place a jack or other support under the tank (E), and secure the tank to the jack with a winch strap (F).
- Remove the strap bolts and the straps (G).
- Remove the fuel tank.
- Install the parts in the reverse order of removal.
