Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

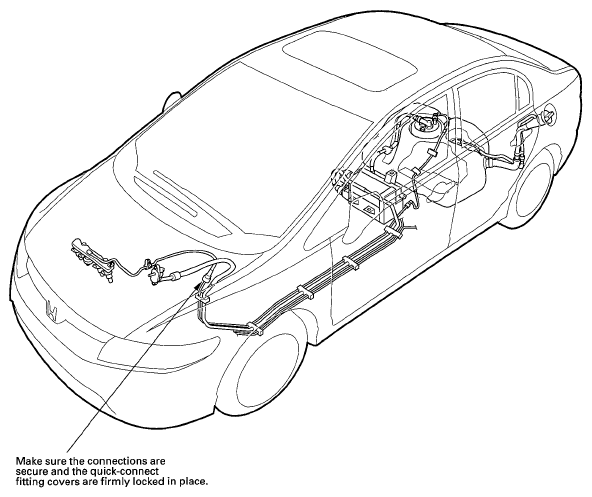

Fig 1: Identifying Fuel System Lines & Hoses

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all quick-connect fittings, and make sure they are properly positioned and tightened.

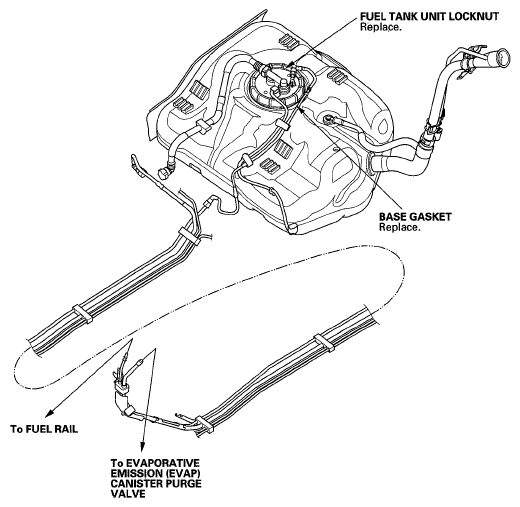

Fig 2: Identifying Fuel Tank Lock Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
