Master Switch Test/Replacement

Remove the power window master switch panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

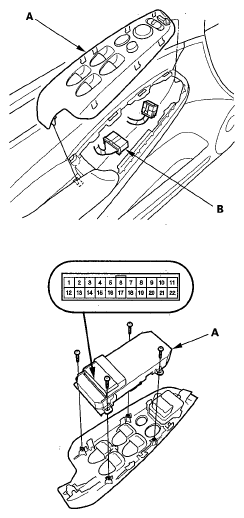

Fig 1: Identifying Power Window Master Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the tables below.
Front Passenger's Switch

Fig 2: Identifying Terminal Continuity Table - Front Passenger Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Left Rear Switch

Fig 3: Identifying Terminal Continuity Table - Left Rear Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right Rear Switch

Fig 4: Identifying Terminal Continuity Table - Right Rear Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Driver's Switch

The driver's switch is combined with the control unit so you cannot isolate the switch to test it. Instead, run the master switch input test procedures (see MASTER SWITCH INPUT TEST ). If the tests are normal, the driver's switch must be faulty. Replace the switch.
If the continuity is not as specified, remove the screws and replace the switch.
Install the switch in the reverse order of removal.
