EGR Valve Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  3. Remove the fuel line (A). Disconnect the hose (B).

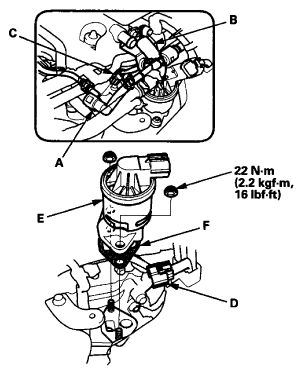

    Fig 1: Fuel Line And CMP Sensor A Connector With Torque Specification
    G06610144Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the CMP sensor A connector (C).
  5. Remove the EGR valve 6P connector (D).
  6. Remove the EGR valve (E).
  7. Install the parts in the reverse order of removal with a new gasket (F).
