Component Location Index

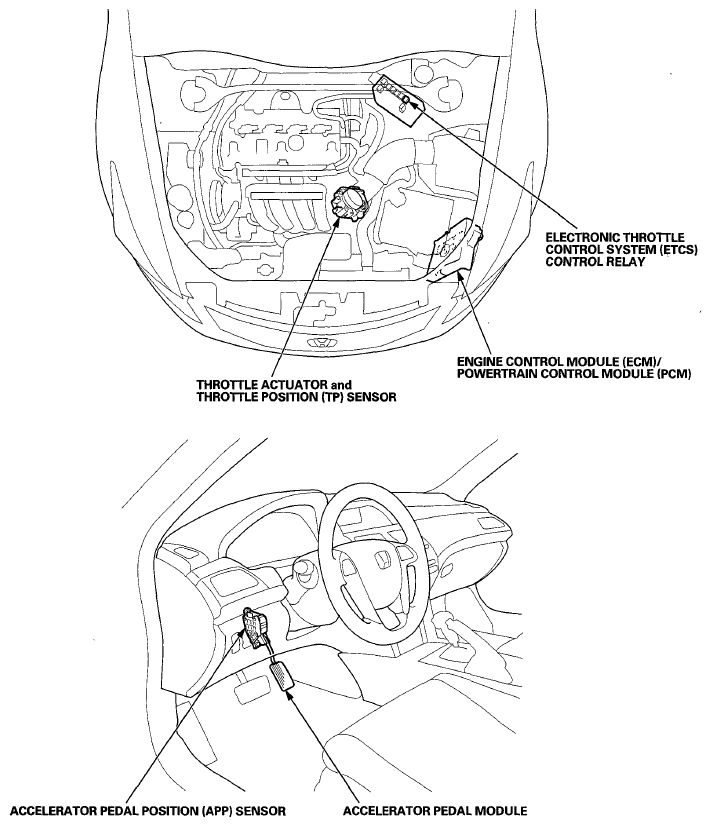

Fig 1: Identifying Electronic Throttle Control System Component Location

G07341563

Courtesy of AMERICAN HONDA MOTOR CO., INC.
