Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

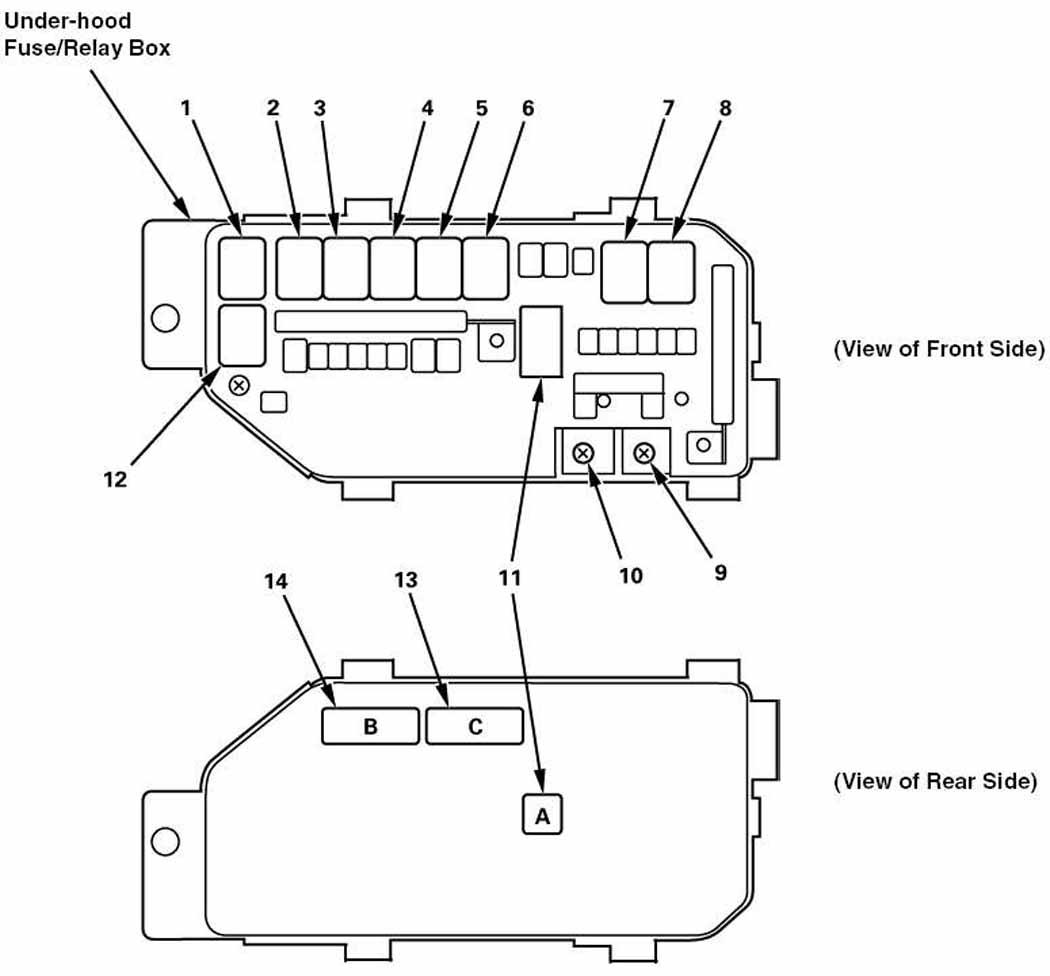

Fig 1: Under-Hood Fuse/Relay Box

G00466623

Courtesy of AMERICAN HONDA MOTOR CO., INC.

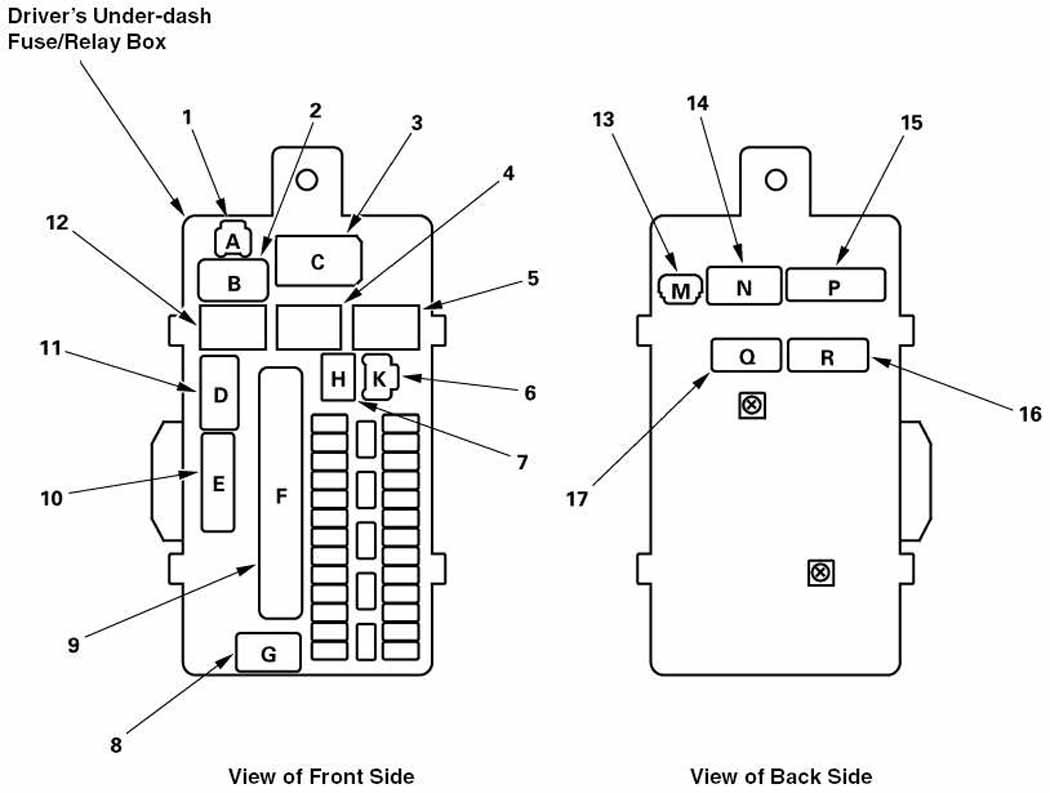

Fig 2: Driver's Under-Dash Fuse/Relay Box

G00466624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

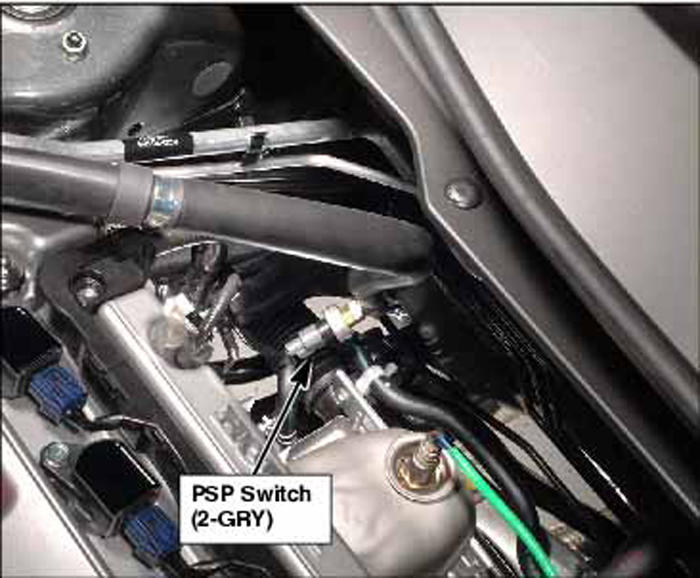

Fig 3: Right Rear Of Engine Compartment

G00466625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

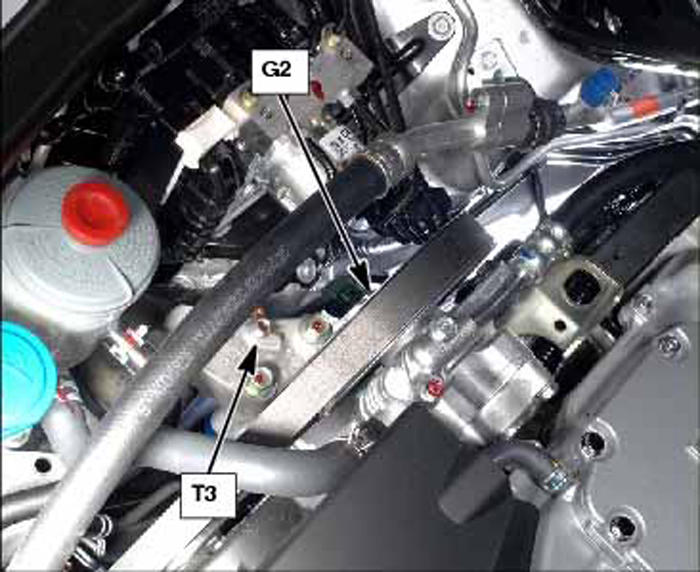

Fig 4: Right Side Of Engine Compartment

G00466626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

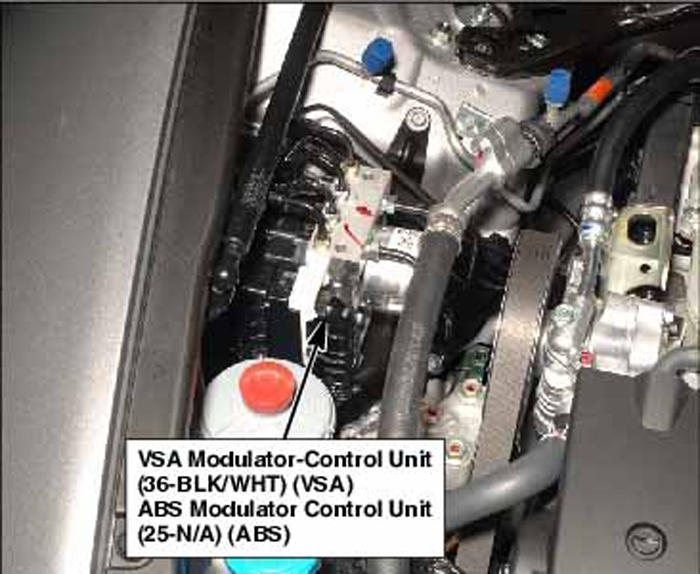

Fig 5: Right Side Of Engine Compartment

G00466627

Courtesy of AMERICAN HONDA MOTOR CO., INC.

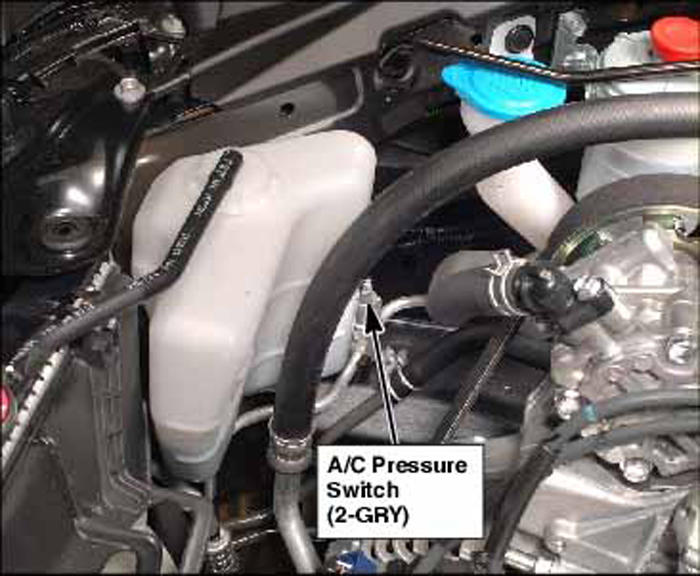

Fig 6: Right Side Of Engine Compartment (2.4L)

G00466628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

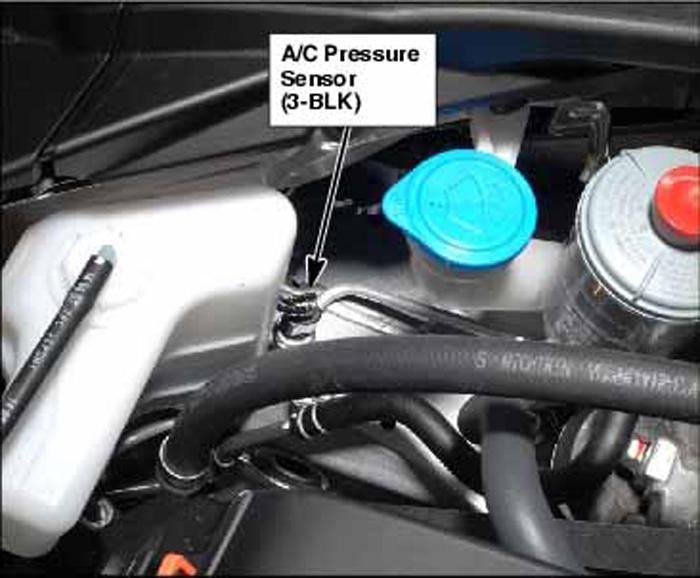

Fig 7: Right Side Of Engine Compartment (3.5L)

G00466629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

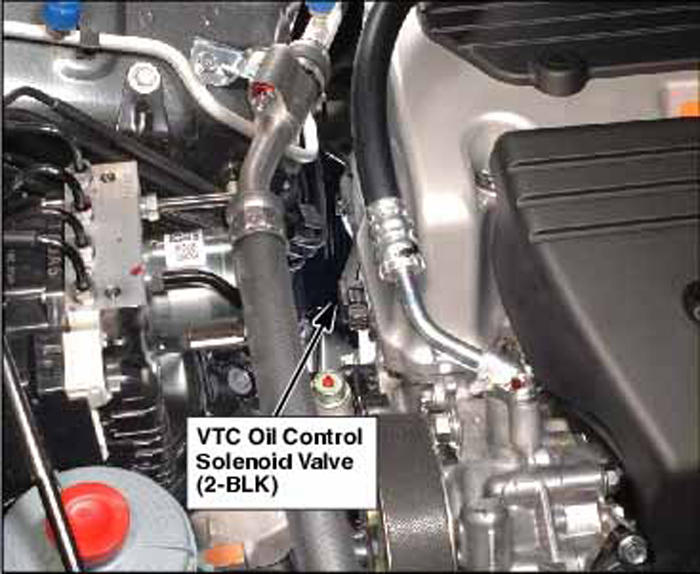

Fig 8: Front Of Engine (2.4L)

G00466630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

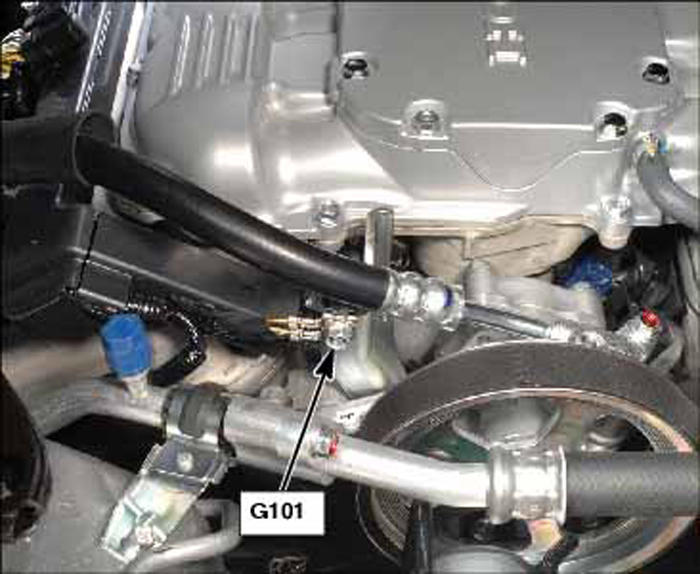

Fig 9: Front Of Engine (3.5L)

G00466631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

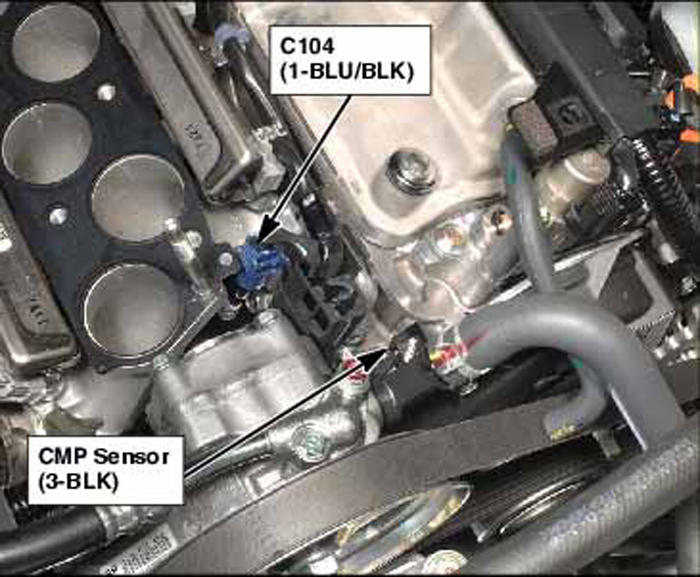

Fig 10: Front Of Engine (3.5L)

G00466632

Courtesy of AMERICAN HONDA MOTOR CO., INC.

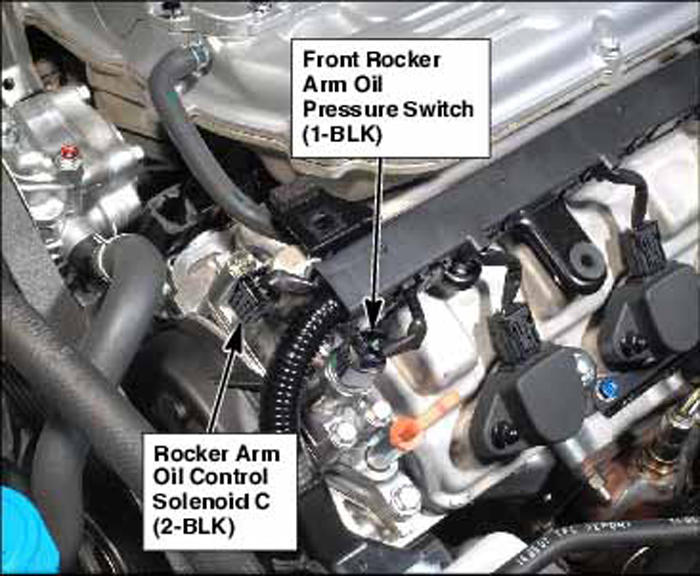

Fig 11: Front Of Engine (3.5L) (A/T)

G00466633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

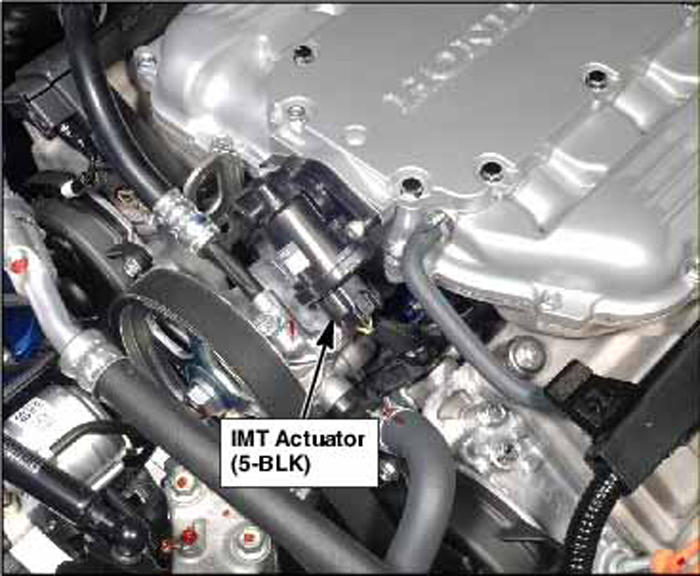

Fig 12: Front Of Engine (3.5L) (M/T)

G00466634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

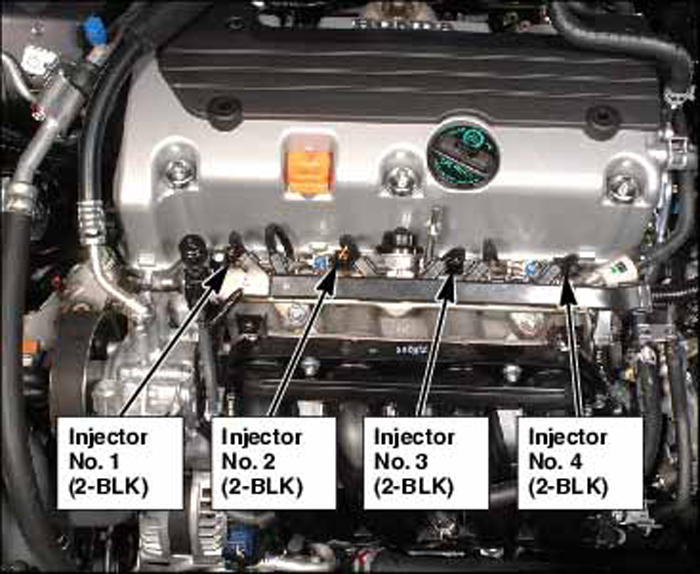

Fig 13: Middle Of Engine (2.4L)

G00466635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

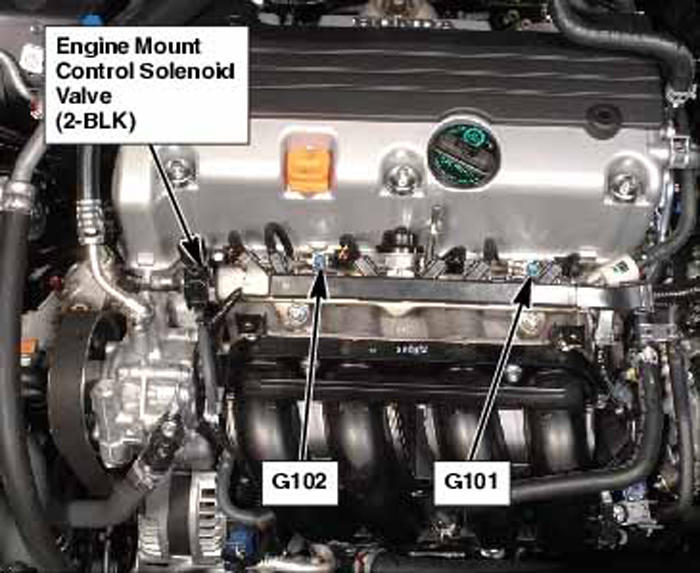

Fig 14: Middle Of Engine (2.4L)

G00466636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

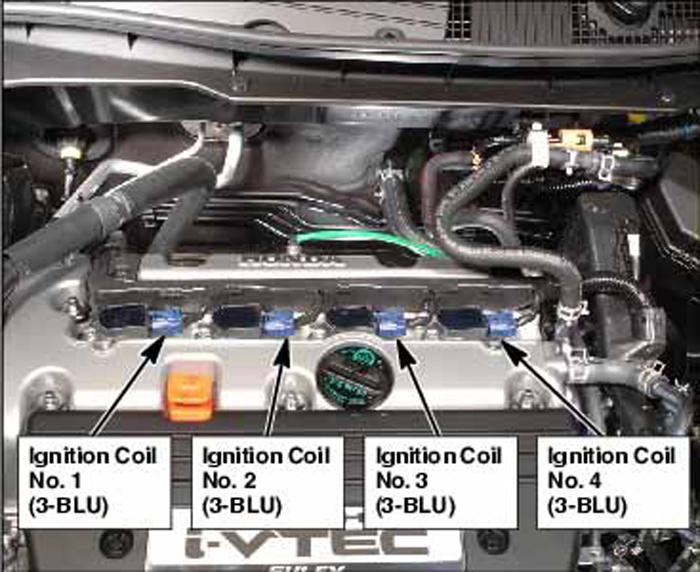

Fig 15: Middle Of Engine (2.4L)

G00466637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

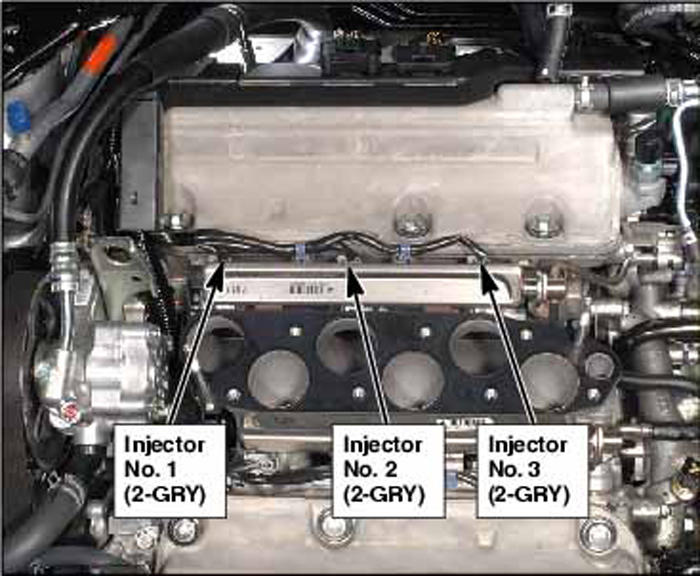

Fig 16: Middle Of Engine (3.5L)

G00466638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

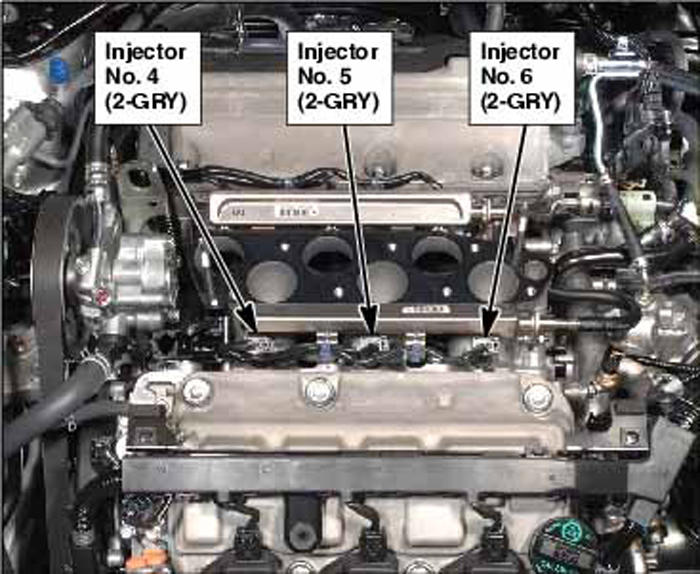

Fig 17: Middle Of Engine (3.5L)

G00466639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

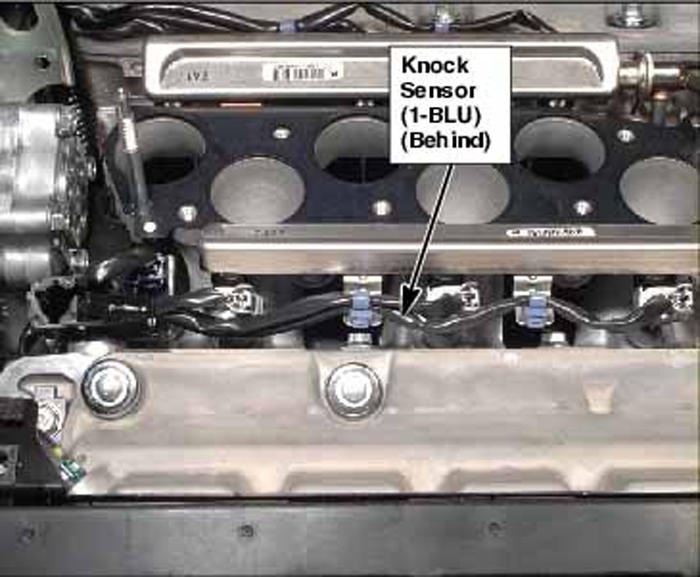

Fig 18: Middle Of Engine (3.5L)

G00466640

Courtesy of AMERICAN HONDA MOTOR CO., INC.

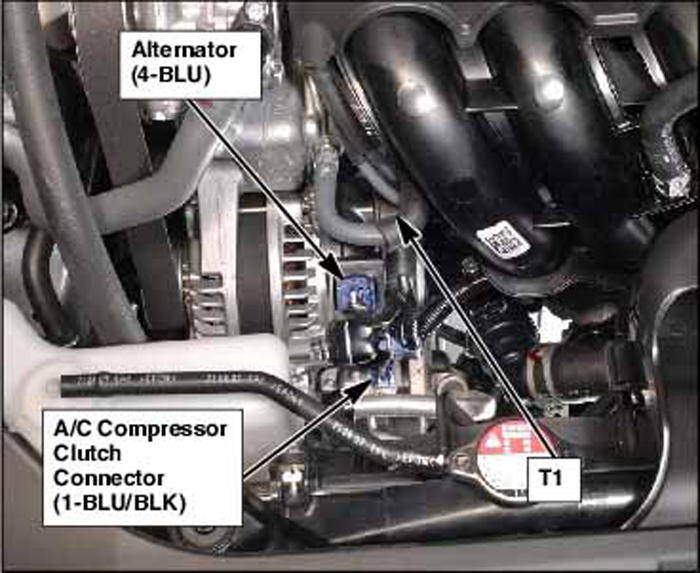

Fig 19: Front Of Engine (2.4L)

G00466641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

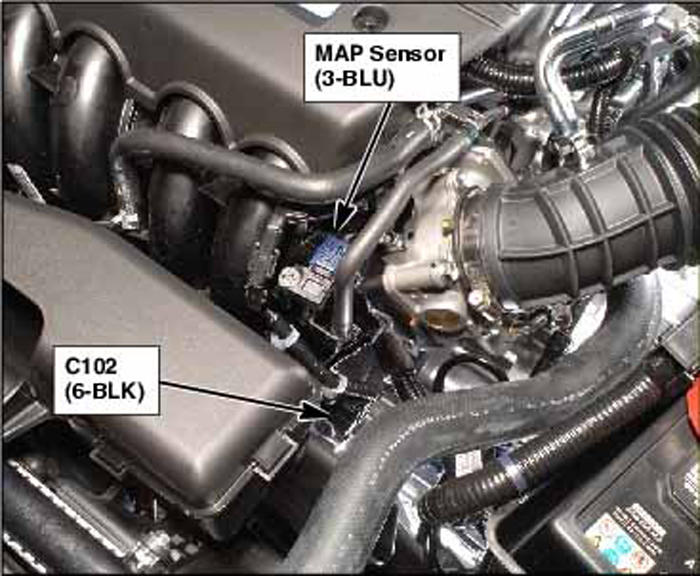

Fig 20: Rear Of Engine (2.4L)

G00466642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

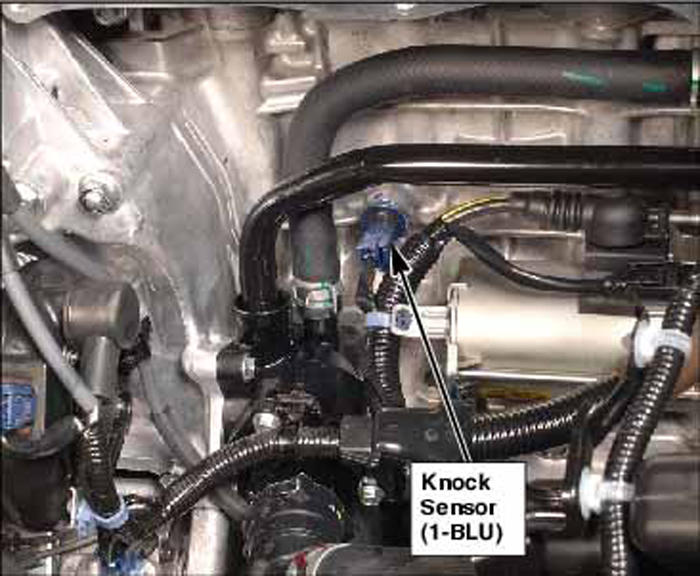

Fig 21: Left Rear Of Engine (2.4L)

G00466643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

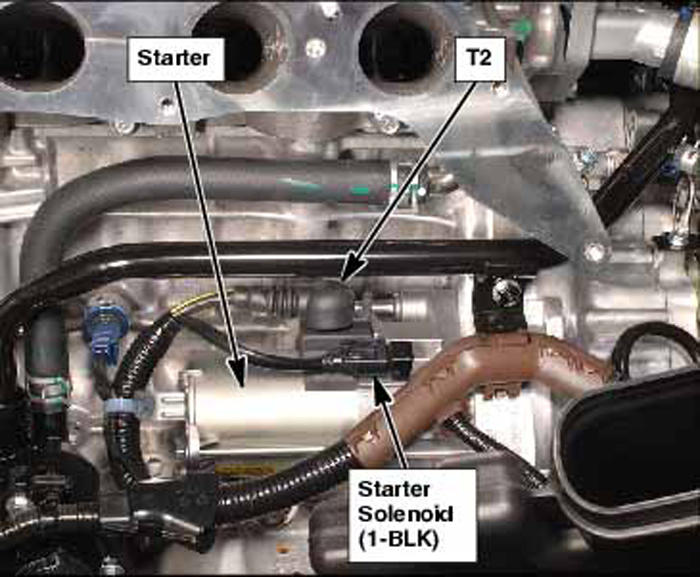

Fig 22: Left Rear Of Engine (2.4L)

G00466644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

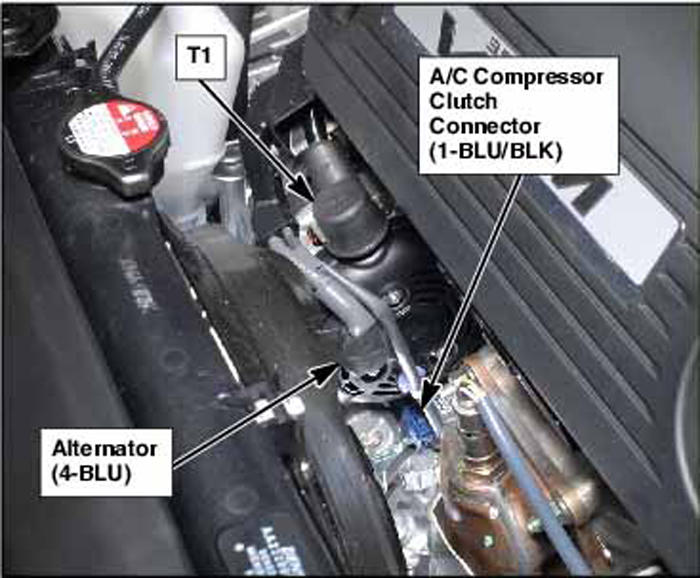

Fig 23: Left Front Of Engine (3.5L)

G00466645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

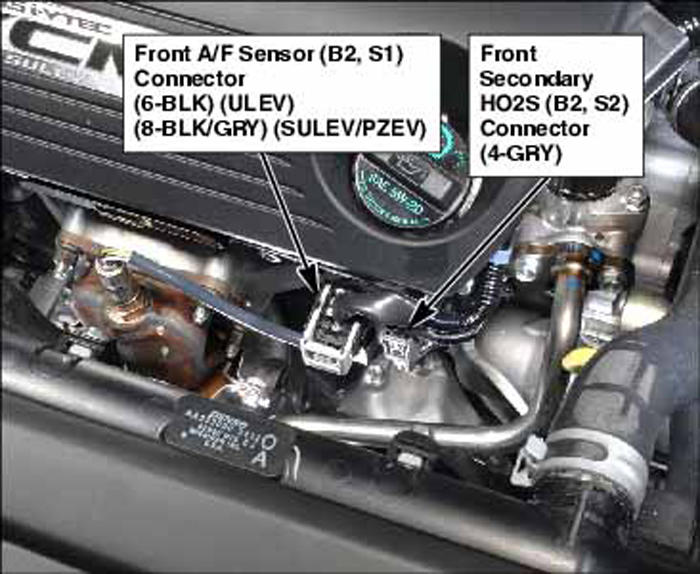

Fig 24: Left Rear Of Engine (3.5L)

G00466646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

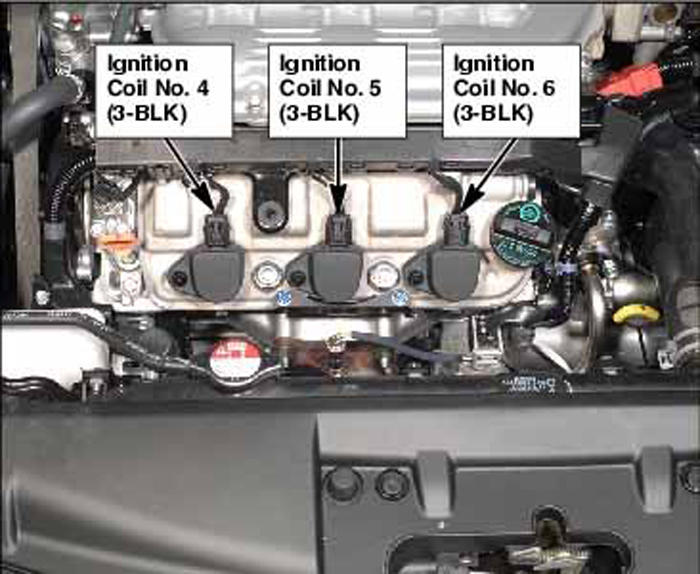

Fig 25: Top Of Engine (3.5L)

G00466647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

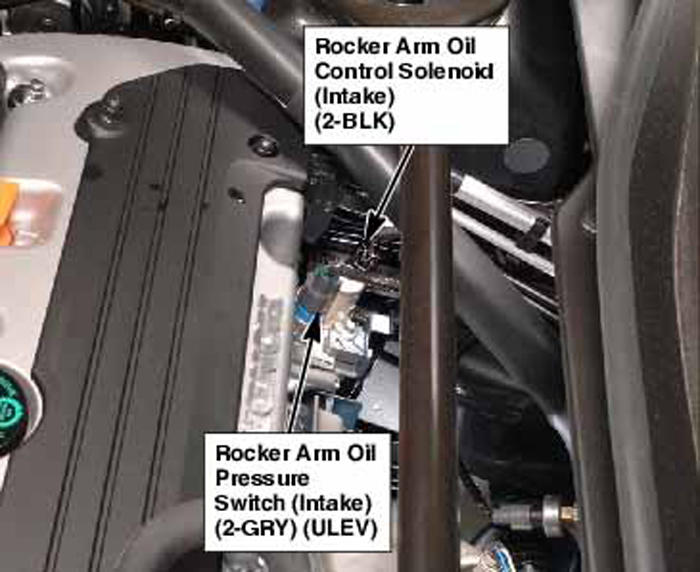

Fig 26: Right Side Of Engine (2.4L) (W/O SULEV/PZEV)

G00466648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

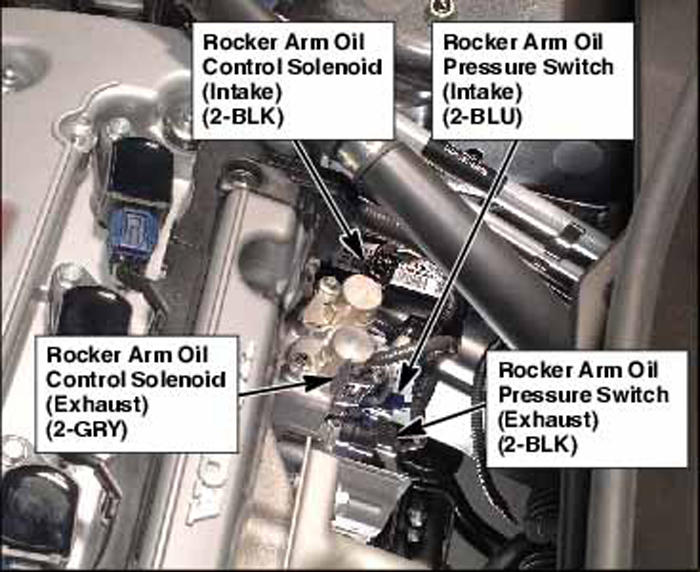

Fig 27: Right Side Of Engine (2.4L) (SULEV/PZEV)

G00466649

Courtesy of AMERICAN HONDA MOTOR CO., INC.

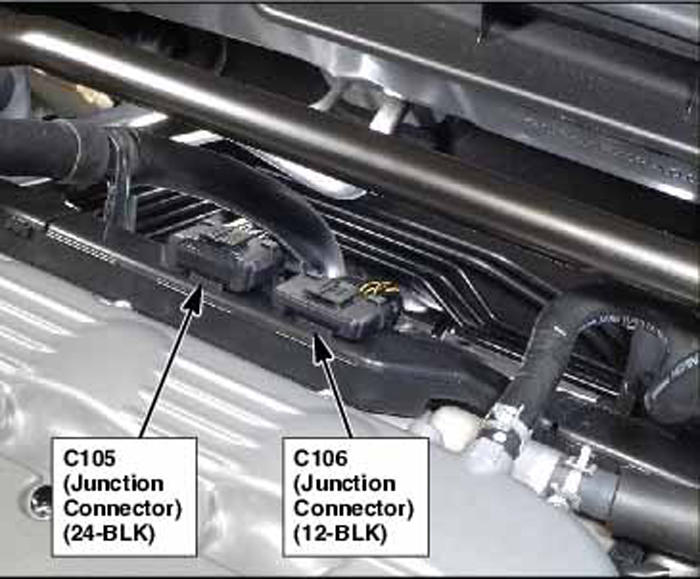

Fig 28: Right Rear Of Engine (3.5L)

G00466650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

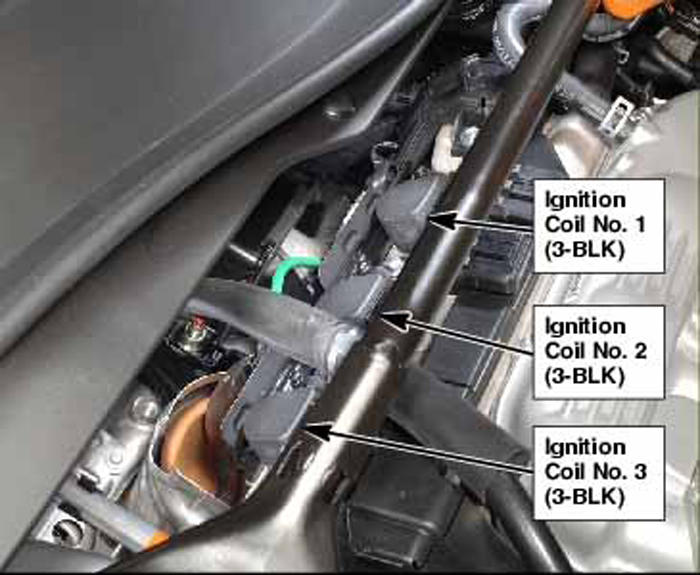

Fig 29: Right Side Of Engine (3.5L)

G00466651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

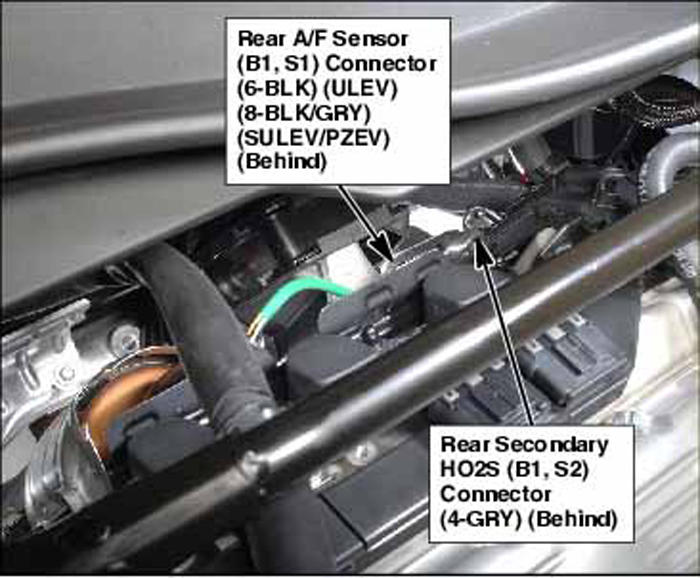

Fig 30: Right Side Of Engine (3.5L)

G00466652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

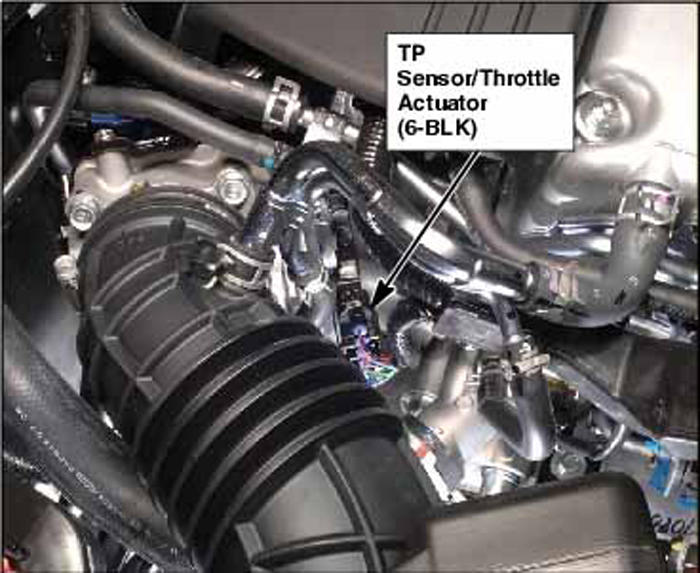

Fig 31: Rear Of Engine (2.4L)

G00466653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

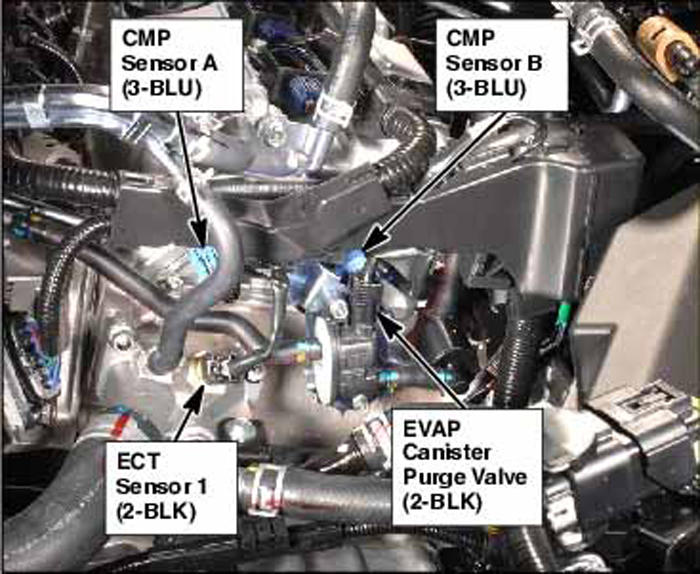

Fig 32: Rear Of Engine (2.4L)

G00466654

Courtesy of AMERICAN HONDA MOTOR CO., INC.

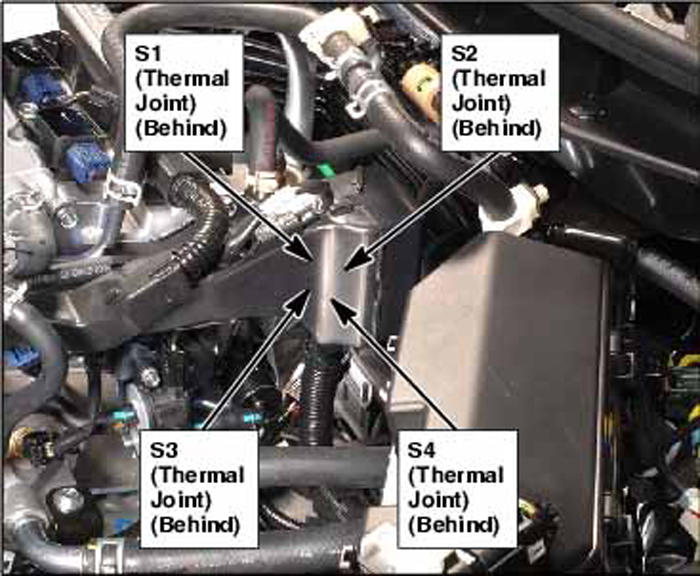

Fig 33: Rear Of Engine (2.4L)

G00466655

Courtesy of AMERICAN HONDA MOTOR CO., INC.

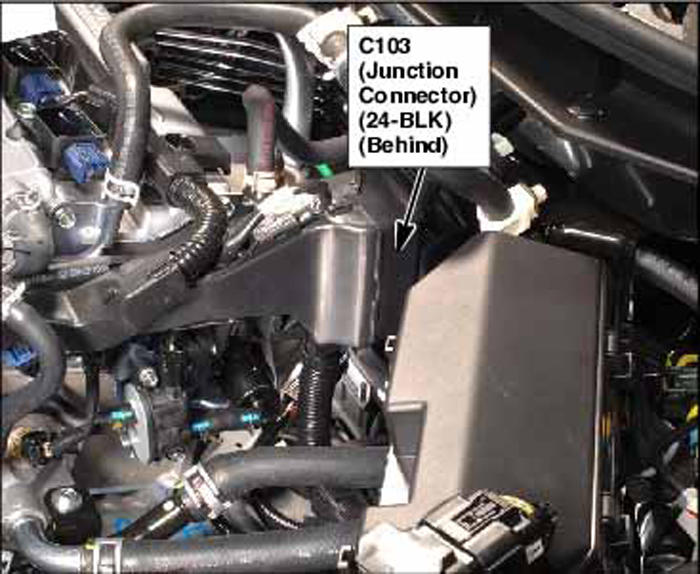

Fig 34: Rear Of Engine (2.4L)

G00466656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

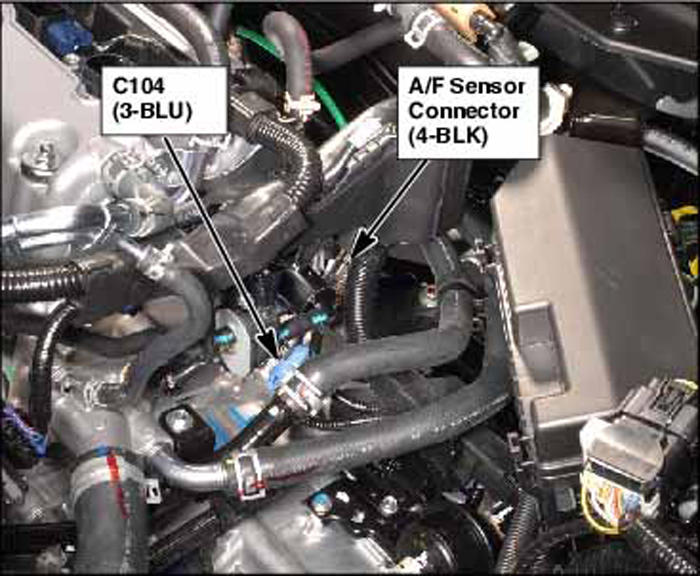

Fig 35: Rear Of Engine (2.4L)

G00466657

Courtesy of AMERICAN HONDA MOTOR CO., INC.

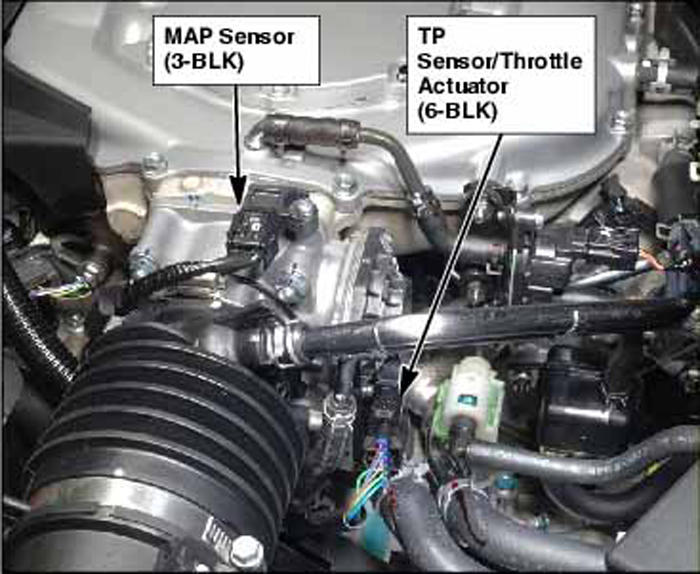

Fig 36: Rear Of Engine (3.5L)

G00466658

Courtesy of AMERICAN HONDA MOTOR CO., INC.

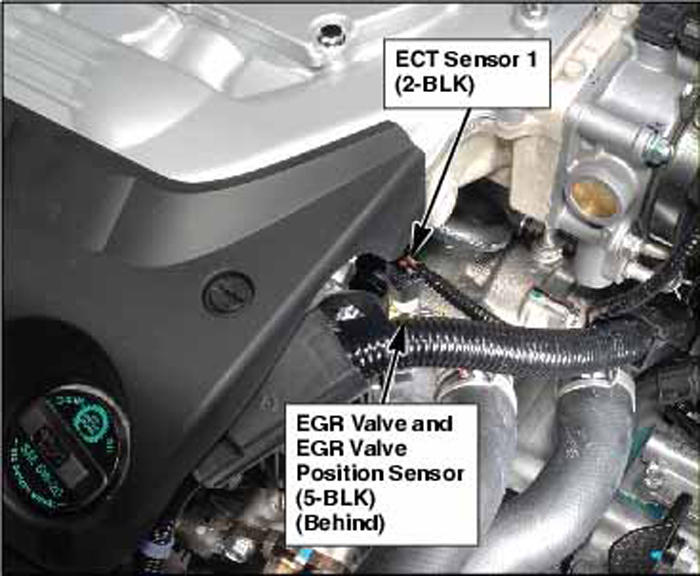

Fig 37: Left Rear Of Engine (3.5L)

G00466659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

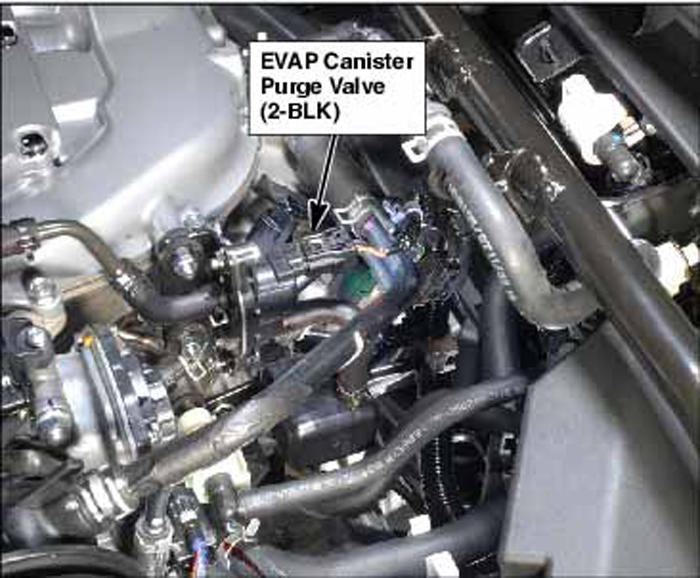

Fig 38: Right Rear Of Engine (3.5L)

G00466660

Courtesy of AMERICAN HONDA MOTOR CO., INC.

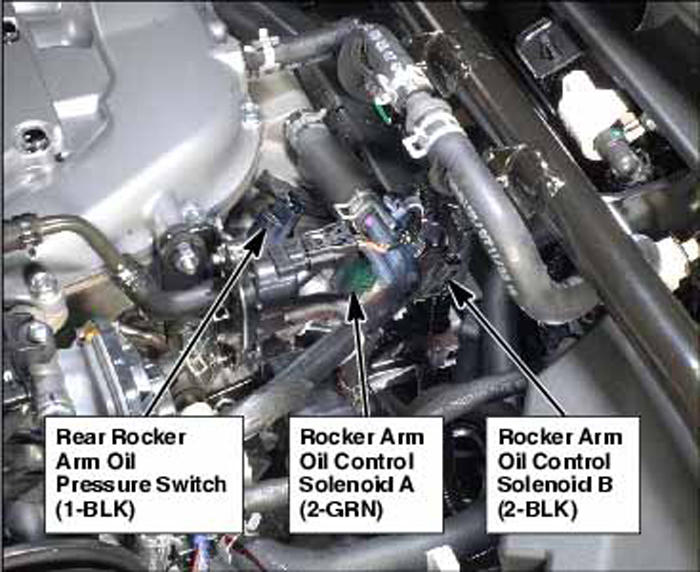

Fig 39: Rear Of Engine (3.5L)

G00466661

Courtesy of AMERICAN HONDA MOTOR CO., INC.

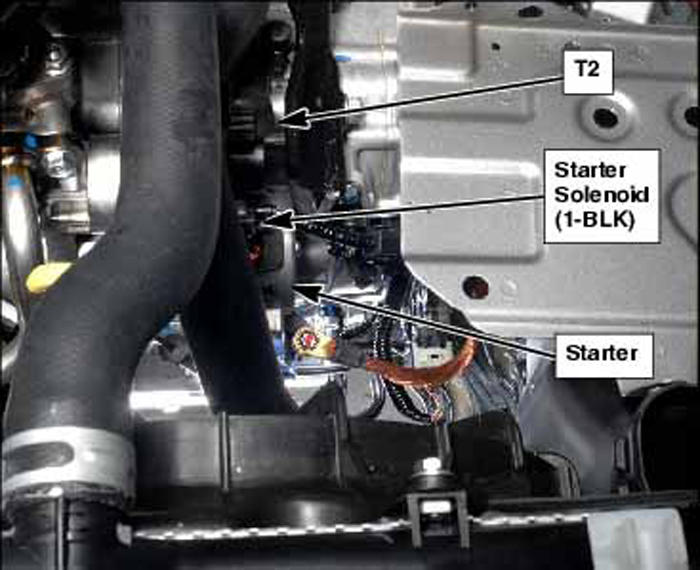

Fig 40: Left Rear Of Engine (3.5L) (A/T)

G00466662

Courtesy of AMERICAN HONDA MOTOR CO., INC.

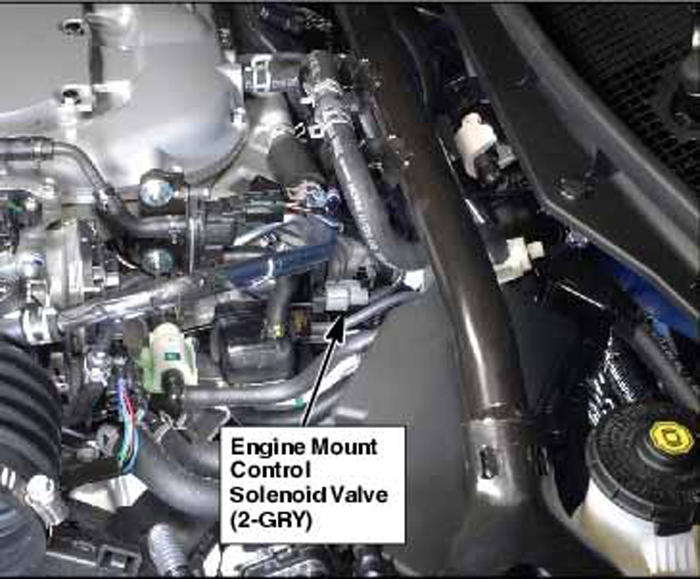

Fig 41: Right Rear Of Engine (3.5L) (M/T)

G00466663

Courtesy of AMERICAN HONDA MOTOR CO., INC.

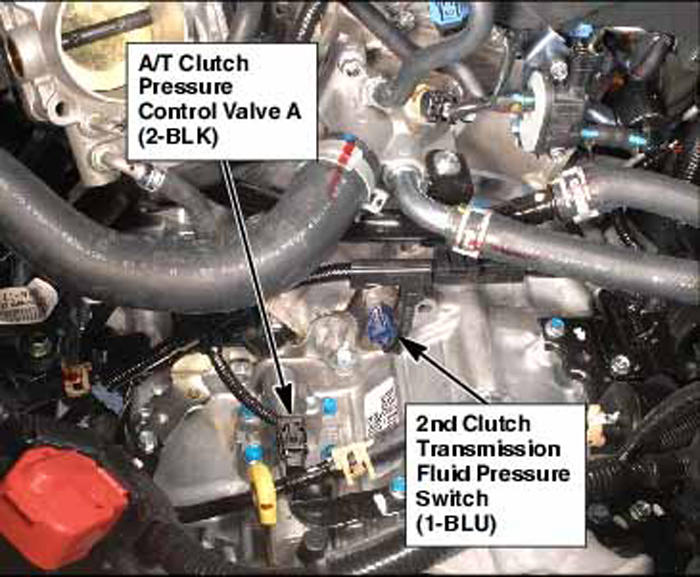

Fig 42: Top Of Automatic Transmission (2.4L)

G00466664

Courtesy of AMERICAN HONDA MOTOR CO., INC.

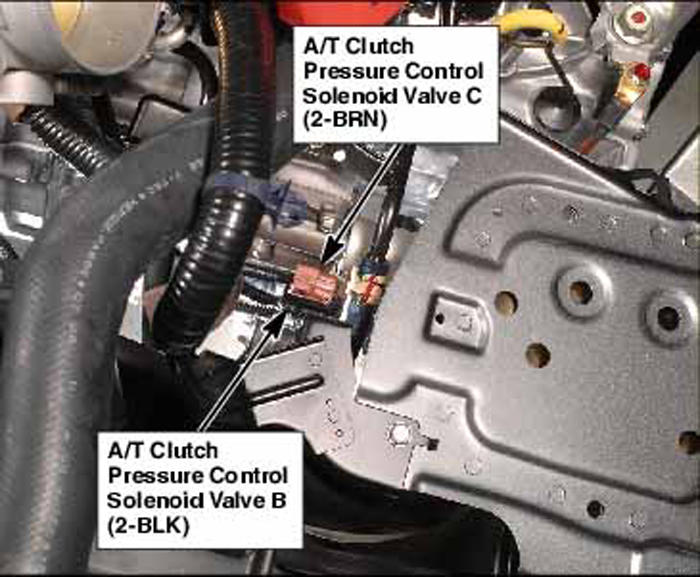

Fig 43: Left Side Of Automatic Transmission (2.4L)

G00466665

Courtesy of AMERICAN HONDA MOTOR CO., INC.

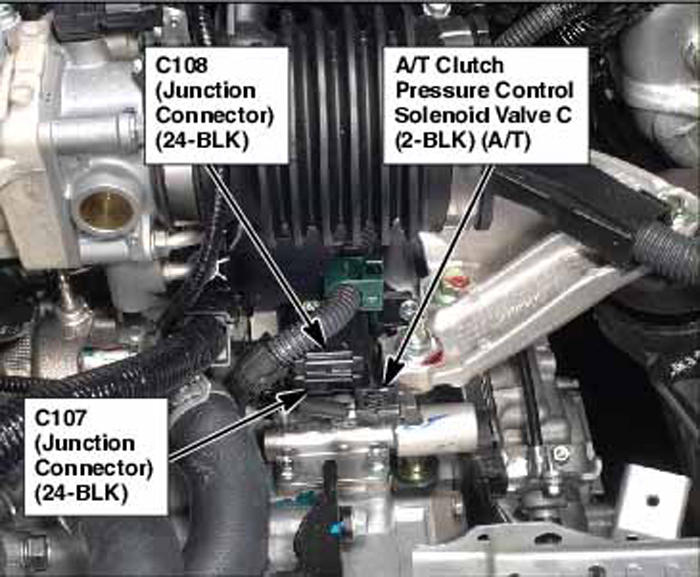

Fig 44: Automatic Transmission Housing (3.5L)

G00466666

Courtesy of AMERICAN HONDA MOTOR CO., INC.

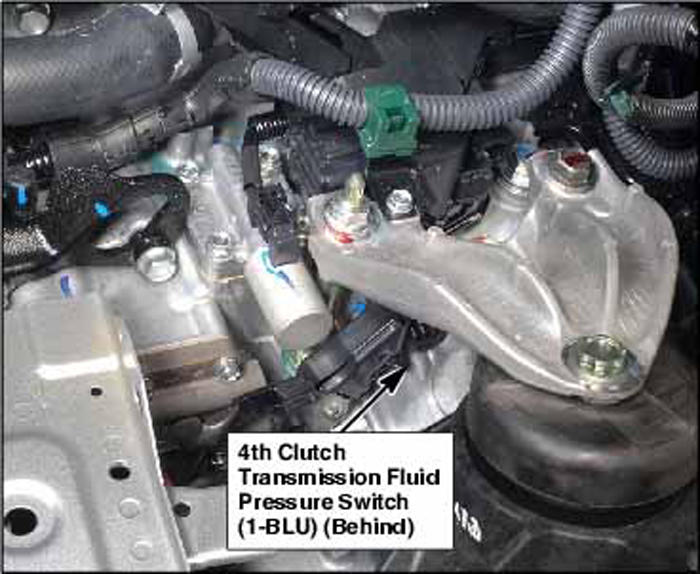

Fig 45: Automatic Transmission Housing (3.5L)

G00466667

Courtesy of AMERICAN HONDA MOTOR CO., INC.

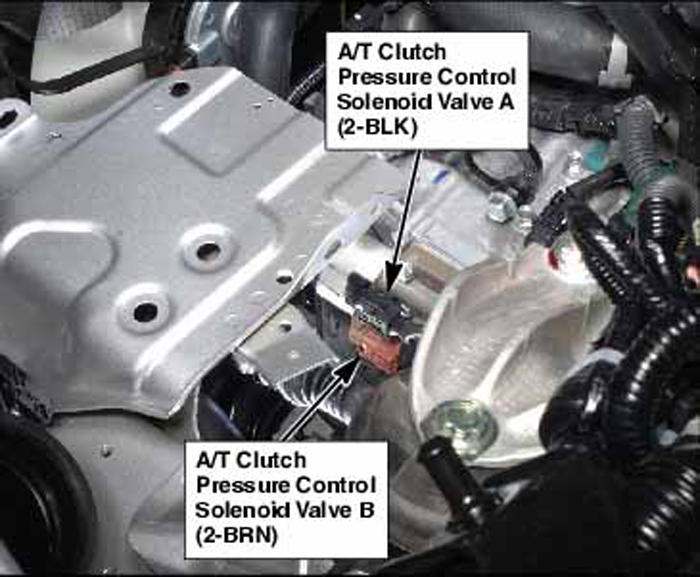

Fig 46: Automatic Transmission Housing (3.5L)

G00466668

Courtesy of AMERICAN HONDA MOTOR CO., INC.

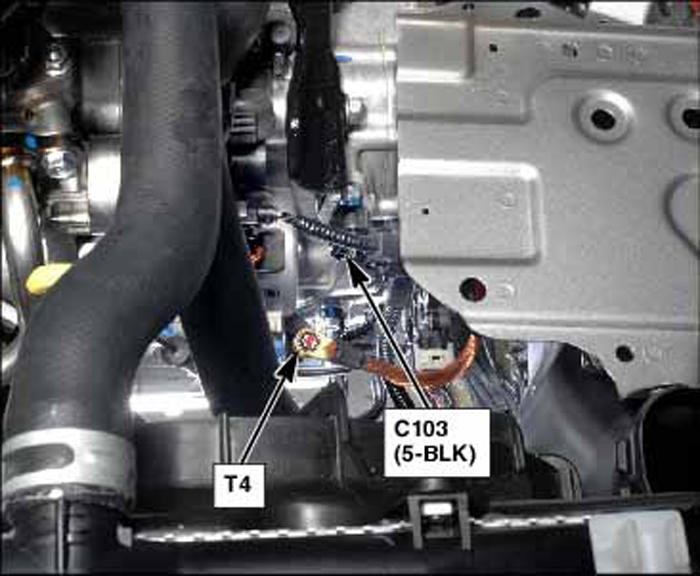

Fig 47: Bottom Of Automatic Transmission (3.5L)

G00466669

Courtesy of AMERICAN HONDA MOTOR CO., INC.

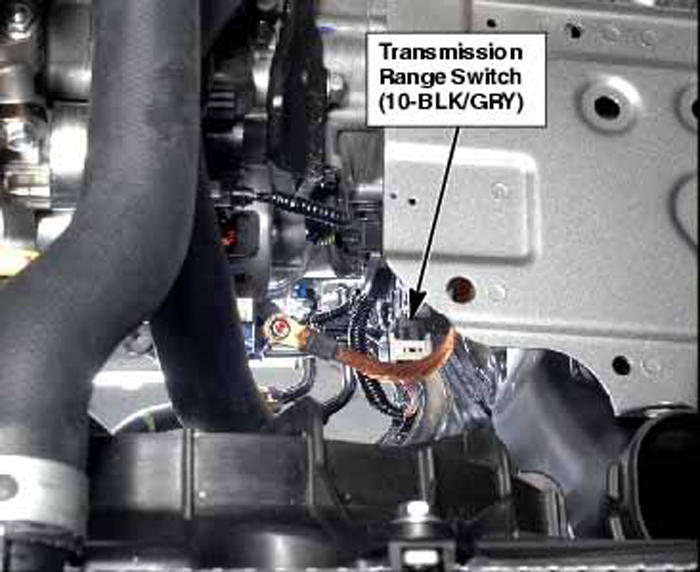

Fig 48: Bottom Of Automatic Transmission (3.5L)

G00466670

Courtesy of AMERICAN HONDA MOTOR CO., INC.

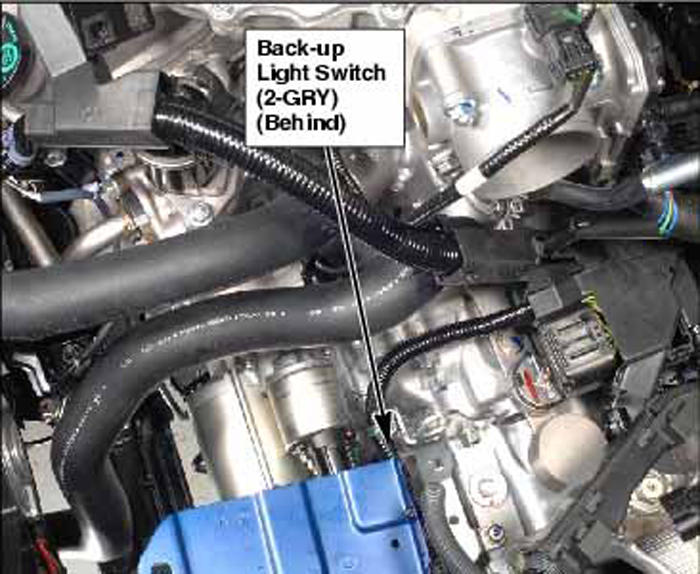

Fig 49: Top Of Manual Transmission Housing (3.5L)

G00466672

Courtesy of AMERICAN HONDA MOTOR CO., INC.

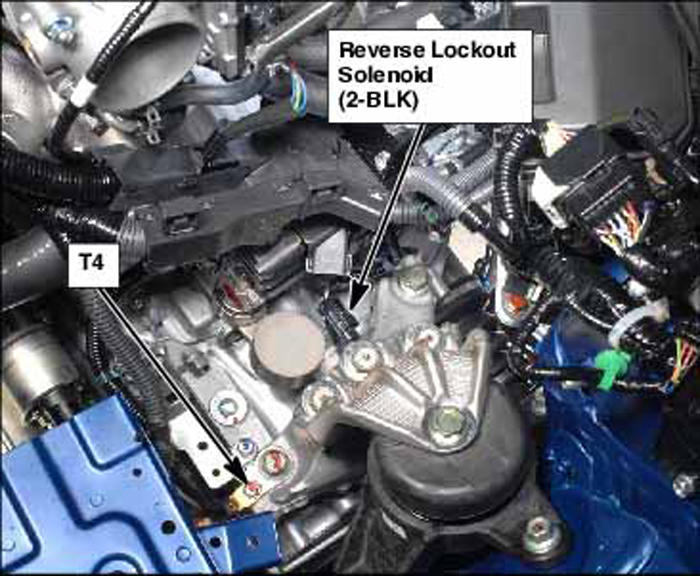

Fig 50: Top Of Manual Transmission Housing (3.5L)

G00466673

Courtesy of AMERICAN HONDA MOTOR CO., INC.

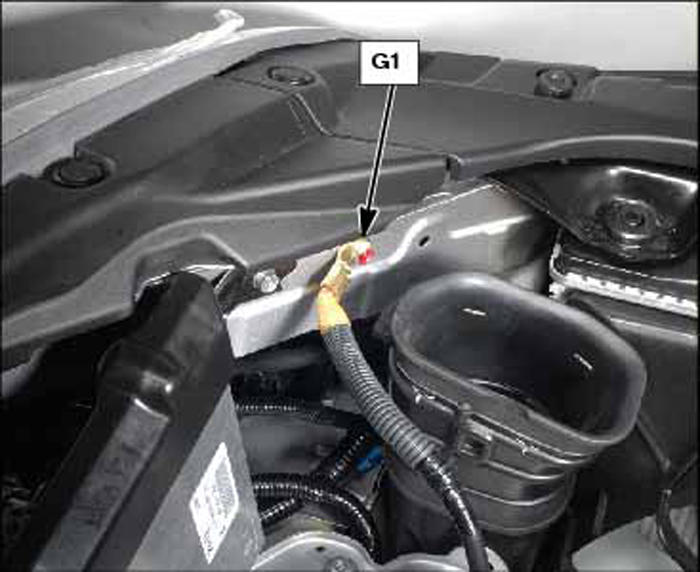

Fig 51: Left Front Of Engine Compartment

G00466674

Courtesy of AMERICAN HONDA MOTOR CO., INC.

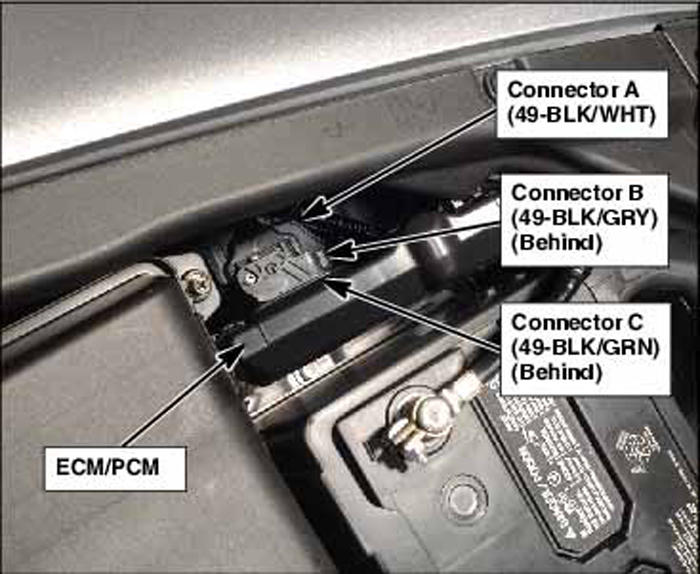

Fig 52: Left Front Of Engine Compartment

G00466676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

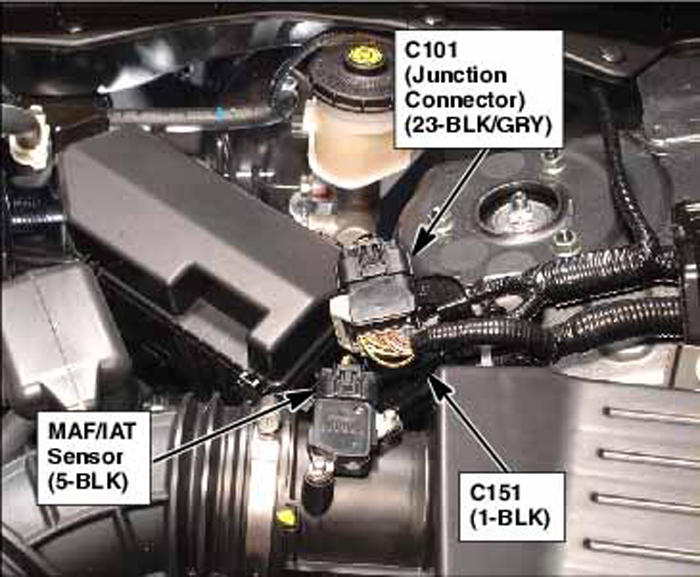

Fig 53: Left Side Of Engine Compartment (2.4L)

G00466677

Courtesy of AMERICAN HONDA MOTOR CO., INC.

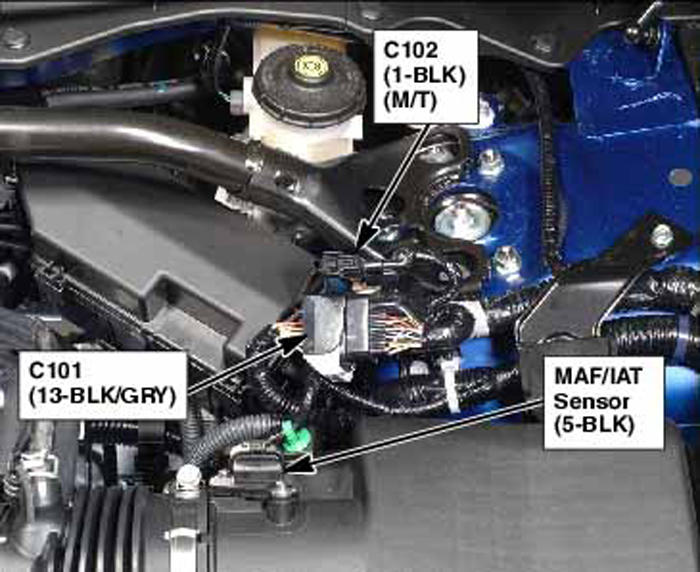

Fig 54: Left Rear Of Engine Compartment (3.5L)

G00466678

Courtesy of AMERICAN HONDA MOTOR CO., INC.

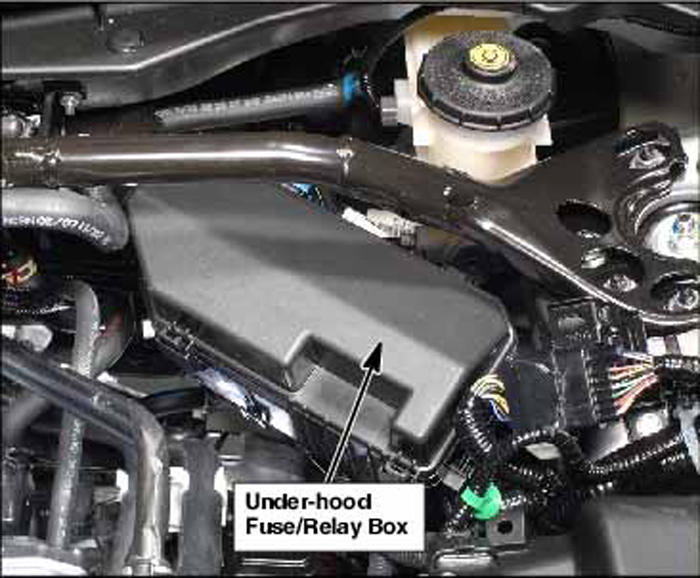

Fig 55: Left Rear Of Engine Compartment

G00466679

Courtesy of AMERICAN HONDA MOTOR CO., INC.

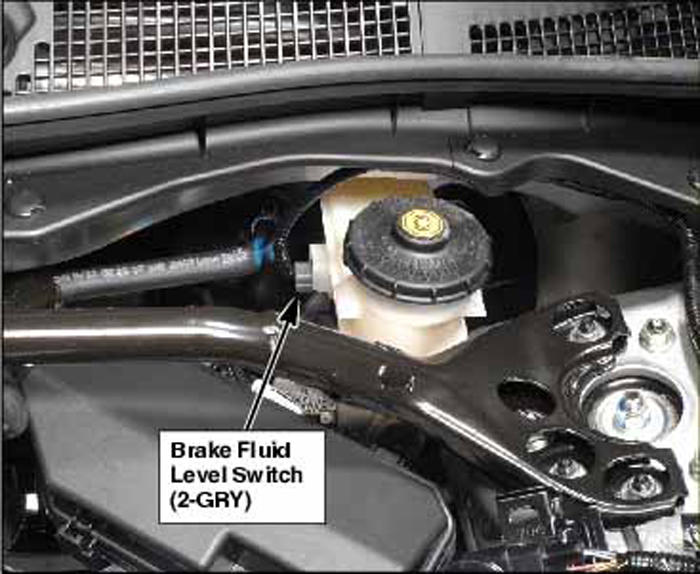

Fig 56: Left Rear Of Engine Compartment

G00466680

Courtesy of AMERICAN HONDA MOTOR CO., INC.

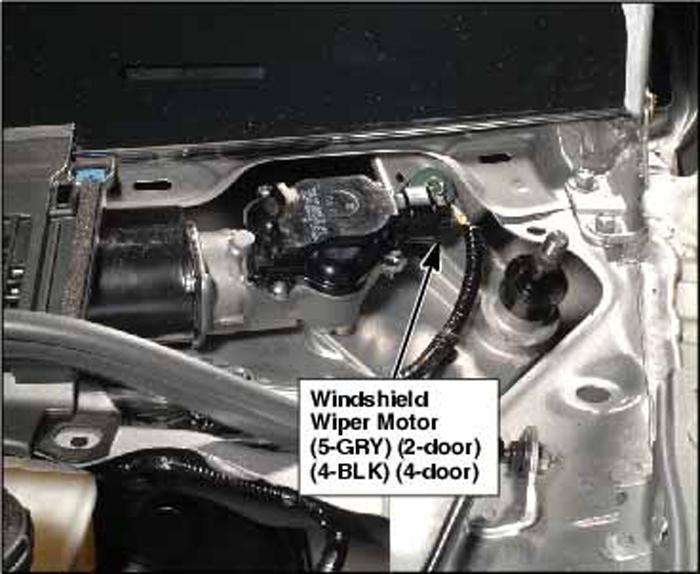

Fig 57: Under Left Side Cowl Cover

G00466681

Courtesy of AMERICAN HONDA MOTOR CO., INC.

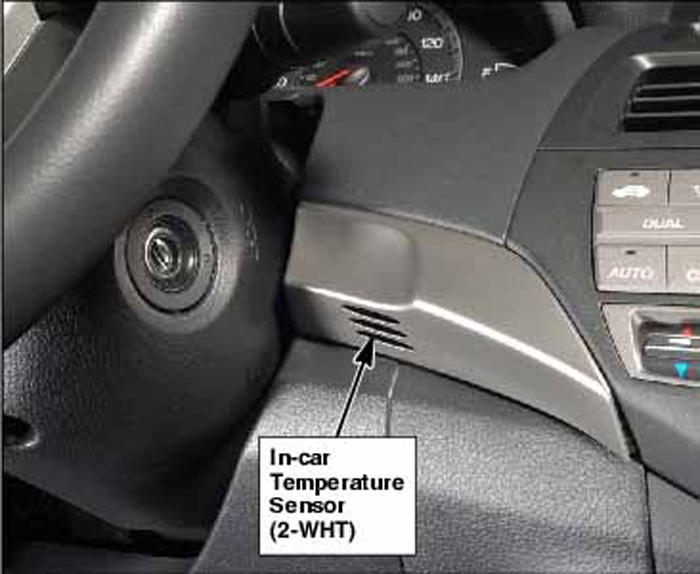

Fig 58: Left Side Of Dash

G00466682

Courtesy of AMERICAN HONDA MOTOR CO., INC.

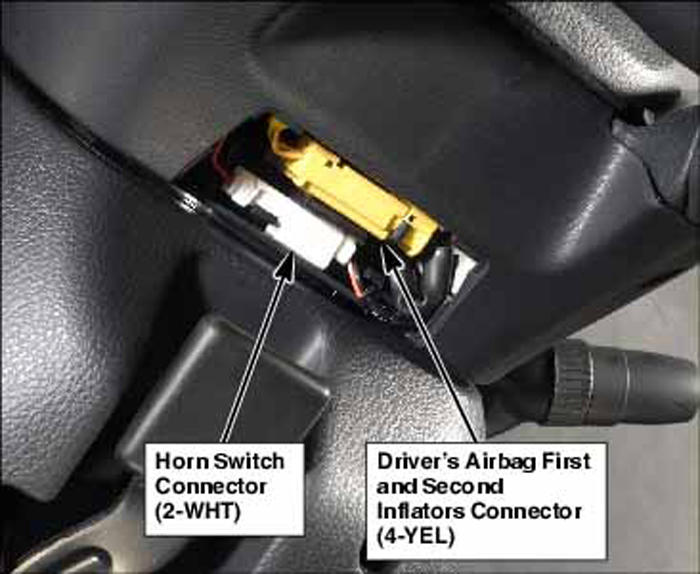

Fig 59: Steering Column

G00466683

Courtesy of AMERICAN HONDA MOTOR CO., INC.

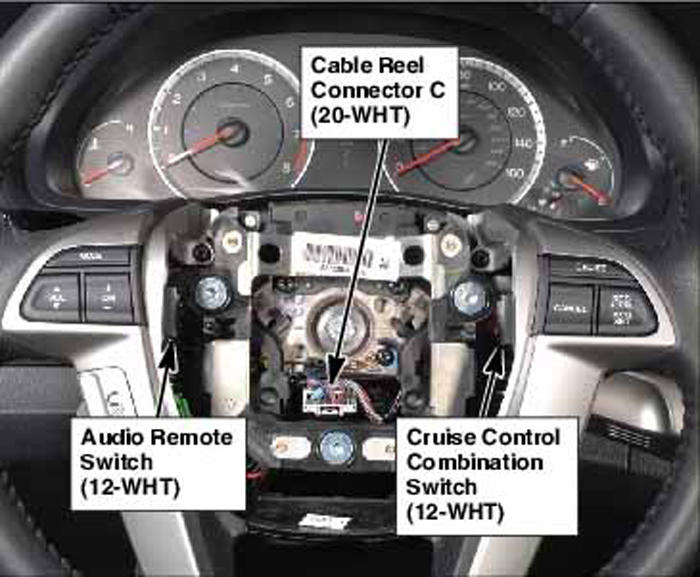

Fig 60: Steering Wheel

G00466684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

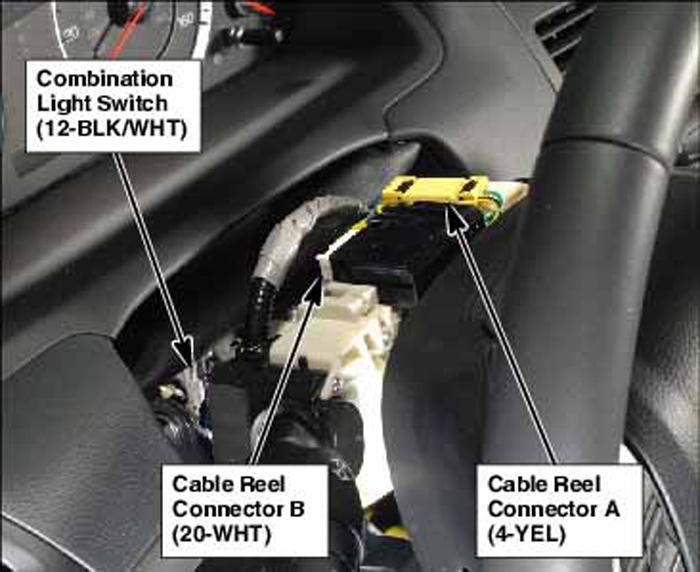

Fig 61: Steering Column

G00466685

Courtesy of AMERICAN HONDA MOTOR CO., INC.

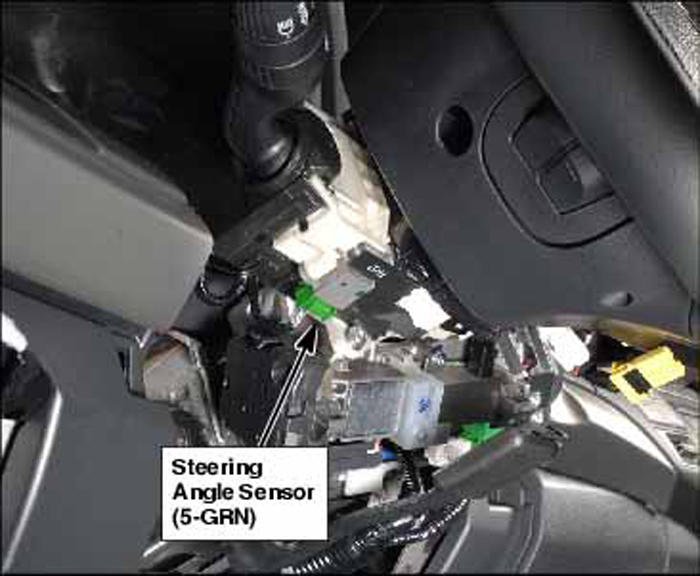

Fig 62: Steering Column

G00466686

Courtesy of AMERICAN HONDA MOTOR CO., INC.

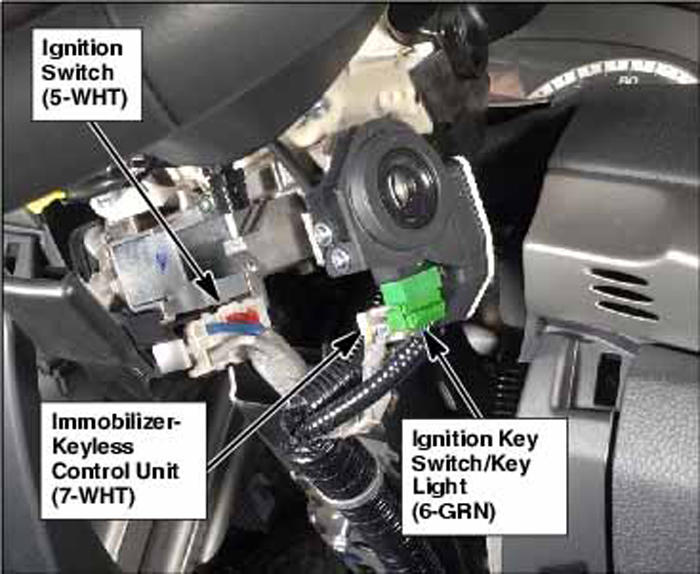

Fig 63: Steering Column

G00466687

Courtesy of AMERICAN HONDA MOTOR CO., INC.

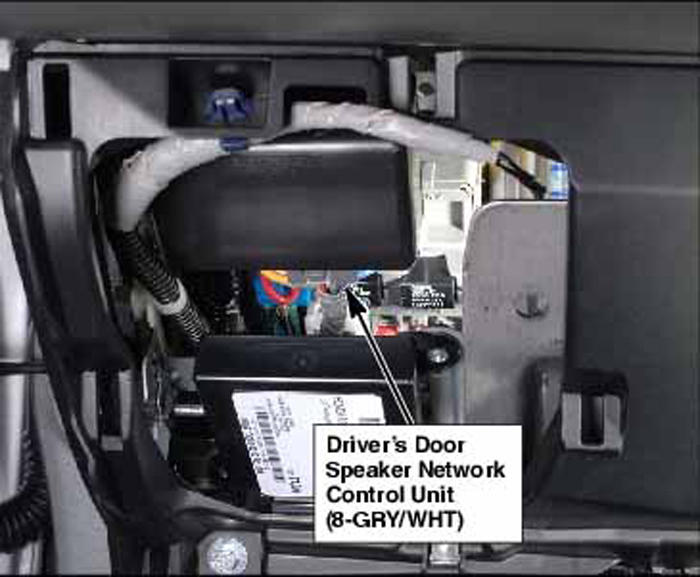

Fig 64: Left Side Of Dash

G00466688

Courtesy of AMERICAN HONDA MOTOR CO., INC.

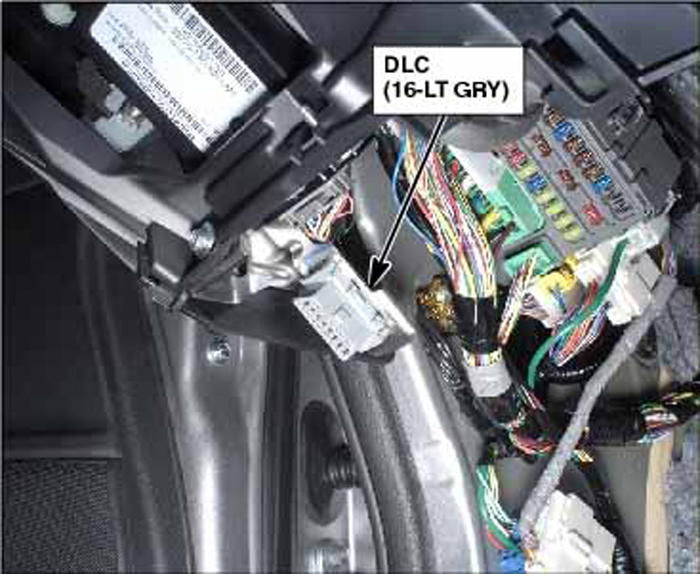

Fig 65: Left Side Of Dash

G00466689

Courtesy of AMERICAN HONDA MOTOR CO., INC.

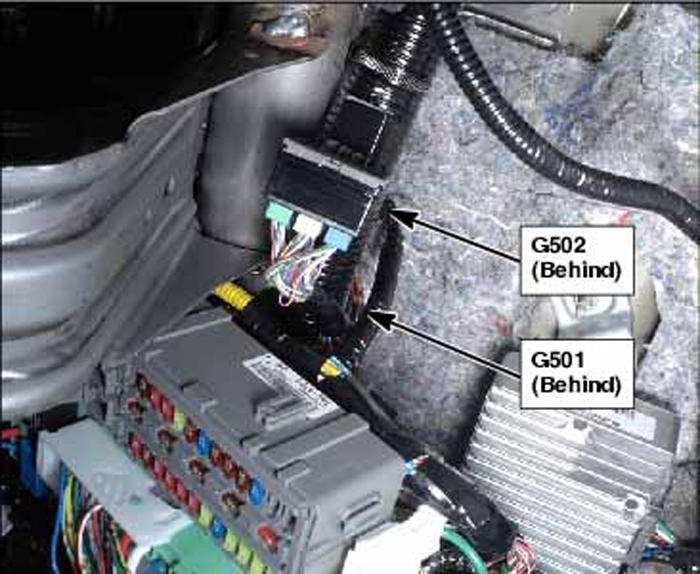

Fig 66: Left Side Of Dash

G00466690

Courtesy of AMERICAN HONDA MOTOR CO., INC.

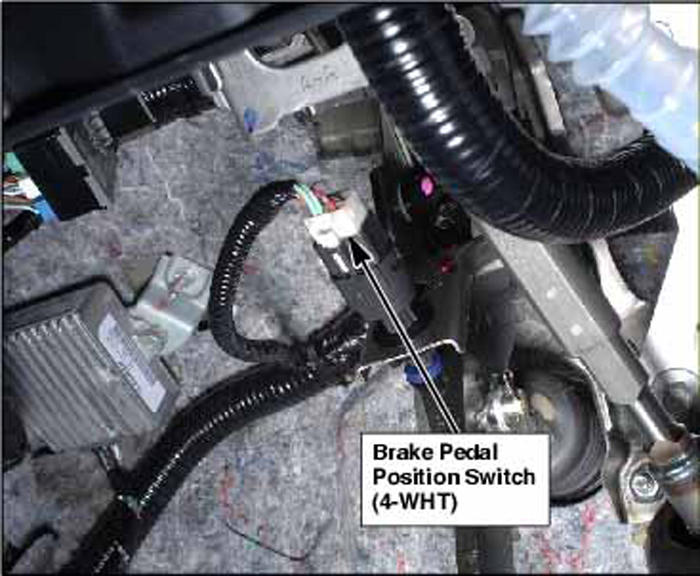

Fig 67: Left Side Of Dash

G00466691

Courtesy of AMERICAN HONDA MOTOR CO., INC.

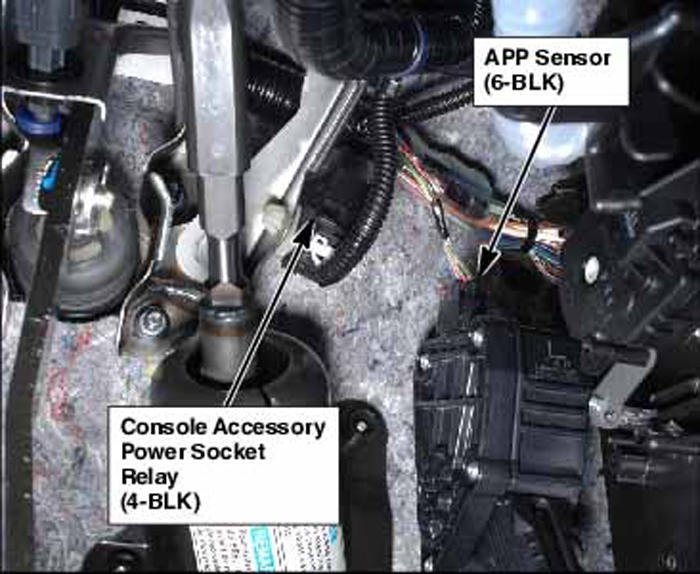

Fig 68: Left Side Of Dash

G00466692

Courtesy of AMERICAN HONDA MOTOR CO., INC.

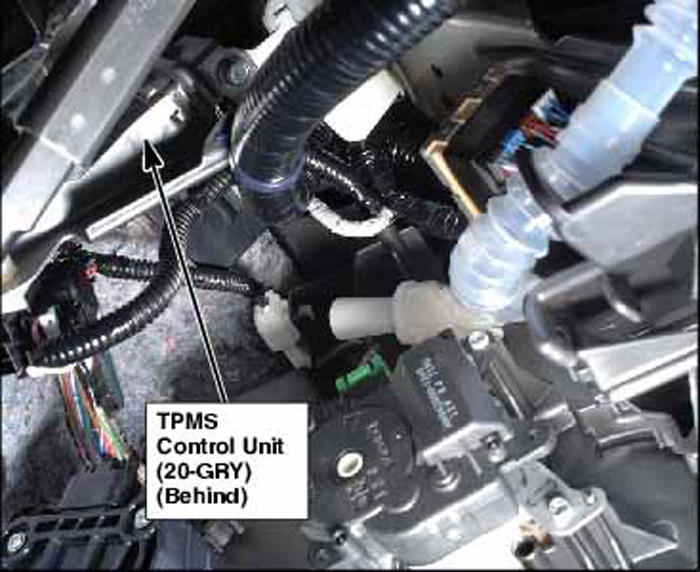

Fig 69: Left Side Of Dash

G00466693

Courtesy of AMERICAN HONDA MOTOR CO., INC.

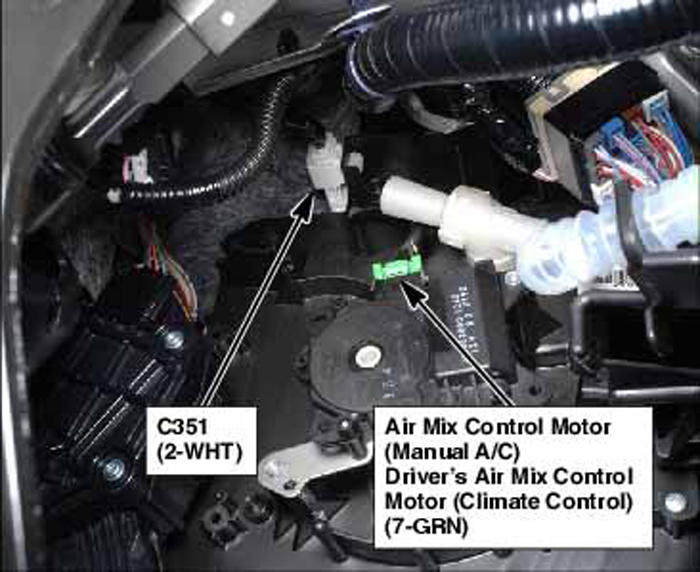

Fig 70: Left Side Of Dash

G00466694

Courtesy of AMERICAN HONDA MOTOR CO., INC.

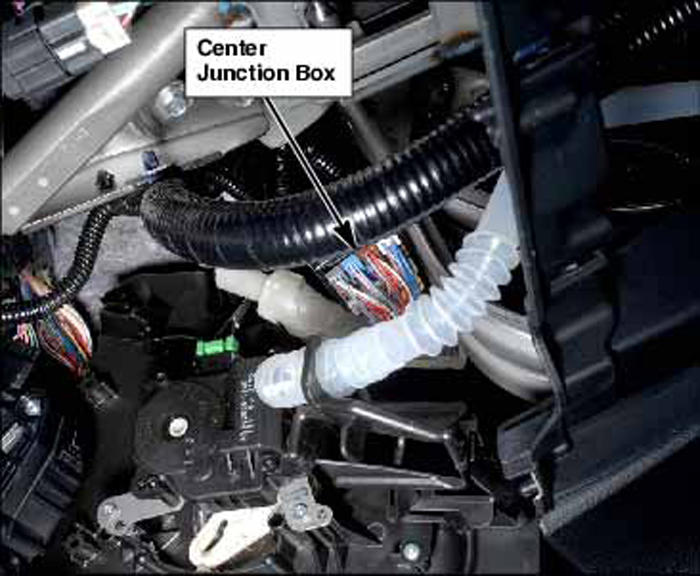

Fig 71: Left Side Of Dash

G00466695

Courtesy of AMERICAN HONDA MOTOR CO., INC.

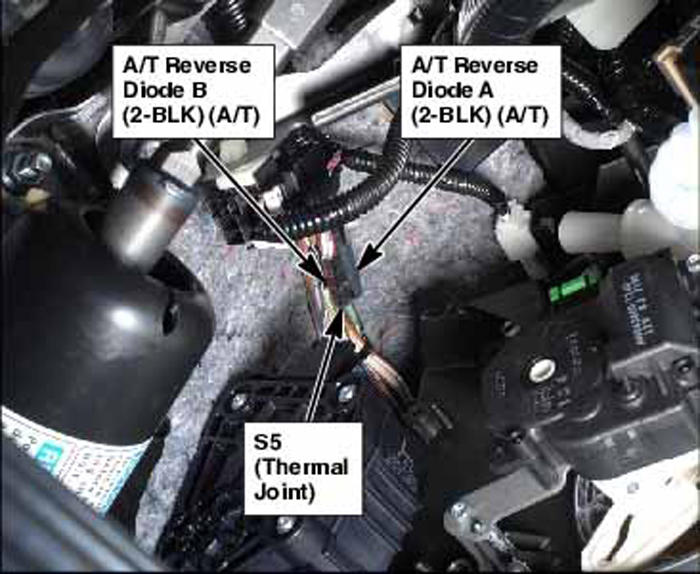

Fig 72: Left Side Of Dash

G00466696

Courtesy of AMERICAN HONDA MOTOR CO., INC.

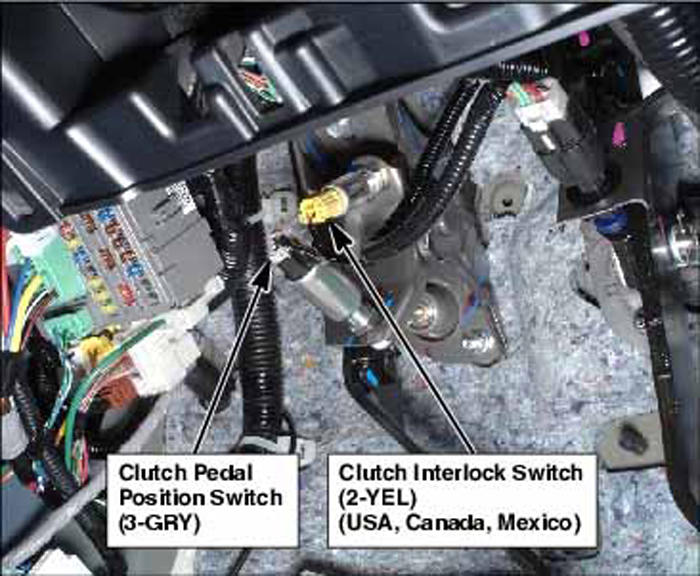

Fig 73: Left Side Of Dash

G00466697

Courtesy of AMERICAN HONDA MOTOR CO., INC.

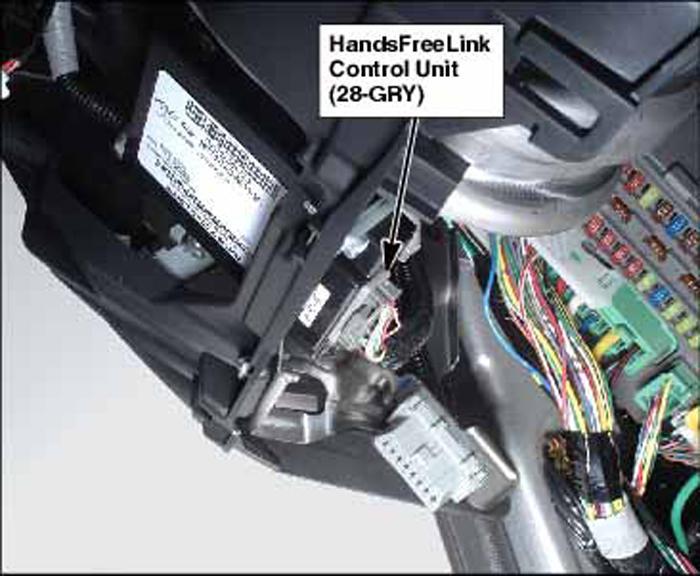

Fig 74: Left Side Of Dash

G00466698

Courtesy of AMERICAN HONDA MOTOR CO., INC.

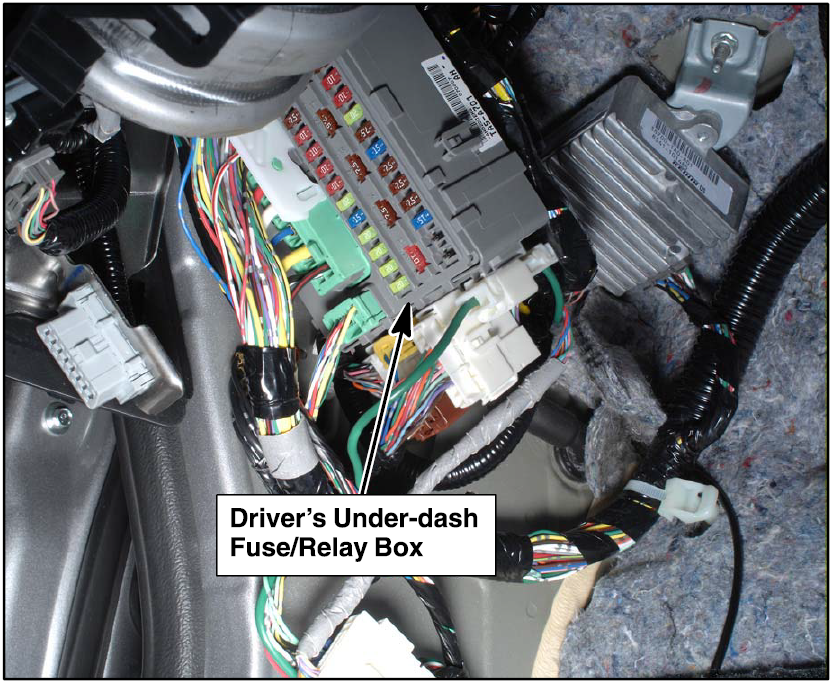

Fig 75: Left Kick Panel

G00466699

Courtesy of AMERICAN HONDA MOTOR CO., INC.

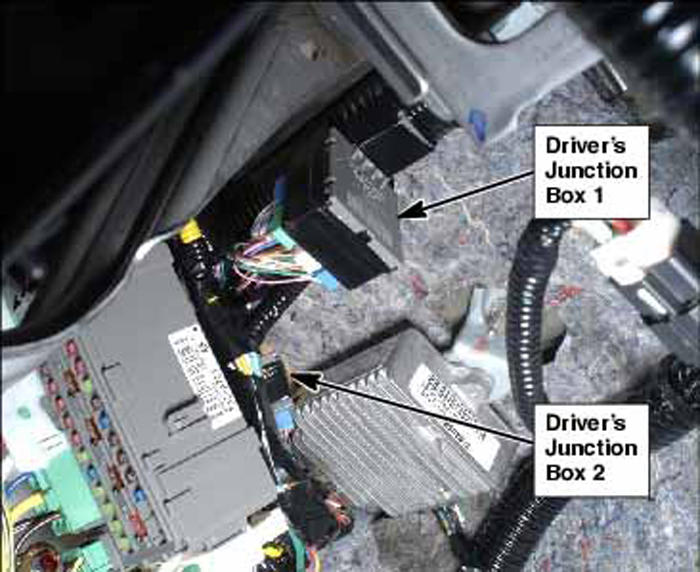

Fig 76: Left Kick Panel

G00466700

Courtesy of AMERICAN HONDA MOTOR CO., INC.

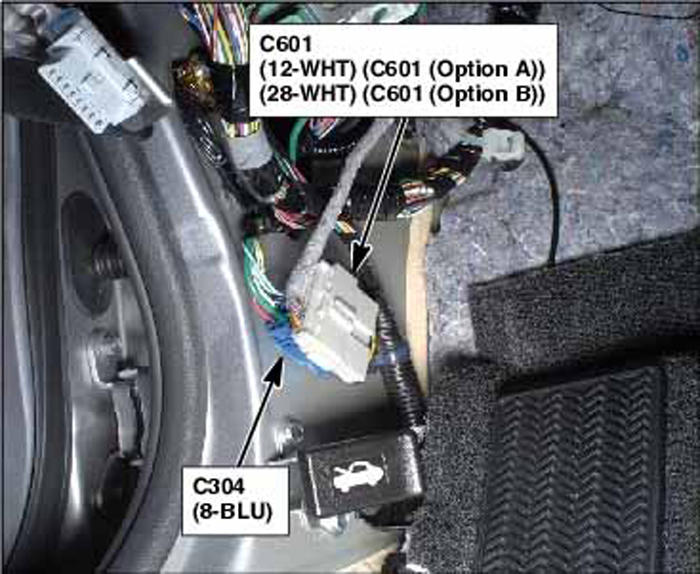

Fig 77: Left Kick Panel

G00466701

Courtesy of AMERICAN HONDA MOTOR CO., INC.

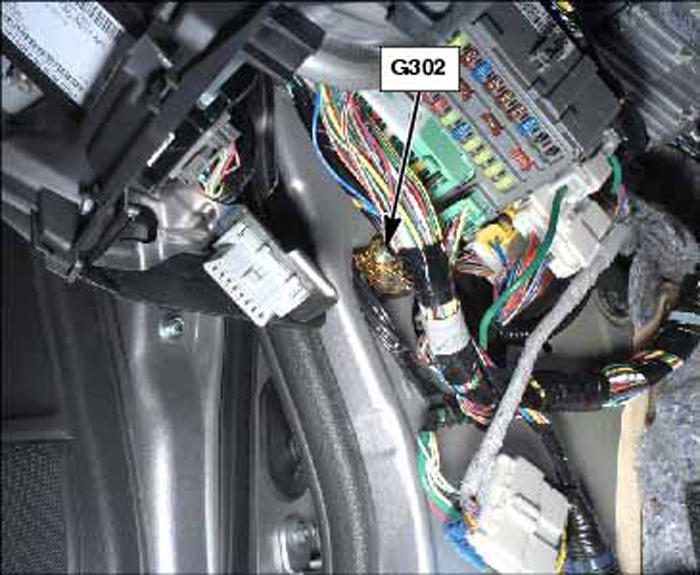

Fig 78: Left Kick Panel

G00466702

Courtesy of AMERICAN HONDA MOTOR CO., INC.

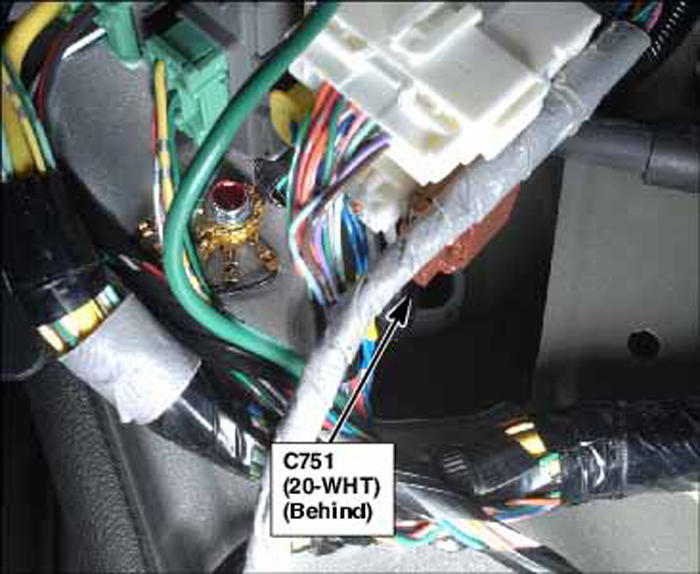

Fig 79: Left Kick Panel

G00466703

Courtesy of AMERICAN HONDA MOTOR CO., INC.

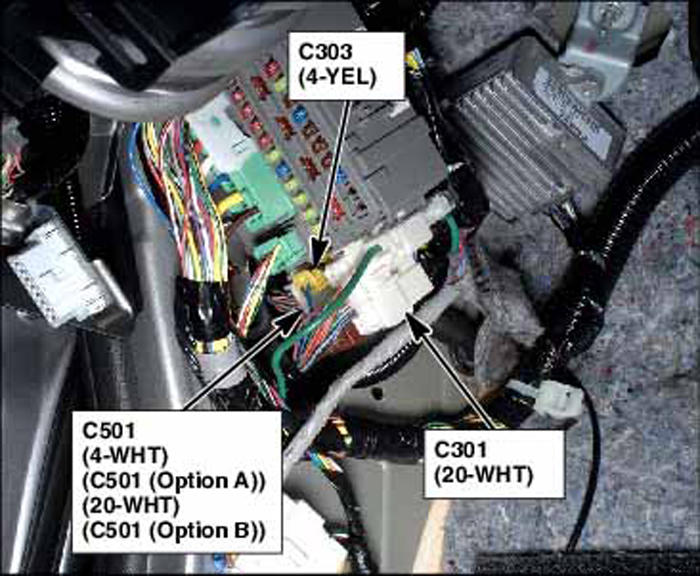

Fig 80: Left Kick Panel

G00466704

Courtesy of AMERICAN HONDA MOTOR CO., INC.

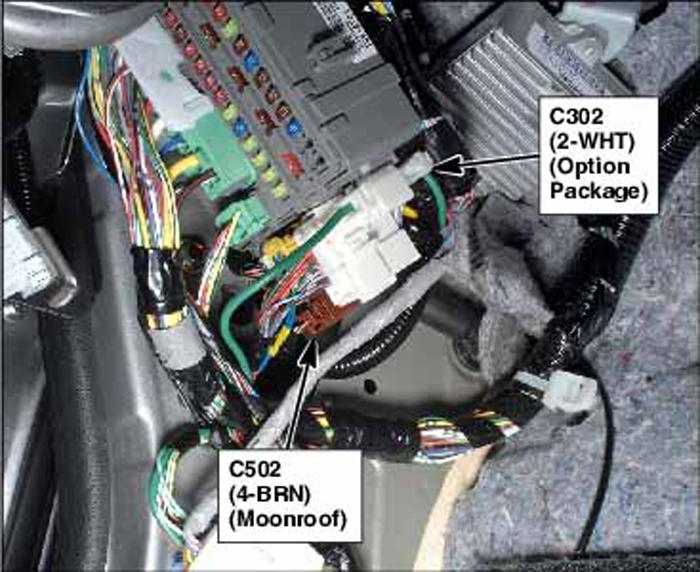

Fig 81: Left Kick Panel

G00466705

Courtesy of AMERICAN HONDA MOTOR CO., INC.

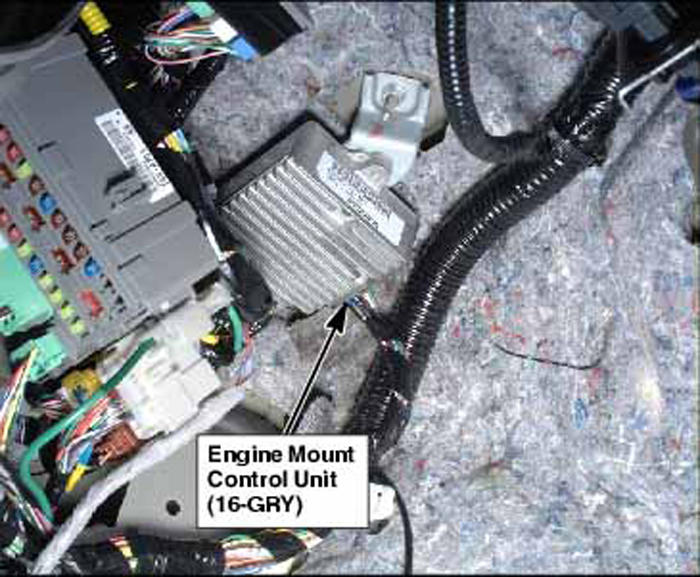

Fig 82: Left Kick Panel

G00466706

Courtesy of AMERICAN HONDA MOTOR CO., INC.

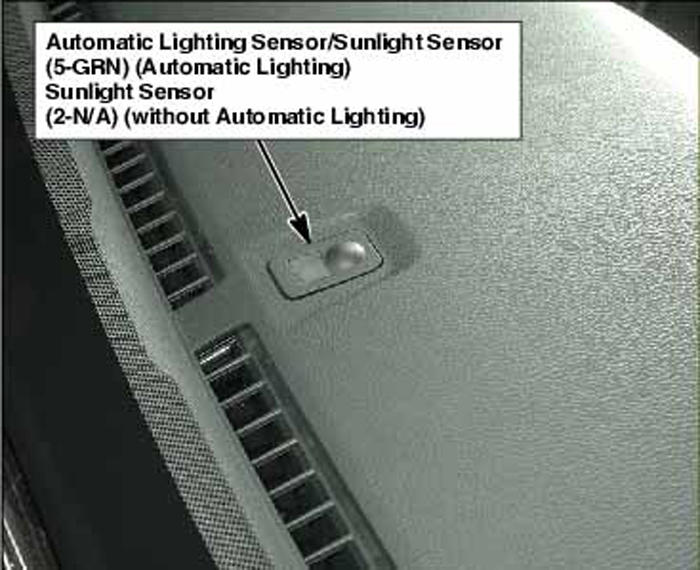

Fig 83: Middle Of Dash

G00466707

Courtesy of AMERICAN HONDA MOTOR CO., INC.

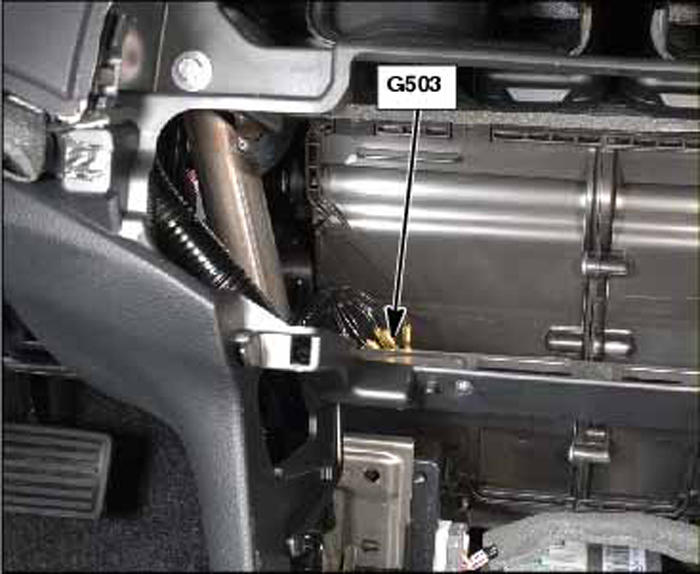

Fig 84: Middle Of Dash

G00466708

Courtesy of AMERICAN HONDA MOTOR CO., INC.

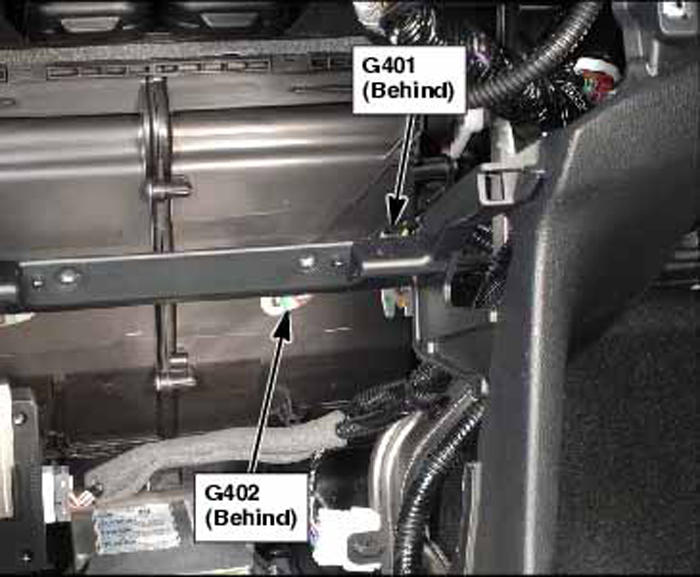

Fig 85: Middle Of Dash

G00466709

Courtesy of AMERICAN HONDA MOTOR CO., INC.

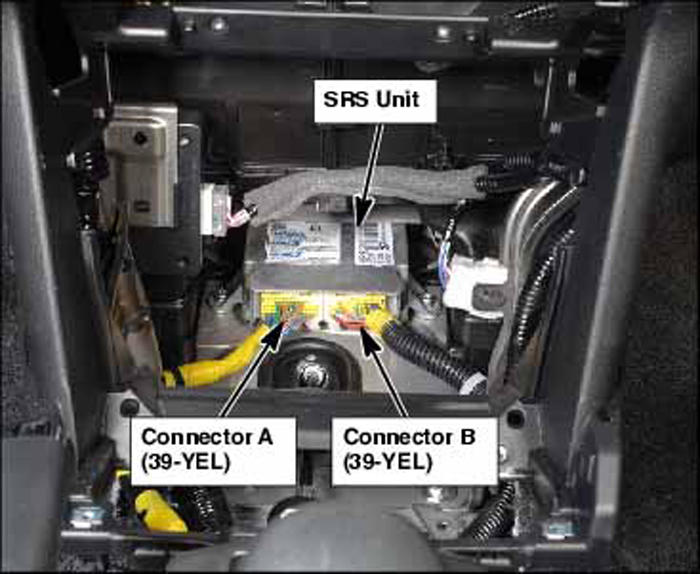

Fig 86: Middle Of Dash

G00466710

Courtesy of AMERICAN HONDA MOTOR CO., INC.

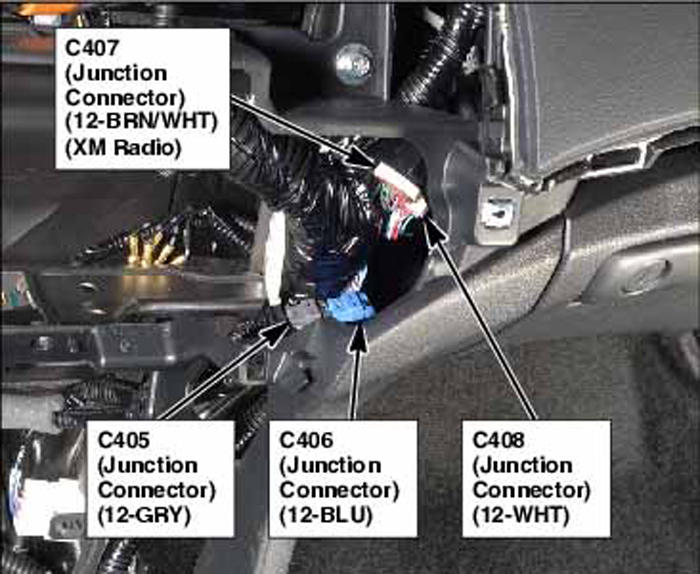

Fig 87: Middle Of Dash

G00466711

Courtesy of AMERICAN HONDA MOTOR CO., INC.

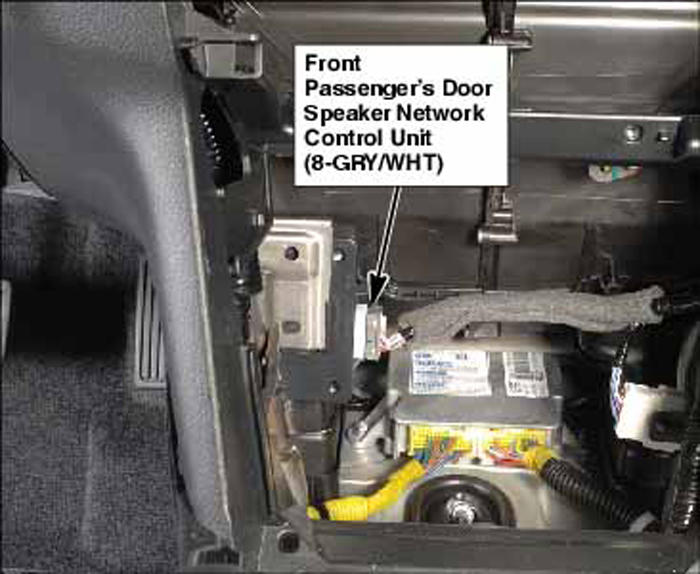

Fig 88: Middle Of Dash

G00466712

Courtesy of AMERICAN HONDA MOTOR CO., INC.

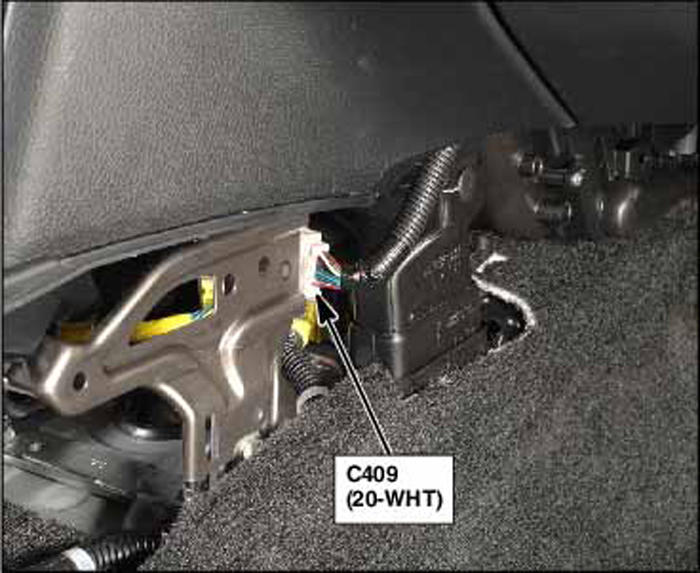

Fig 89: Middle Of Dash

G00466713

Courtesy of AMERICAN HONDA MOTOR CO., INC.

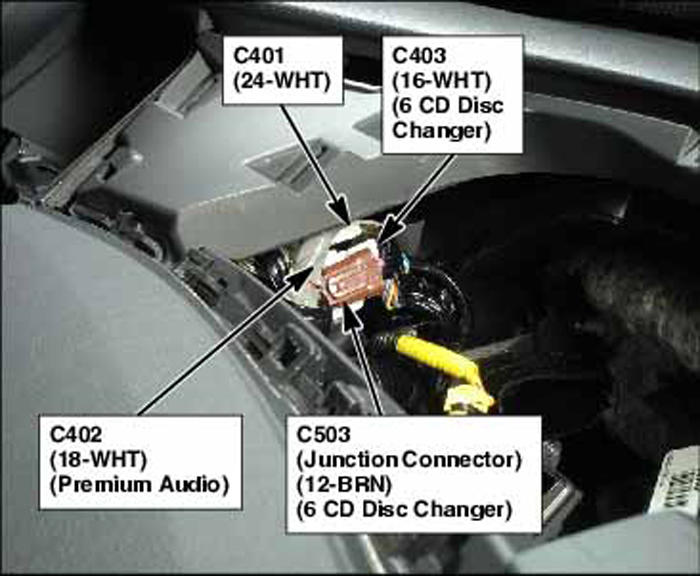

Fig 90: Right Side Of Dash

G00466714

Courtesy of AMERICAN HONDA MOTOR CO., INC.

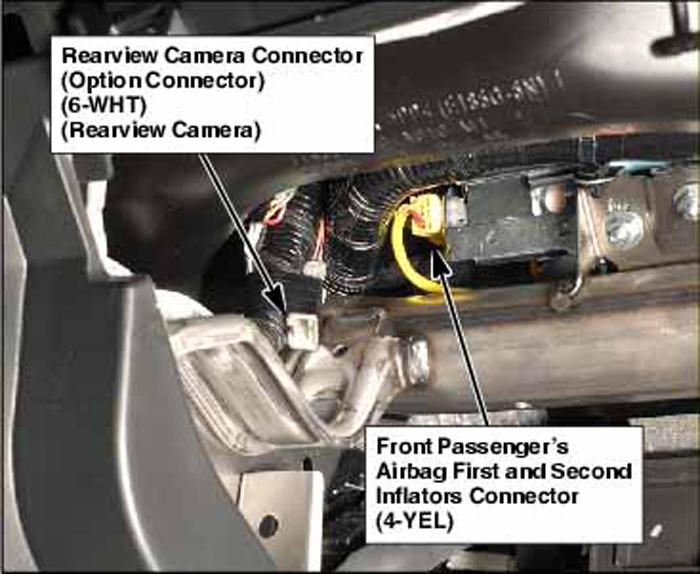

Fig 91: Right Side Of Dash

G00466715

Courtesy of AMERICAN HONDA MOTOR CO., INC.

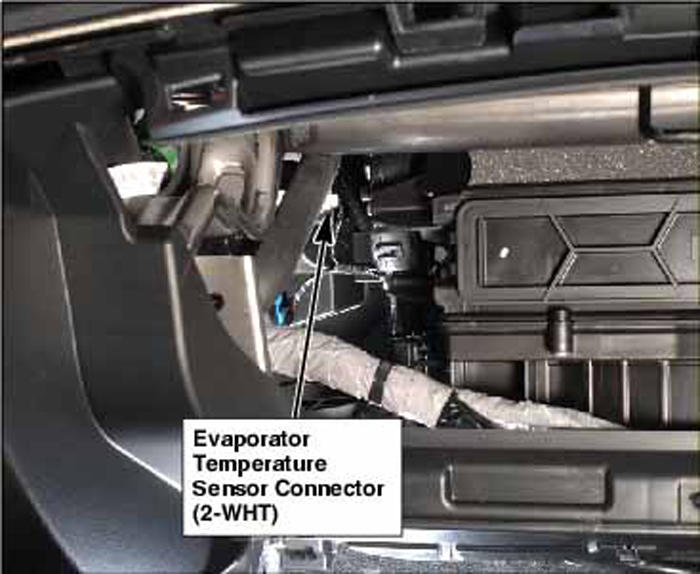

Fig 92: Right Side Of Dash

G00466716

Courtesy of AMERICAN HONDA MOTOR CO., INC.

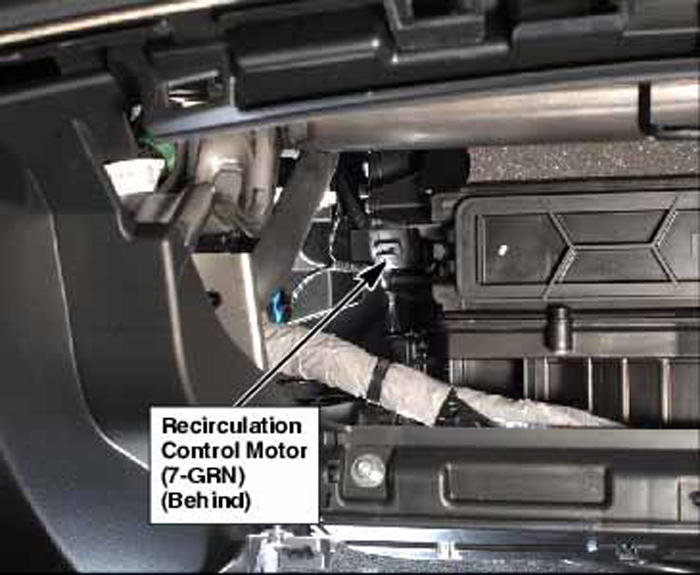

Fig 93: Right Side Of Dash

G00466717

Courtesy of AMERICAN HONDA MOTOR CO., INC.

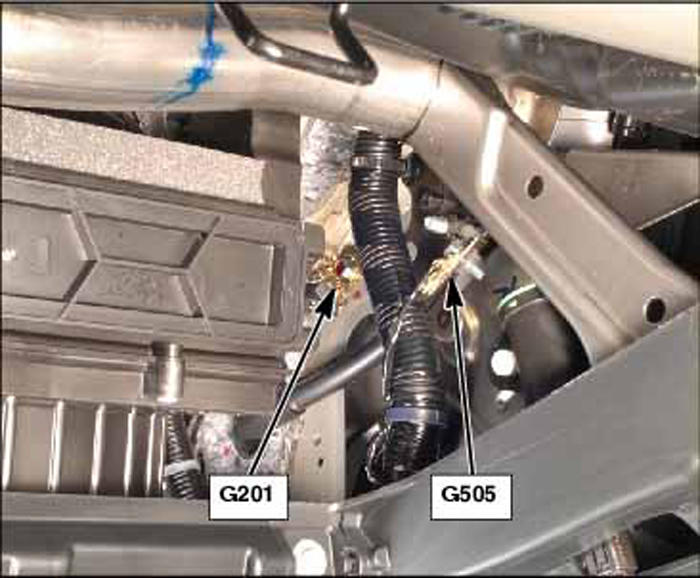

Fig 94: Right Side Of Dash

G00466718

Courtesy of AMERICAN HONDA MOTOR CO., INC.

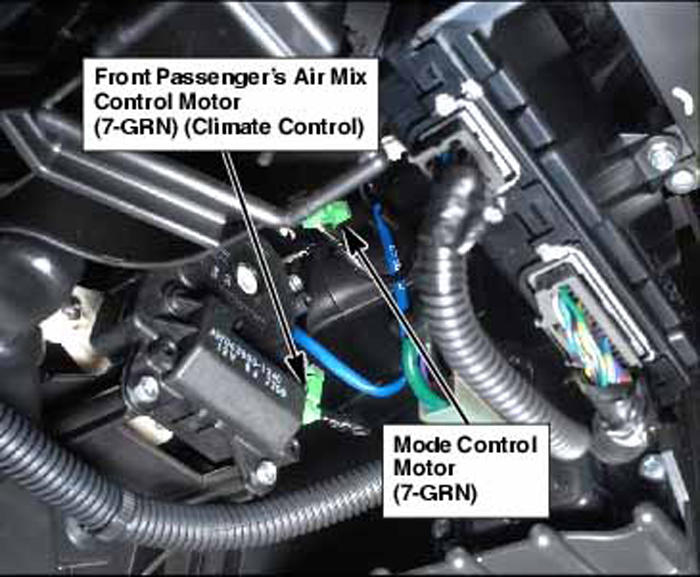

Fig 95: Right Side Of Dash

G00466719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

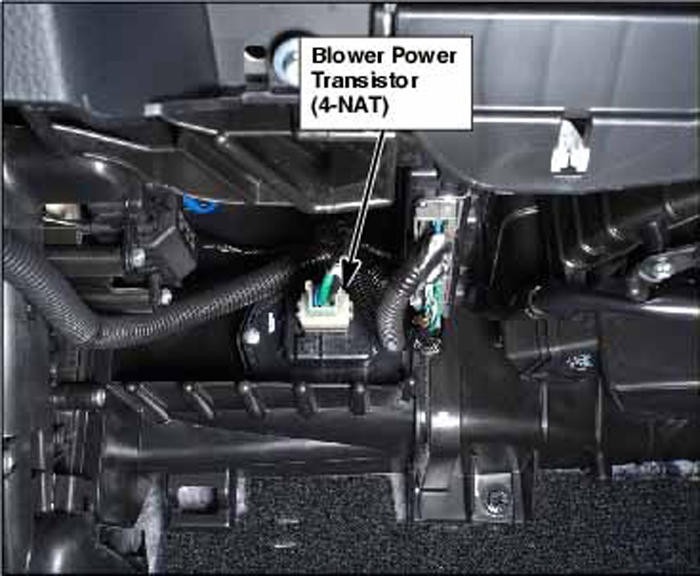

Fig 96: Right Side Of Dash

G00466720

Courtesy of AMERICAN HONDA MOTOR CO., INC.

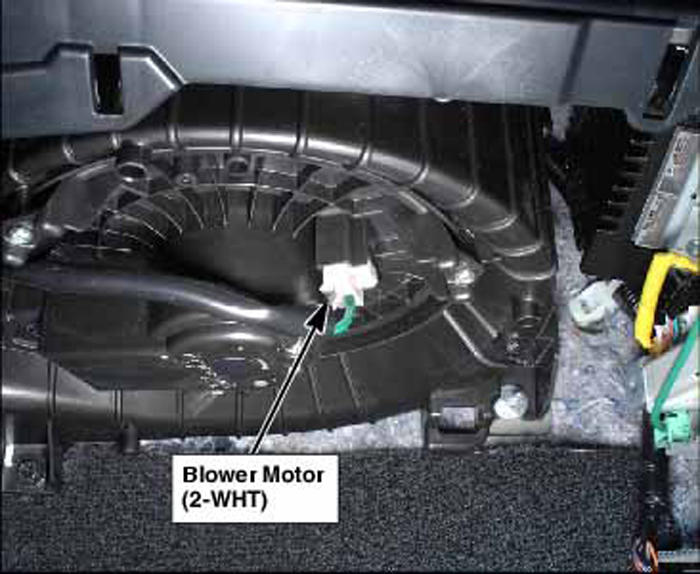

Fig 97: Right Side Of Dash

G00466721

Courtesy of AMERICAN HONDA MOTOR CO., INC.

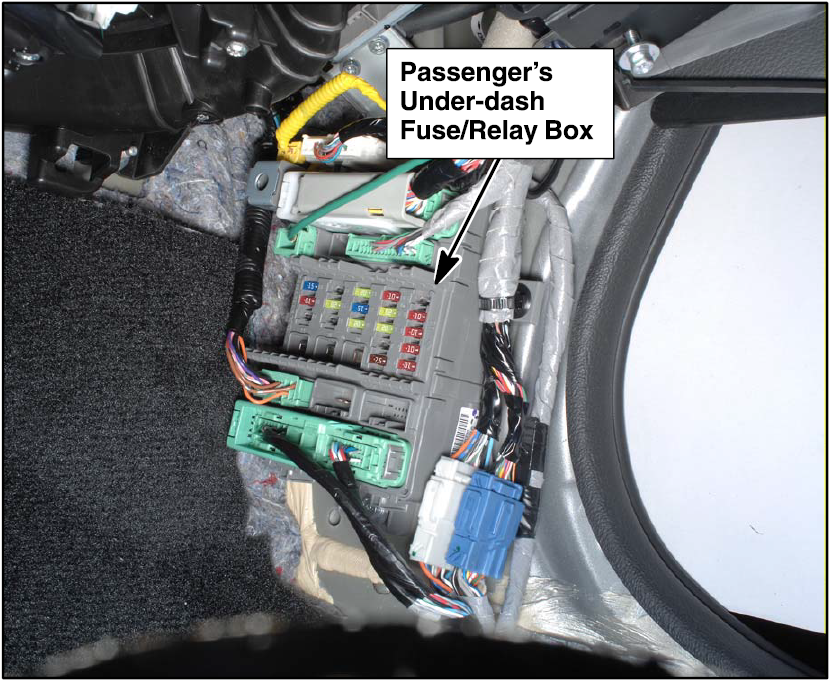

Fig 98: Right Kick Panel

G00466722

Courtesy of AMERICAN HONDA MOTOR CO., INC.

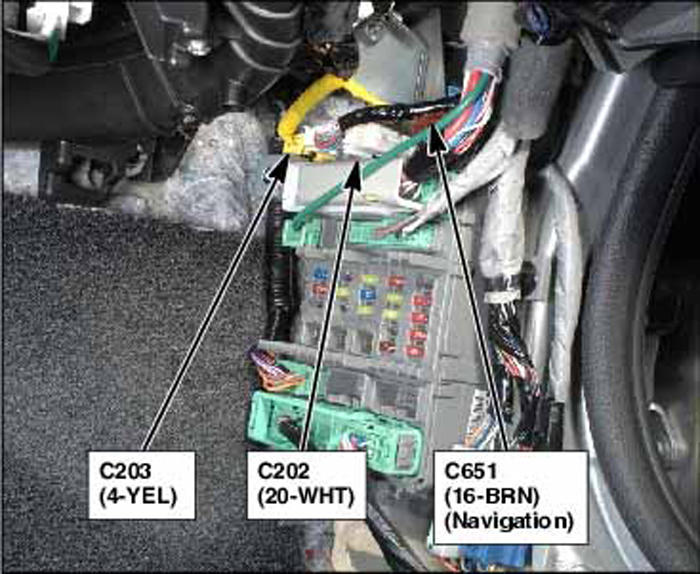

Fig 99: Right Kick Panel

G00466723

Courtesy of AMERICAN HONDA MOTOR CO., INC.

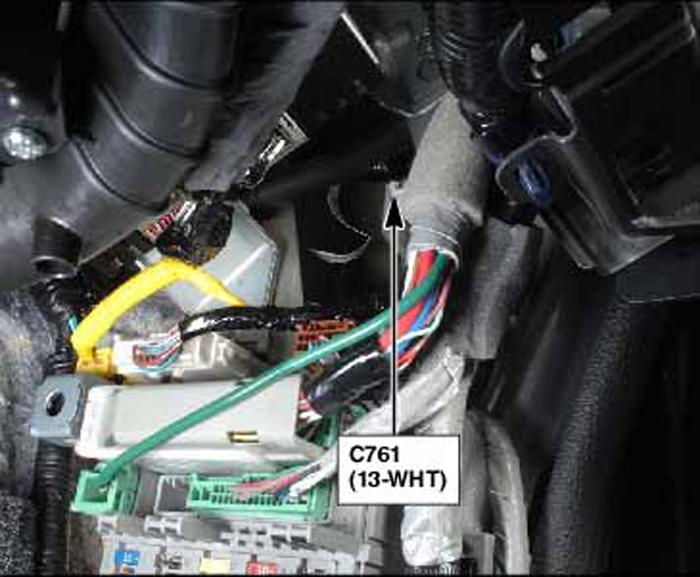

Fig 100: Right Kick Panel

G00466724

Courtesy of AMERICAN HONDA MOTOR CO., INC.

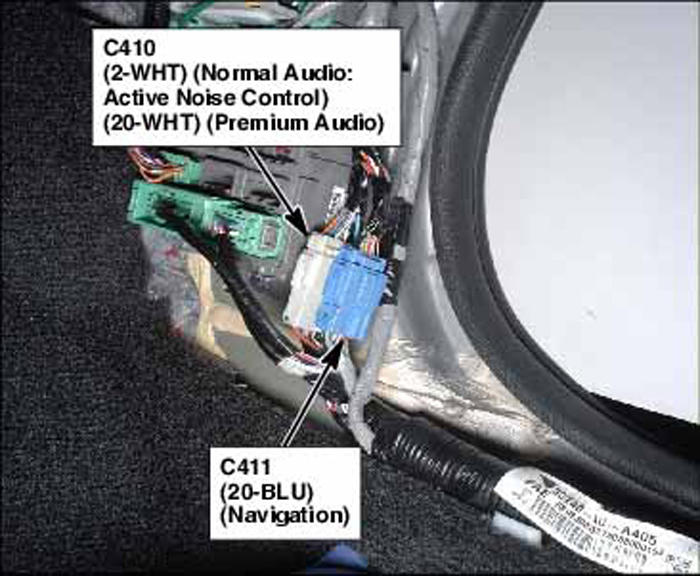

Fig 101: Right Kick Panel

G00466725

Courtesy of AMERICAN HONDA MOTOR CO., INC.

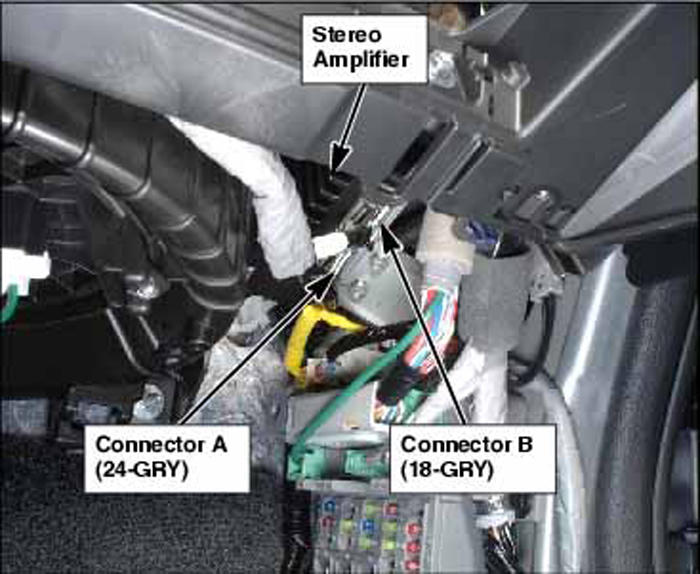

Fig 102: Right Kick Panel

G00466726

Courtesy of AMERICAN HONDA MOTOR CO., INC.

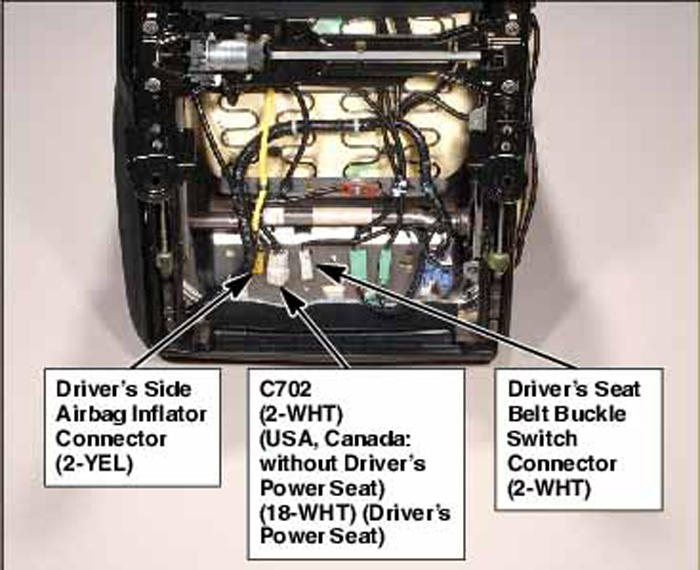

Fig 103: Driver's Seat

G00466727

Courtesy of AMERICAN HONDA MOTOR CO., INC.

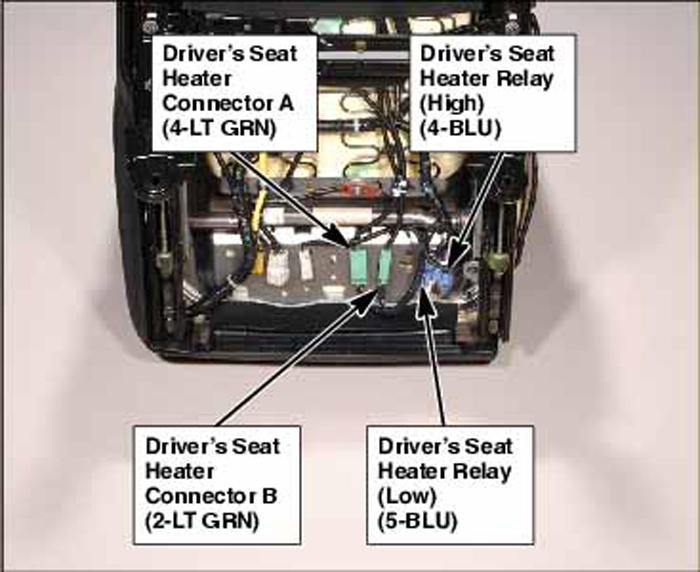

Fig 104: Driver's Seat

G00466728

Courtesy of AMERICAN HONDA MOTOR CO., INC.

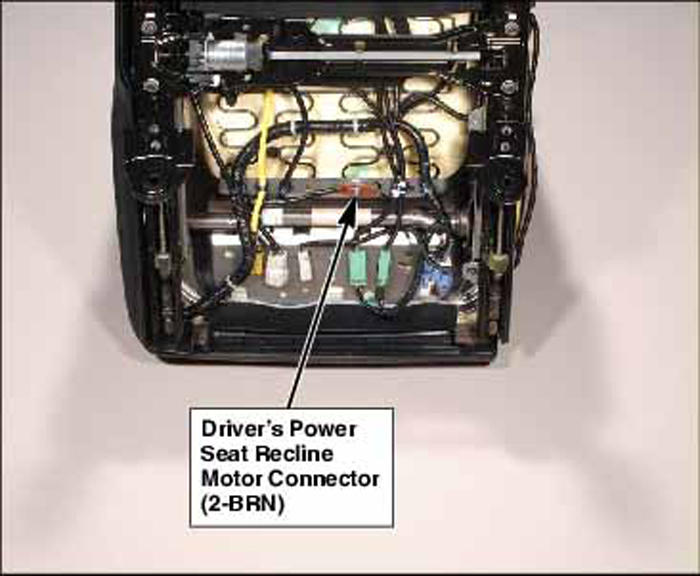

Fig 105: Driver's Seat

G00466729

Courtesy of AMERICAN HONDA MOTOR CO., INC.

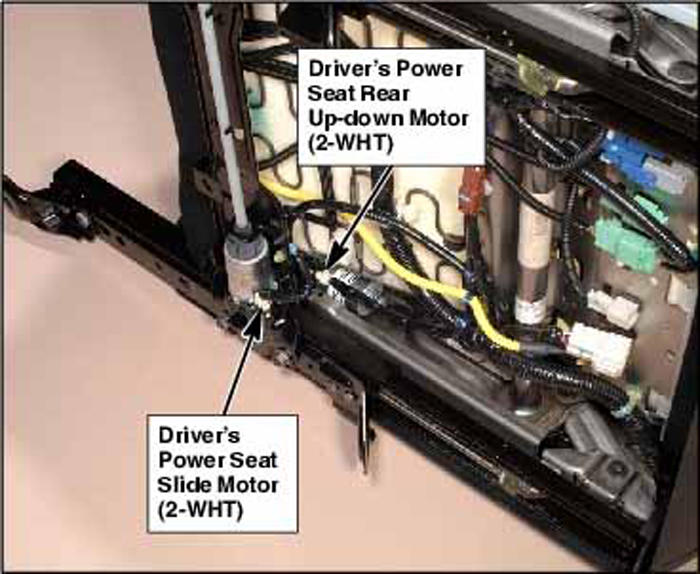

Fig 106: Driver's Seat

G00466733

Courtesy of AMERICAN HONDA MOTOR CO., INC.

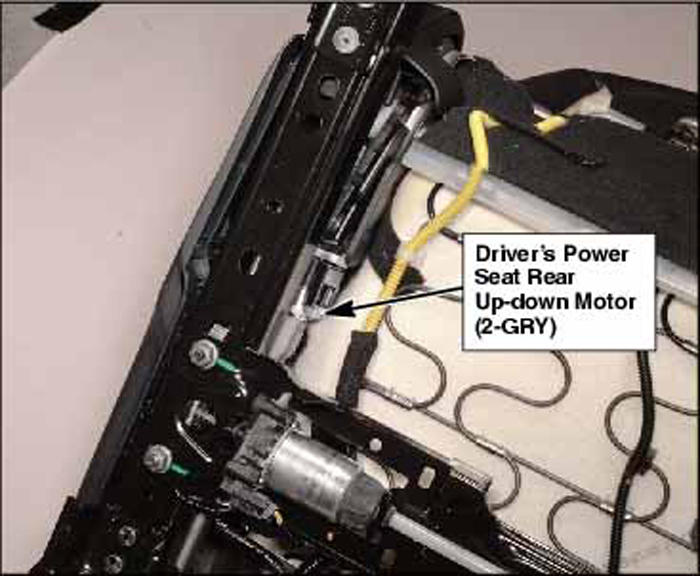

Fig 107: Driver's Seat

G00466734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

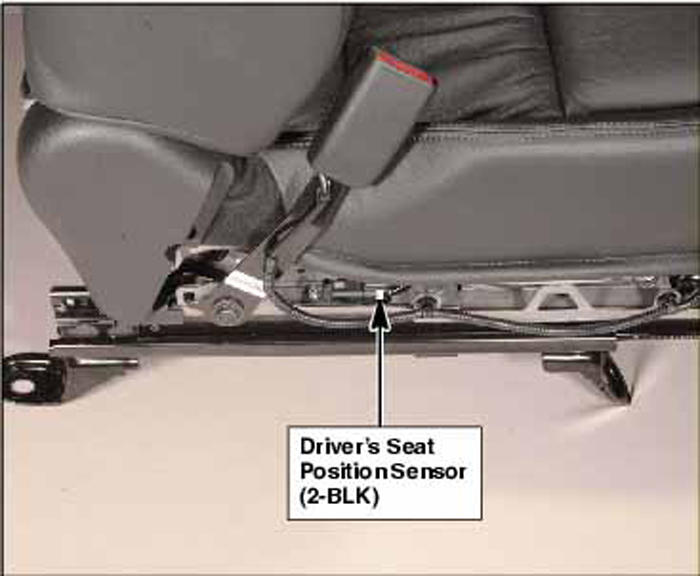

Fig 108: Driver's Seat

G00466735

Courtesy of AMERICAN HONDA MOTOR CO., INC.

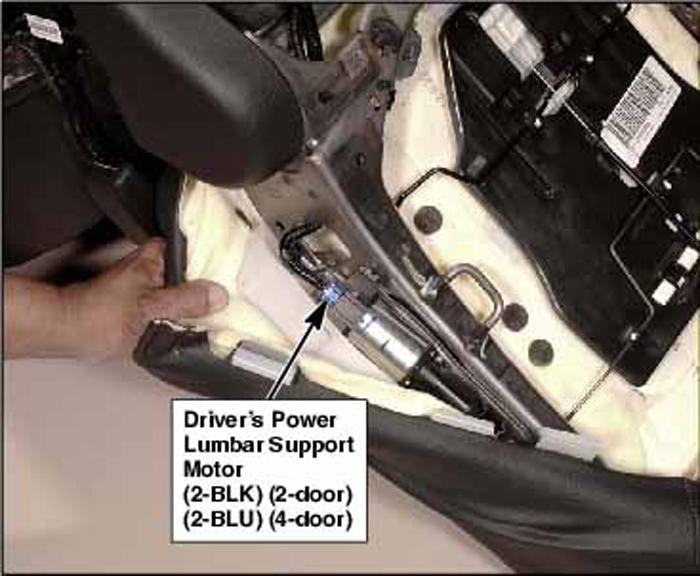

Fig 109: Driver's Seat Back

G00466739

Courtesy of AMERICAN HONDA MOTOR CO., INC.

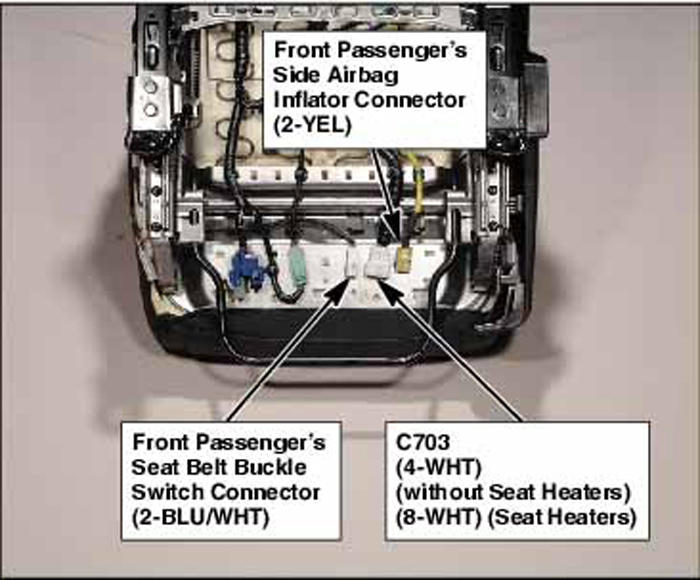

Fig 110: Front Passenger's Seat

G00466740

Courtesy of AMERICAN HONDA MOTOR CO., INC.

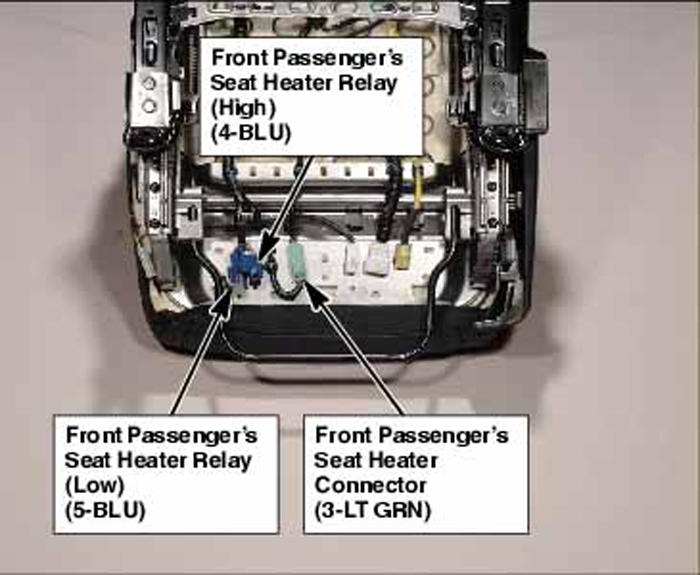

Fig 111: Front Passenger's Seat

G00466741

Courtesy of AMERICAN HONDA MOTOR CO., INC.

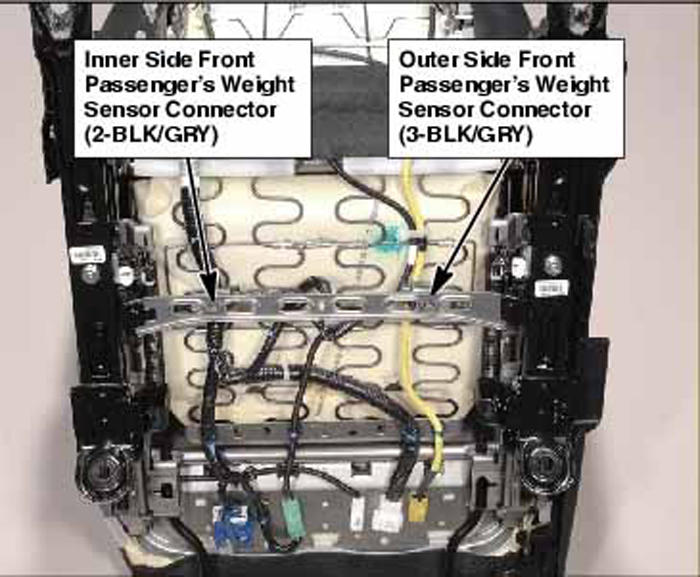

Fig 112: Front Passenger's Seat

G00466742

Courtesy of AMERICAN HONDA MOTOR CO., INC.

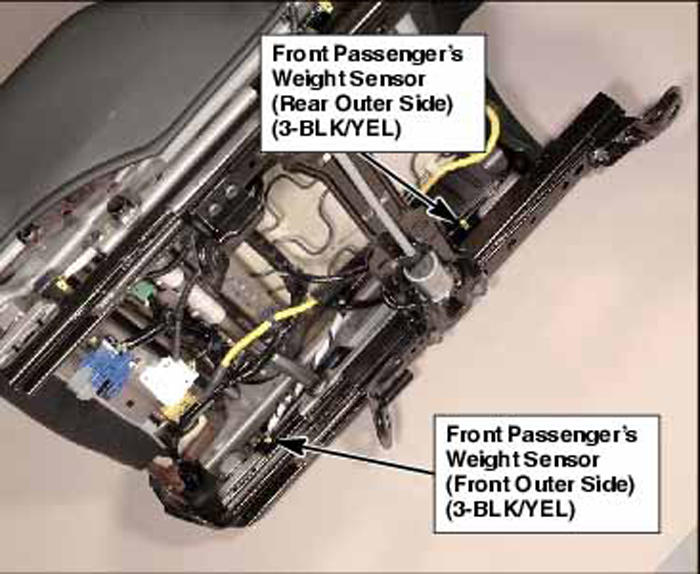

Fig 113: Front Passenger's Seat

G00466745

Courtesy of AMERICAN HONDA MOTOR CO., INC.

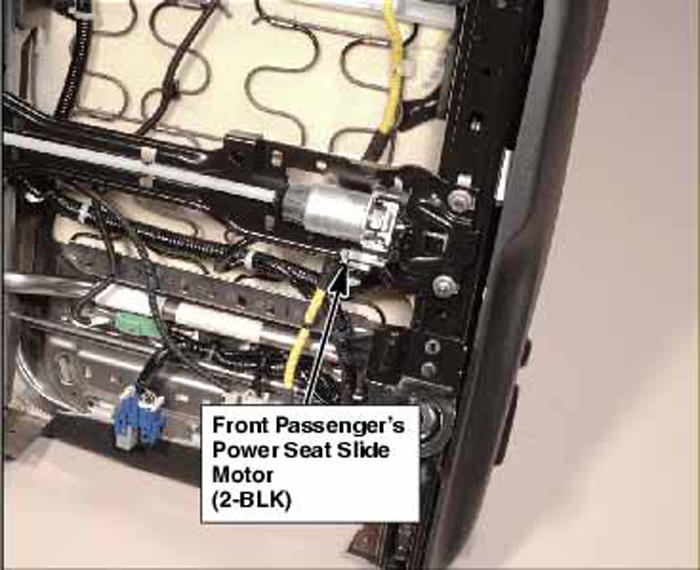

Fig 114: Front Passenger's Seat

G00466746

Courtesy of AMERICAN HONDA MOTOR CO., INC.

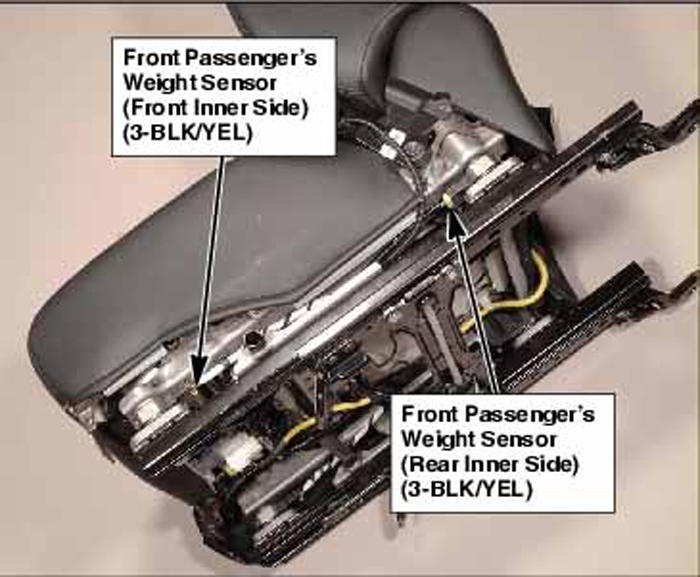

Fig 115: Front Passenger's Seat

G00466747

Courtesy of AMERICAN HONDA MOTOR CO., INC.

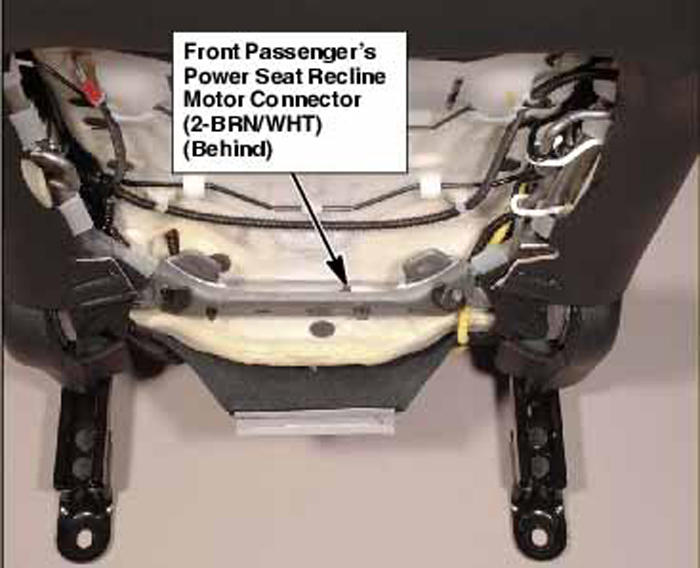

Fig 116: Front Passenger's Seat Back

G00466748

Courtesy of AMERICAN HONDA MOTOR CO., INC.

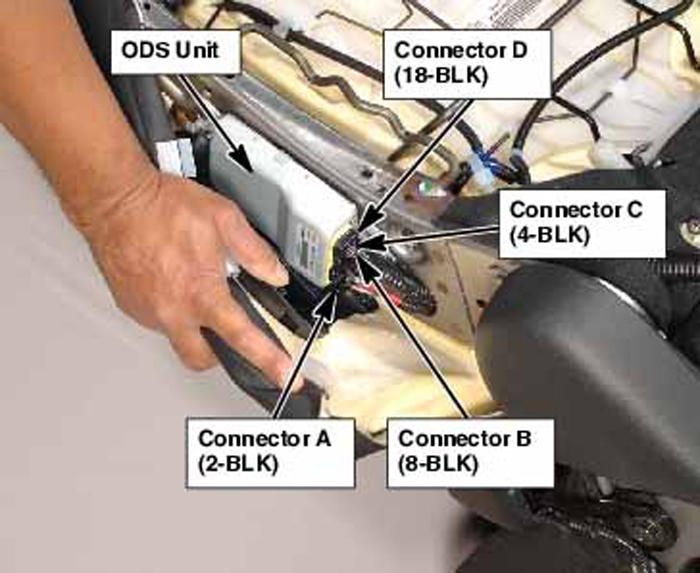

Fig 117: Front Passenger's Seat Back

G00466749

Courtesy of AMERICAN HONDA MOTOR CO., INC.

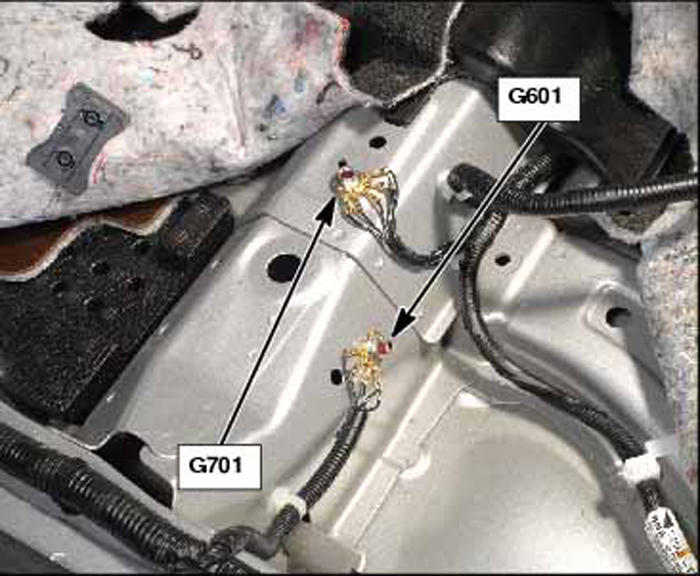

Fig 118: Left Side Of Floor

G00466751

Courtesy of AMERICAN HONDA MOTOR CO., INC.

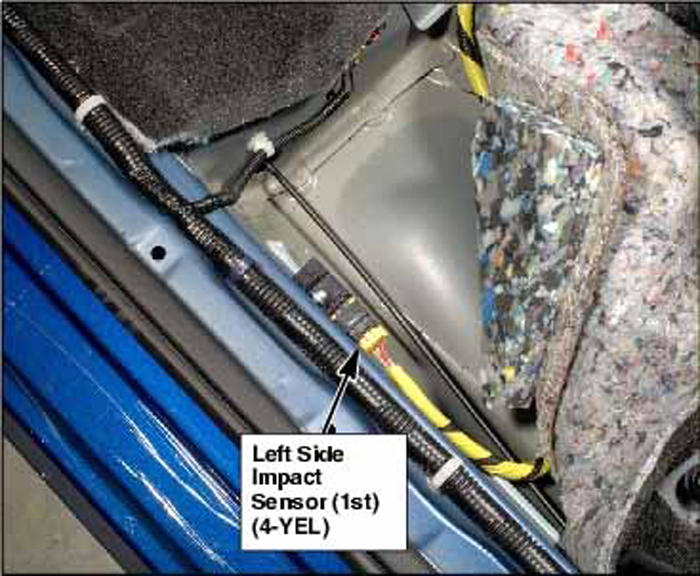

Fig 119: Left Side Of Floor (Coupe) (Right Similar)

G00466752

Courtesy of AMERICAN HONDA MOTOR CO., INC.

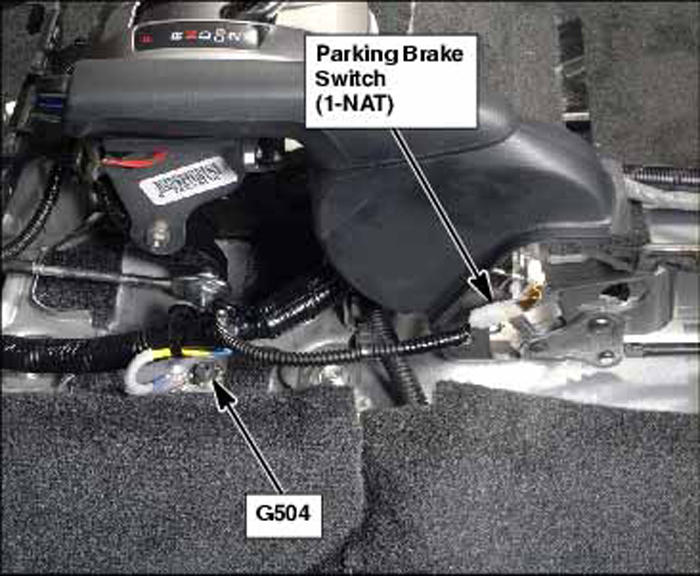

Fig 120: Center Console

G00466753

Courtesy of AMERICAN HONDA MOTOR CO., INC.

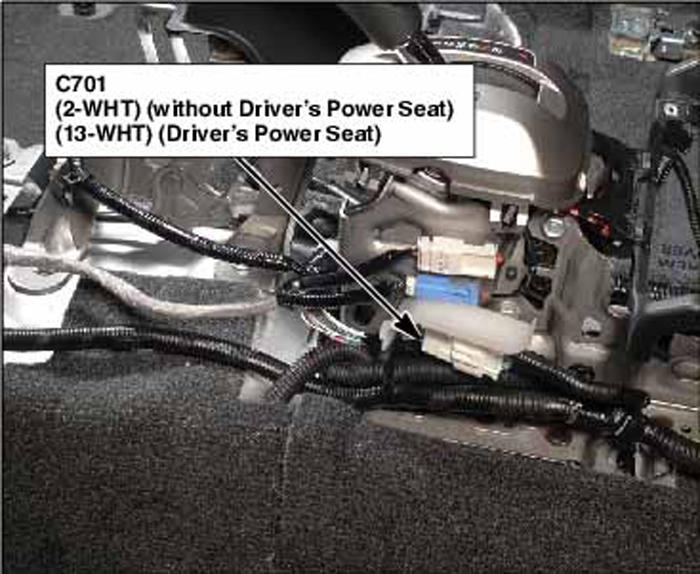

Fig 121: Center Console

G00466754

Courtesy of AMERICAN HONDA MOTOR CO., INC.

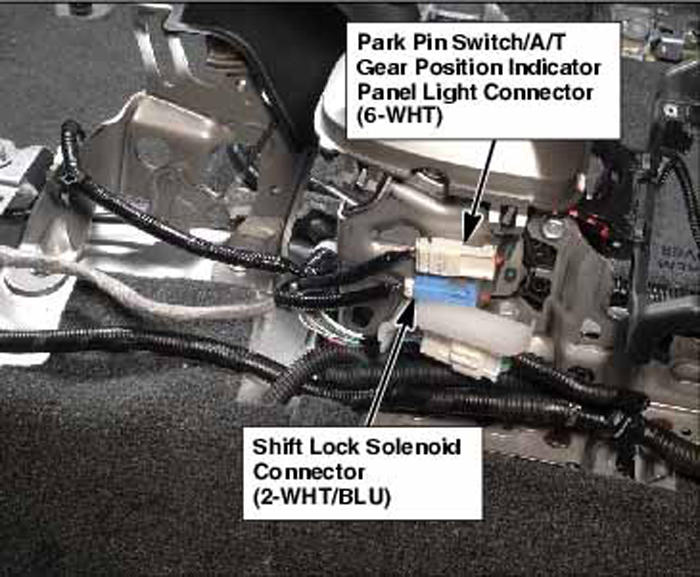

Fig 122: Center Console

G00466755

Courtesy of AMERICAN HONDA MOTOR CO., INC.

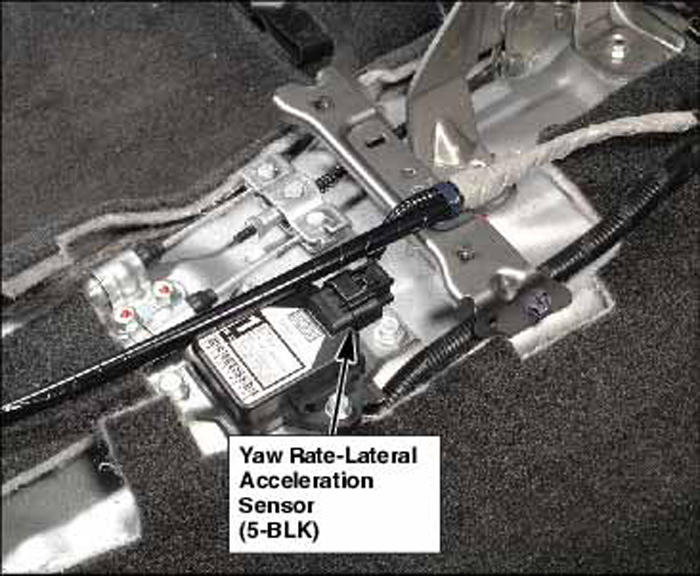

Fig 123: Center Console

G00466756

Courtesy of AMERICAN HONDA MOTOR CO., INC.

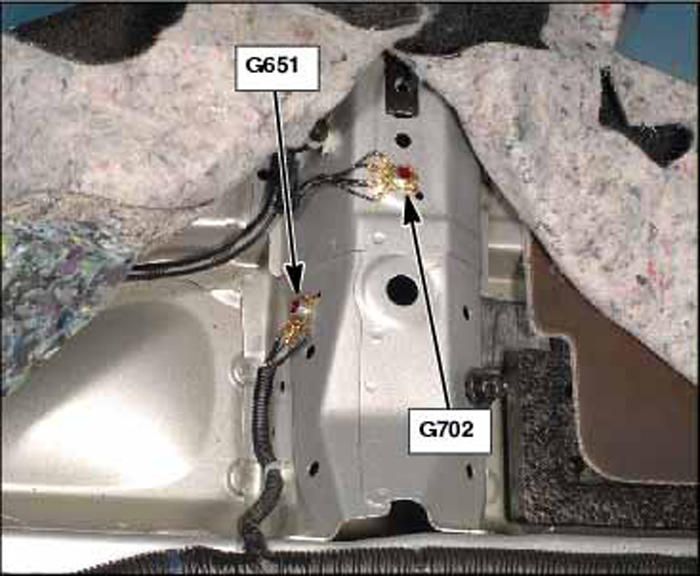

Fig 124: Right Side Of Floor

G00466757

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Left Rear Of Floor

G00466758

Courtesy of AMERICAN HONDA MOTOR CO., INC.

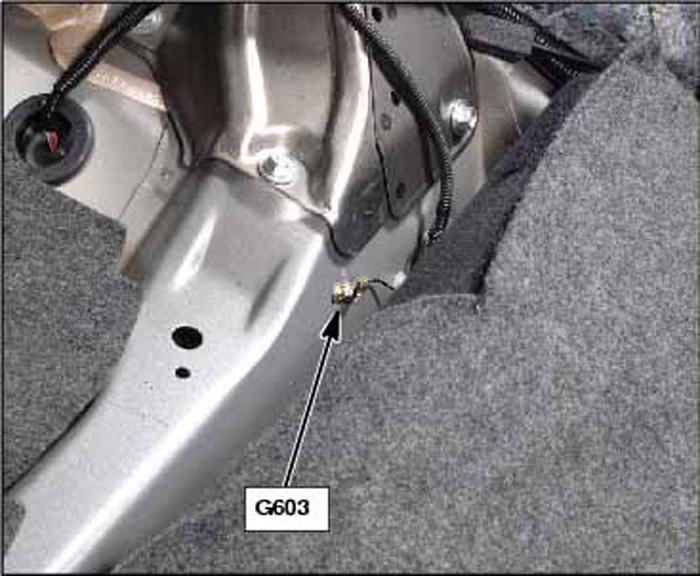

Fig 126: Rear Of Floor

G00466759

Courtesy of AMERICAN HONDA MOTOR CO., INC.

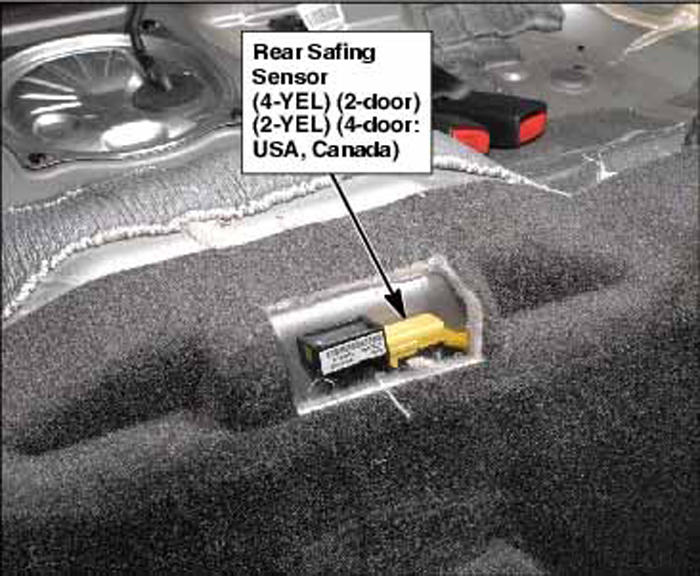

Fig 127: Rear Of Floor

G00466760

Courtesy of AMERICAN HONDA MOTOR CO., INC.

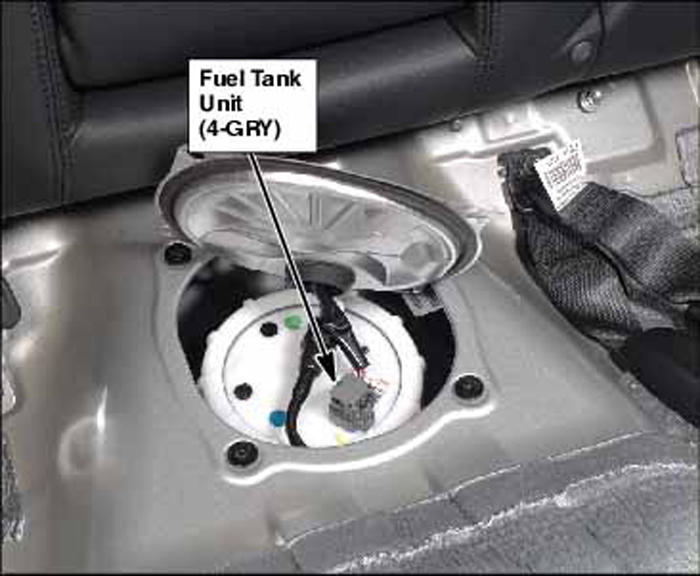

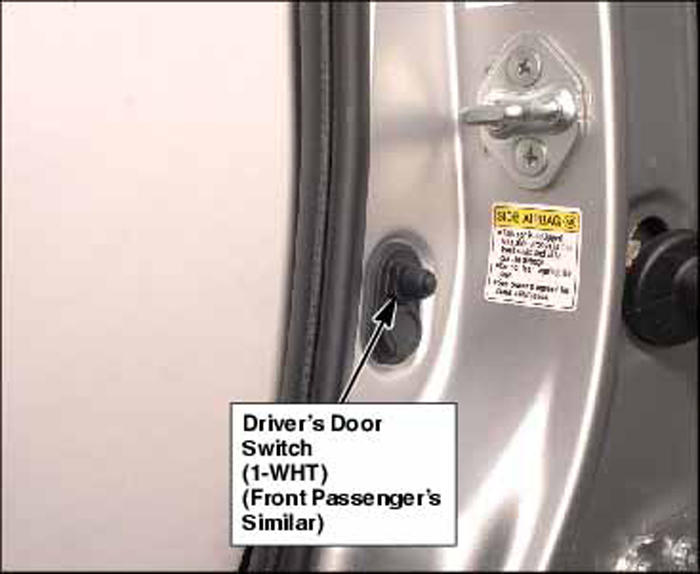

Fig 128: Left "B" Pillar (Right Similar)

G00466761

Courtesy of AMERICAN HONDA MOTOR CO., INC.

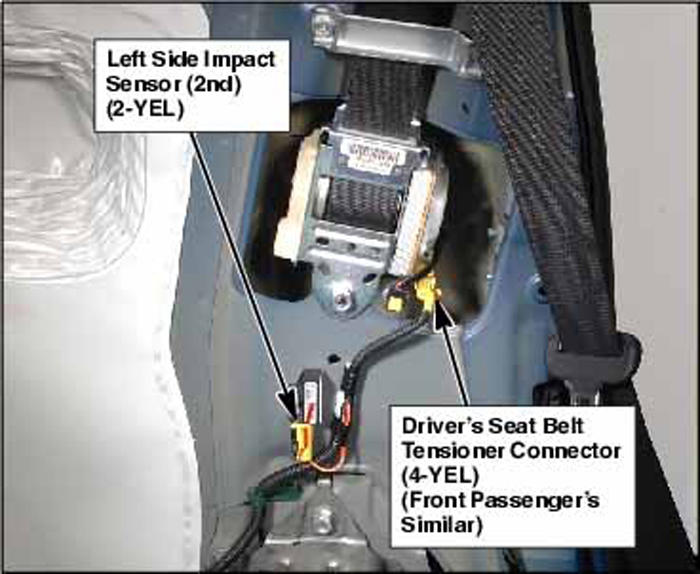

Fig 129: Left "B" Pillar (Sedan) (Right Similar)

G00466762

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Left "B" Pillar (Right Similar)

G00466763

Courtesy of AMERICAN HONDA MOTOR CO., INC.

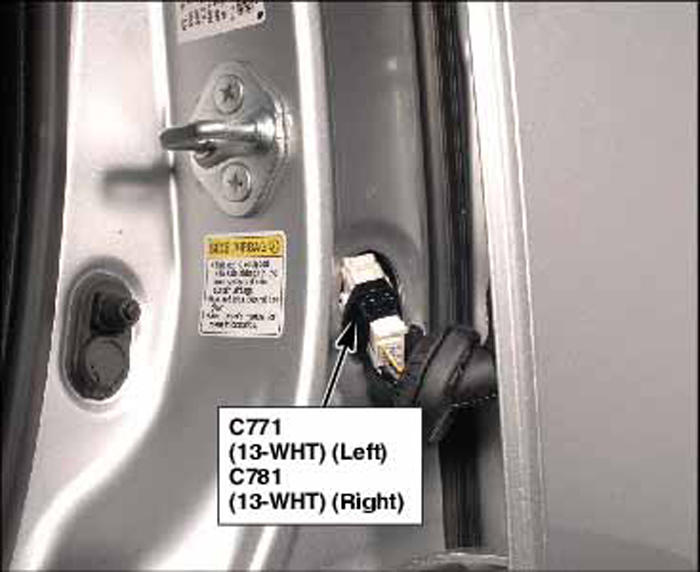

Fig 131: Left "B" Pillar (Sedan) (Right Similar)

G00466764

Courtesy of AMERICAN HONDA MOTOR CO., INC.

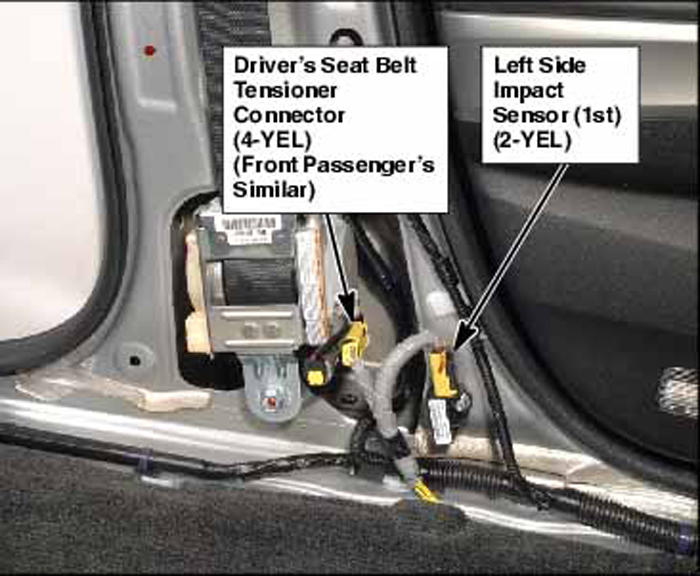

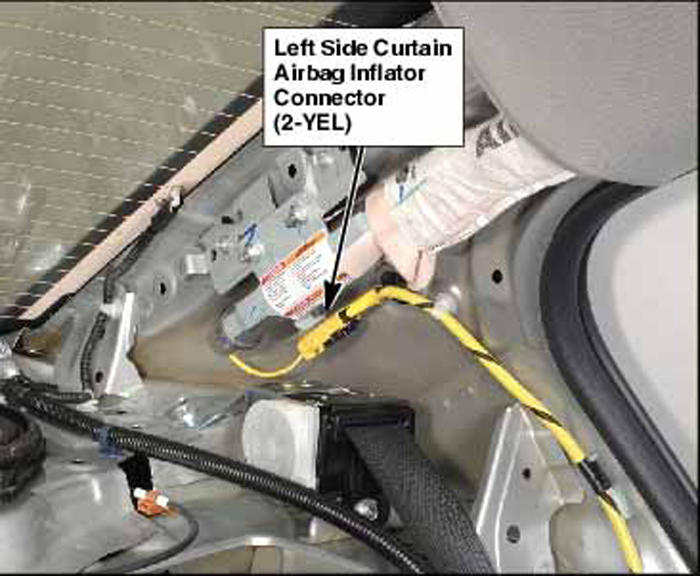

Fig 132: Left "C" Pillar

G00466765

Courtesy of AMERICAN HONDA MOTOR CO., INC.

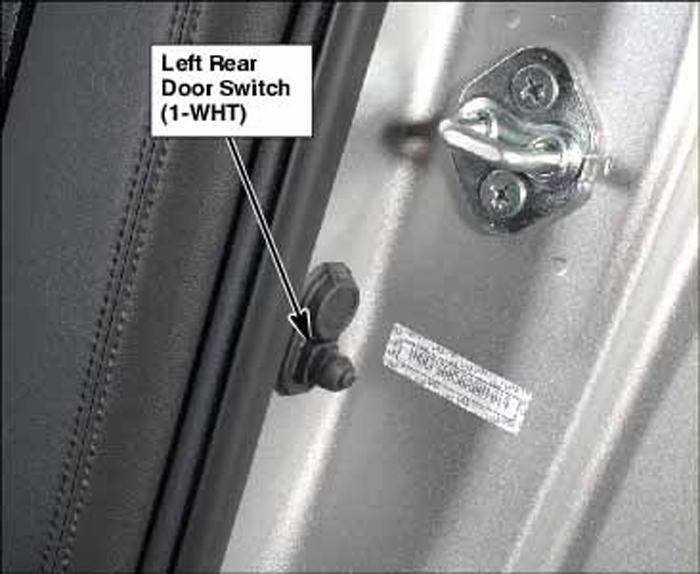

Fig 133: Left "C" Pillar (Sedan) (Right Similar)

G00466766

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Left "C" Pillar (Sedan) (Right Similar)

G00466767

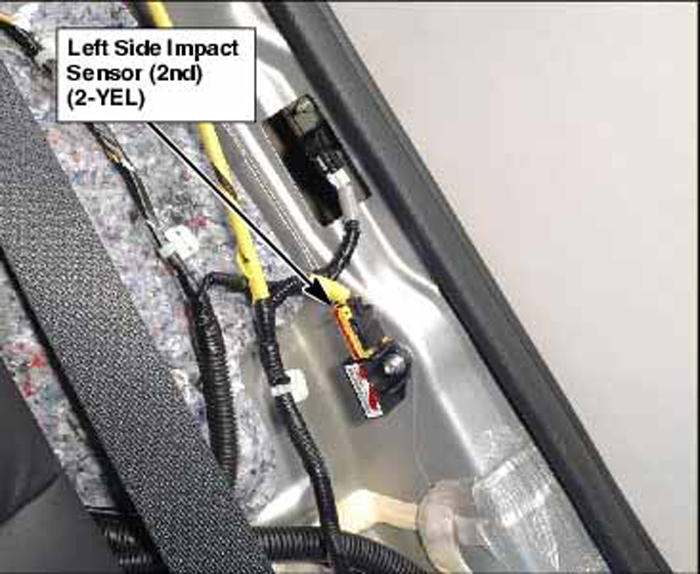

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Right "C" Pillar

G00466768

Courtesy of AMERICAN HONDA MOTOR CO., INC.

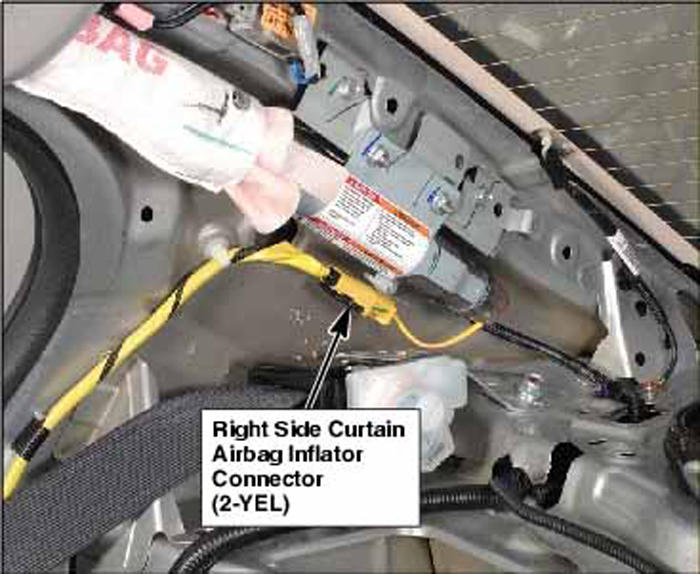

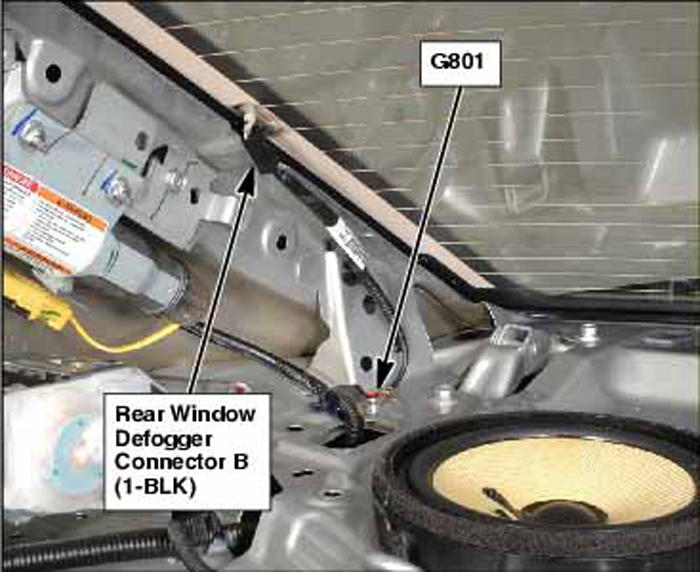

Fig 136: Right "C" Pillar

G00466769

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Right "C" Pillar

G00466770

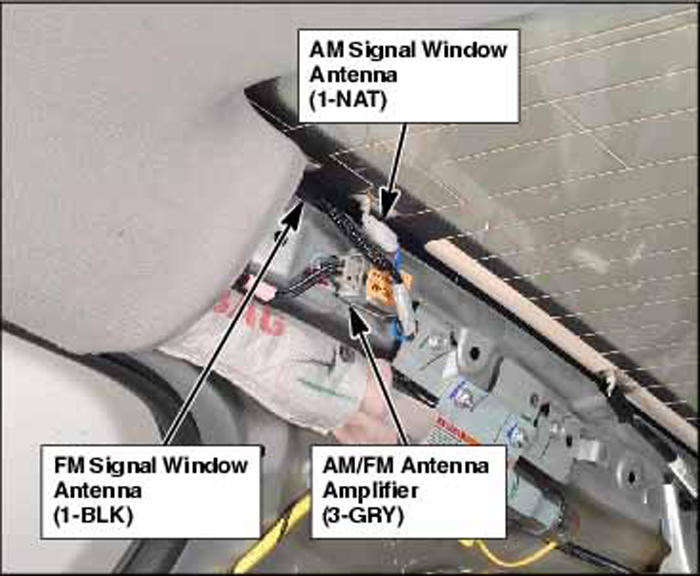

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 138: Right "C" Pillar

G00466771

Courtesy of AMERICAN HONDA MOTOR CO., INC.

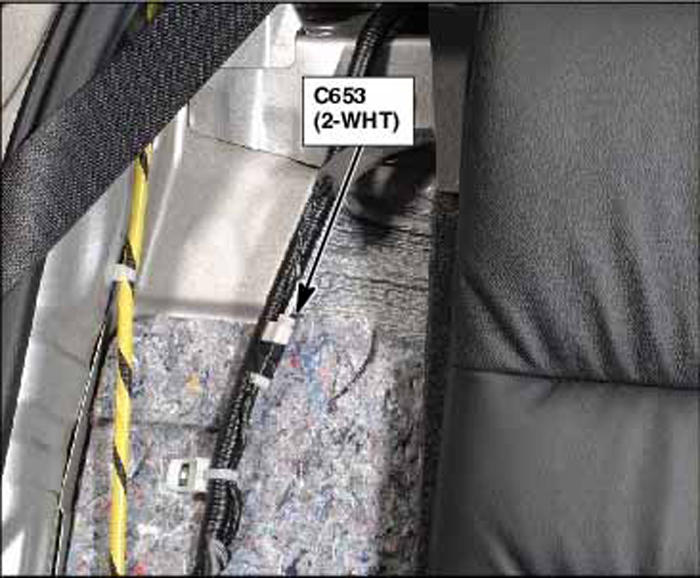

Fig 139: Driver's Door (Front Passenger's Similar)

G00466772

Courtesy of AMERICAN HONDA MOTOR CO., INC.

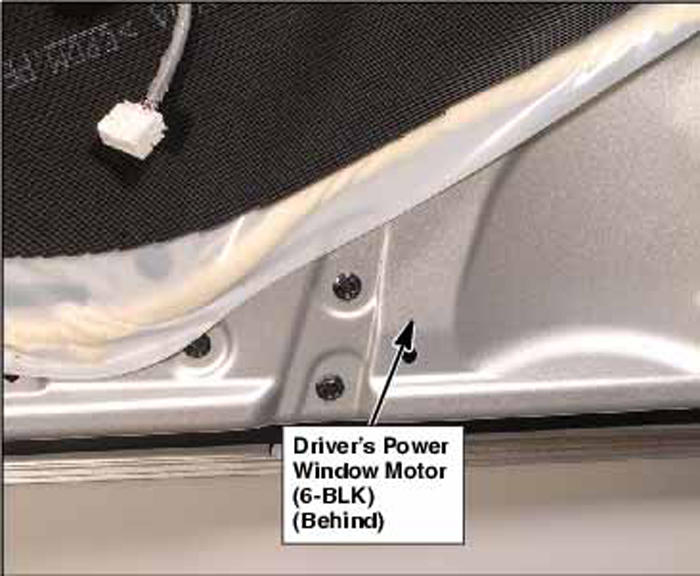

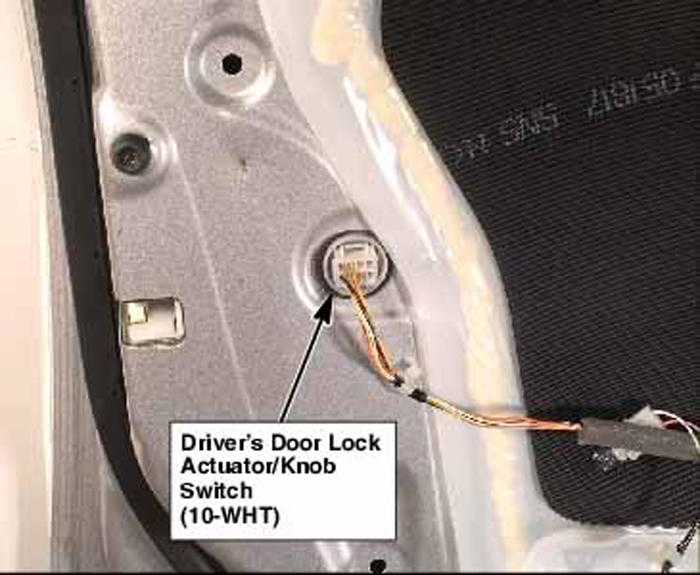

Fig 140: Driver's Door

G00466773

Courtesy of AMERICAN HONDA MOTOR CO., INC.

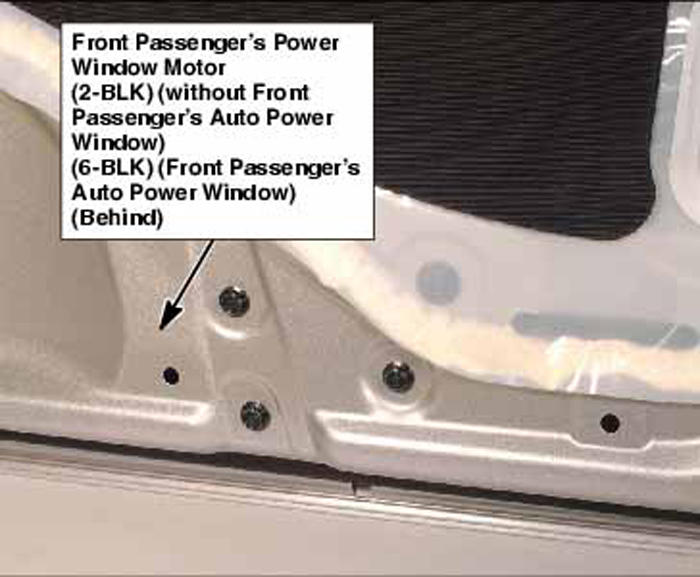

Fig 141: Front Passenger's Door

G00466774

Courtesy of AMERICAN HONDA MOTOR CO., INC.

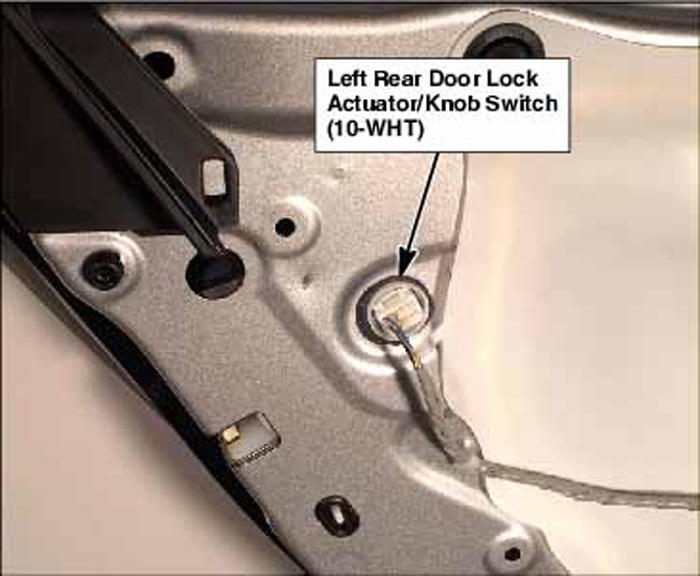

Fig 142: Left Rear Door (Right Similar)

G00466775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

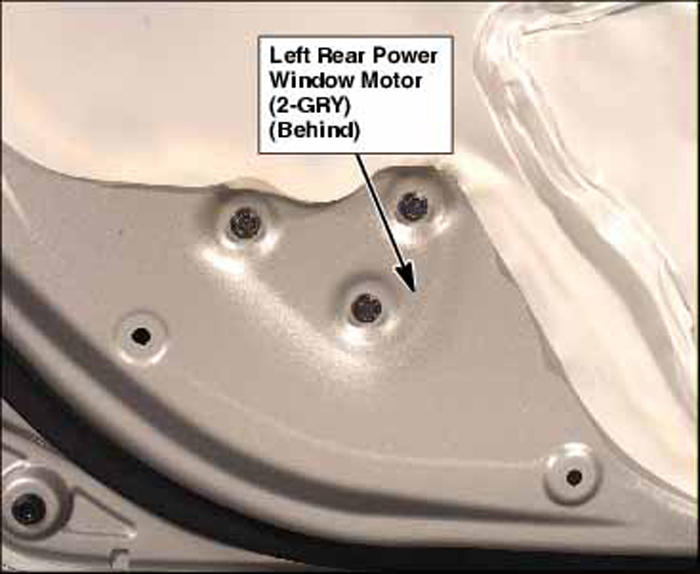

Fig 143: Left Rear Door (Right Similar)

G00466776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

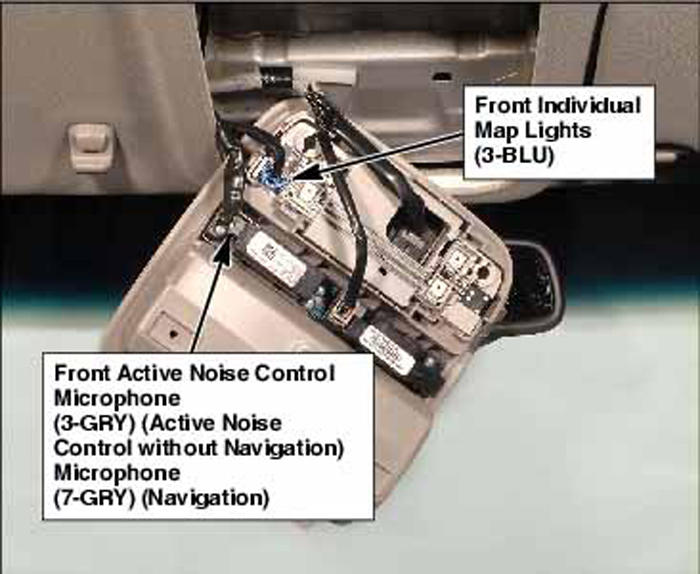

Fig 144: Front Of Roof

G00466777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

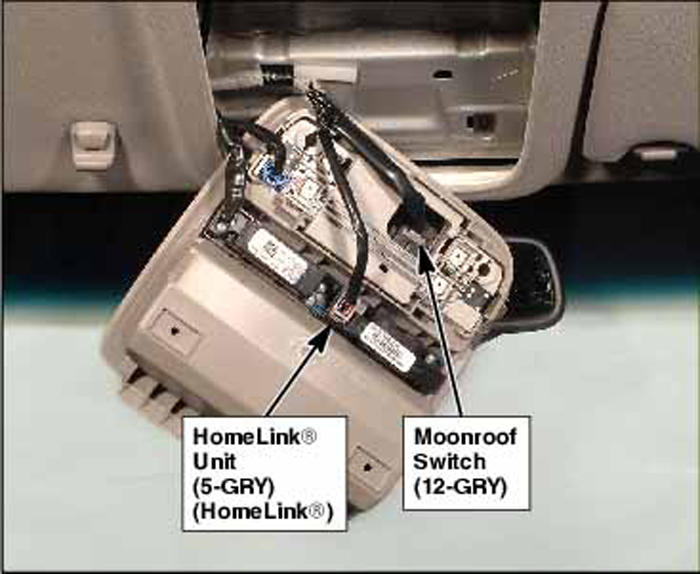

Fig 145: Front Of Roof

G00466778

Courtesy of AMERICAN HONDA MOTOR CO., INC.

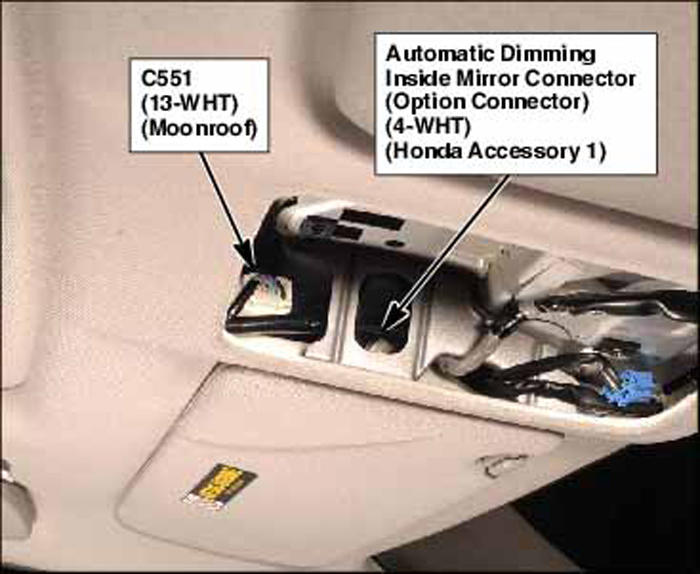

Fig 146: Front Of Roof

G00466779

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 147: Middle Of Roof

G00466780

Courtesy of AMERICAN HONDA MOTOR CO., INC.

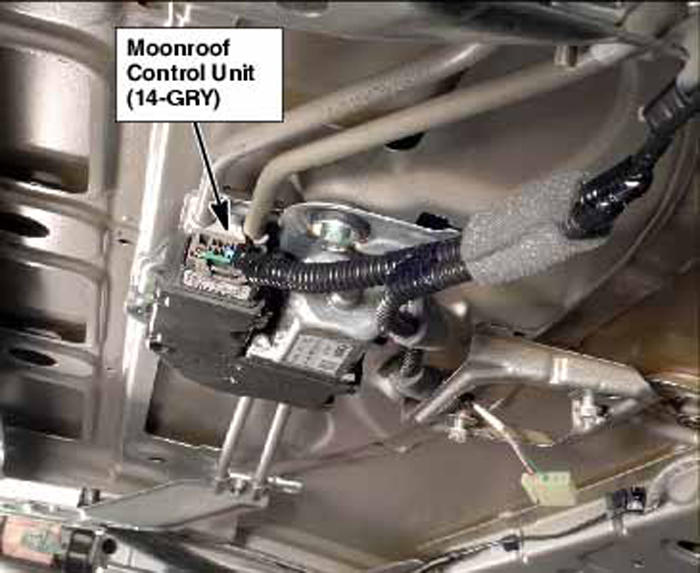

Fig 148: Rear Shelf

G00466781

Courtesy of AMERICAN HONDA MOTOR CO., INC.

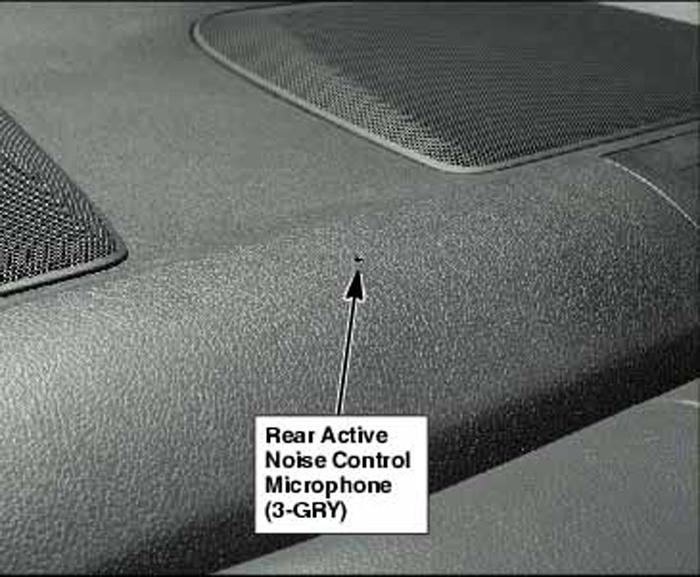

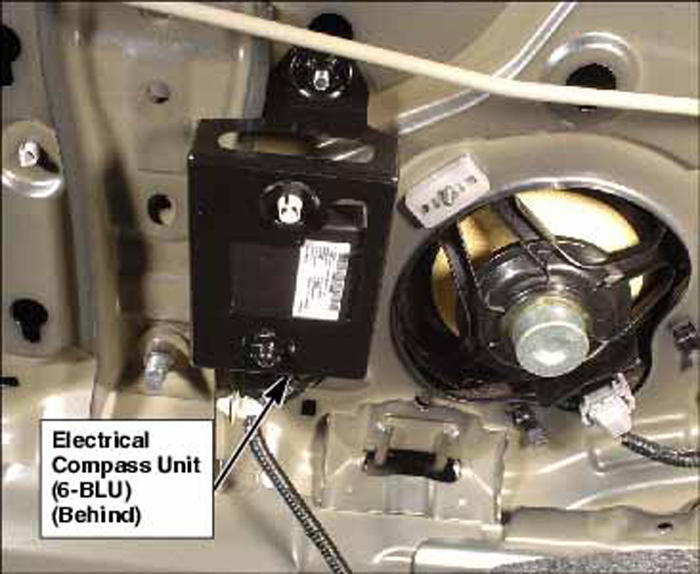

Fig 149: Rear Shelf

G00466782

Courtesy of AMERICAN HONDA MOTOR CO., INC.

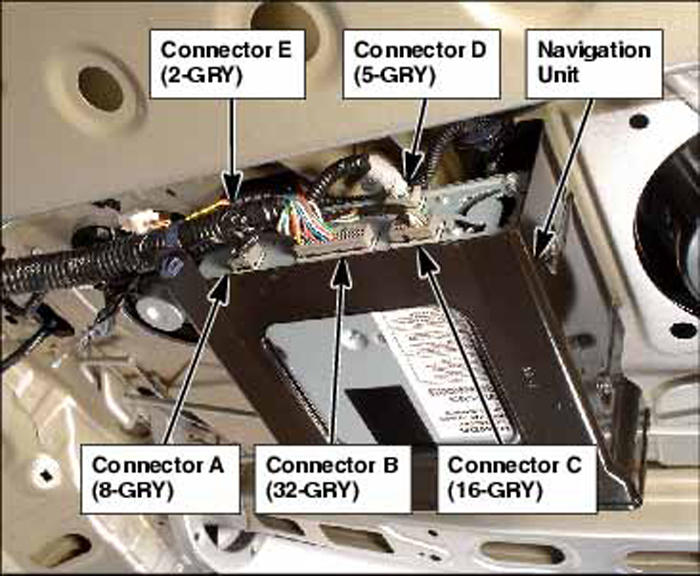

Fig 150: Rear Shelf

G00466783

Courtesy of AMERICAN HONDA MOTOR CO., INC.

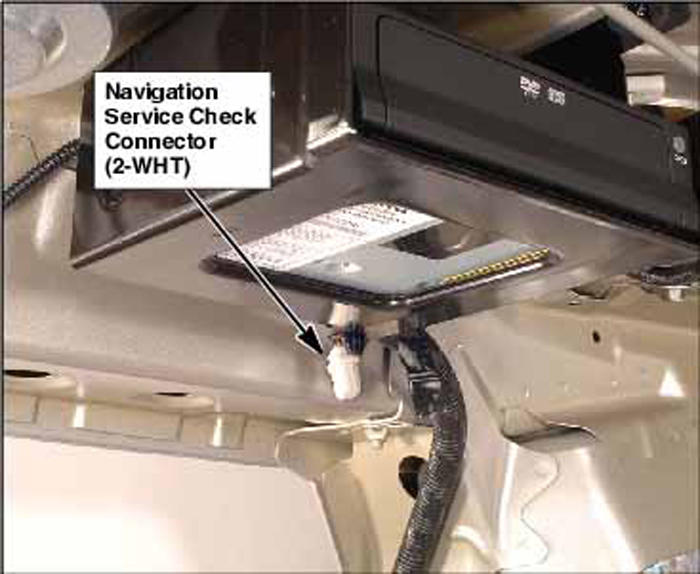

Fig 151: Rear Shelf

G00466784

Courtesy of AMERICAN HONDA MOTOR CO., INC.

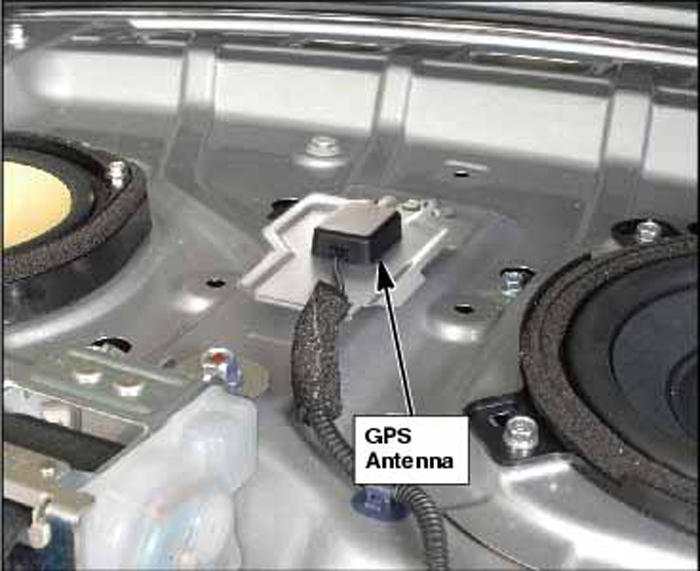

Fig 152: Rear Shelf

G00466785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 153: Left Rear Of Trunk

G00466786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

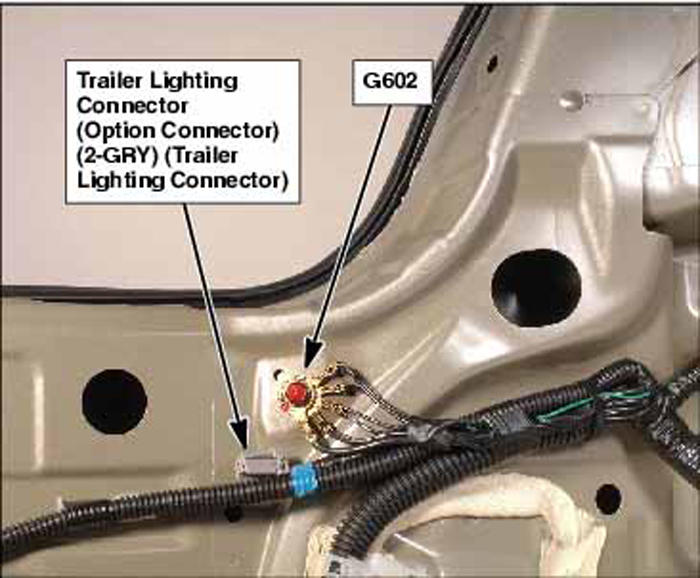

Fig 154: Left Side Of Trunk

G00466787

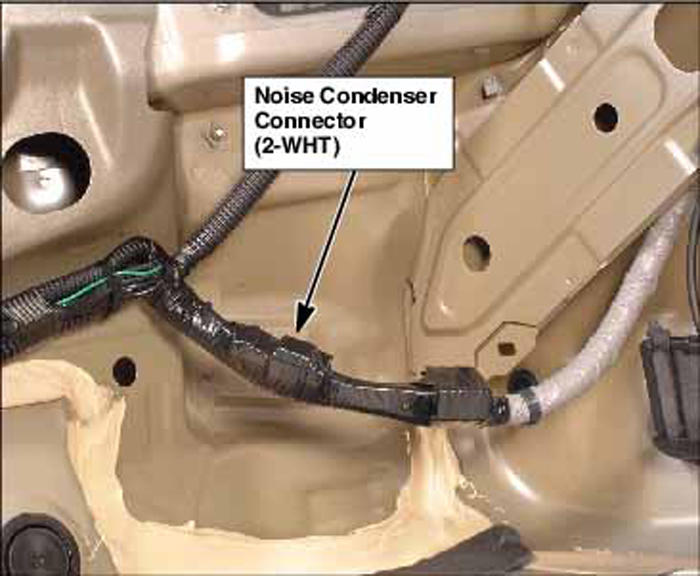

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 155: Right Side Of Trunk

G00466788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

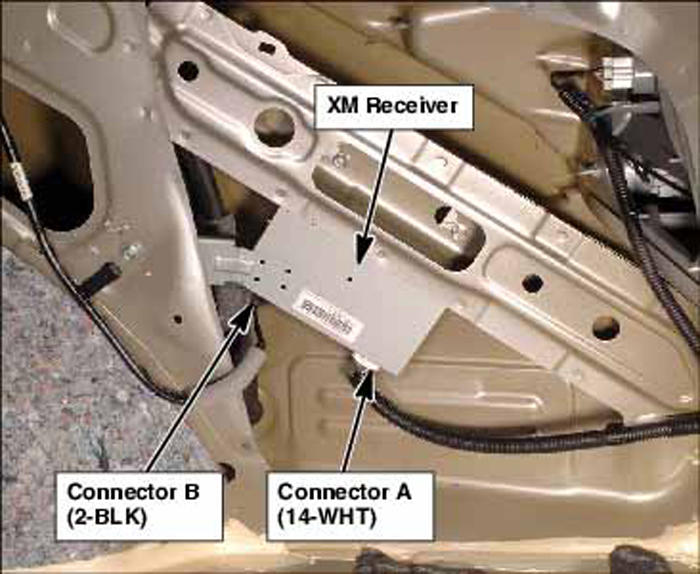

Fig 156: Right Side Of Trunk

G00466789

Courtesy of AMERICAN HONDA MOTOR CO., INC.

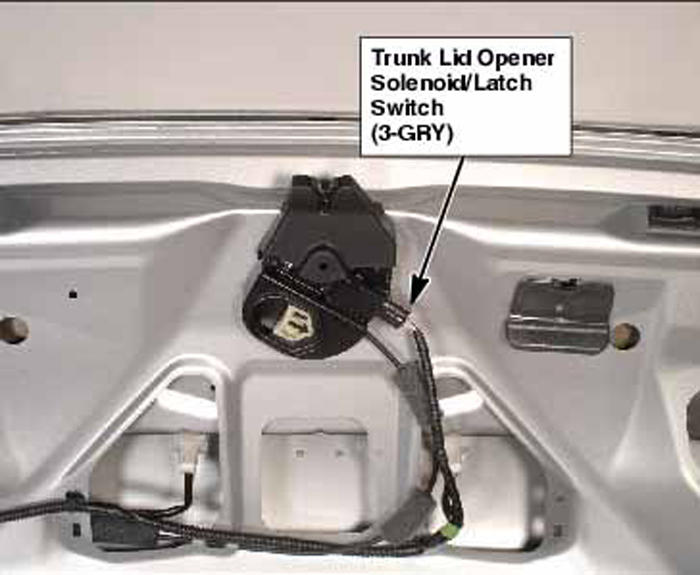

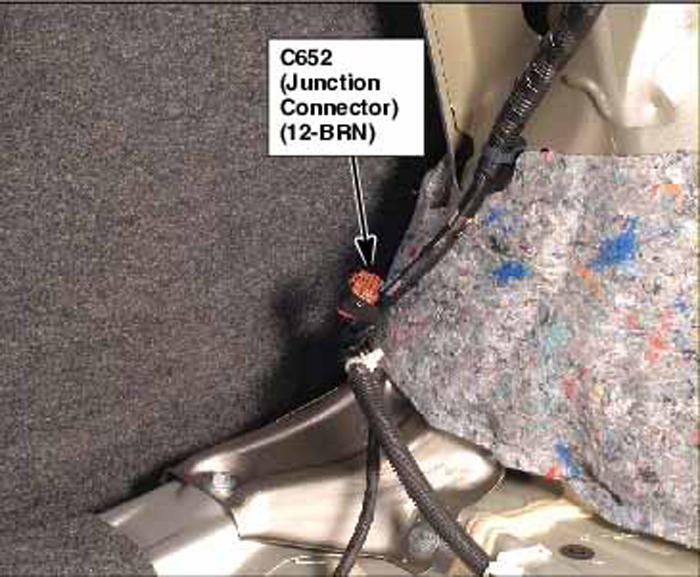

Fig 157: Middle Of Trunk Lid

G00466790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 158: Front Bumper

G00466791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

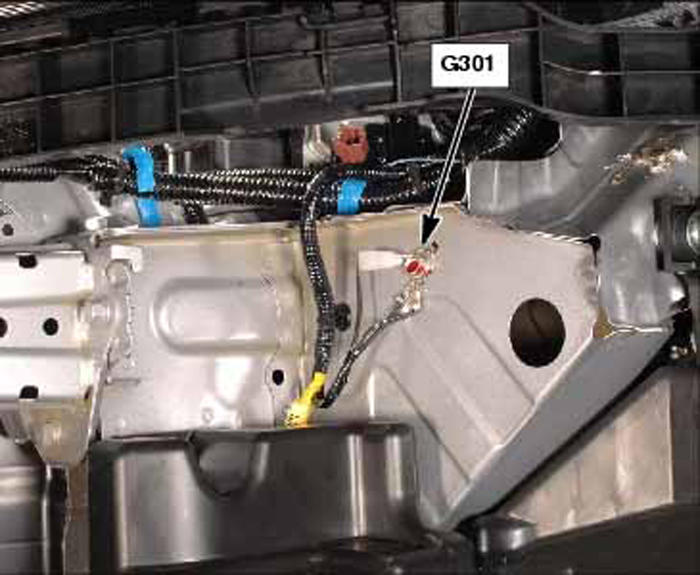

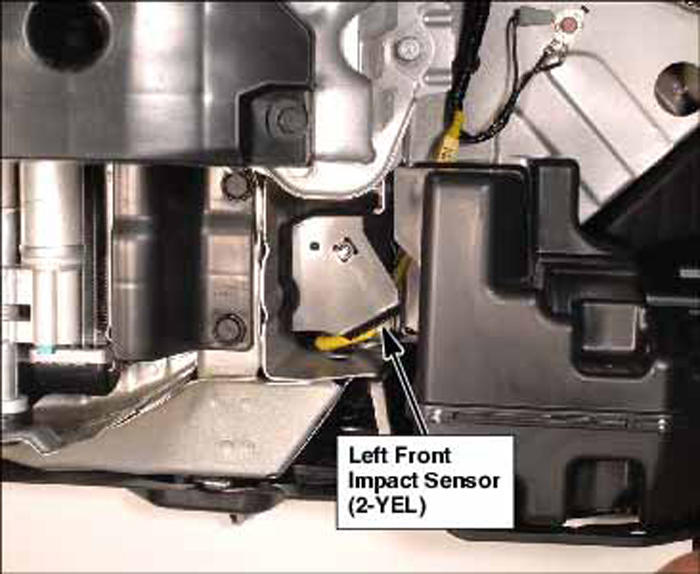

Fig 159: Front Bumper

G00466792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 160: Front Bumper

G00466793

Courtesy of AMERICAN HONDA MOTOR CO., INC.

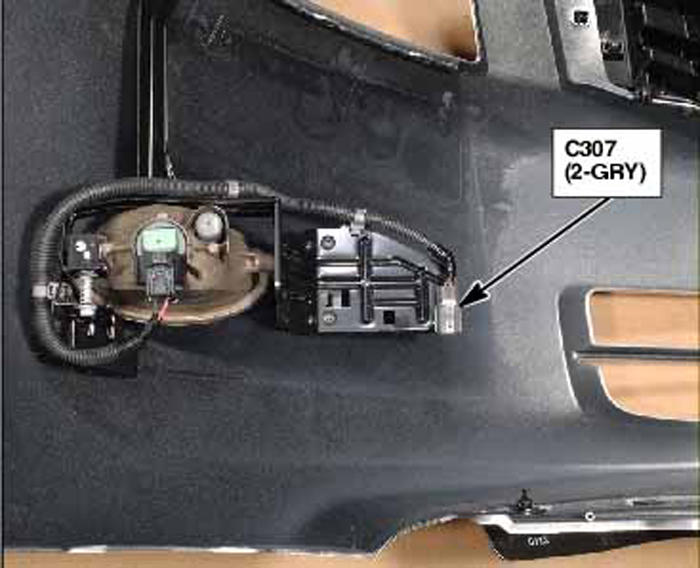

Fig 161: Behind Front Grille

G00466794

Courtesy of AMERICAN HONDA MOTOR CO., INC.

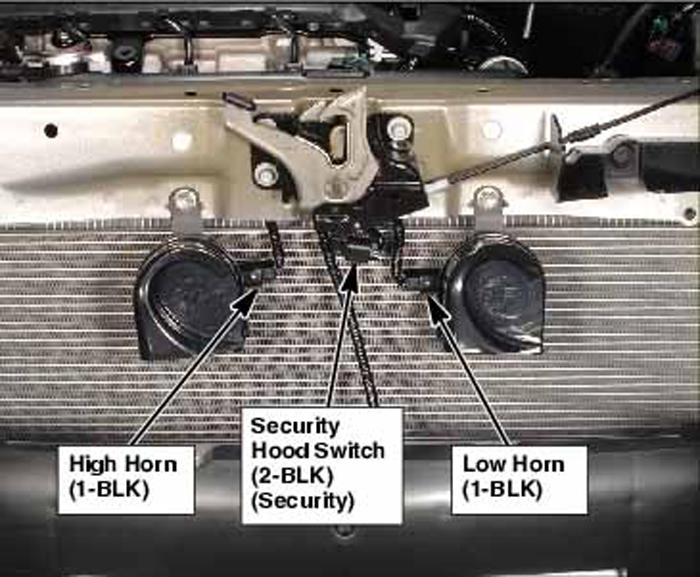

Fig 162: Front Bumper

G00466795

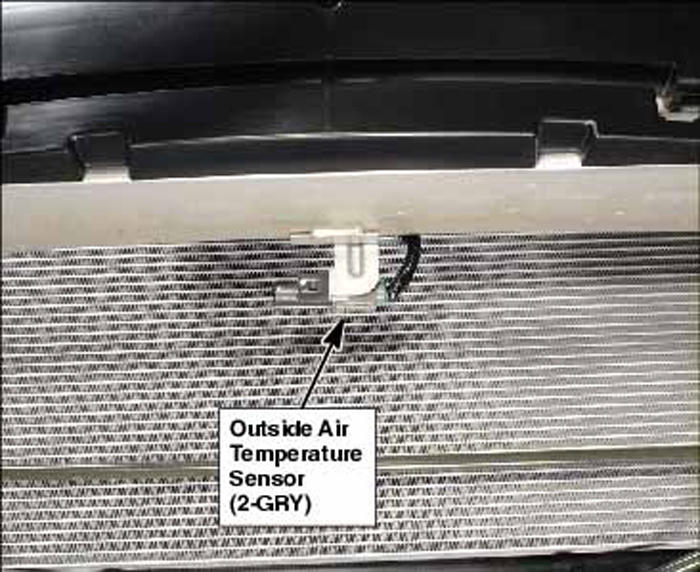

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Front Bumper

G00466796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

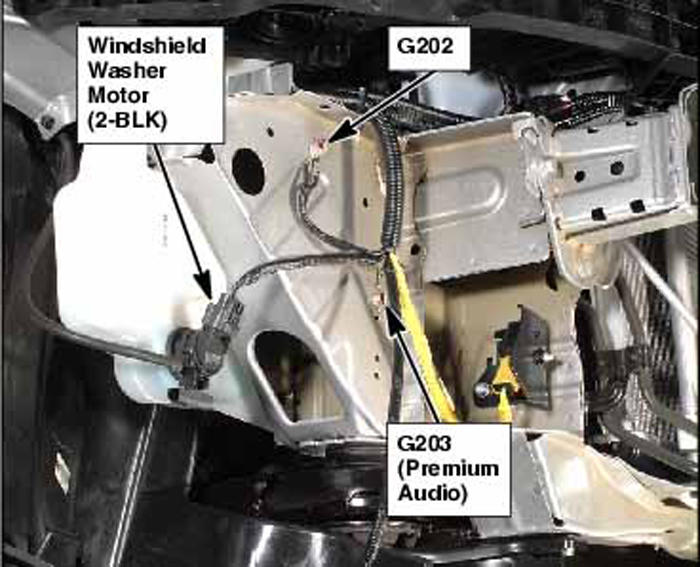

Fig 164: Front Bumper

G00466797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

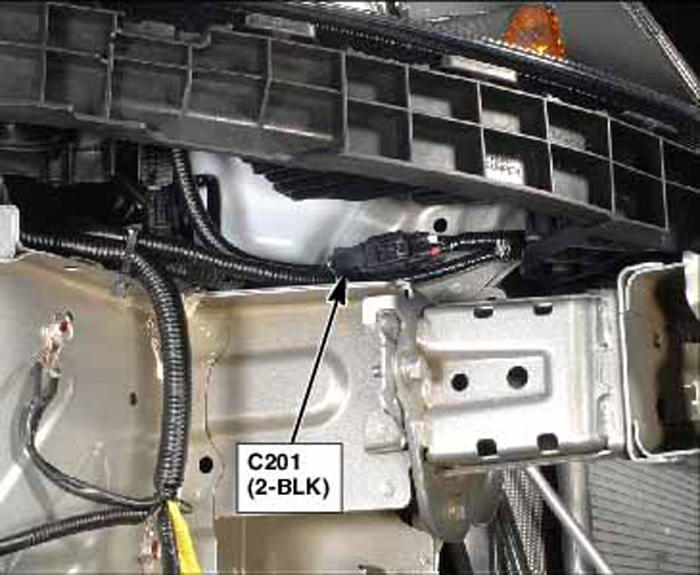

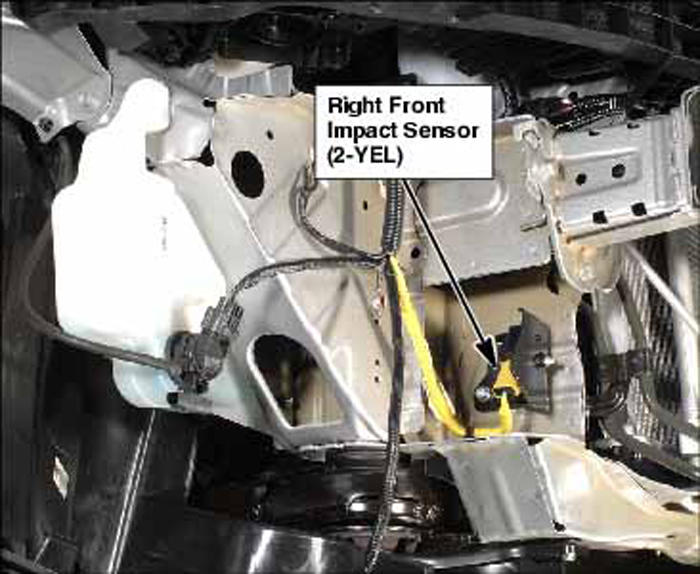

Fig 165: Front Bumper

G00466798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

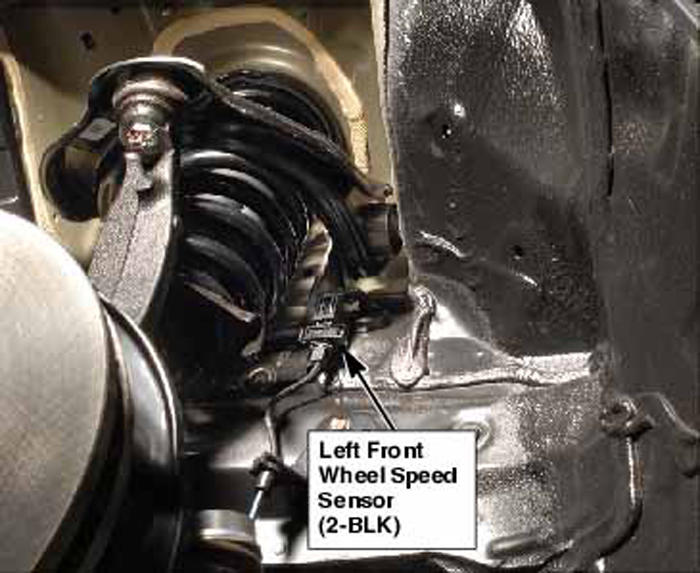

Fig 166: Left Front Wheelwell (Right Similar)

G00466799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 167: Lower Left Front Of Engine Compartment

G00466800

Courtesy of AMERICAN HONDA MOTOR CO., INC.

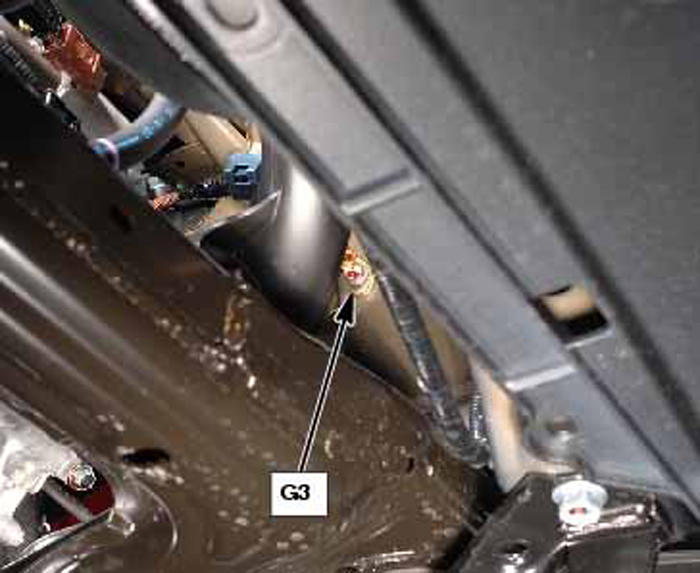

Fig 168: Lower Left Front Of Engine Compartment

G00466801

Courtesy of AMERICAN HONDA MOTOR CO., INC.

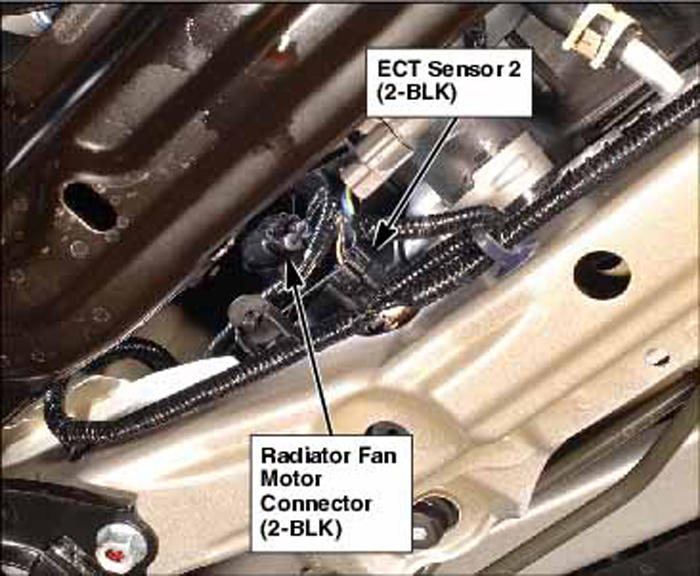

Fig 169: Lower Left Front Of Engine Compartment (3.5L)

G00466802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

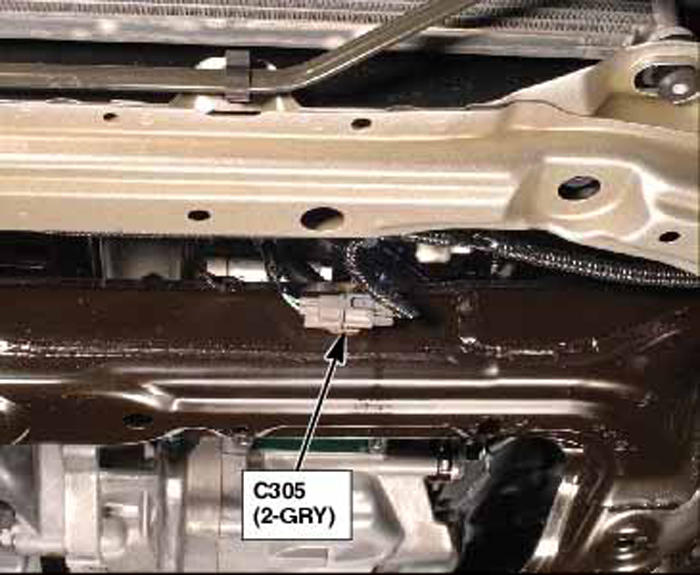

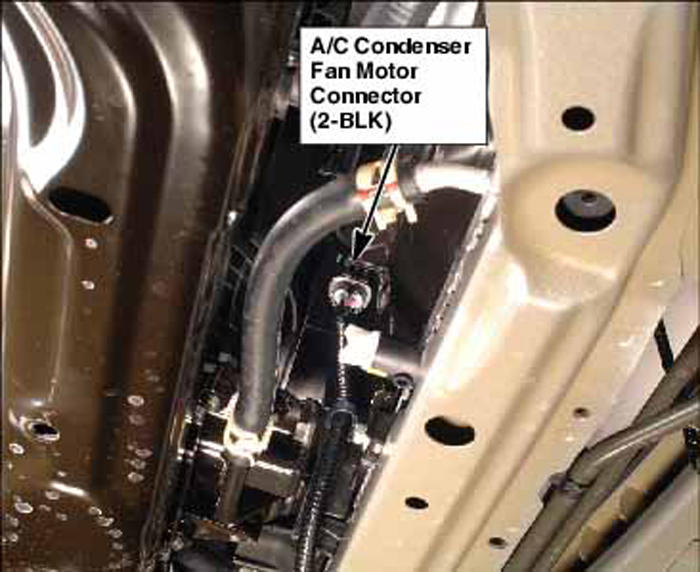

Fig 170: Lower Front Of Engine Compartment

G00466803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

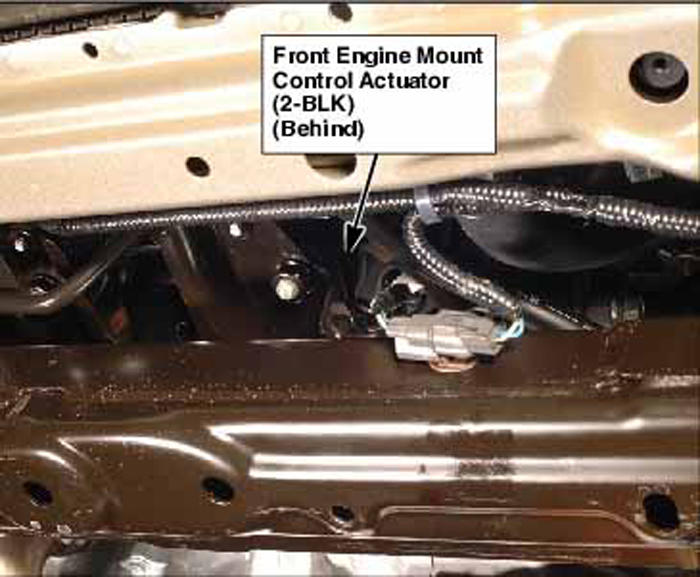

Fig 171: Lower Front Of Engine Compartment (3.5L)

G00466804

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 172: Lower Left Rear Of Engine Compartment (3.5L)

G00466805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

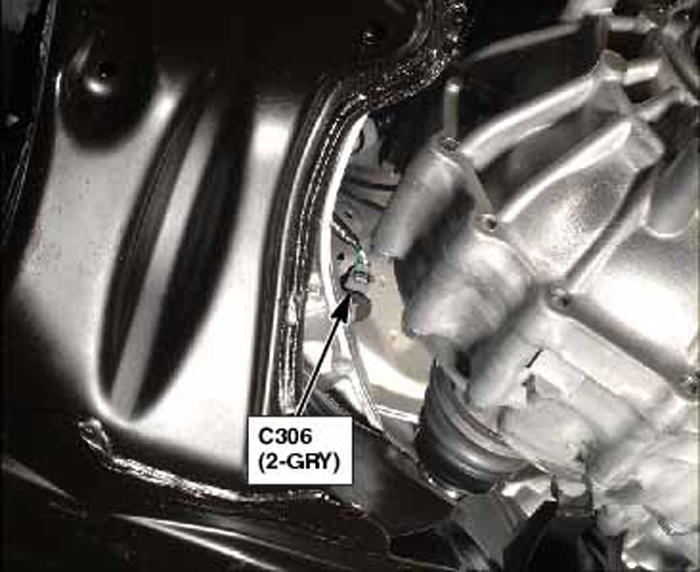

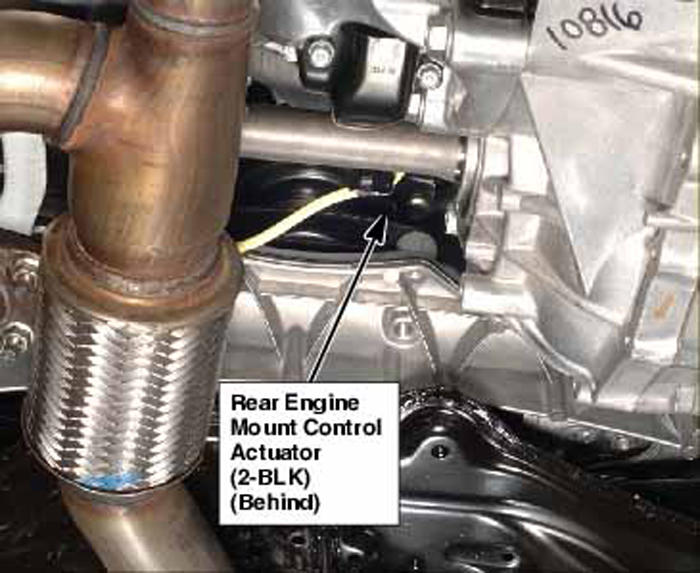

Fig 173: Lower Rear Of Engine Compartment (3.5L)

G00466806

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 174: Lower Right Rear Of Engine Compartment (2.4L)

G00466807

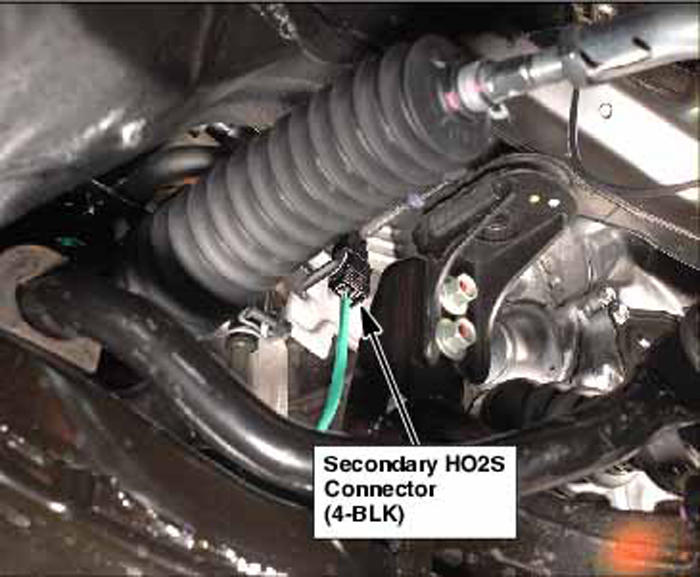

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 175: Under Right Front Of Engine (2.4L)

G00466808

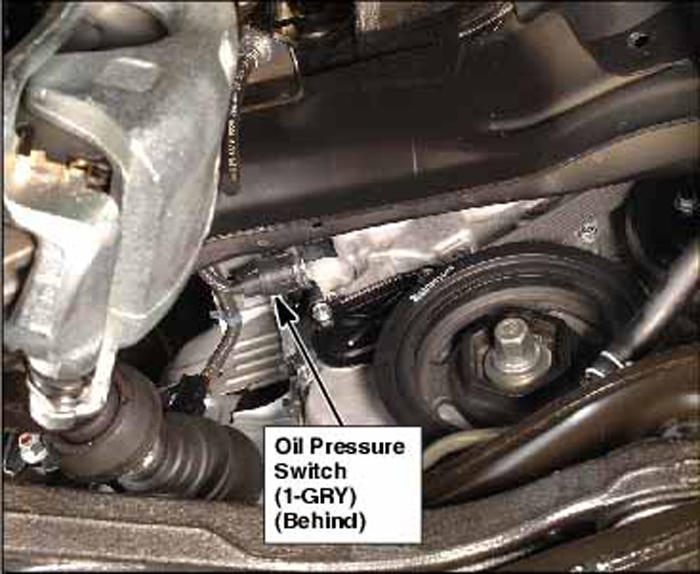

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 176: Under Right Front Of Engine (3.5L)

G00466809

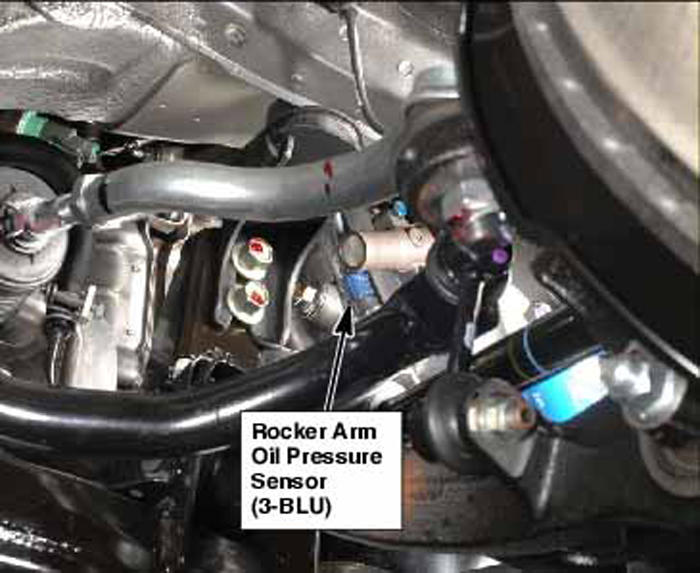

Courtesy of AMERICAN HONDA MOTOR CO., INC.

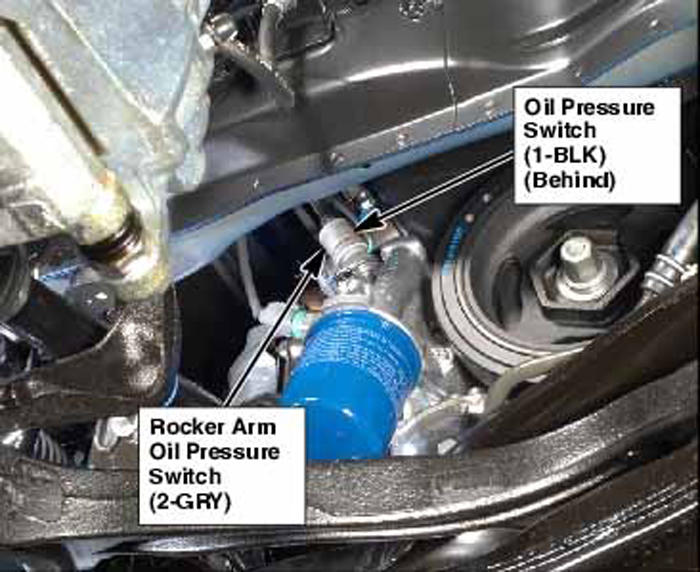

Fig 177: Under Right Front Of Engine (3.5L)

G00466810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 178: Under Right Front Of Engine (3.5L)

G00466811

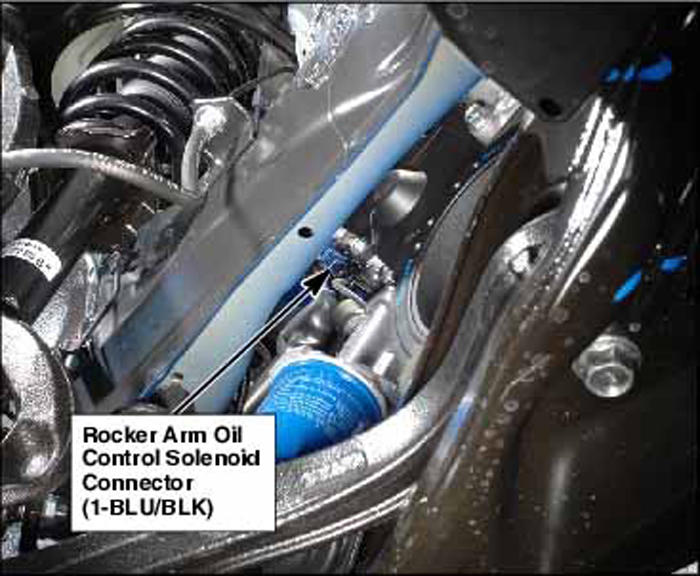

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 179: Under Right Front Of Engine (2.4L)

G00466812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 180: Under Right Front Of Engine (3.5L)

G00466813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

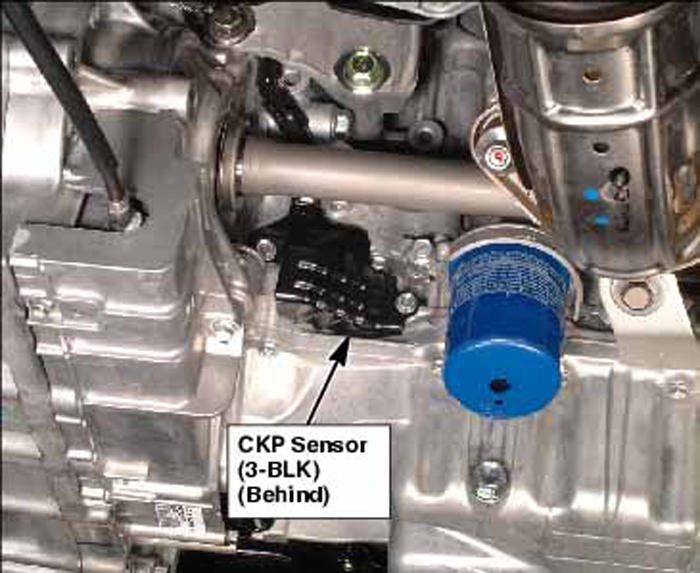

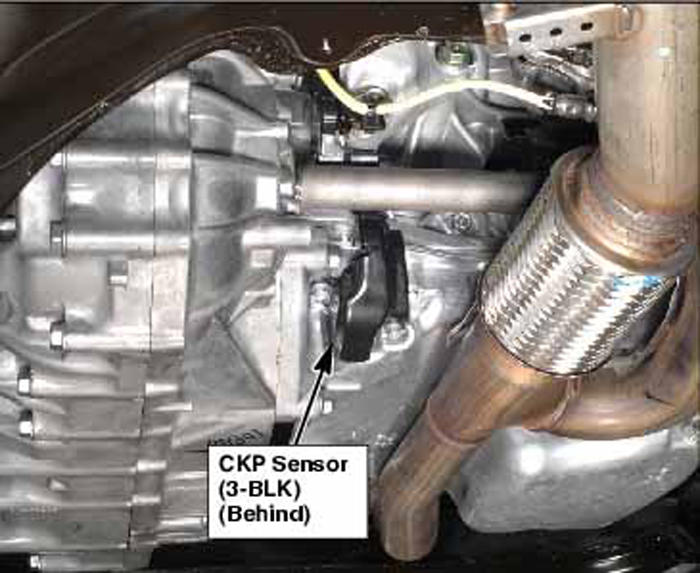

Fig 181: Under Automatic Transmission Housing (2.4L)

G00466814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

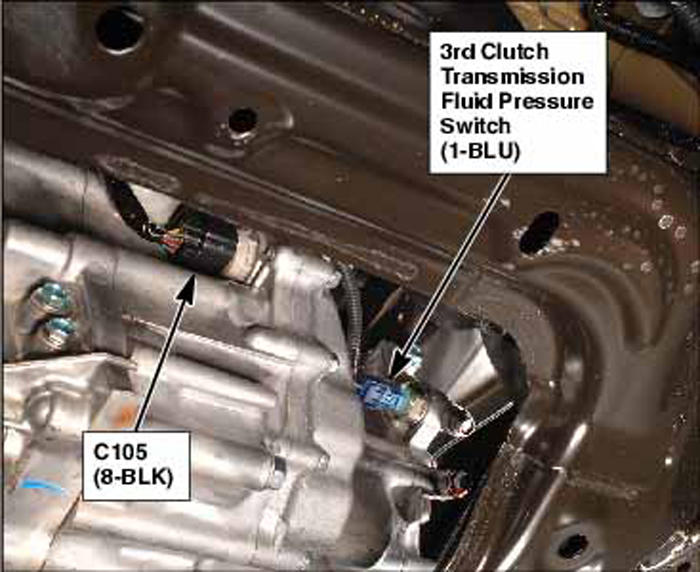

Fig 182: Under Automatic Transmission Housing (2.4L)

G00466815

Courtesy of AMERICAN HONDA MOTOR CO., INC.

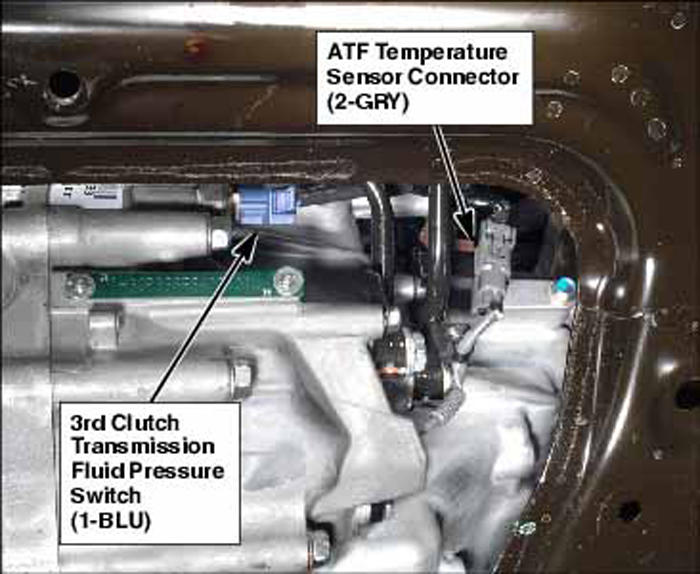

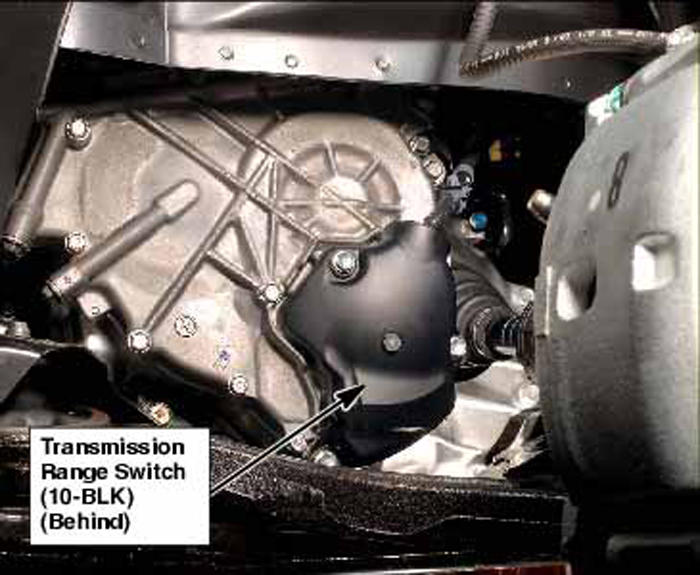

Fig 183: Under Automatic Transmission Housing

G00466816

Courtesy of AMERICAN HONDA MOTOR CO., INC.

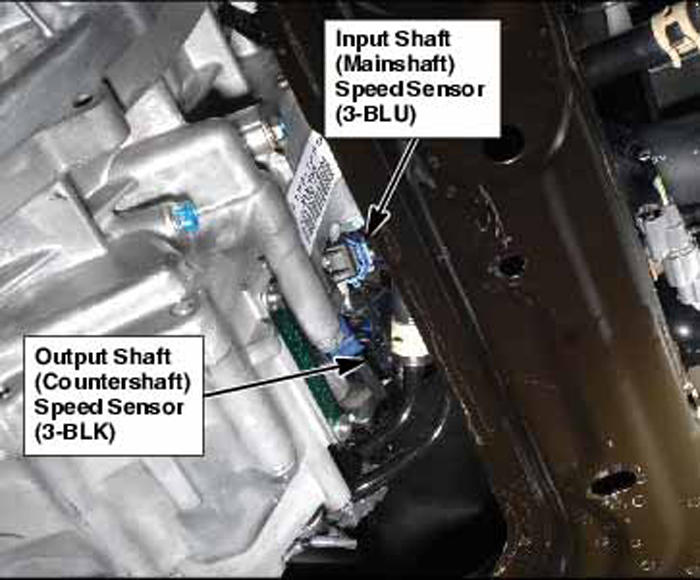

Fig 184: Under Automatic Transmission Housing (3.5L)

G00466817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 185: Under Manual Transmission Housing (3.5L)

G00466818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

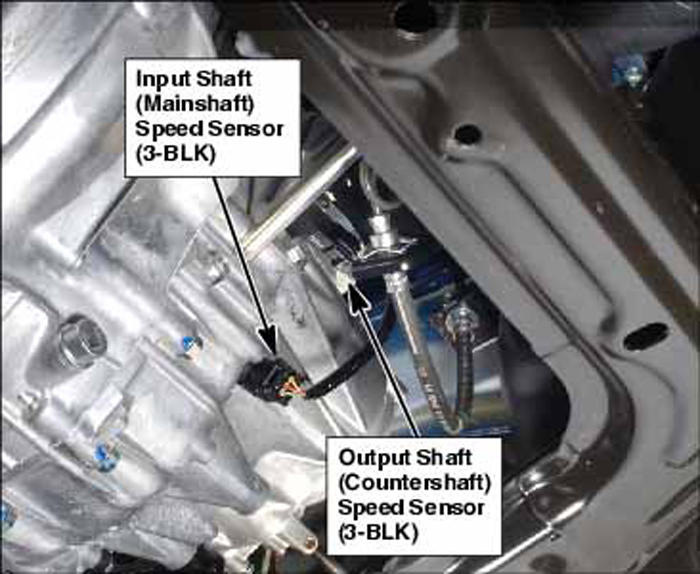

Fig 186: Under Automatic Transmission Housing (2.4L)

G00466819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

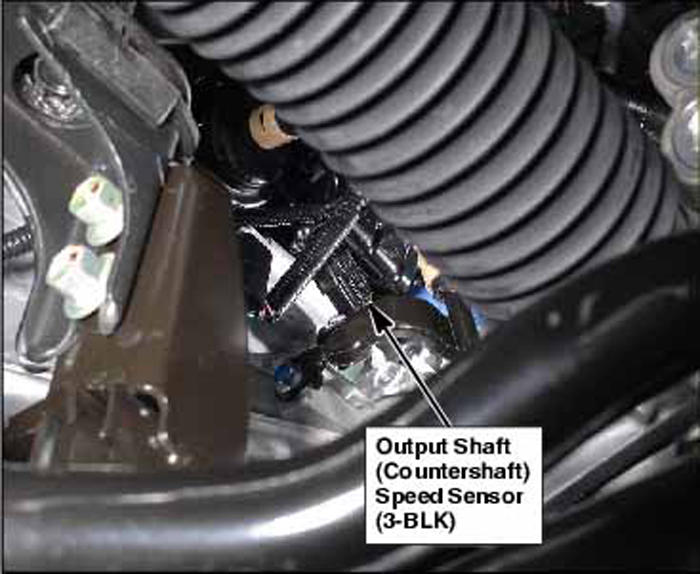

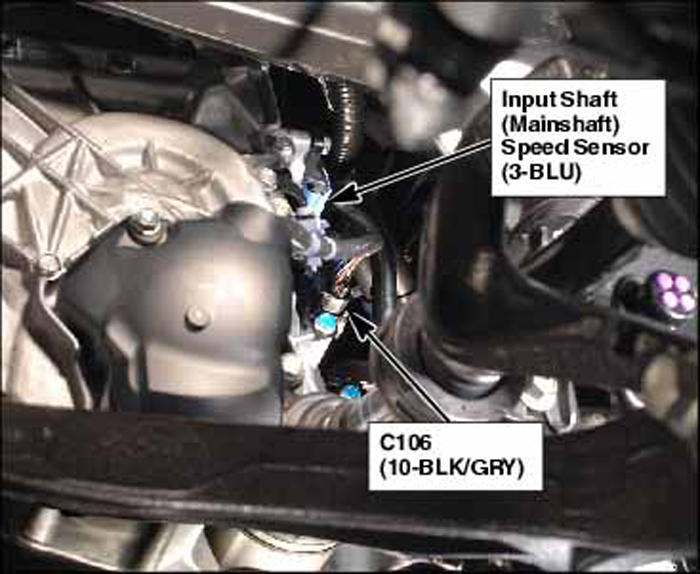

Fig 187: Under Automatic Transmission Housing (2.4L)

G00466820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

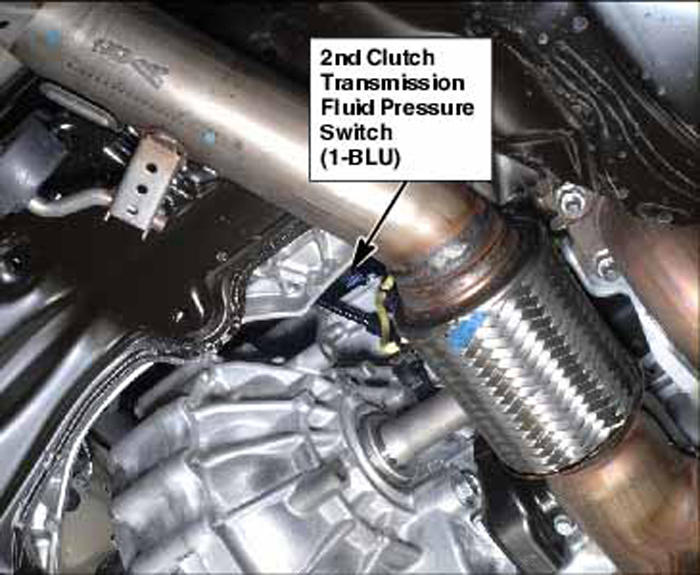

Fig 188: Under Automatic Transmission Housing (3.5L)

G00466821

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 189: Under Left Rear Of Vehicle

G00466822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

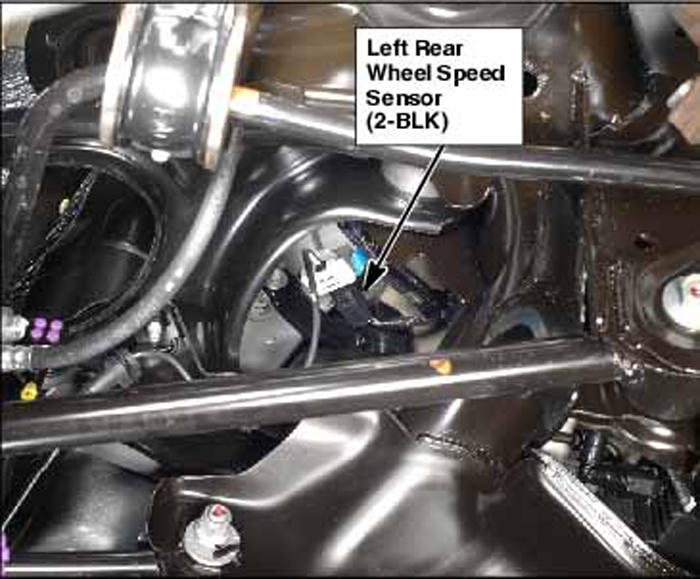

Fig 190: Under Middle Rear Of Vehicle

G00466823

Courtesy of AMERICAN HONDA MOTOR CO., INC.

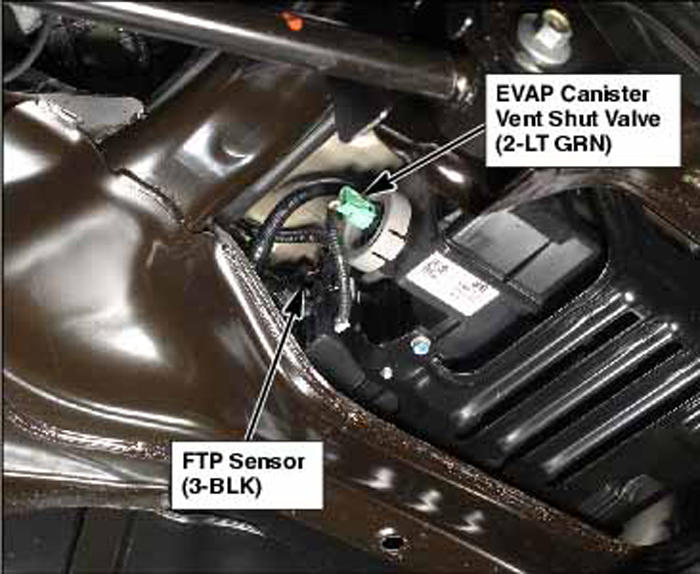

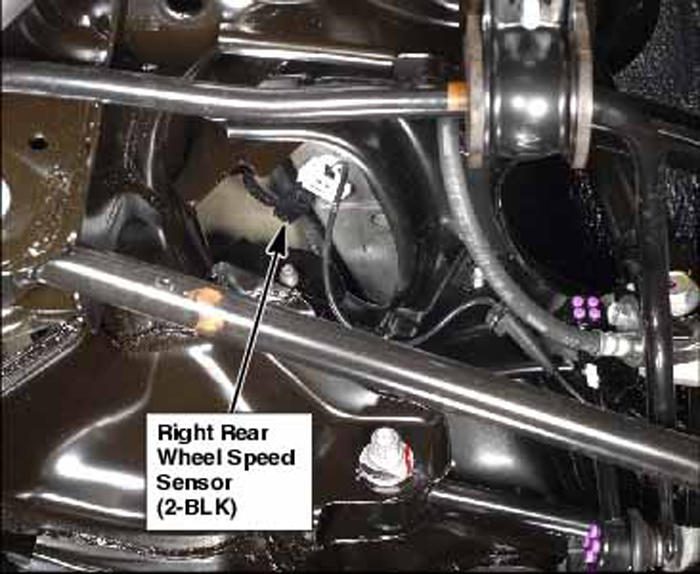

Fig 191: Under Right Rear Of Vehicle

G00466824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 192: Top Of Manual Transmission Housing (2.4L)

G00466825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

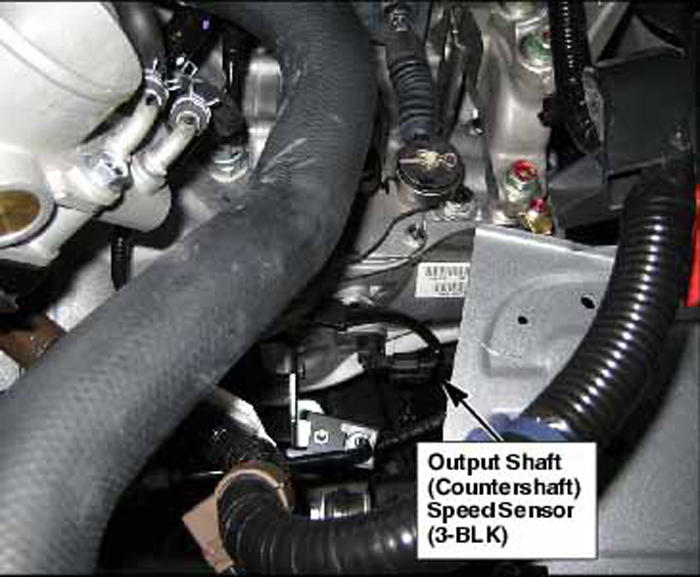

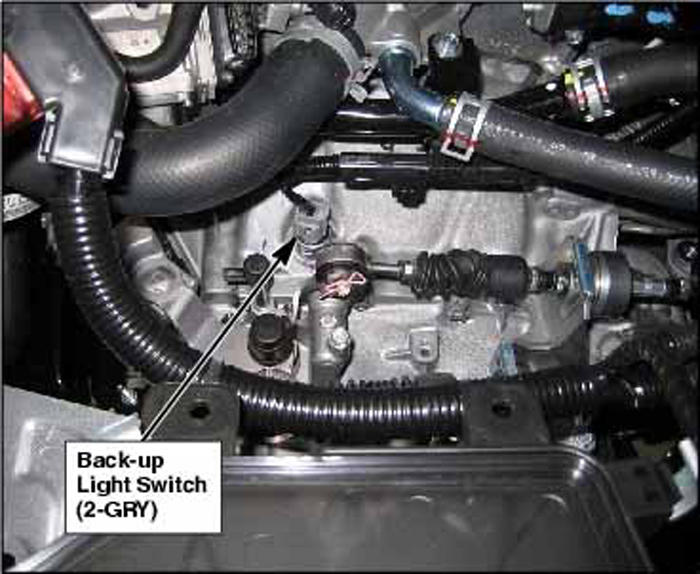

Fig 193: Top Of Manual Transmission Housing (2.4L)

G00466826

Courtesy of AMERICAN HONDA MOTOR CO., INC.
