Climate Control Unit Removal and Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws, and remove the climate control unit (A) with the brackets from the dashboard, then disconnect the connectors (B).

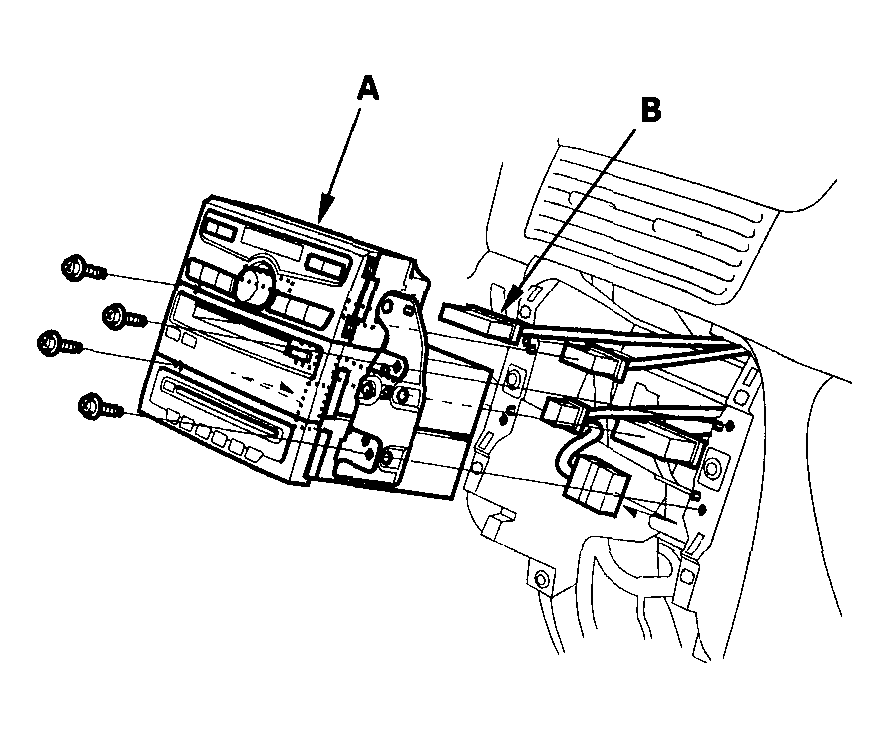

    Fig 1: Removing Climate Control Unit From Dashboard With Brackets From Dashboard
    G04246992Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws and the climate control unit (A) from the brackets (B).

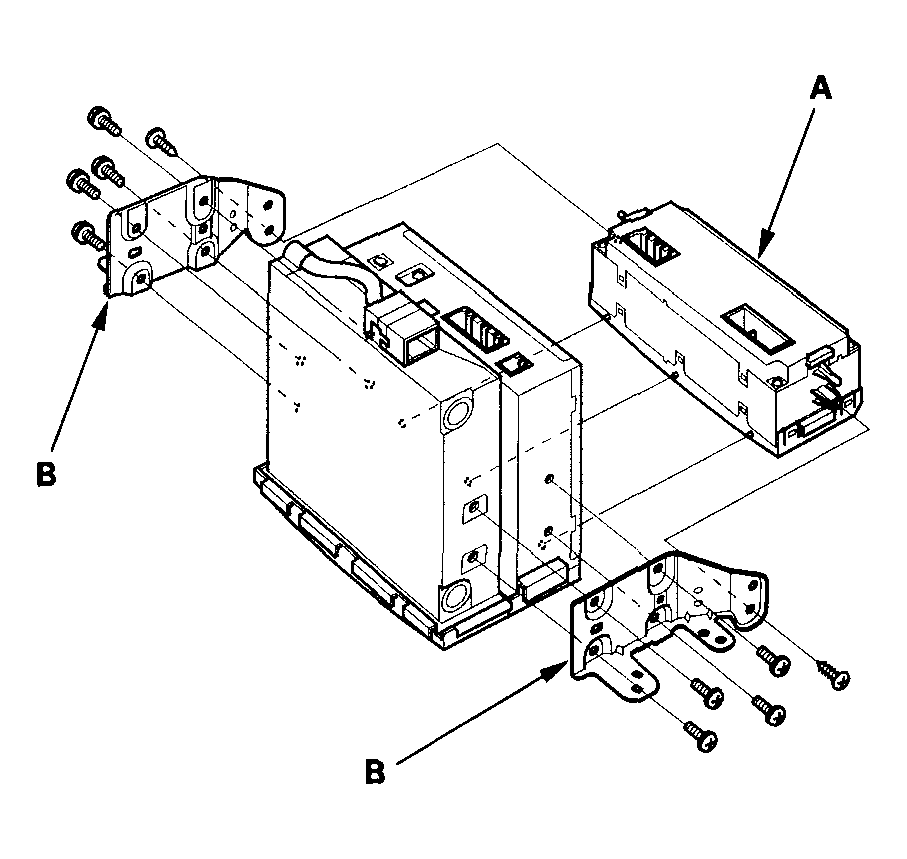

    Fig 2: Removing Climate Control Unit From Brackets With Screws
    G04246993Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the control unit in the reverse order of removal. After installation, operate the control unit controls to see whether it works properly.
  5. Run the self-diagnostic function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION  ).
