Component Location Index

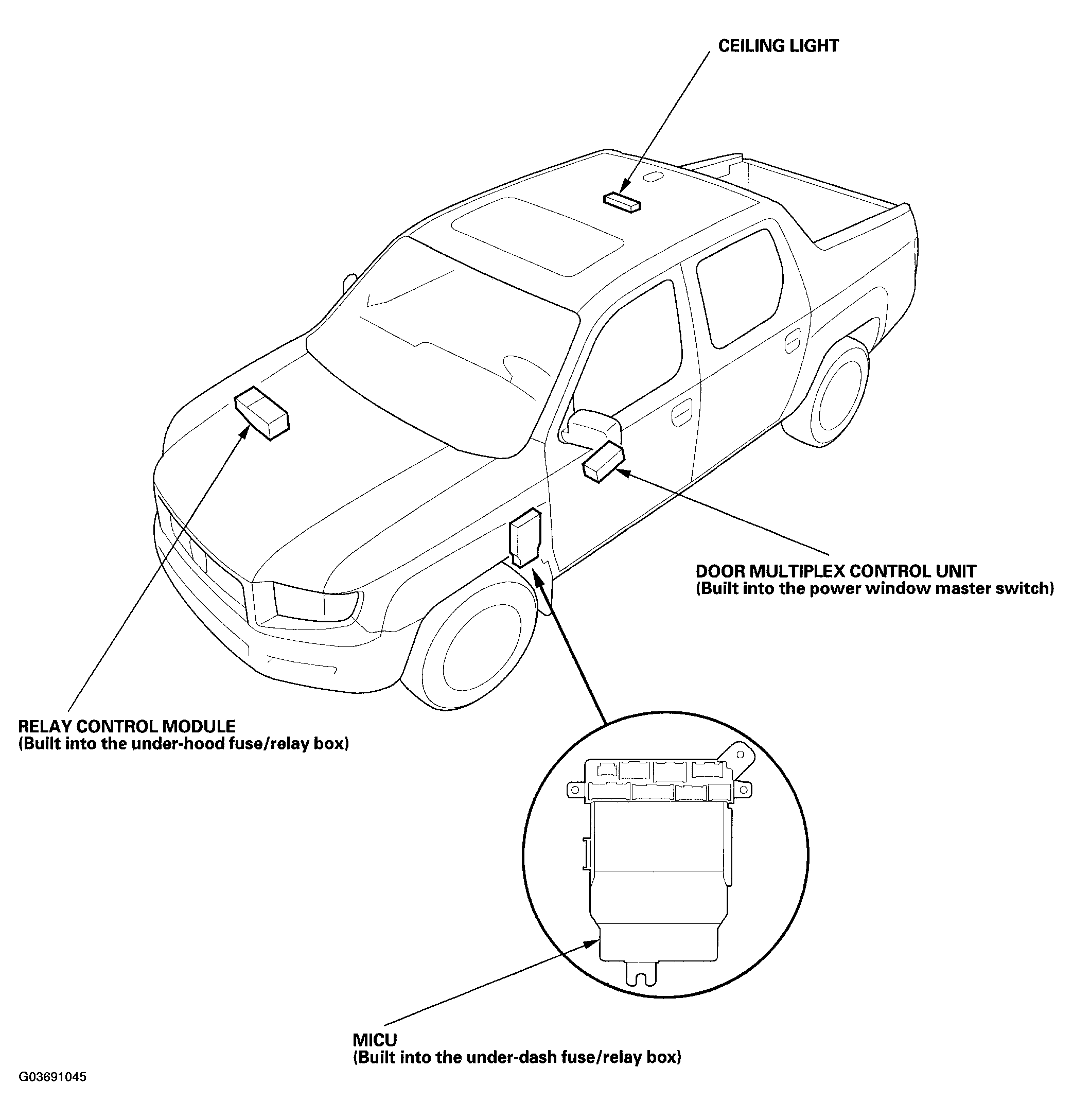

Fig 1: Multiplex Integrated Control System Component Location (1 Of 2)
G03691045Courtesy of AMERICAN HONDA MOTOR CO., INC.

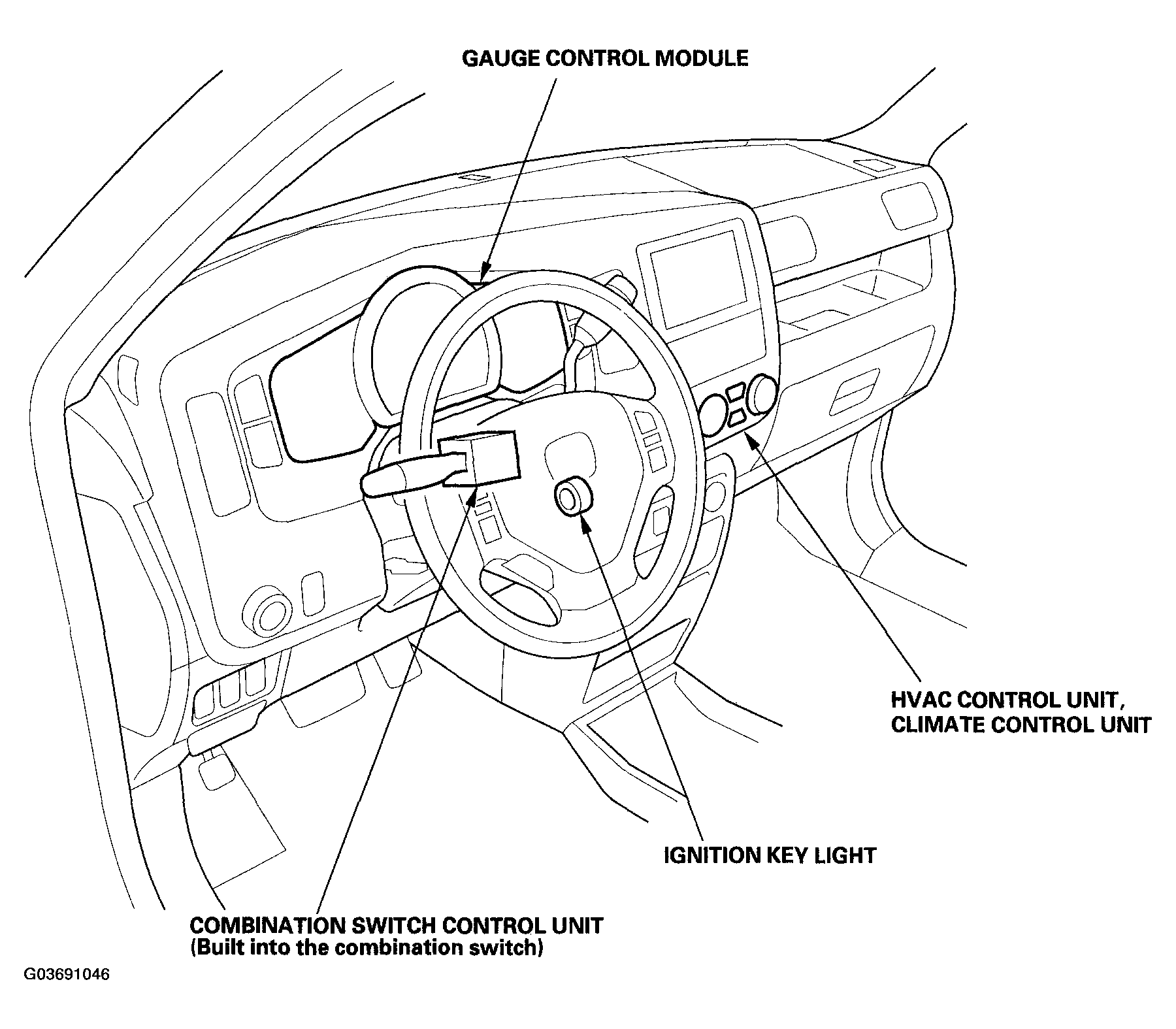

Fig 2: Multiplex Integrated Control System Component Location (2 Of 2)
G03691046Courtesy of AMERICAN HONDA MOTOR CO., INC.
