Exploded View

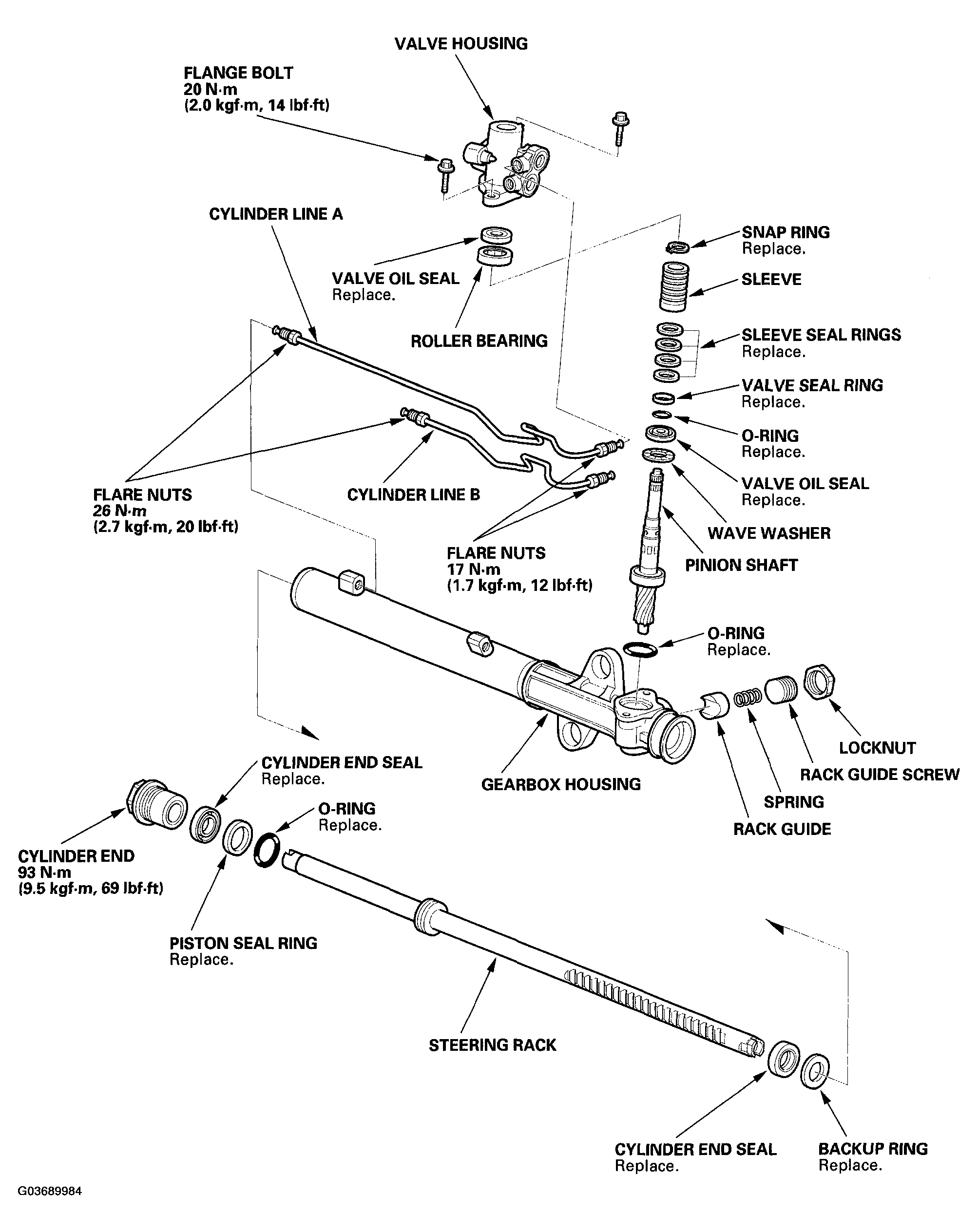

Fig 1: Exploded View Of Steering Gearbox With Torque Specifications

G03689984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Cylinder end seal remover attachment 07TAF-SZ50100
Pilot collar 07GAF-PH70100
Valve seal ring sizing tool 07NAG-SR3090A
Ball joint boot clip guide 07974-SA50800
Sleeve seal ring sizing tool 07974-SA5020A or 07974-SA50200
Attachment, 32 x 35 mm 07746-0010100
Driver 07749-0010000
Piston seal ring guide 07ZAG-S3VA100
Piston seal ring sizing tool 07ZAG-S3VA200
Pincers Oetiker 1098 or equivalent, commercially available

NOTE: Refer to the EXPLODED VIEW as needed during this procedure.
