Drain Bolt Installation

NOTE: When installing the drain bolt, always use new washer.

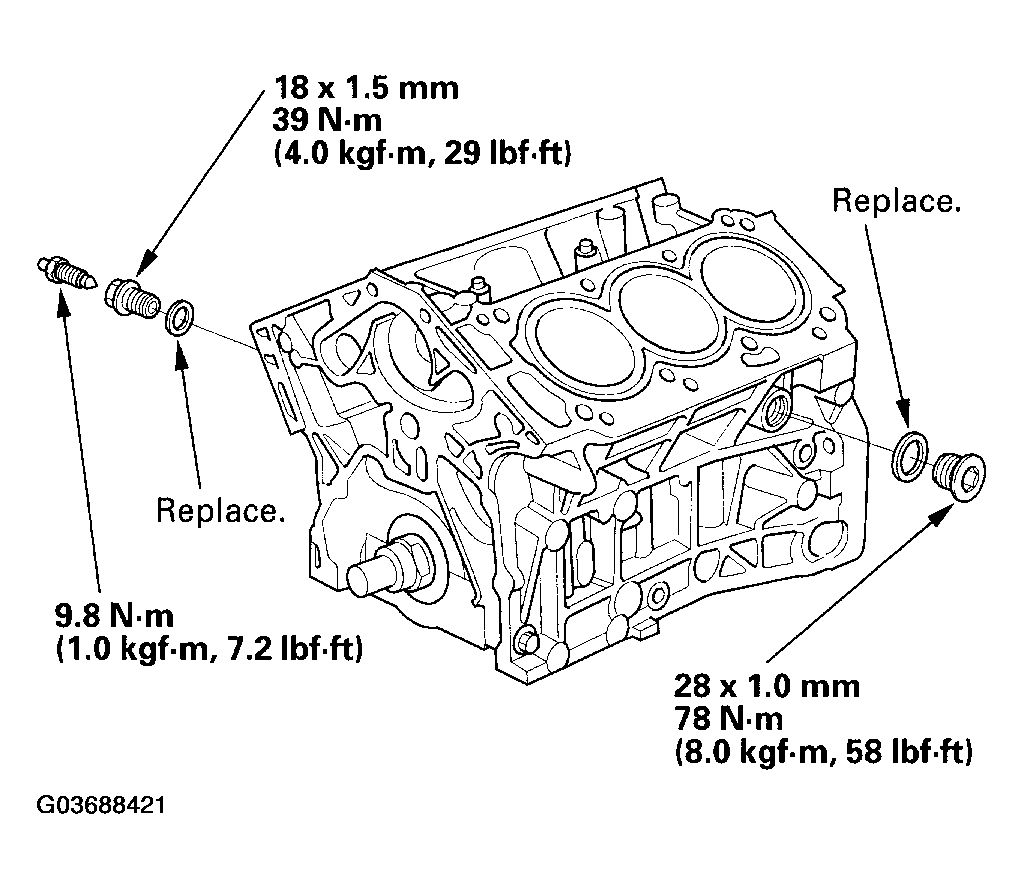

Fig 1: Installing Drain Bolt Using New Washer With Torque Specifications

G03688421

Courtesy of AMERICAN HONDA MOTOR CO., INC.
