EGR Valve Replacement

  1. Remove the intake manifold cover (see step 1 on REMOVAL ).
  2. Disconnect the EGR valve 6P connector (A).

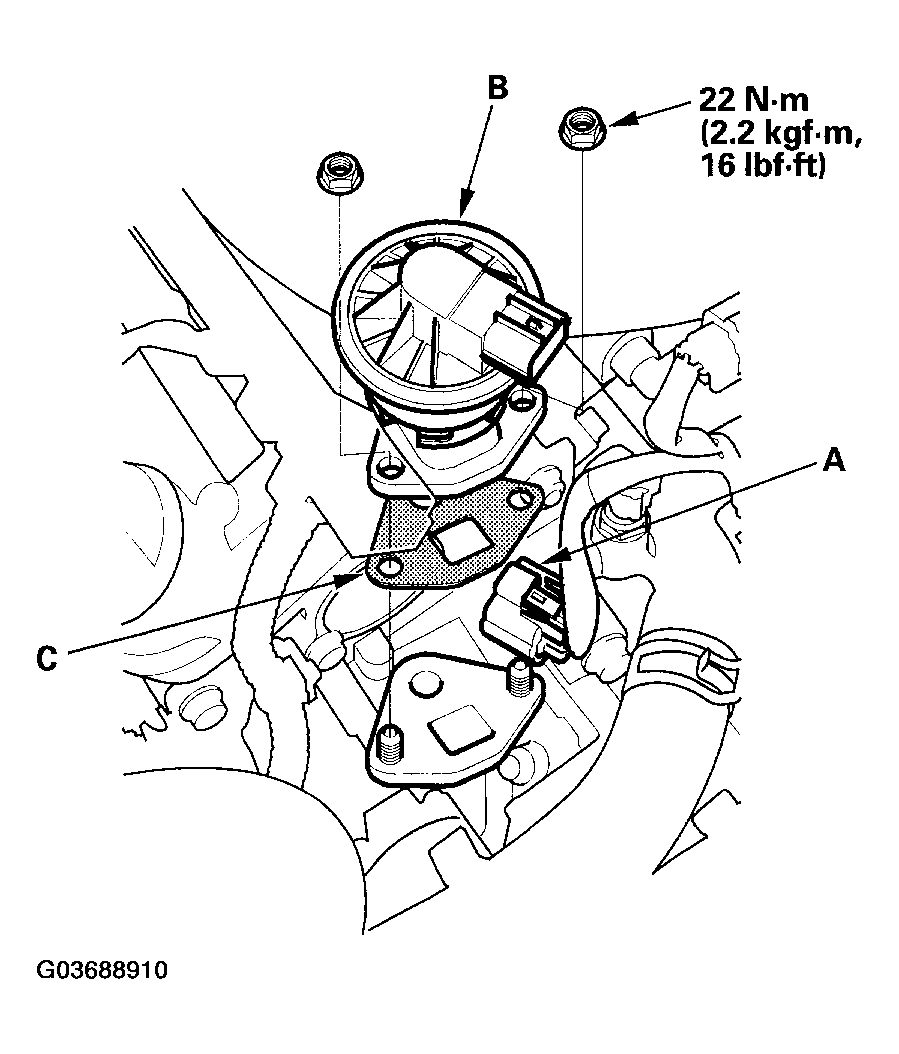

    Fig 1: Disconnecting EGR Valve 6P Connector With Torque Specifications
    G03688910Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the valve in the reverse order of removal with a new gasket (C).
  5. Install the intake manifold cover (see step 10 on INSTALLATION ).
