Circuit Diagram - PCM A/T Control System

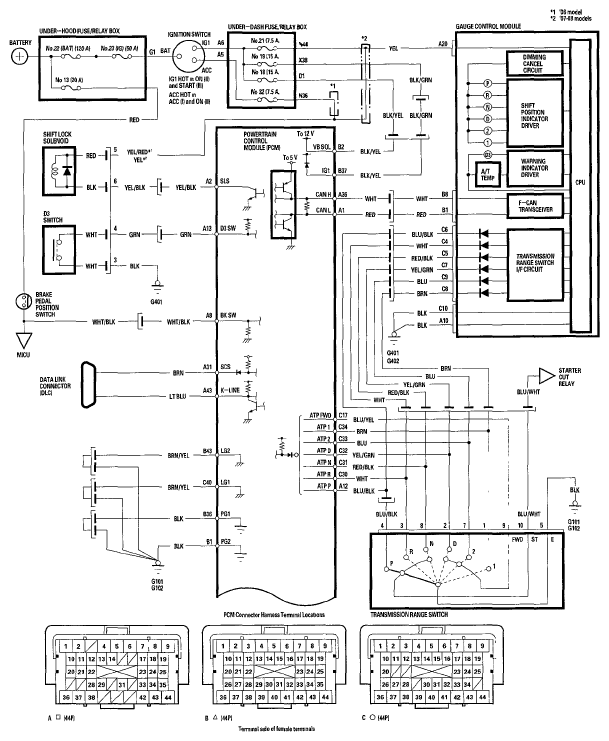

Fig 1: Circuit Diagram - PCM A/T Control System (1 Of 2)
G05592273Courtesy of AMERICAN HONDA MOTOR CO., INC.

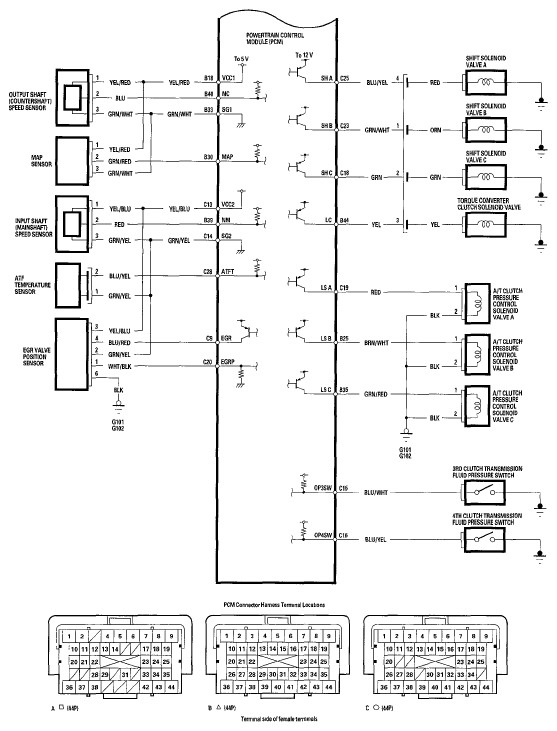

Fig 2: Circuit Diagram - PCM A/T Control System (2 Of 2)
G05592274Courtesy of AMERICAN HONDA MOTOR CO., INC.
