Home >> Honda >> 2007 >> Ridgeline RT >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> A/T Gear Position Indicator >> Component Location Index

Component Location Index

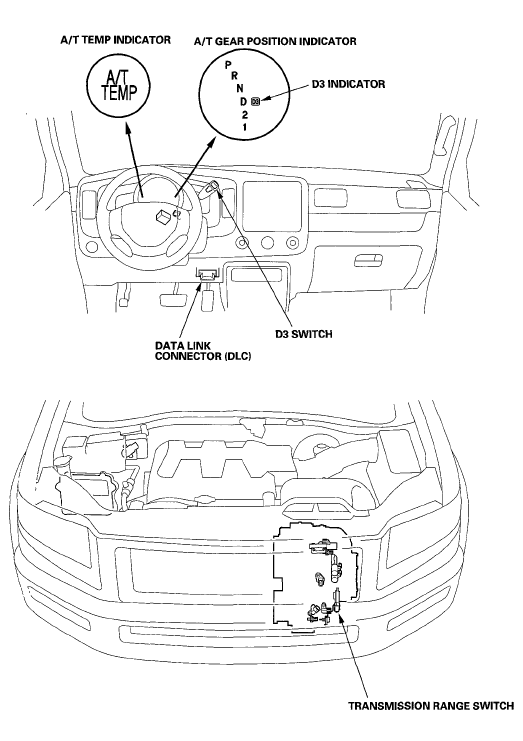

Fig 1: Identifying Location Of A/T Gear Position Indicator Components

G05592592

Courtesy of AMERICAN HONDA MOTOR CO., INC.
