Oil Pan Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove all of the old liquid gasket from the oil pan mating surfaces, bolts, and bolt holes.
Clean and dry the oil pan mating surfaces.
Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0002, 08718-0003, or 08718-009, evenly to the oil pan mating surface of the engine block.
NOTE: Do not install components if too much time has passed after applying the liquid gasket (for P/N 08718-0002, no more than 4 minutes, for all others, no more than 5 minutes). Instead, remove the old residue and reapply the liquid gasket.

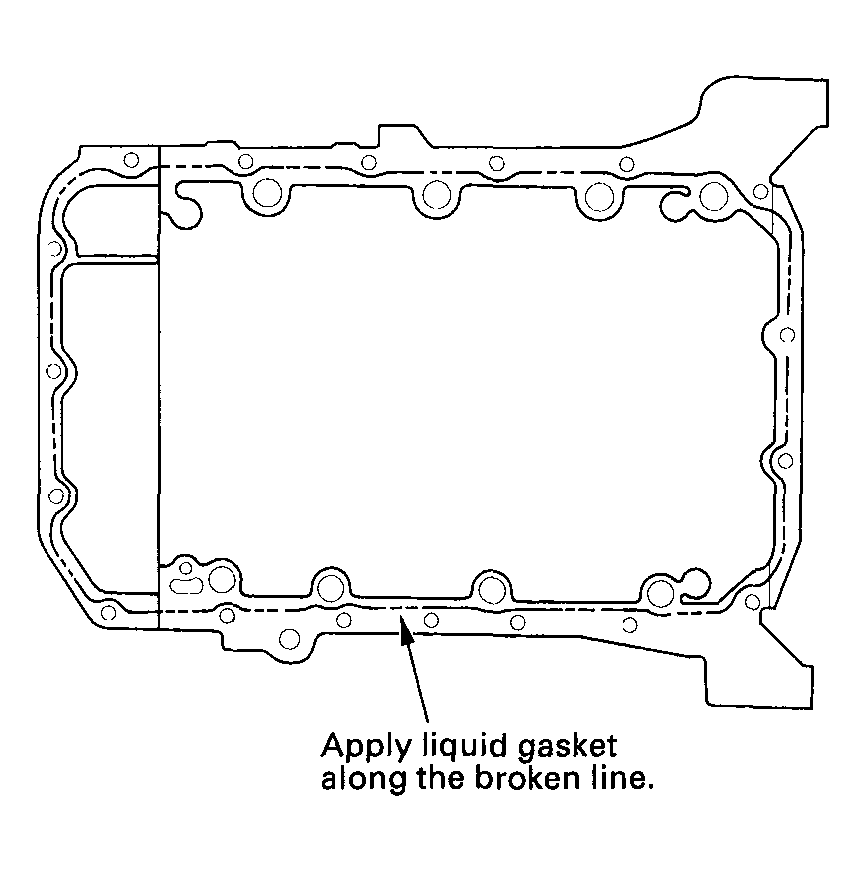

Fig 1: Removing All Of Old Liquid Gasket From Oil Pan Mating Surfaces & Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the oil pan on the engine block.
Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 N.m (1.2 kgf.m, 8.7 lbf.ft).
NOTE:
- Wait at least 30 minutes before filling the engine with oil.
- Do not run the engine for at least 3 hours after installing the oil pan.

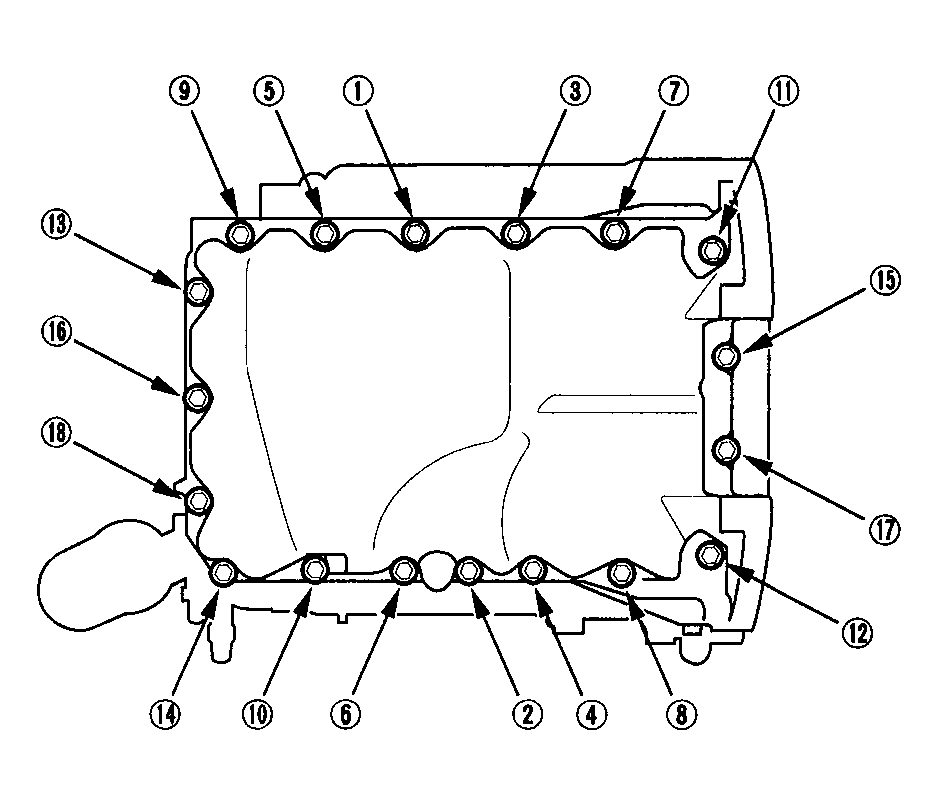

  Fig 2: Tightening Bolts In Sequence
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the four bolts (A) securing the transmission, then install the torque converter cover (B).

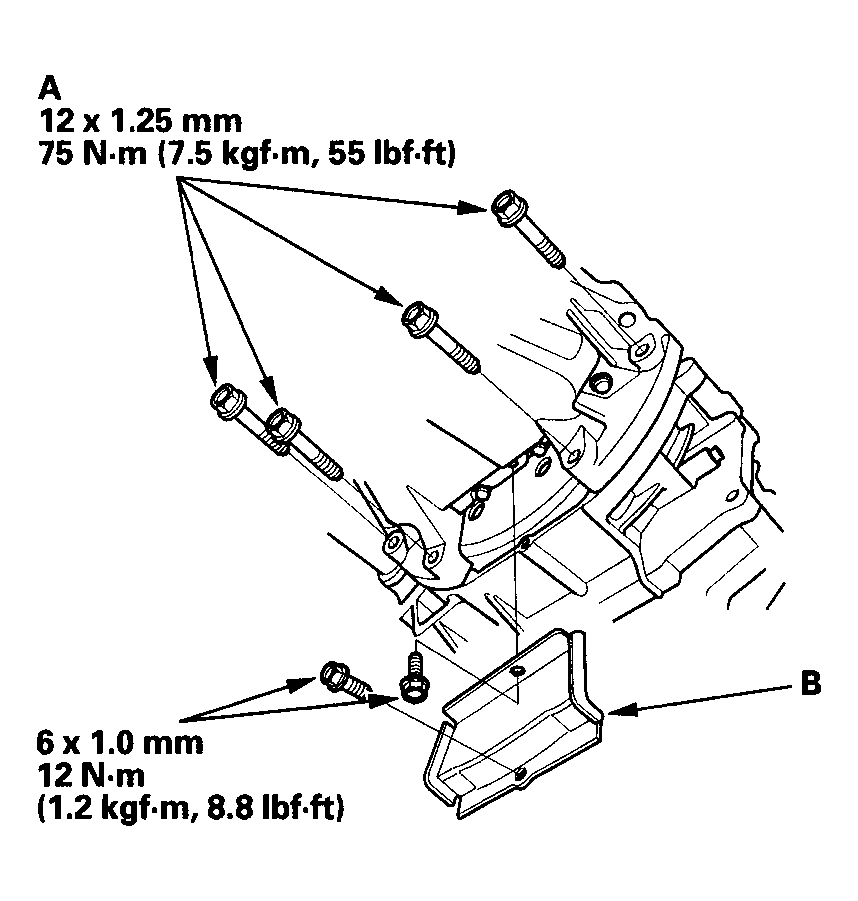

Fig 3: Installing Torque Converter Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear warm up three way catalytic converter (rear WU-TWC) bracket.

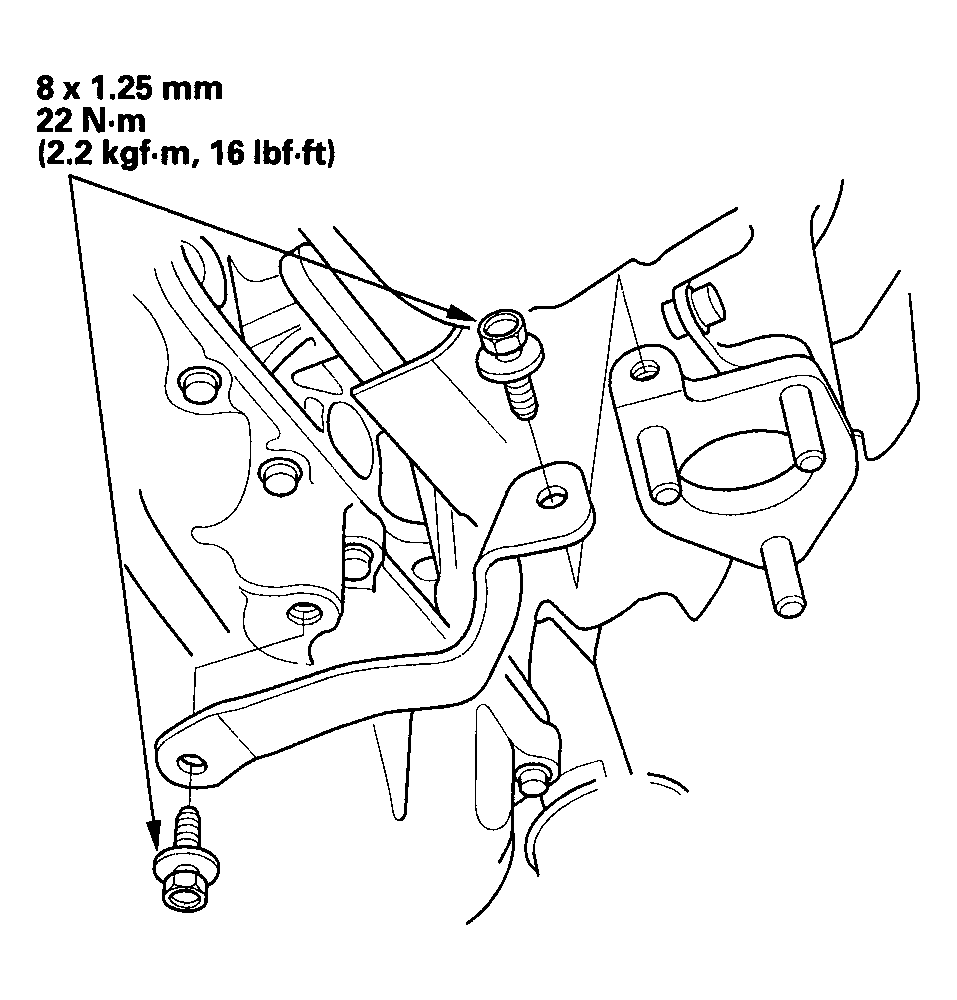

Fig 4: Installing Rear Warm Up Three Way Catalytic Converter (Rear WU-TWC) Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the engine is still in the vehicle, do the following steps.
Install exhaust pipe A using new gaskets and new self-locking nuts (see step 31 in ENGINE INSTALLATION ).
Install the front subframe stiffener using new bolts (see step 32 in ENGINE INSTALLATION ).
Install the splash shield (see step 38 in ENGINE INSTALLATION ).
Refill the engine with engine oil (see step 4 in ENGINE OIL REPLACEMENT ).
Lower the vehicle on the hoist.
