Drain Bolt Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When installing the drain bolt, always use new washer.

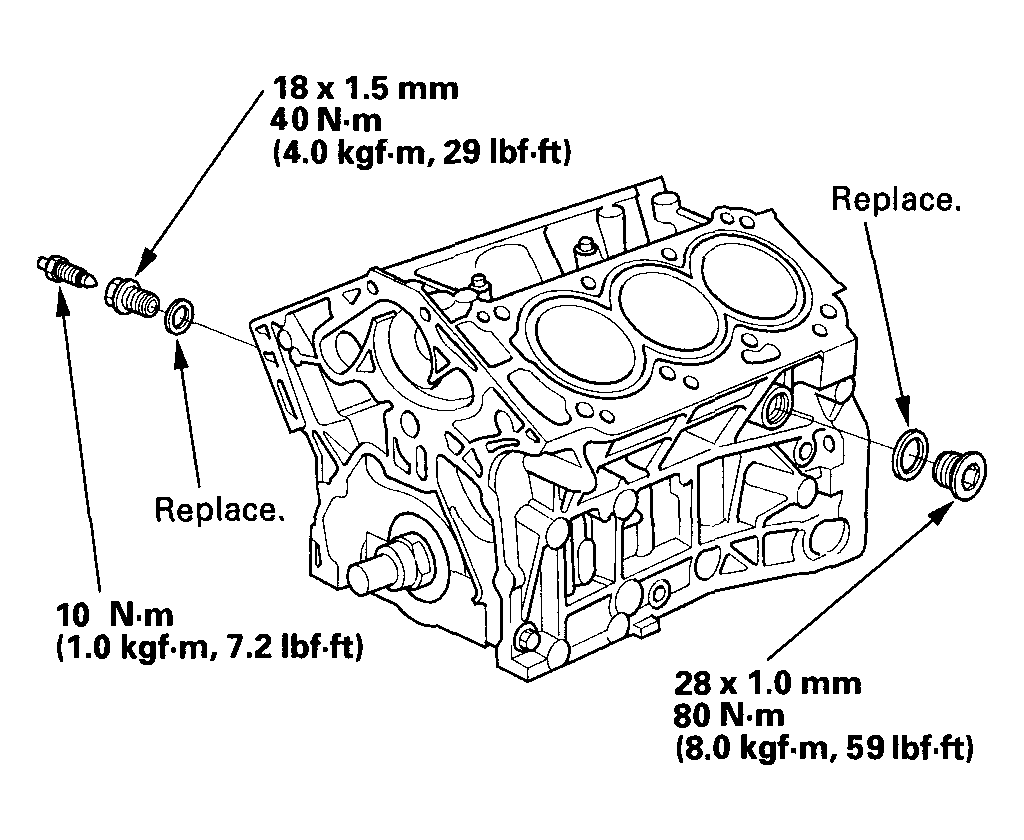

Fig 1: Installing Drain Bolt With New Washer With Torque Specifications
G04244972Courtesy of AMERICAN HONDA MOTOR CO., INC.
