DTC P1454: Fuel Tank Pressure (FTP) Sensor Range/Performance Problem: Notes

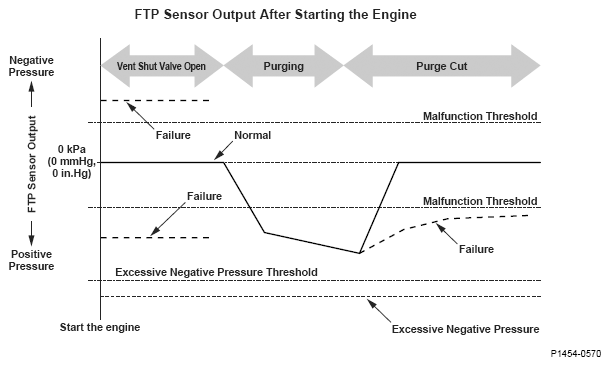

Fig 1: Fuel Tank Pressure (FTP) - Graph

G04838559

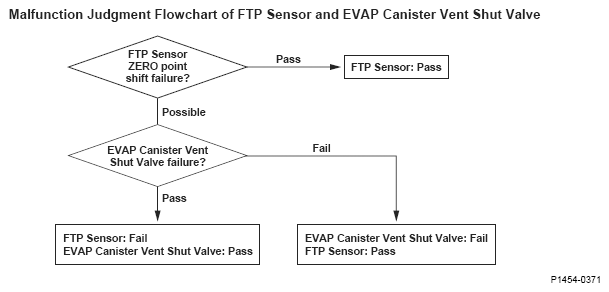

Fig 2: Flow Chart

G04838560
