DTC P0974: Open in Shift Solenoid Valve A Circuit: Notes

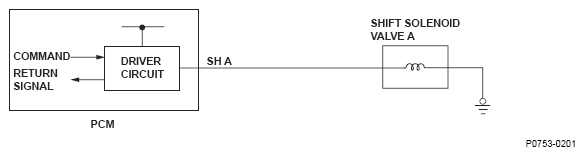

Fig 1: Shift Solenoid Valve A - Circuit Diagram (Short)

G04838537

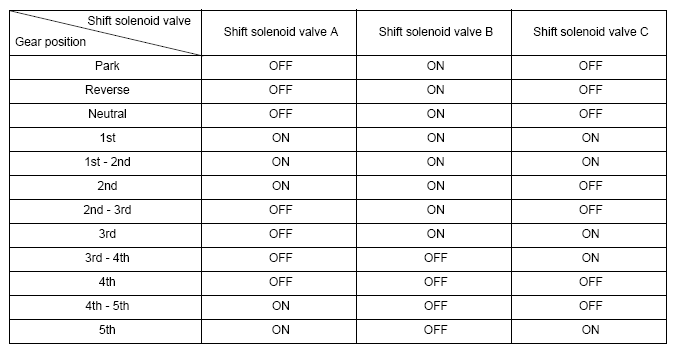

Fig 2: Shift Solenoid Valve Driving Signal Combination Chart

G04838538
