Circuit Diagram

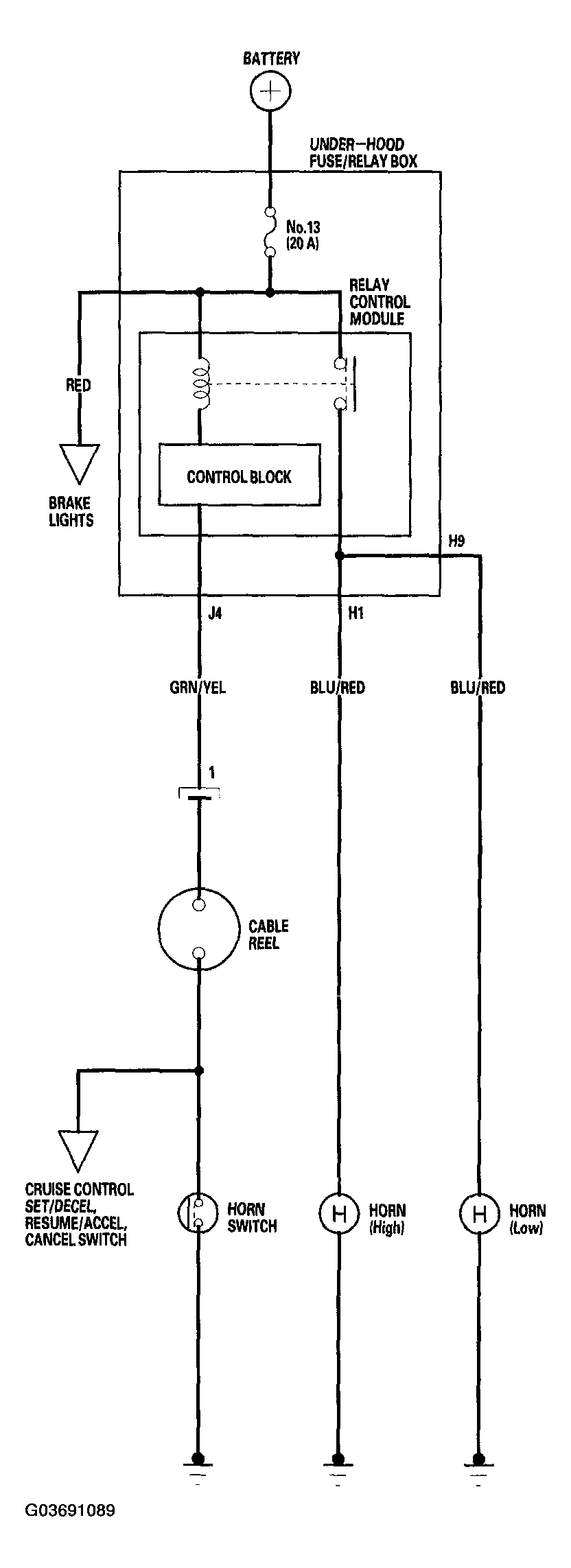

Fig 1: Horns System - Circuit Diagram

G03691089

Courtesy of AMERICAN HONDA MOTOR CO., INC.
