Tensioner Pulley Replacement

  1. Remove the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT  ).
  2. Remove the pulley bolt (A) (left-hand threads), and remove the tensioner pulley (B).

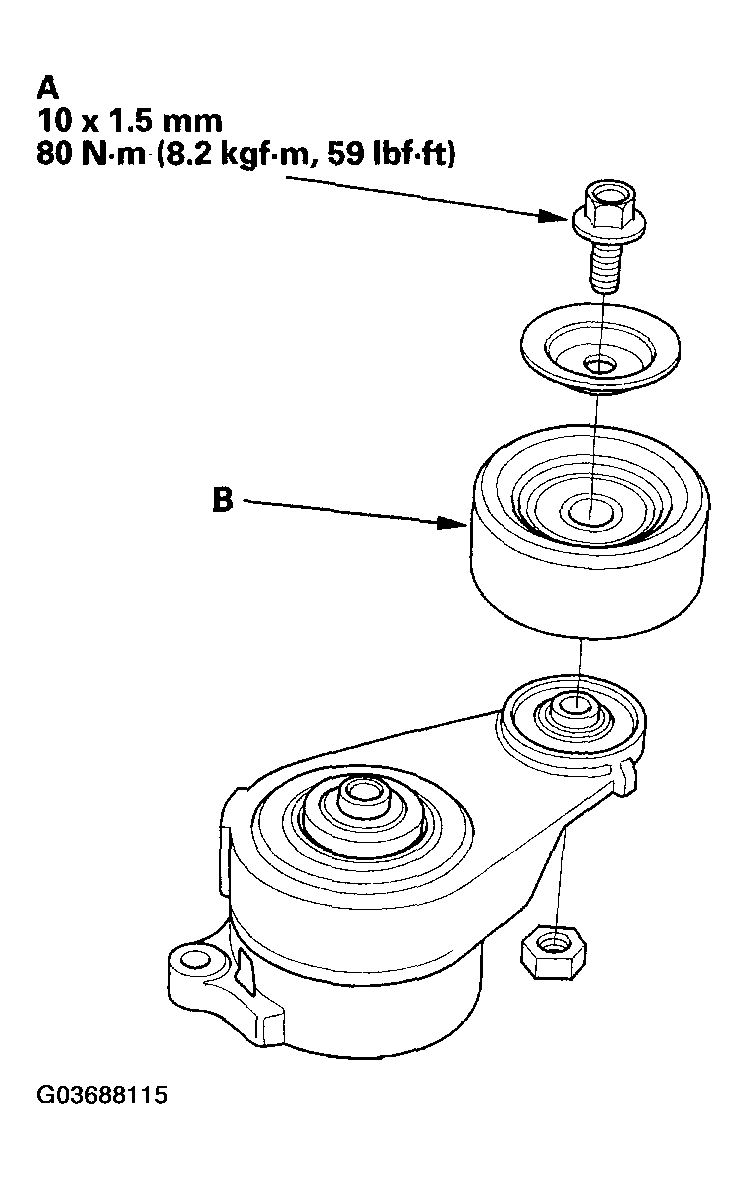

    Fig 1: Removing Pulley Bolt With Torque Settings
    G03688115Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the tensioner pulley in the reverse order of removal.
