Alternator Removal and Installation: Installation

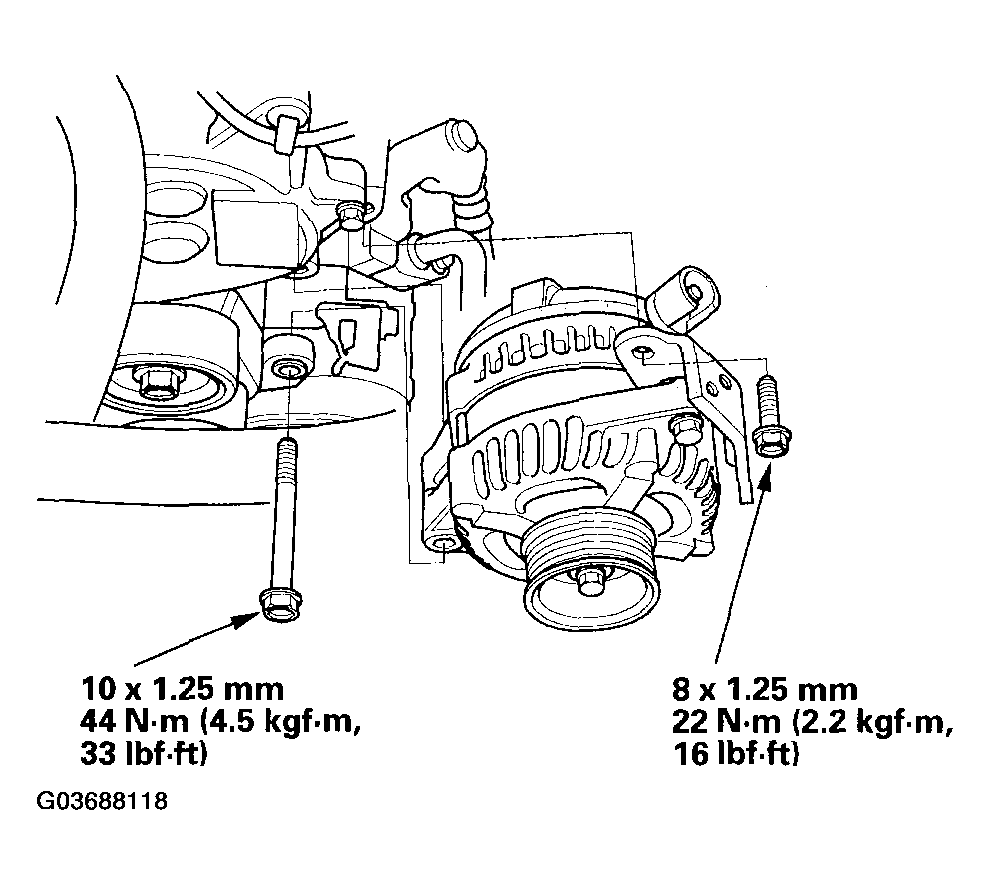

- Install the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

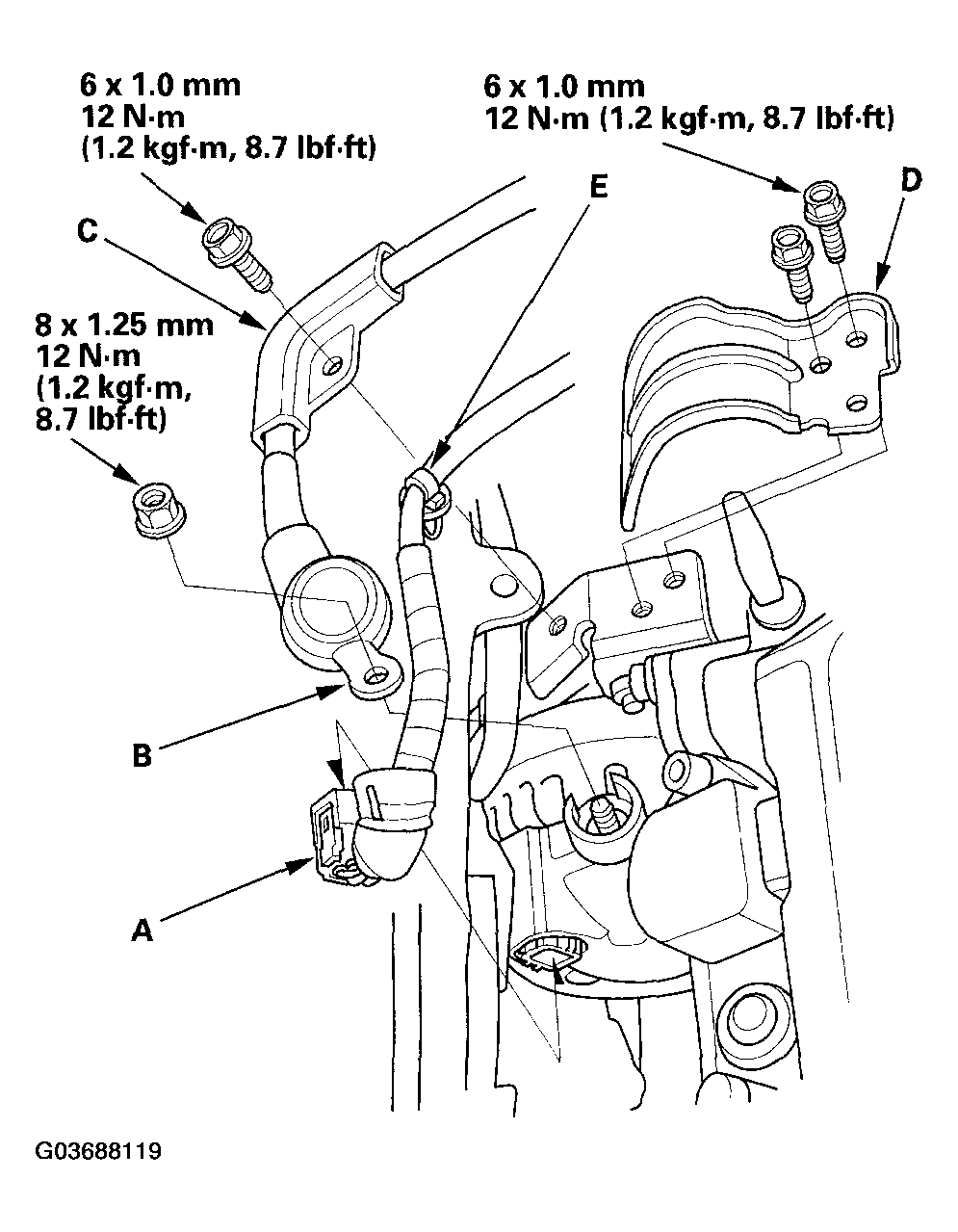

- Connect the alternator connector (A) and the BLK wire (B) to the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the harness holder (C), then install the harness clamp bracket (D) and harness clamp (E).
- Install the drive belt (see DRIVE BELT INSPECTION
).
- Install the intake manifold cover (see step 1 on IGNITION COIL REMOVAL/INSTALLATION
).
- Connect the negative cable.
- Enter the anti-theft codes for the radio and the navigation system (if equipped).
- Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT
).
- Set the clock (on vehicles without navigation).
