Rear Window Middle Glass Regulator Replacement

NOTE:

Remove these items:
- Rear seat assembly (see REAR SEAT REMOVAL/INSTALLATION )
- C-pillar trim, both sides (see C-PILLAR TRIM )
- Rear seat belt lower anchor (see step 2 on REAR SEAT BELT REPLACEMENT )
- Rear seat side trim, both sides (see step 9 on TRIM REMOVAL/INSTALLATION - DOOR AREAS )
- Subwoofer, for some models (see SUBWOOFER )
- Rear panel insulator (see REAR PANEL INSULATOR REPLACEMENT )

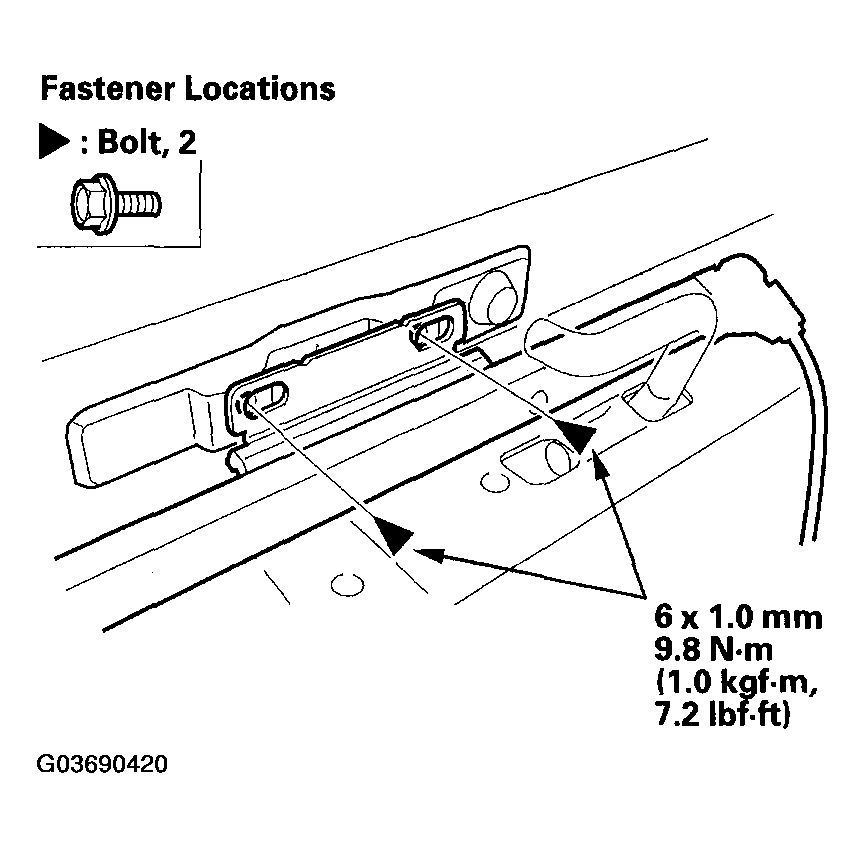

Remove the rear window middle glass mounting bolts.

Fig 1: Removing Rear Window Middle Glass Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

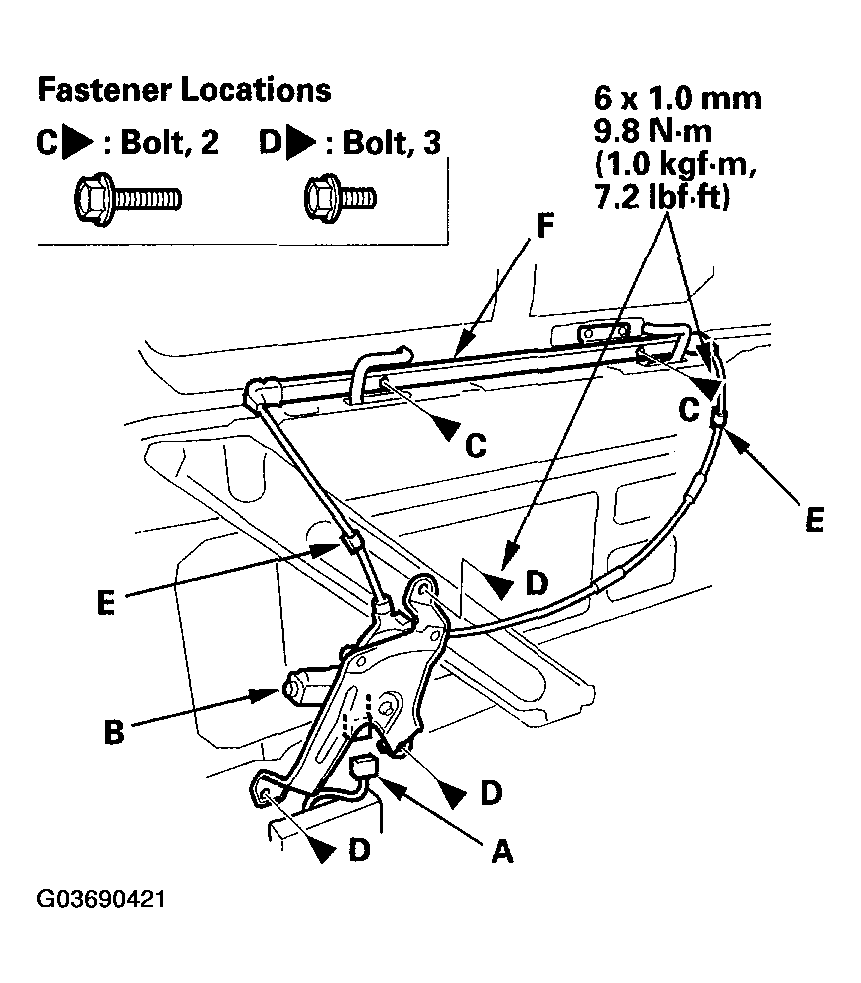

Disconnect the connector (A) from the regulator motor (B).

Fig 2: Disconnecting Connector From Regulator Motor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (C, D), and detach the cable clips (E), then remove the regulator (F) and motor.
Apply multipurpose grease to the sliding surfaces of the regulator (A) where shown.

Fig 3: Applying Multipurpose Grease To Sliding Surfaces Of Regulator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the regulator in the reverse order of removal, and note these items:
- Slide the glass right and left to see if it moves freely without binding.
- Make sure the connector is plugged in properly.
