Switch Test/Replacement

  1. Remove the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the two screws and the switch (A).

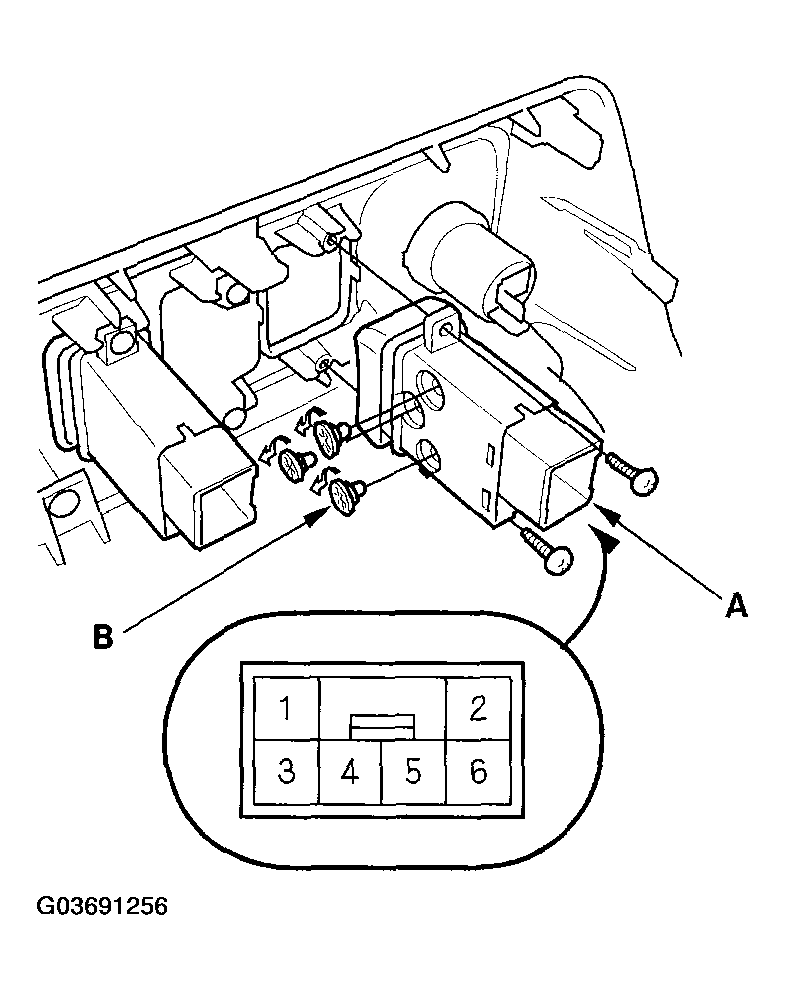

    Fig 1: Removing Screws And Switch
    G03691256Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Switch Terminals Position Description Table
    G03691257Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity check is not as specified, replace the illumination bulbs (B) or the switch.
