Engine Mount Replacement

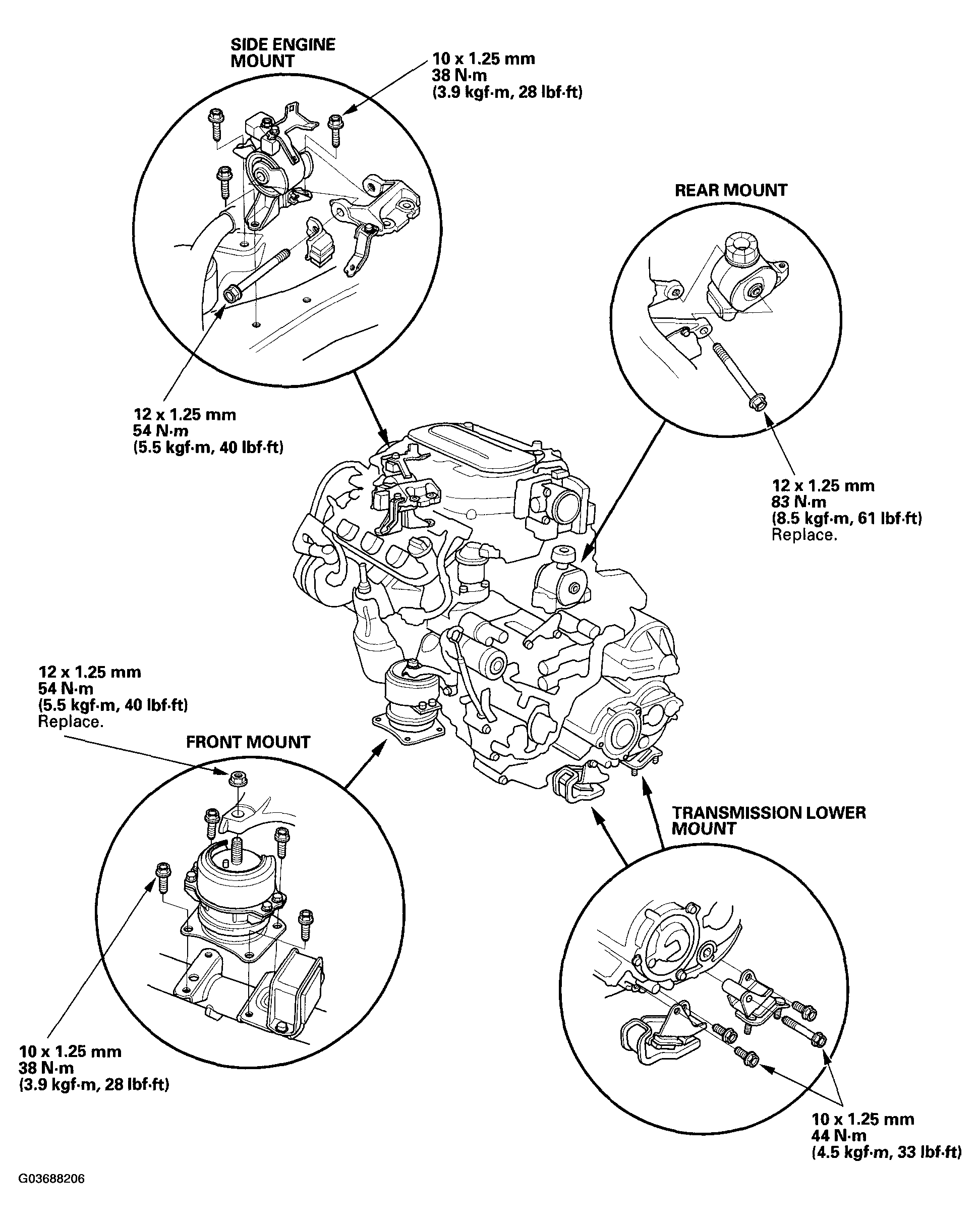

Fig 1: Locating Engine Mount With Torque Specifications

G03688206

Courtesy of AMERICAN HONDA MOTOR CO., INC.
