Power Mirror Switch Function Test

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 13P connector (A) from the power mirror switch (B), and inspect the terminals. If OK, go to step 3.

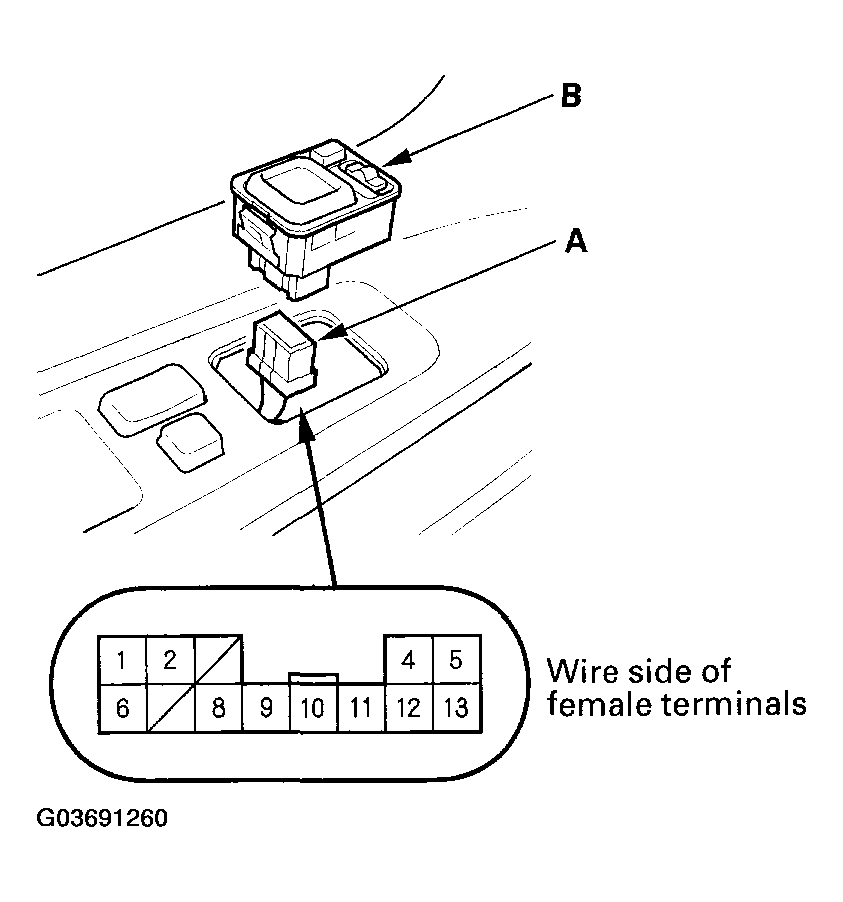

    Fig 1: Disconnecting 13P Connector From Power Mirror Switch
    G03691260Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Choose the appropriate test based on the symptom:
    • Both mirrors don't work, go to step 4.
    • Left mirror doesn't work, go to step  6.
    • Right mirror doesn't work, go to step  7.
    • Defoggers don't work, go to step  8.

    4. Both mirrors

  4. Reconnect the power mirror switch connector, and check for voltage between the No. 2 terminal and body ground with the ignition switch ON (II) while operating the power mirror switch.

    There should be battery voltage.

    • If there is no battery voltage, check for:
      • Blown No. 30 (7.5 A) fuse in the under-dash fuse/relay box.
      • An open in the BLK/YEL wire.
    • If there is battery voltage, go to step 5.
  5. Check for voltage between the No. 6 terminal and body ground while operating the power mirror switch.

    There should be less than 1 V.

    • If there is more than 1 V, check for:
      • An open in the BLK wire.
      • Poor ground (G501).
    • If there is less than 1 V, check both mirrors individually as described in step 6 and  7.

    6. Left mirror

  6. Connect the No. 2 terminal to the No. 10 terminal, and the No. 5 (or No. 12) terminal to body ground with jumper wires. The left mirror should tilt down (or swing left) with the ignition switch ON (II).
    • If the mirror does not tilt down (or does not swing left), check for an open in the GRN/WHT (or BLU/WHT) wire between the left mirror and the 13P connector. If the wire is OK, check the left mirror actuator.
    • If the mirror neither tilts down nor swings left, check for an open in the BLU/BLK wire.
    • If the mirror works properly, check the mirror switch.

    7. Right mirror

  7. Connect the No. 2 terminal to the No. 11 terminal, and the No. 5 (or No. 13) terminal to body ground with jumper wires. The right mirror should tilt down (or swing left) with the ignition switch ON (II).
    • If the mirror does not tilt down (or does not swing left), check for an open in the GRN/WHT (or WHT/RED) wire between the right mirror and the 13P connector. If the wire is OK, check the right mirror actuator.
    • If the mirror neither tilts down nor swings left, check for an open in the RED/YEL wire.
    • If the mirror works properly, check the mirror switch.

    8. Defogger (USA: RTL, Canada: LX, EXL)

  8. Connect the No. 1 and No. 8 terminals with a jumper wire, and check for voltage between the No. 1 terminal and body ground. There should be battery voltage and both mirrors should warm up with the ignition switch ON (II).
    • If there is no voltage or neither warms up, check for:
      • An open in the BLK/YEL and ORN wires.
      • Blown No. 30 (7.5 A) fuse in the under-dash fuse/relay box.
      • Poor ground (G402).
    • If only one fails to warm up, check its defogger.
    • If both warm up, check the defogger switch.
