Component Location Index

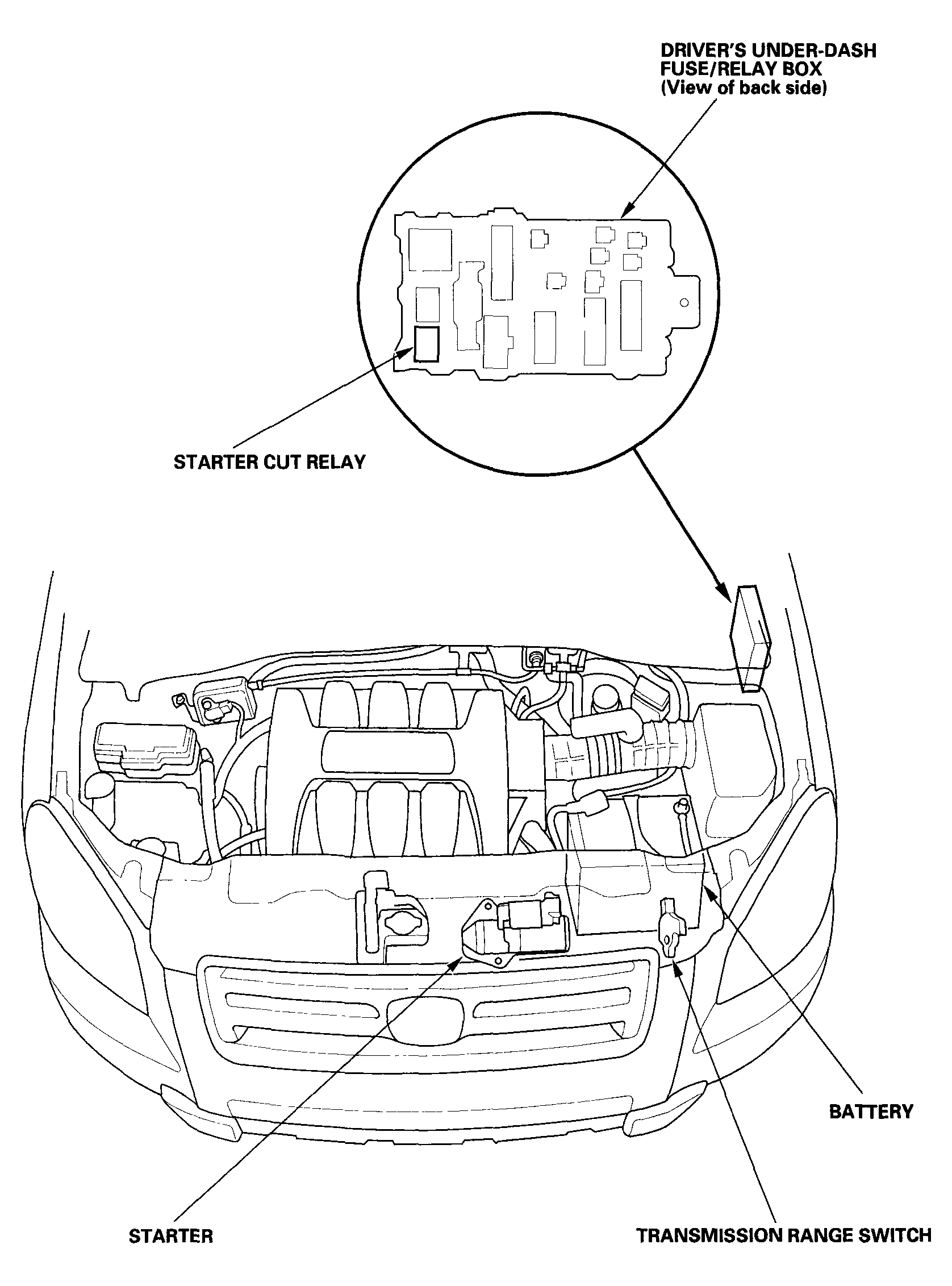

Fig 1: Identifying Location Of Starting System Components

G04244414

Courtesy of AMERICAN HONDA MOTOR CO., INC.
