Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Driver's Under-Dash Fuse/Relay Box

G00292075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Passenger's Under-Dash Fuse/Relay Box

G00292076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

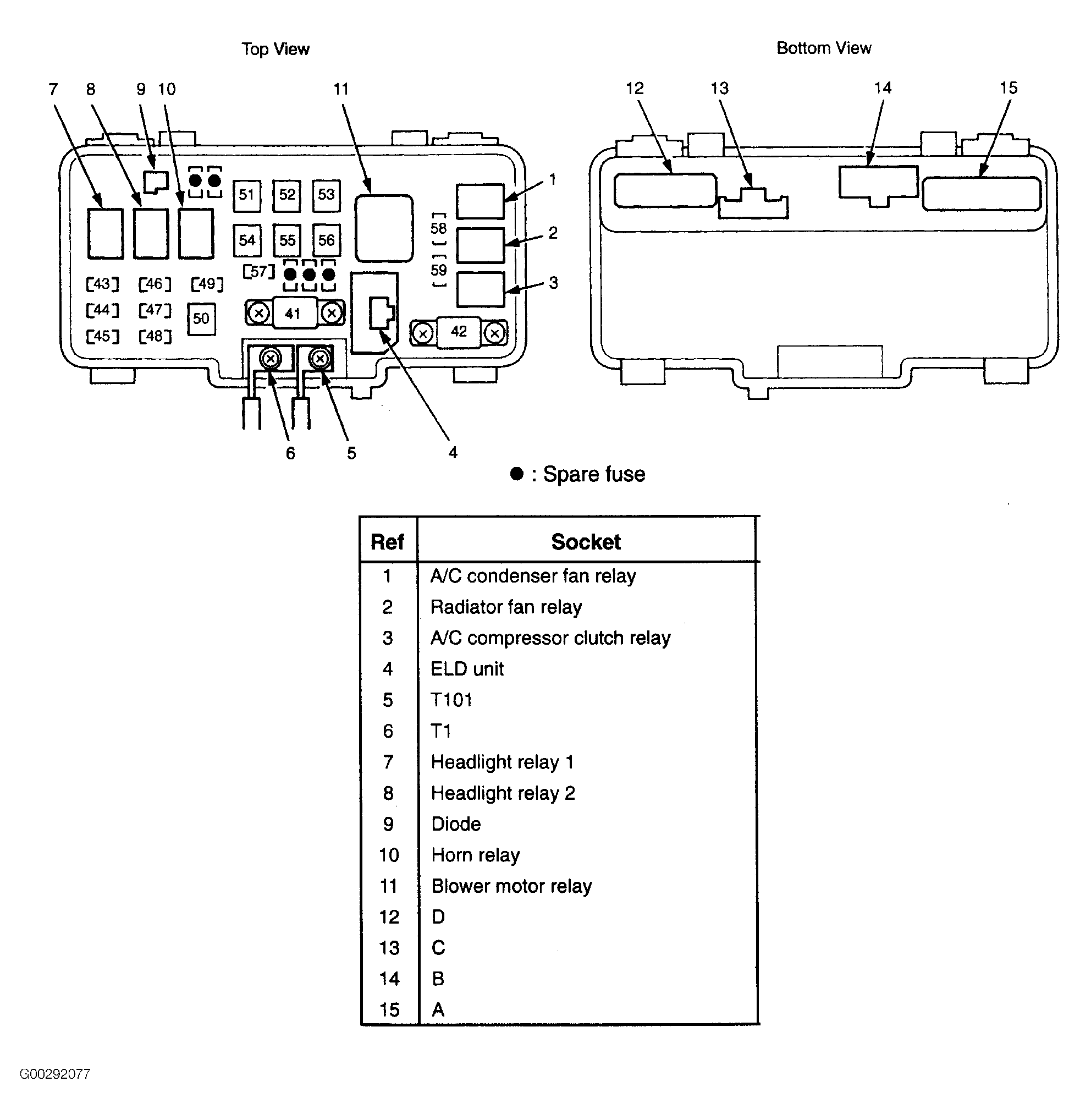

Fig 3: Under-Hood Fuse/Relay Box

G00292077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine Compartment

G00363295

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Right Side Of Engine Compartment

G00430822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Right Side Of Engine Compartment

G00363297

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Side Of Engine Compartment

G00430823

Courtesy of AMERICAN HONDA MOTOR CO., INC.

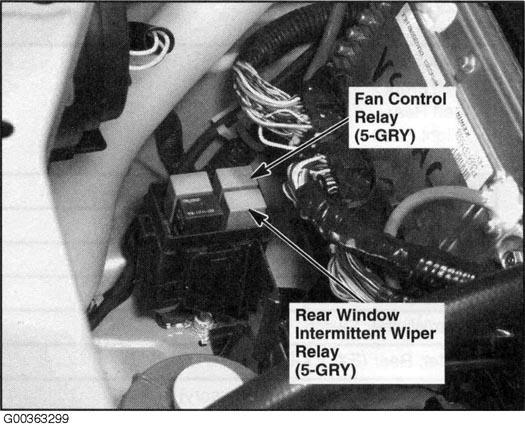

Fig 8: Right Side Of Engine Compartment

G00363299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

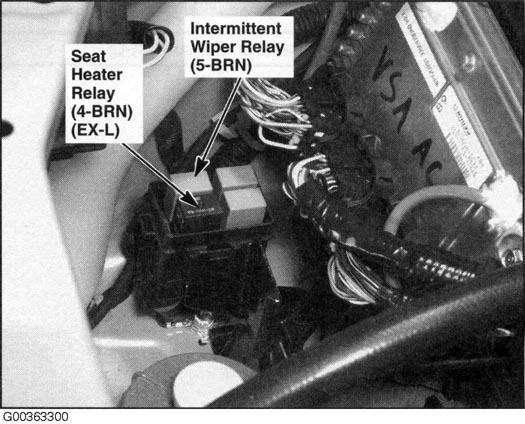

Fig 9: Right Side Of Engine Compartment

G00363300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

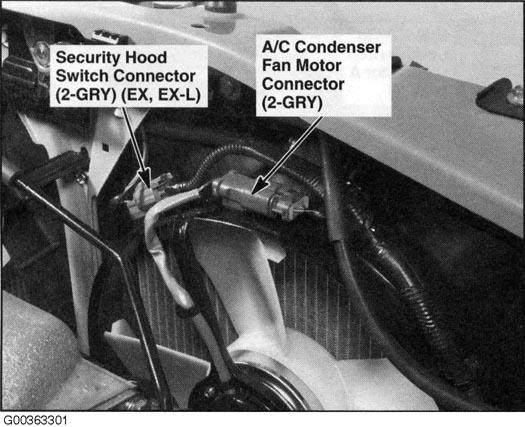

Fig 10: Middle Of Engine Compartment

G00363301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

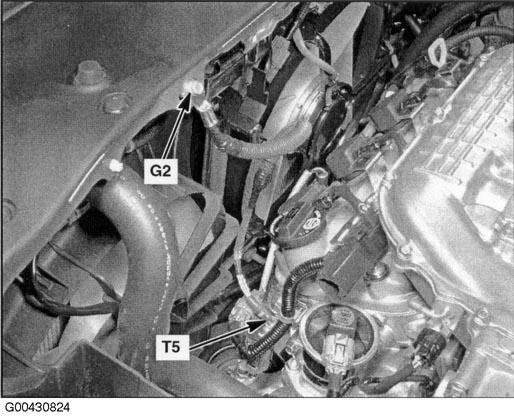

Fig 11: Front Of Engine Compartment

G00430824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

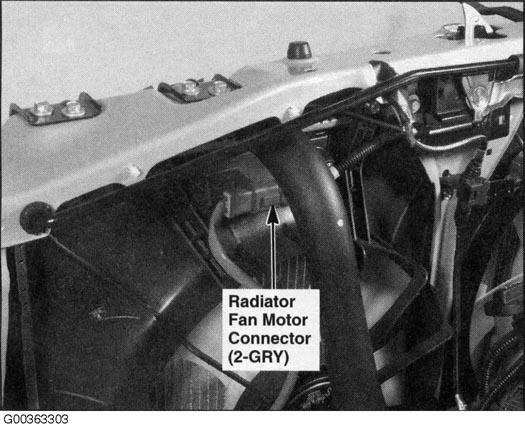

Fig 12: Middle Of Engine Compartment

G00363303

Courtesy of AMERICAN HONDA MOTOR CO., INC.

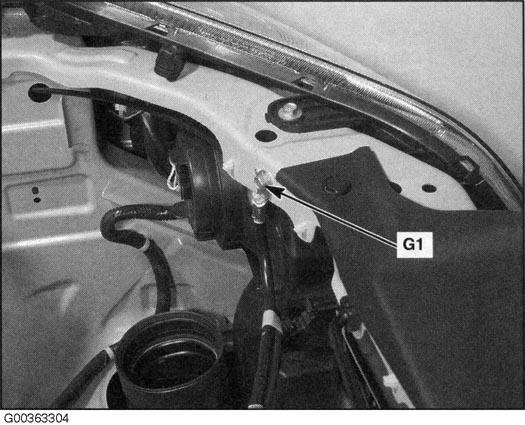

Fig 13: Left Side Of Engine Compartment

G00363304

Courtesy of AMERICAN HONDA MOTOR CO., INC.

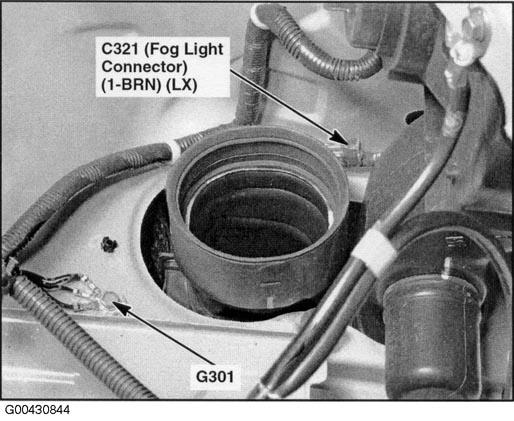

Fig 14: Left Side Of Engine Compartment

G00430844

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Left Side Of Engine Compartment (EX-L)

G00363307

Courtesy of AMERICAN HONDA MOTOR CO., INC.

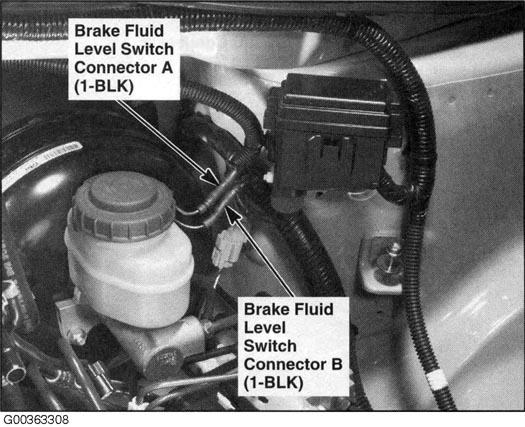

Fig 16: Left Side Of Engine Compartment

G00363308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Left Side Of Engine Compartment

G00363309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

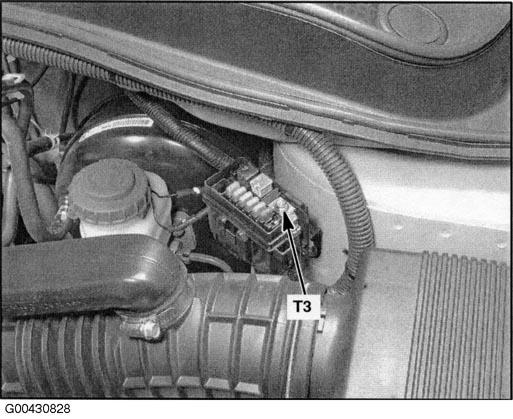

Fig 18: Left Side Of Engine Compartment

G00430828

Courtesy of AMERICAN HONDA MOTOR CO., INC.

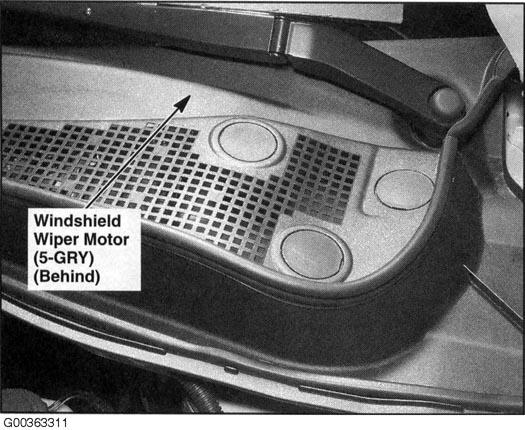

Fig 19: Under Left Side Of Cowl Cover

G00363311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

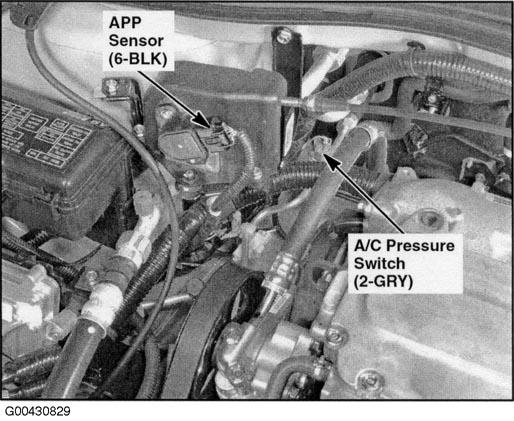

Fig 20: Right Side Of Engine Compartment

G00430829

Courtesy of AMERICAN HONDA MOTOR CO., INC.

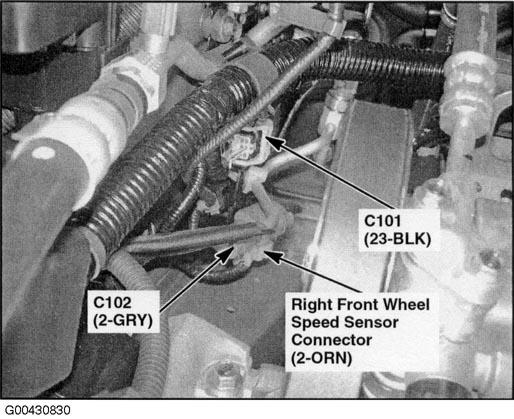

Fig 21: Right Side Of Engine Compartment

G00430830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

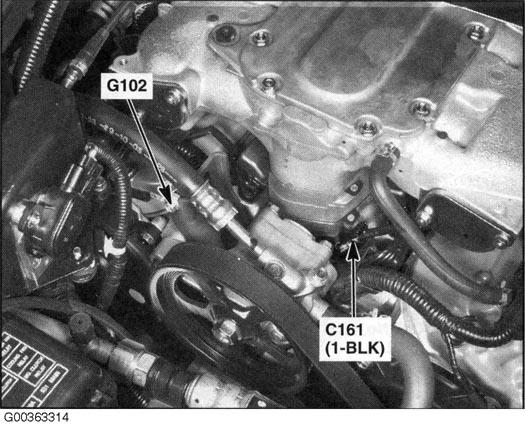

Fig 22: Right Side Of Engine Compartment

G00363314

Courtesy of AMERICAN HONDA MOTOR CO., INC.

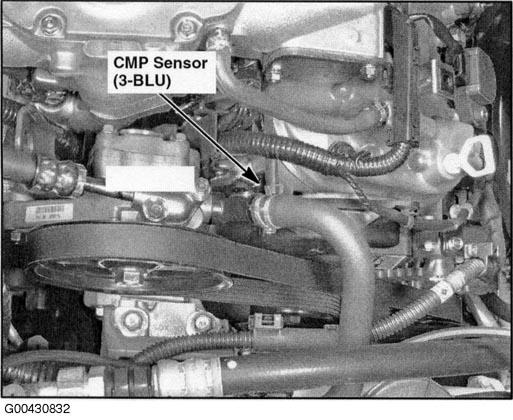

Fig 23: Right Side Of Engine Compartment

G00430832

Courtesy of AMERICAN HONDA MOTOR CO., INC.

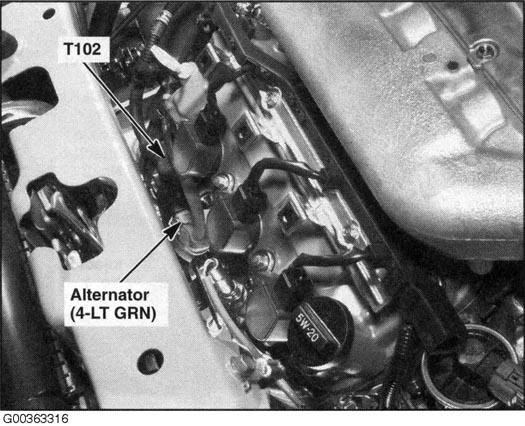

Fig 24: Middle Of Engine Compartment

G00363316

Courtesy of AMERICAN HONDA MOTOR CO., INC.

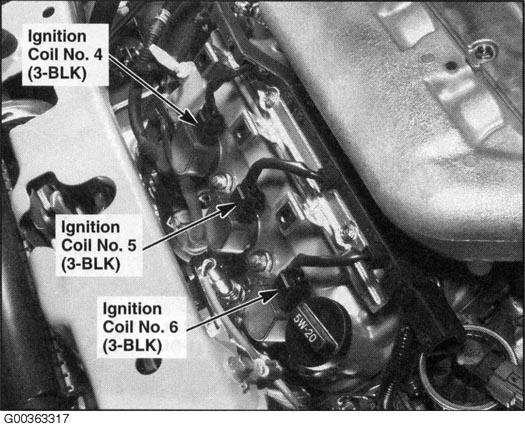

Fig 25: Middle Of Engine Compartment

G00363317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

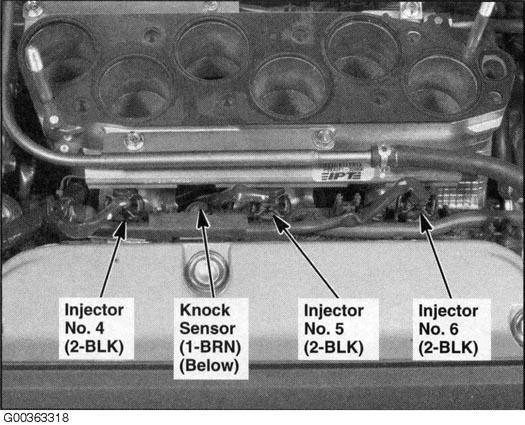

Fig 26: Middle Of Engine Compartment

G00363318

Courtesy of AMERICAN HONDA MOTOR CO., INC.

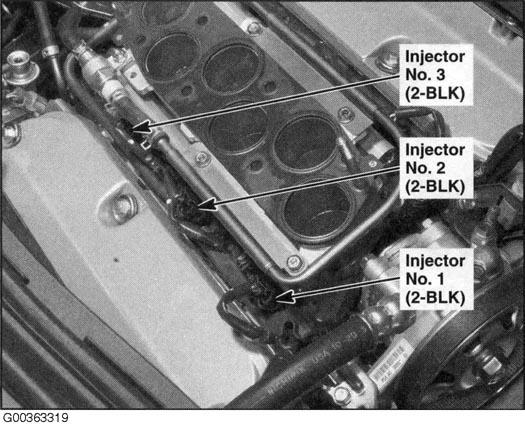

Fig 27: Middle Of Engine Compartment

G00363319

Courtesy of AMERICAN HONDA MOTOR CO., INC.

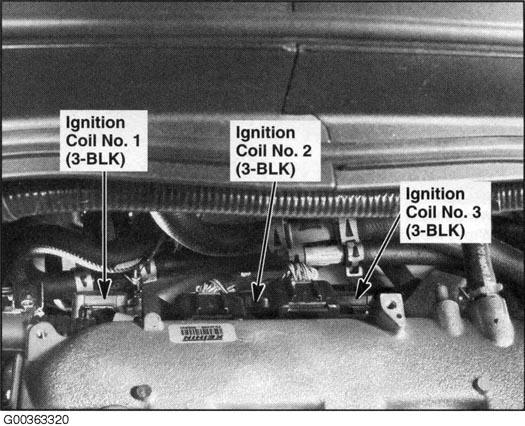

Fig 28: Middle Of Engine Compartment

G00363320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

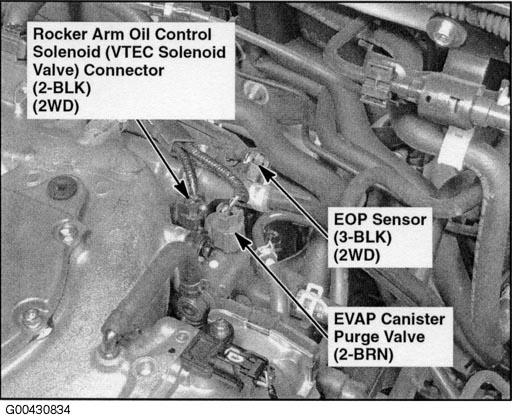

Fig 29: Left Side Of Engine Compartment

G00430834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

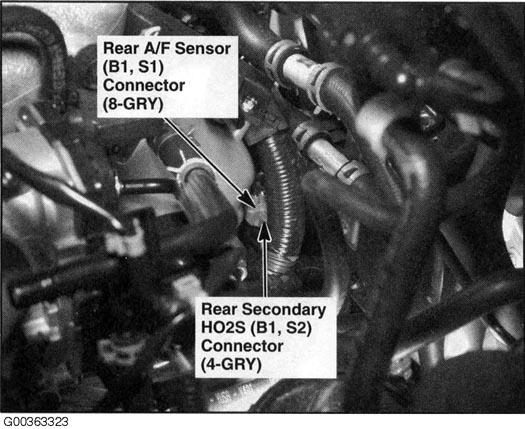

Fig 30: Left Side Of Engine Compartment

G00363323

Courtesy of AMERICAN HONDA MOTOR CO., INC.

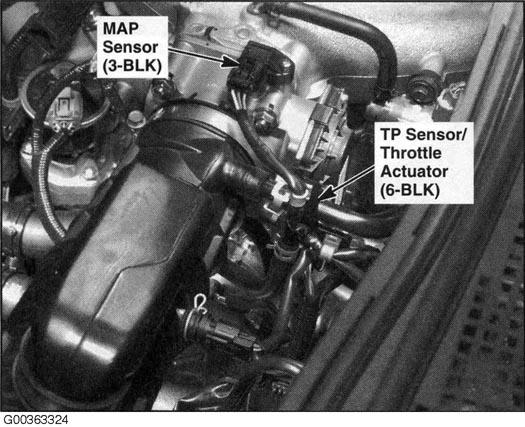

Fig 31: Left Side Of Engine Compartment

G00363324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

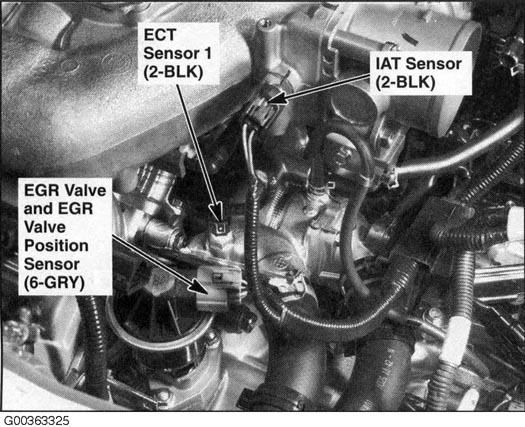

Fig 32: Left Side Of Engine Compartment (2WD)

G00363325

Courtesy of AMERICAN HONDA MOTOR CO., INC.

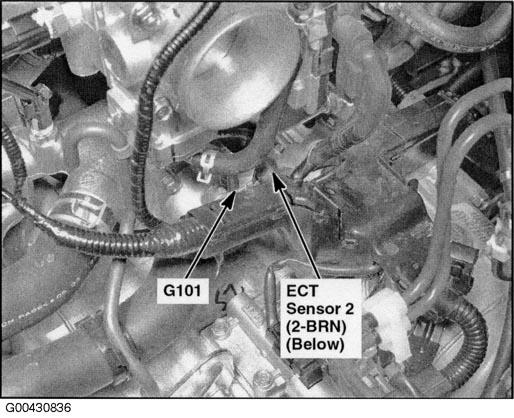

Fig 33: Left Side Of Engine

G00430836

Courtesy of AMERICAN HONDA MOTOR CO., INC.

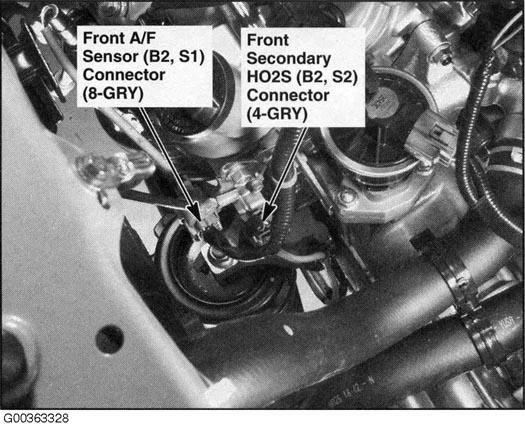

Fig 34: Left Side Of Engine Compartment

G00363328

Courtesy of AMERICAN HONDA MOTOR CO., INC.

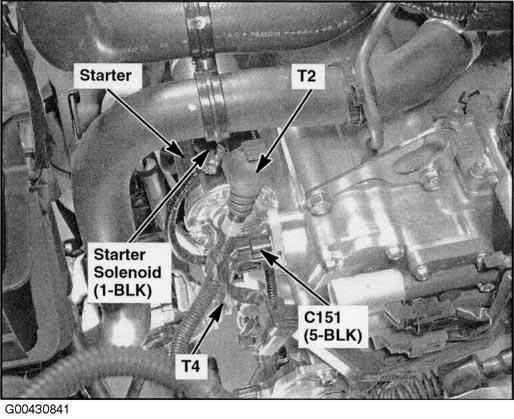

Fig 35: Top Of Transmission Housing

G00430841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

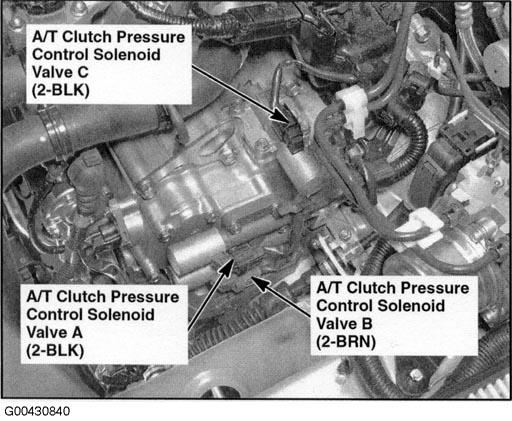

Fig 36: Top Of Transmission Housing

G00430840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

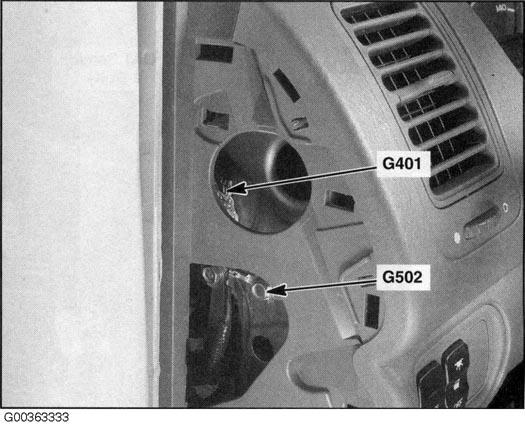

Fig 37: Left Side Of Dash

G00363333

Courtesy of AMERICAN HONDA MOTOR CO., INC.

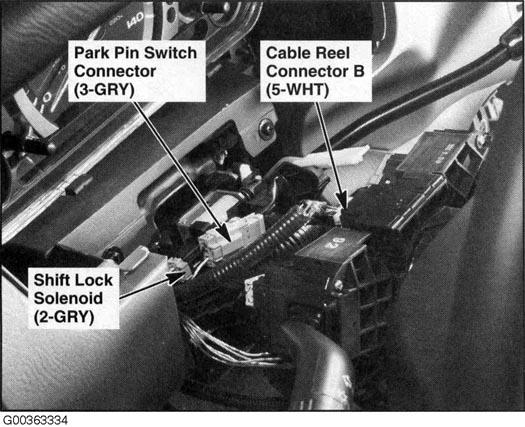

Fig 38: In Steering Column Cover

G00363334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

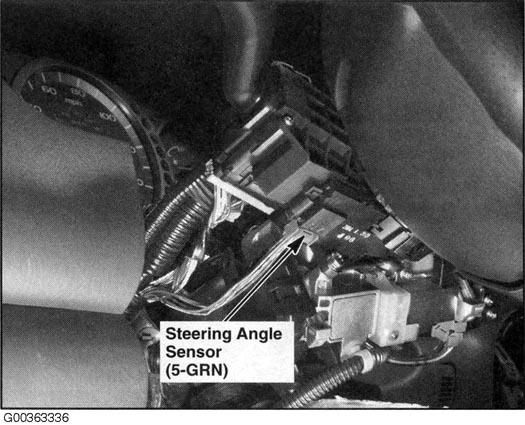

Fig 39: In Steering Column Cover (EX-L)

G00363336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: In Steering Column Cover

G00363337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

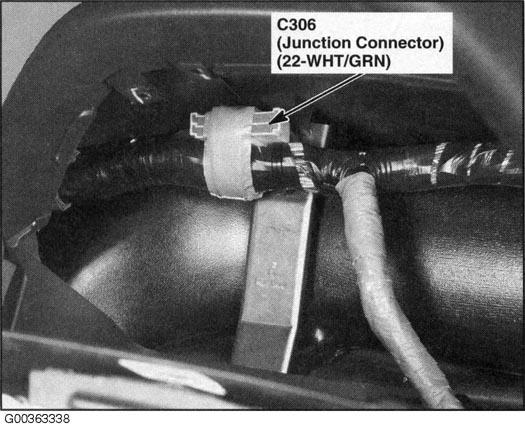

Fig 41: Behind Gauge Assembly

G00363338

Courtesy of AMERICAN HONDA MOTOR CO., INC.

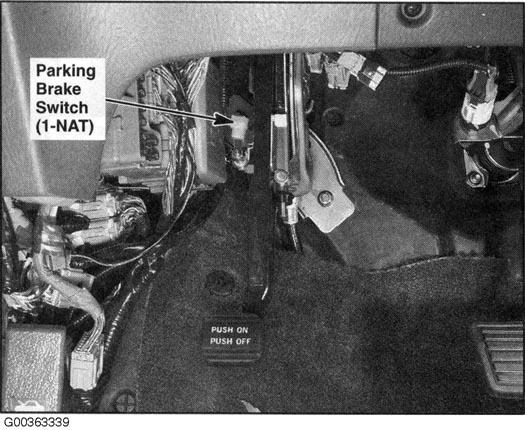

Fig 42: Under Left Side Of Dash

G00363339

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00363340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

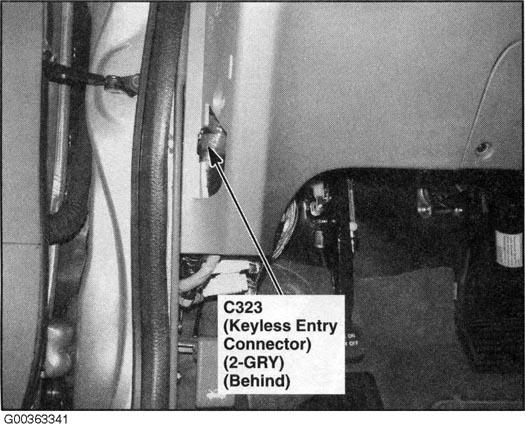

Fig 44: Behind Left Kick Panel

G00363341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

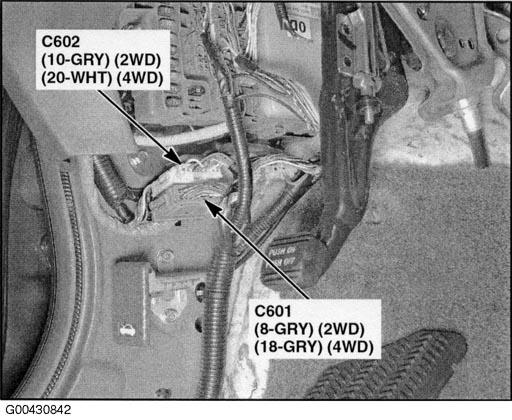

Fig 45: Behind Left Kick Panel

G00430842

Courtesy of AMERICAN HONDA MOTOR CO., INC.

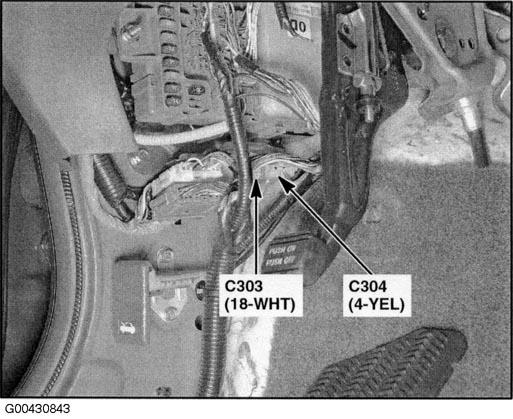

Fig 46: Behind Left Kick Panel

G00430843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

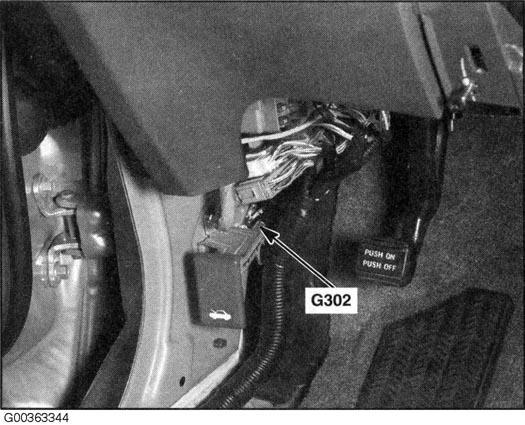

Fig 47: Behind Left Kick Panel

G00363344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

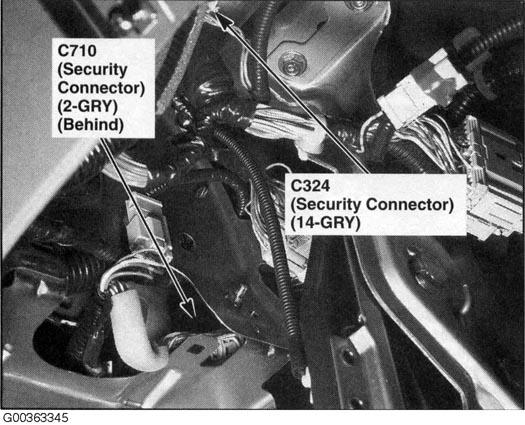

Fig 48: Under Left Side Of Dash (LX)

G00363345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Left Side Of Dash

G00363348

Courtesy of AMERICAN HONDA MOTOR CO., INC.

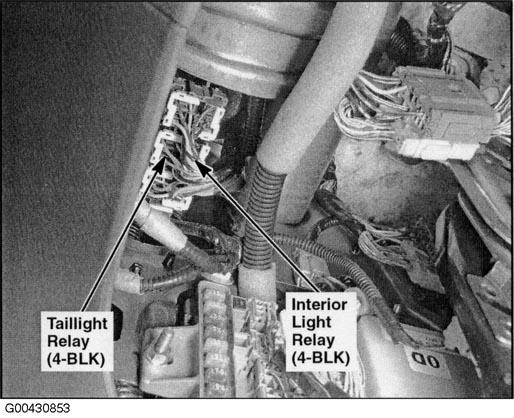

Fig 50: Under Left Side Of Dash

G00430853

Courtesy of AMERICAN HONDA MOTOR CO., INC.

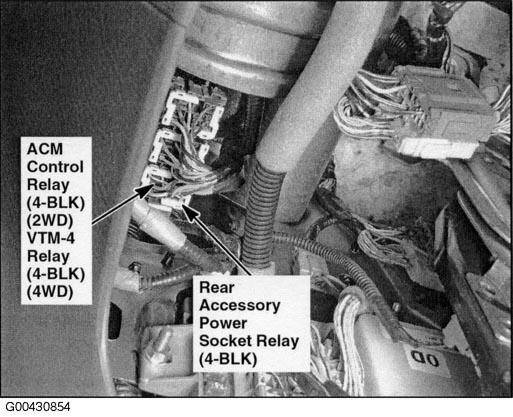

Fig 51: Under Left Side Of Dash

G00430854

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Left Side Of Dash

G00430857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

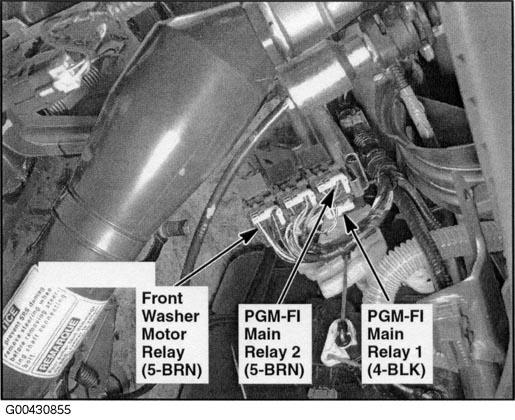

Fig 53: Under Left Side Of Dash

G00430855

Courtesy of AMERICAN HONDA MOTOR CO., INC.

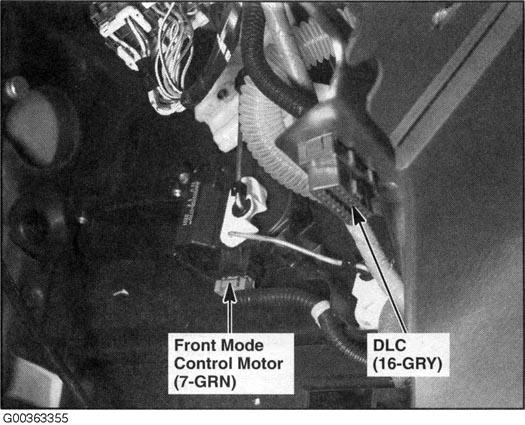

Fig 54: Under Left Side Of Dash

G00363355

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Middle Of Dash

G00430858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

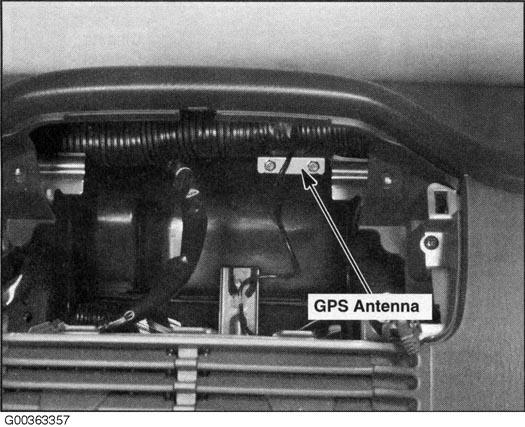

Fig 56: Behind Middle Of Dash (EX-L: Navigation)

G00363357

Courtesy of AMERICAN HONDA MOTOR CO., INC.

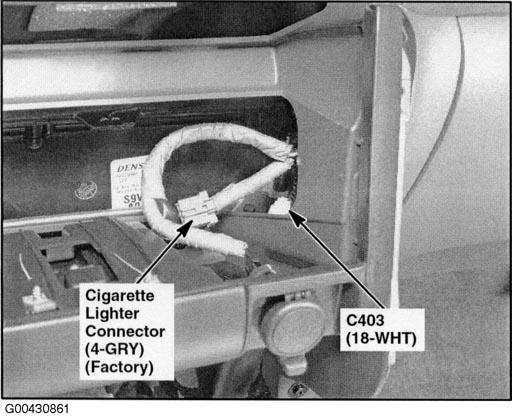

Fig 57: Behind Center Of Dash

G00430861

Courtesy of AMERICAN HONDA MOTOR CO., INC.

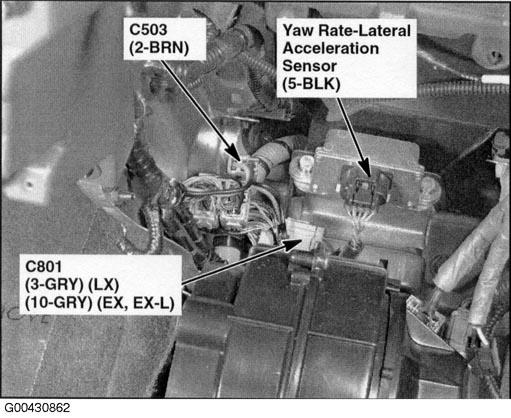

Fig 58: Under Middle Of Dash

G00430862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

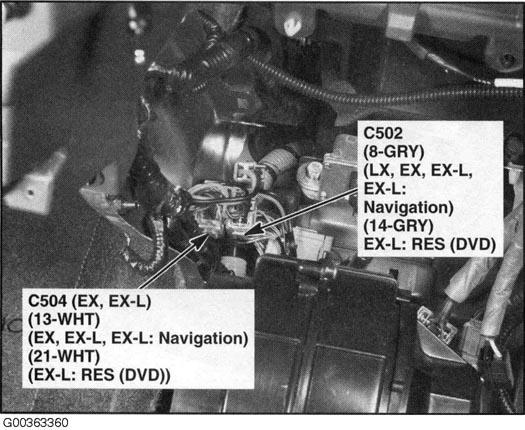

Fig 59: Under Middle Of Dash

G00363360

Courtesy of AMERICAN HONDA MOTOR CO., INC.

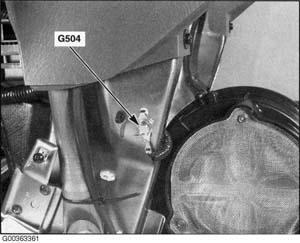

Fig 60: Under Middle Of Dash

G00363361

Courtesy of AMERICAN HONDA MOTOR CO., INC.

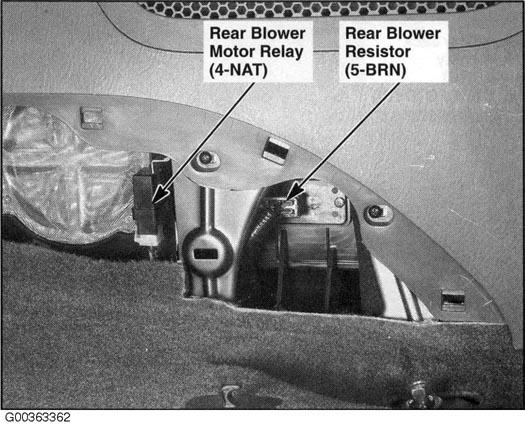

Fig 61: Left Side Of Center Console (LX)

G00363362

Courtesy of AMERICAN HONDA MOTOR CO., INC.

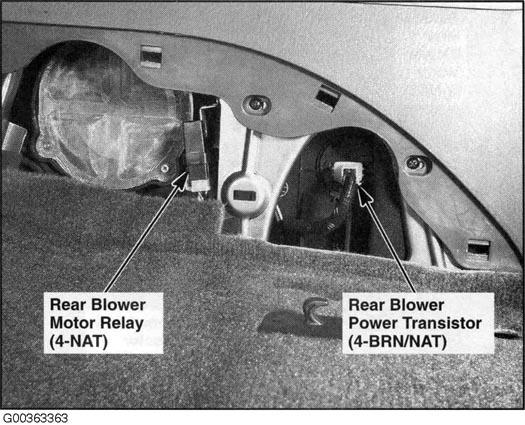

Fig 62: Left Side Of Center Console (EX, EX-L)

G00363363

Courtesy of AMERICAN HONDA MOTOR CO., INC.

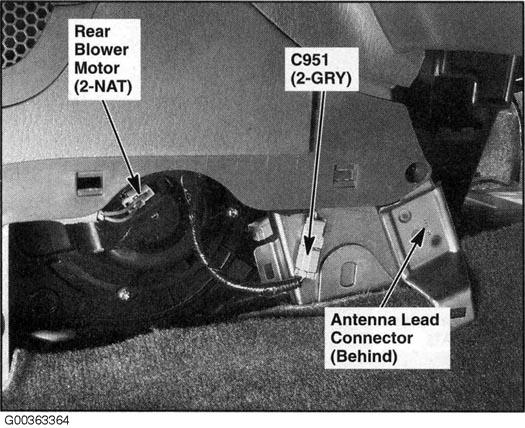

Fig 63: Right Side Of Center Console

G00363364

Courtesy of AMERICAN HONDA MOTOR CO., INC.

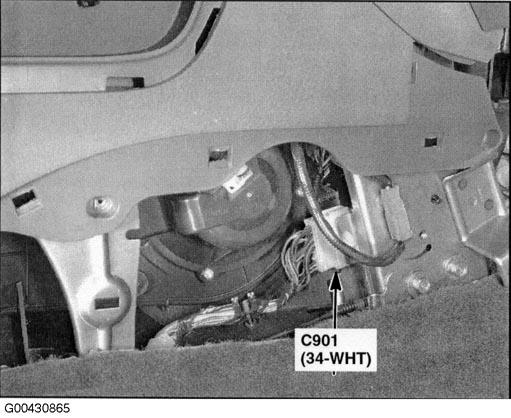

Fig 64: Right Side Of Center Console (EX-L: Navigation)

G00430865

Courtesy of AMERICAN HONDA MOTOR CO., INC.

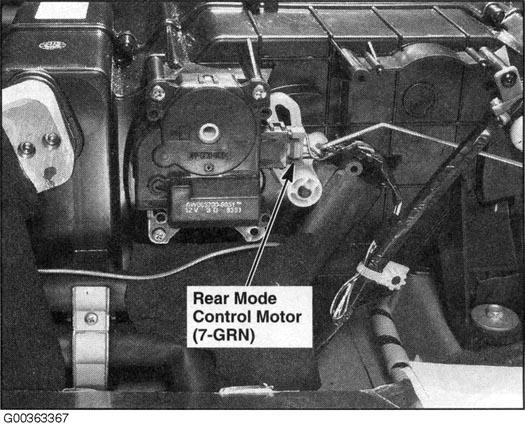

Fig 65: Under Center Console (LX)

G00363367

Courtesy of AMERICAN HONDA MOTOR CO., INC.

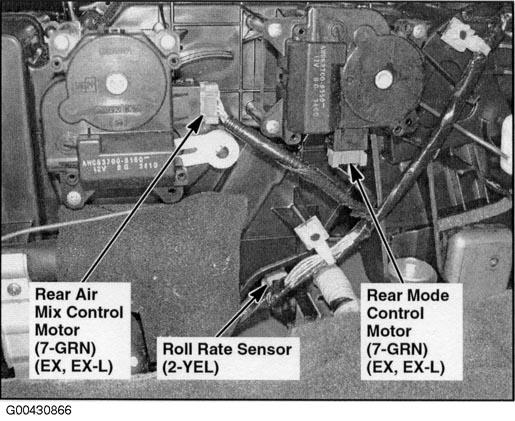

Fig 66: Under Center Console

G00430866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

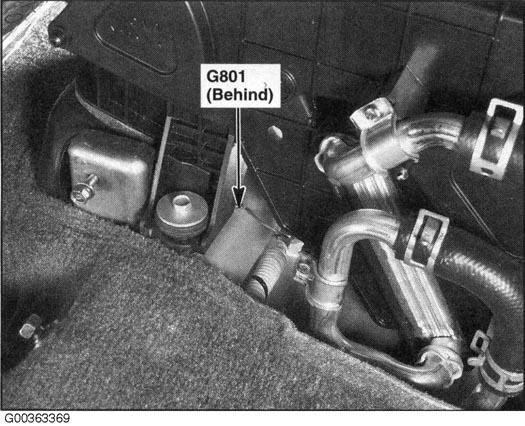

Fig 67: Under Middle Of Center Console

G00363369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

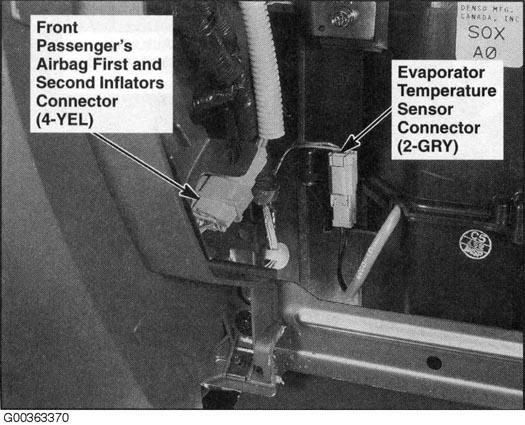

Fig 68: Behind Glove Box

G00363370

Courtesy of AMERICAN HONDA MOTOR CO., INC.

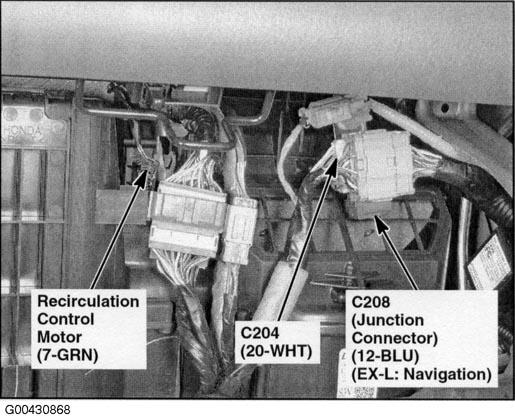

Fig 69: Behind Glove Box

G00430868

Courtesy of AMERICAN HONDA MOTOR CO., INC.

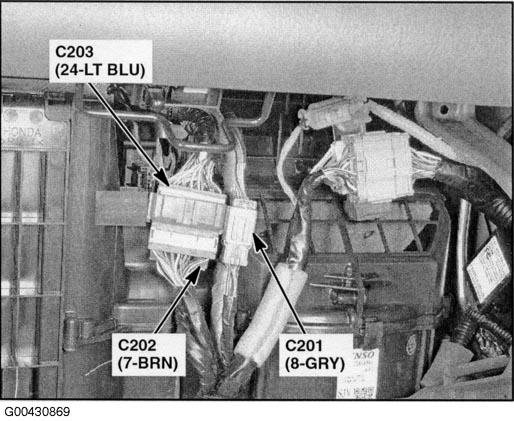

Fig 70: Behind Glove Box

G00430869

Courtesy of AMERICAN HONDA MOTOR CO., INC.

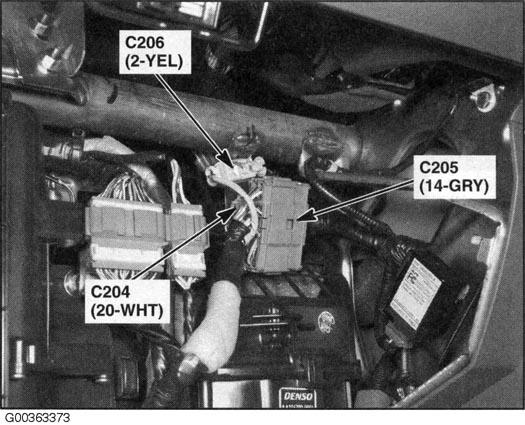

Fig 71: Behind Glove Box

G00363373

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Behind Glove Box

G00363775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

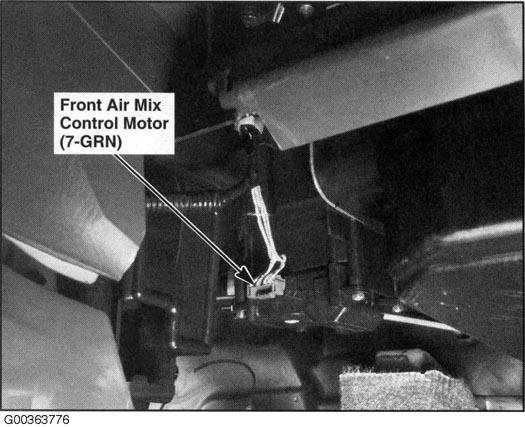

Fig 73: Under Right Side Of Dash

G00363776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

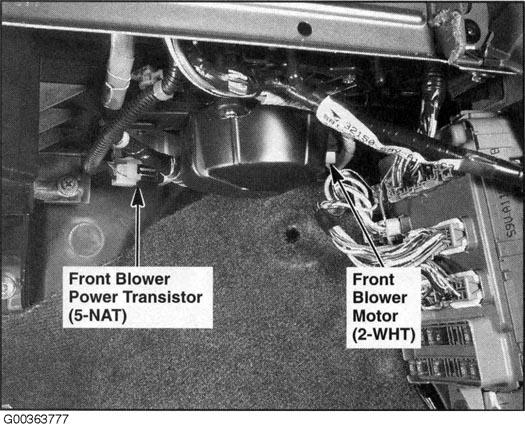

Fig 74: Under Right Side Of Dash

G00363777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

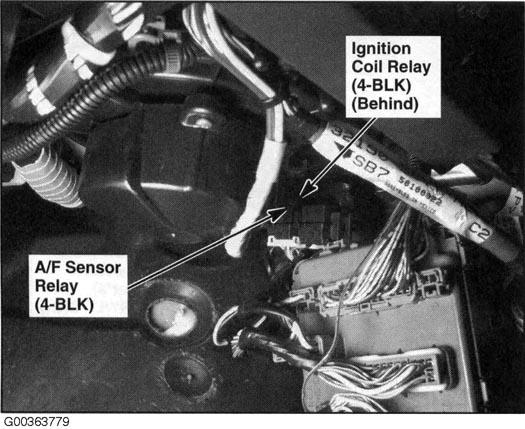

Fig 75: Behind Right Kick Panel

G00363779

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Behind Right Kick Panel

G00430872

Courtesy of AMERICAN HONDA MOTOR CO., INC.

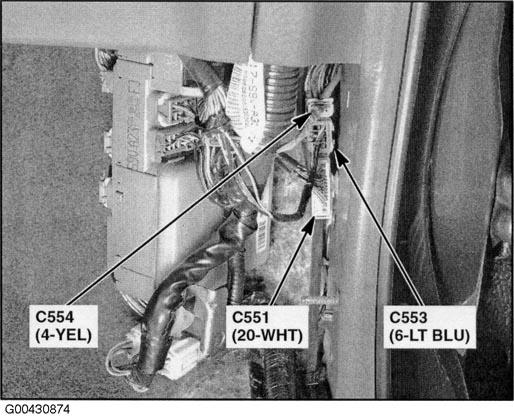

Fig 77: Behind Right Kick Panel

G00430874

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Driver's Door

G00363782

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Driver's Door (Front Passenger's Similar)

G00363783

Courtesy of AMERICAN HONDA MOTOR CO., INC.

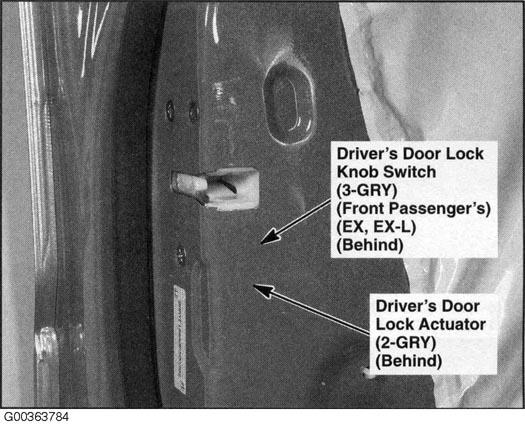

Fig 80: Driver's Door (Front Passenger's Similar)

G00363784

Courtesy of AMERICAN HONDA MOTOR CO., INC.

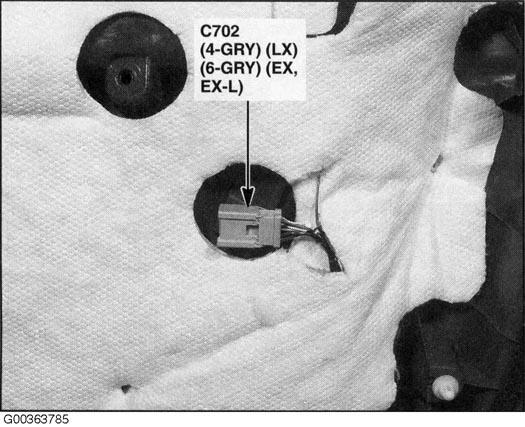

Fig 81: Driver's Door

G00363785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

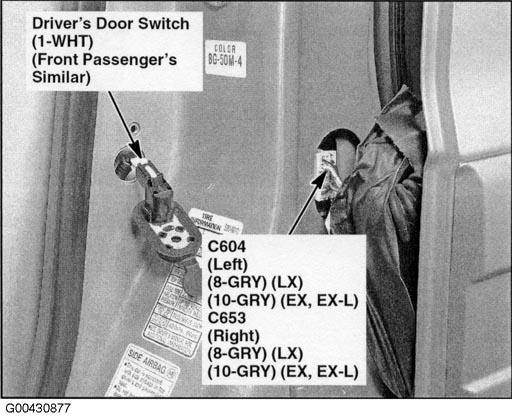

Fig 82: Left "B" Pillar (Right Similar)

G00430877

Courtesy of AMERICAN HONDA MOTOR CO., INC.

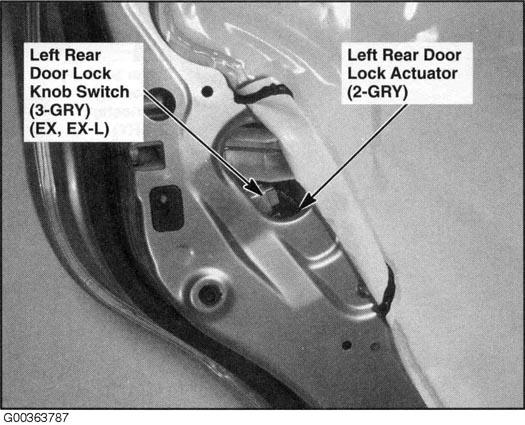

Fig 83: Left Rear Door (Right Similar)

G00363787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

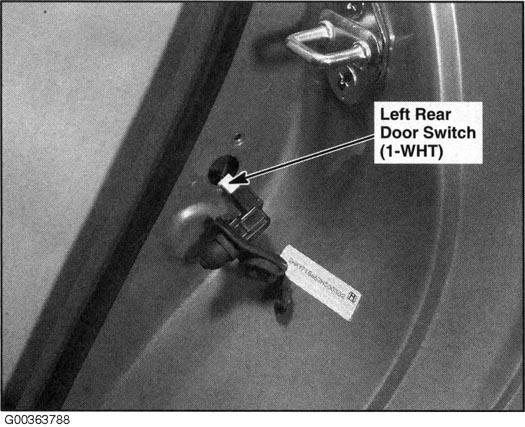

Fig 84: Left "C" Pillar (Right Similar)

G00363788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

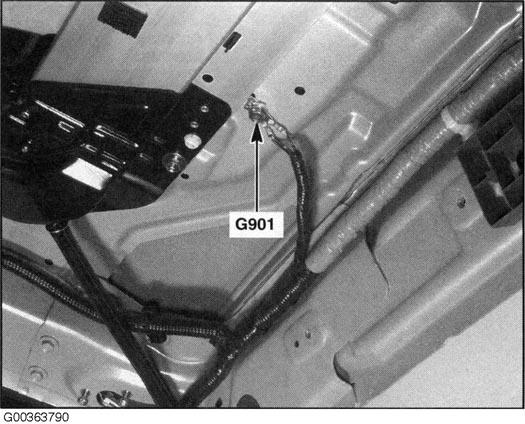

Fig 85: Right Side Of Roof (EX-L)

G00363790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

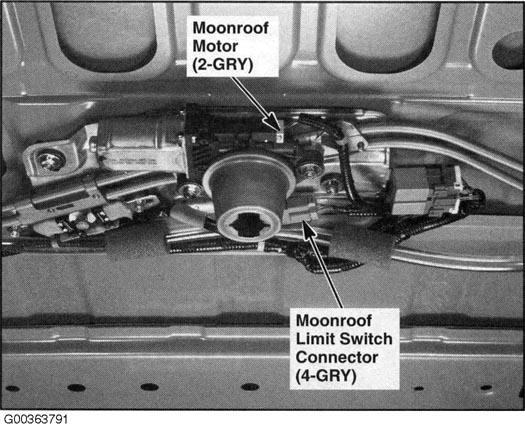

Fig 86: Middle Of Roof (EX-L)

G00363791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

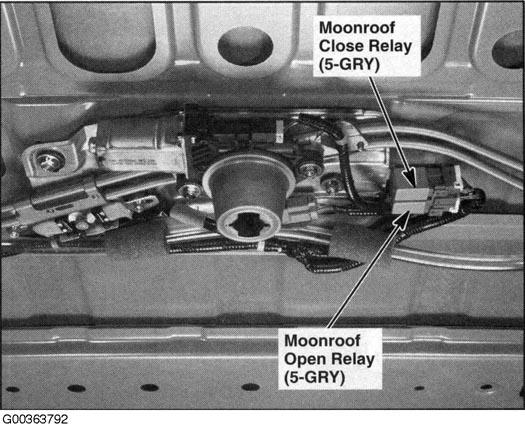

Fig 87: Middle Of Roof (EX-L)

G00363792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

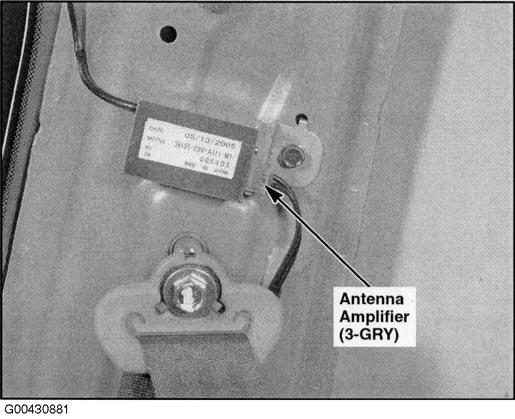

Fig 88: Left "C" Pillar

G00430881

Courtesy of AMERICAN HONDA MOTOR CO., INC.

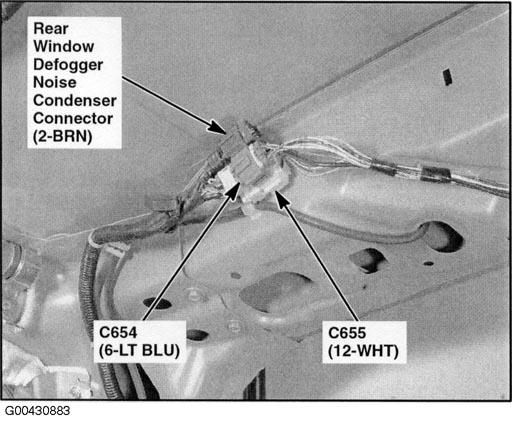

Fig 89: Behind Tailgate Trim

G00430883

Courtesy of AMERICAN HONDA MOTOR CO., INC.

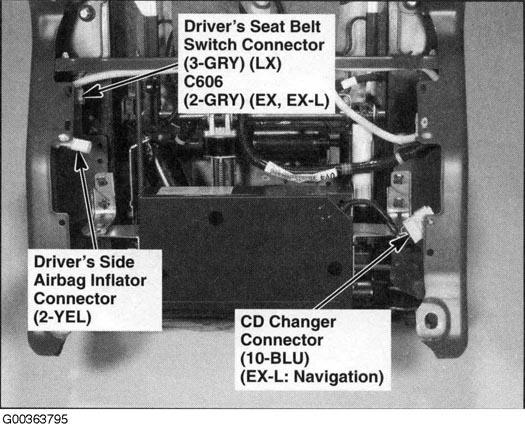

Fig 90: Under Driver's Seat (EX, EX-L) (LX Similar)

G00363795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

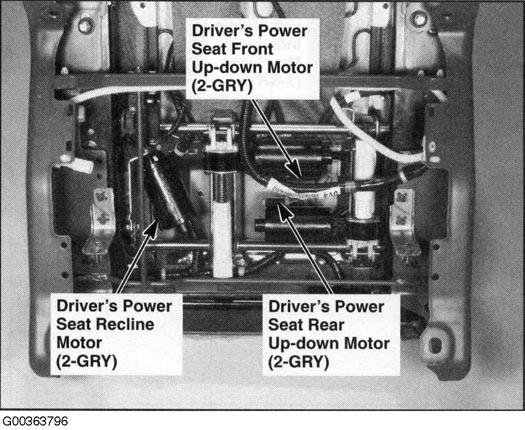

Fig 91: Under Driver's Seat (EX, EX-L)

G00363796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

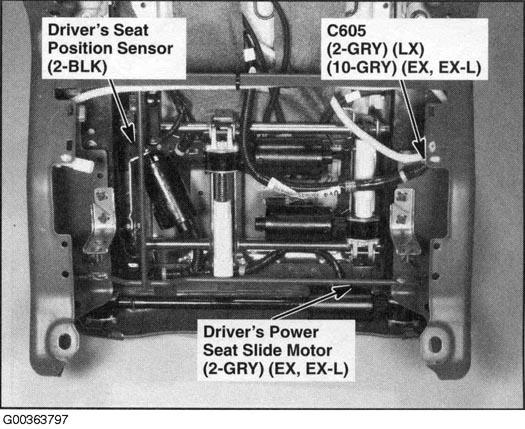

Fig 92: Under Driver's Seat (EX, EX-L) (LX Similar)

G00363797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

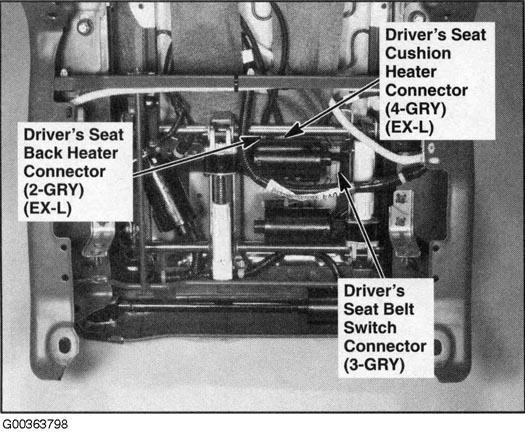

Fig 93: Under Driver's Seat (EX, EX-L)

G00363798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

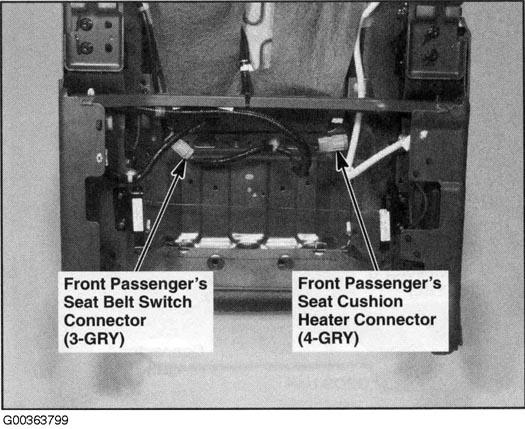

Fig 94: Under Front Passenger's Seat (EX-L)

G00363799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

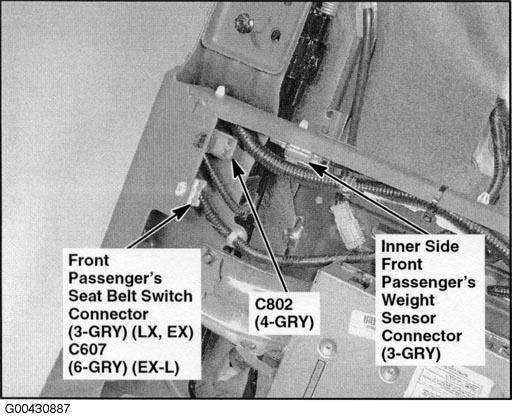

Fig 95: Under Front Passenger's Seat

G00430887

Courtesy of AMERICAN HONDA MOTOR CO., INC.

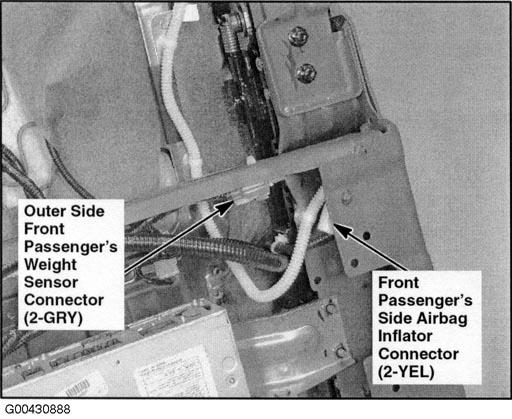

Fig 96: Under Front Passenger's Seat

G00430888

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Left Side Of Front Passenger's Seat

G00430889

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Under Front Passenger's Seat (EX-L)

G00430885

Courtesy of AMERICAN HONDA MOTOR CO., INC.

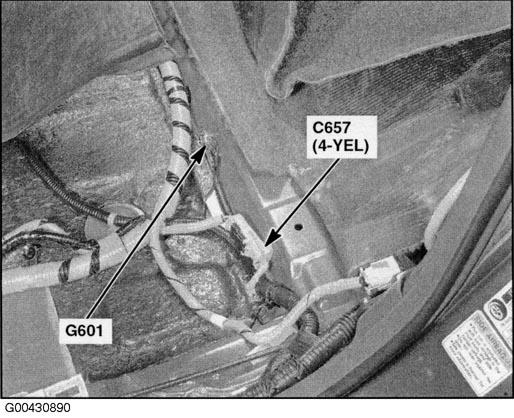

Fig 99: Left Side Of Floor

G00430890

Courtesy of AMERICAN HONDA MOTOR CO., INC.

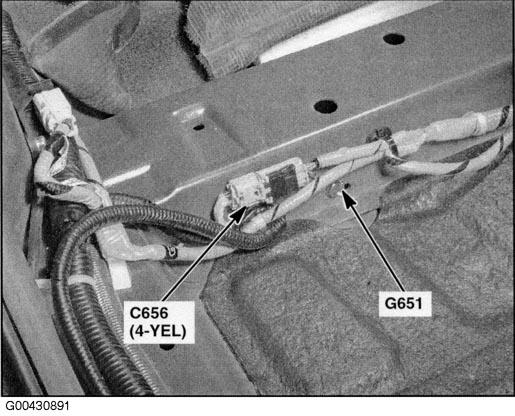

Fig 100: Right Side Of Floor

G00430891

Courtesy of AMERICAN HONDA MOTOR CO., INC.

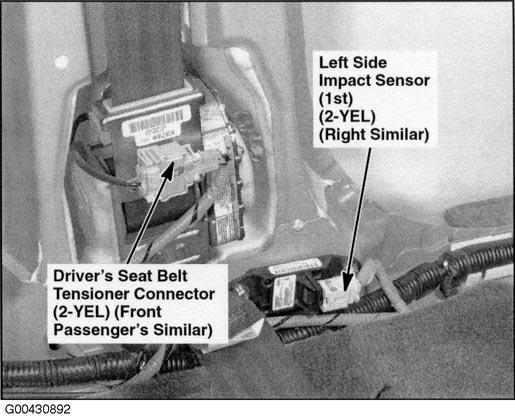

Fig 101: Left "B" Pillar (Right Similar)

G00430892

Courtesy of AMERICAN HONDA MOTOR CO., INC.

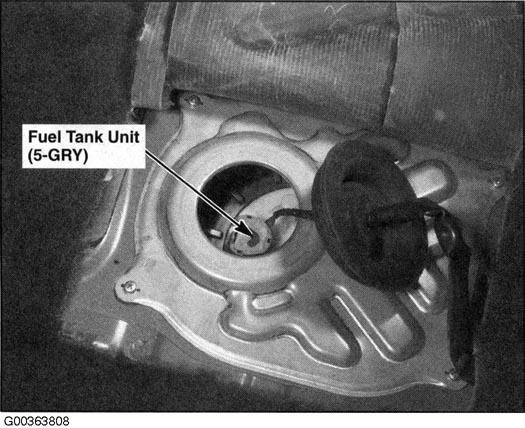

Fig 102: Middle Of Floor

G00363808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

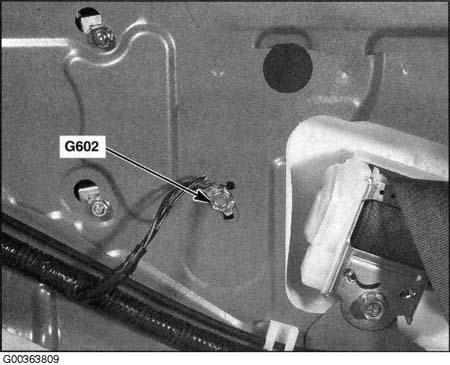

Fig 103: Left Side Of Cargo Area

G00363809

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Left Side Of Cargo Area

G00363810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

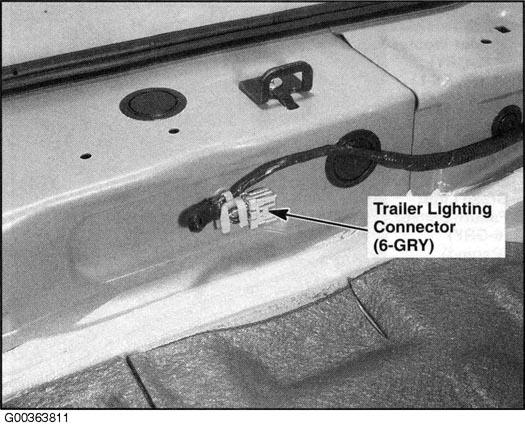

Fig 105: Left Side Of Cargo Area

G00363811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

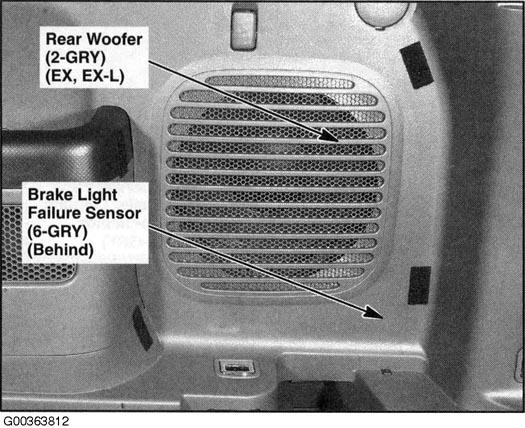

Fig 106: Right Side Of Cargo Area

G00363812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

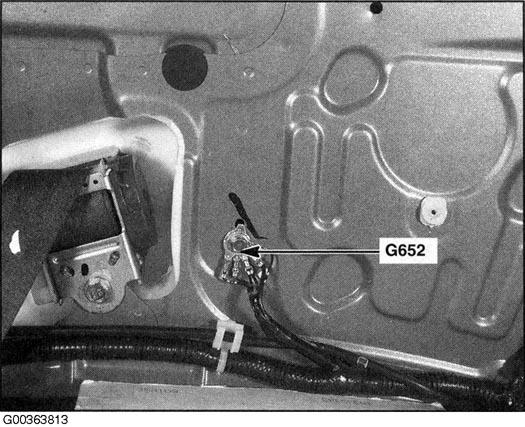

Fig 107: Right Side Of Cargo Area

G00363813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Right Side Of Cargo Area (Honda Accessory)

G00363814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 109: Right Rear Of Cargo Area (Honda Accessory)

G00363815

Courtesy of AMERICAN HONDA MOTOR CO., INC.

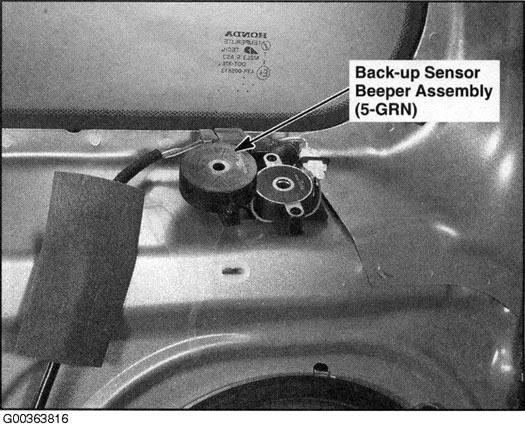

Fig 110: Right Side Of Cargo Area (Honda Accessory)

G00363816

Courtesy of AMERICAN HONDA MOTOR CO., INC.

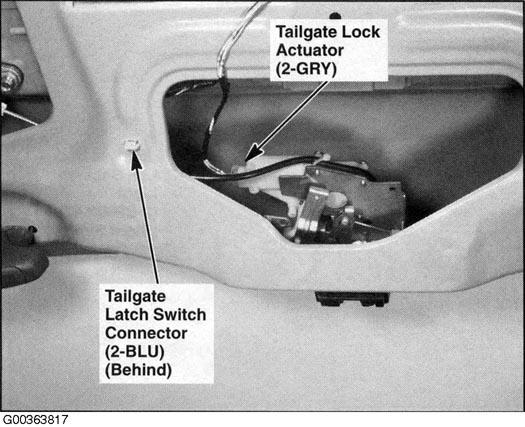

Fig 111: Behind Tailgate Trim Panel

G00363817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

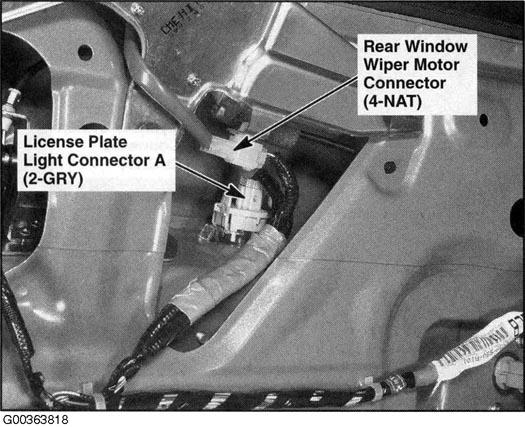

Fig 112: Behind Tailgate Trim Panel

G00363818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

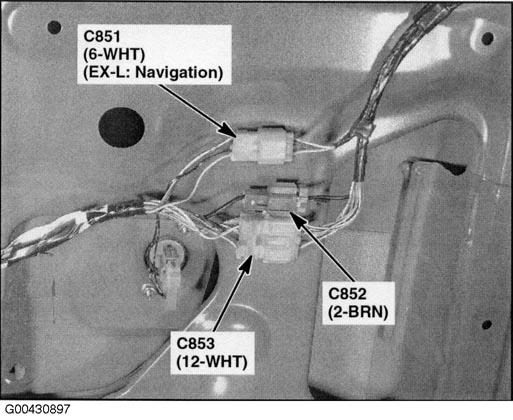

Fig 113: Behind Tailgate Trim Panel

G00430897

Courtesy of AMERICAN HONDA MOTOR CO., INC.

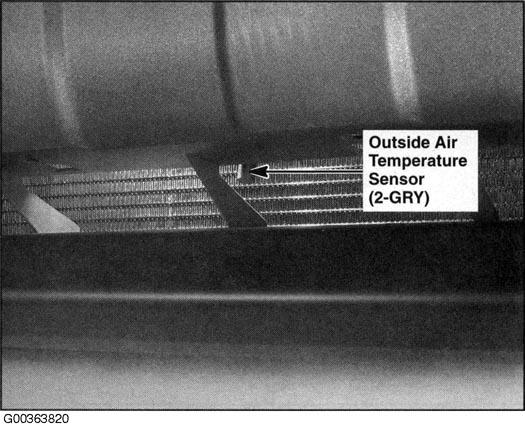

Fig 114: Behind Middle Of Front Bumper (EX, EX-L)

G00363820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

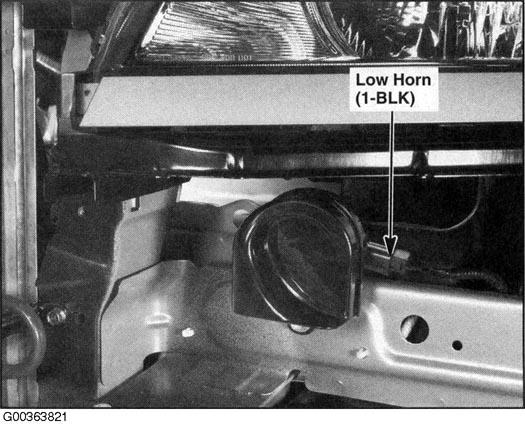

Fig 115: Behind Left Side Of Front Bumper

G00363821

Courtesy of AMERICAN HONDA MOTOR CO., INC.

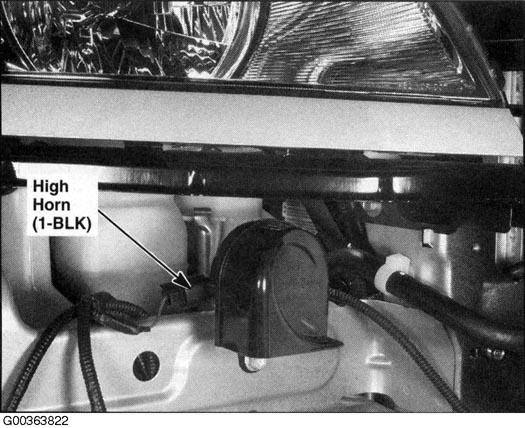

Fig 116: Behind Right Side Of Front Bumper

G00363822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

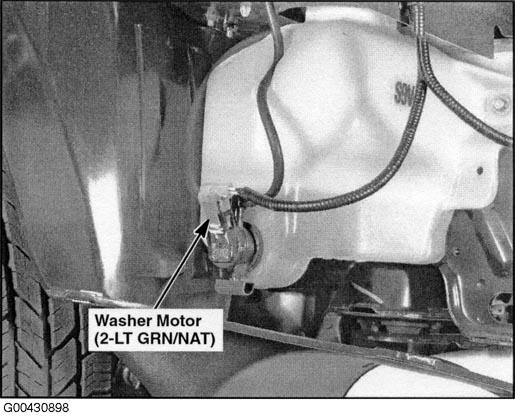

Fig 117: Behind Right Side Of Front Bumper

G00430898

Courtesy of AMERICAN HONDA MOTOR CO., INC.

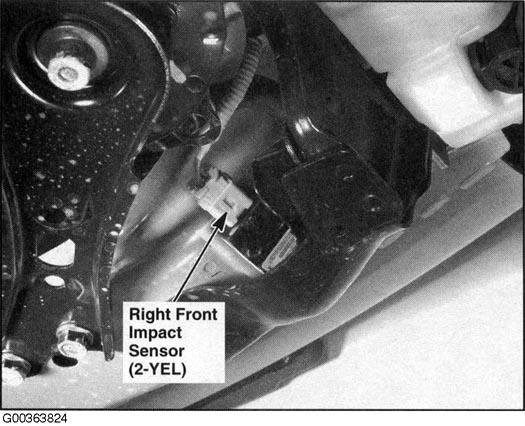

Fig 118: Right Side Of Engine Compartment (Left Similar)

G00363824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

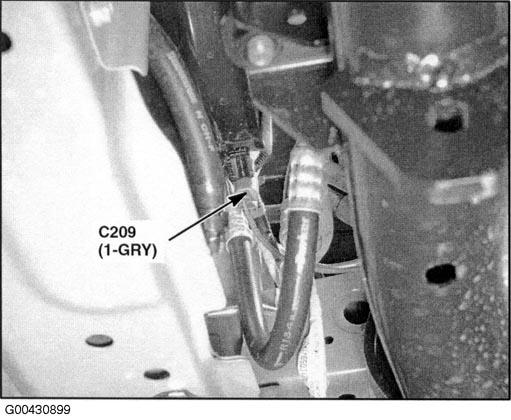

Fig 119: Middle Of Engine Compartment

G00430899

Courtesy of AMERICAN HONDA MOTOR CO., INC.

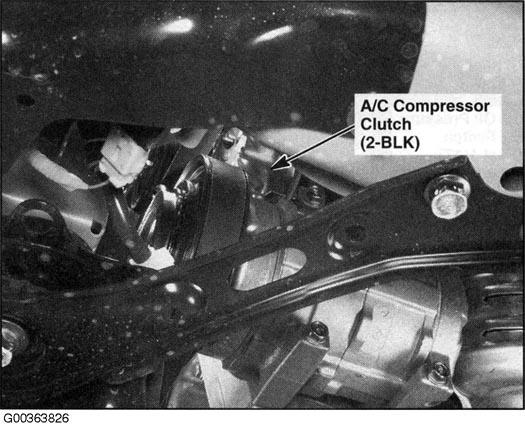

Fig 120: Right Side Of Engine Compartment

G00363826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

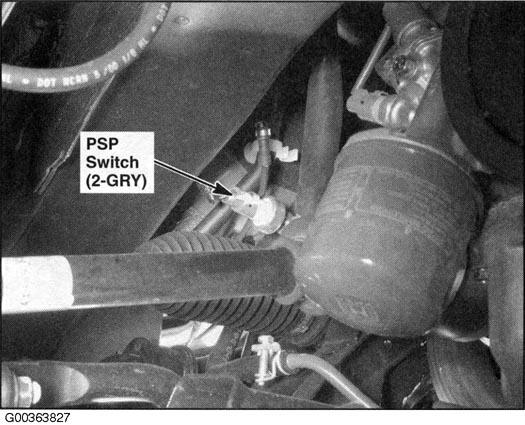

Fig 121: Right Side Of Engine Compartment

G00363827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

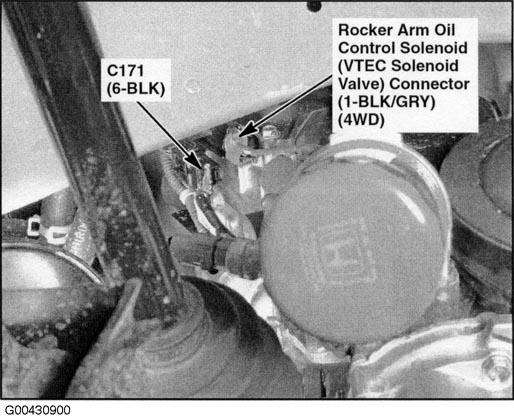

Fig 122: Right Side Of Engine Compartment

G00430900

Courtesy of AMERICAN HONDA MOTOR CO., INC.

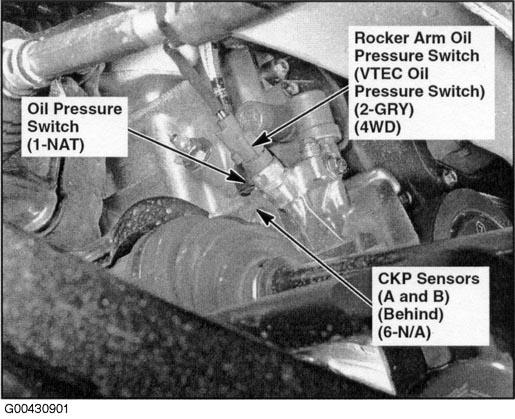

Fig 123: Right Side Of Engine Compartment

G00430901

Courtesy of AMERICAN HONDA MOTOR CO., INC.

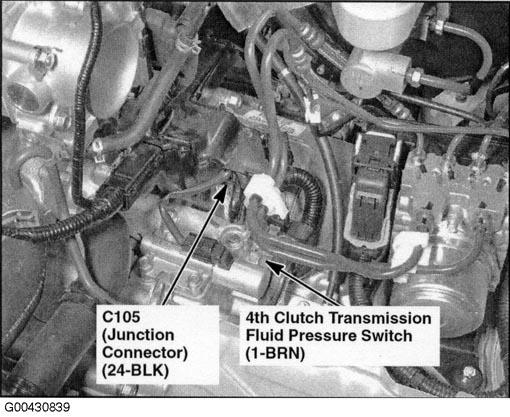

Fig 124: Top Of Transmission Housing

G00430839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

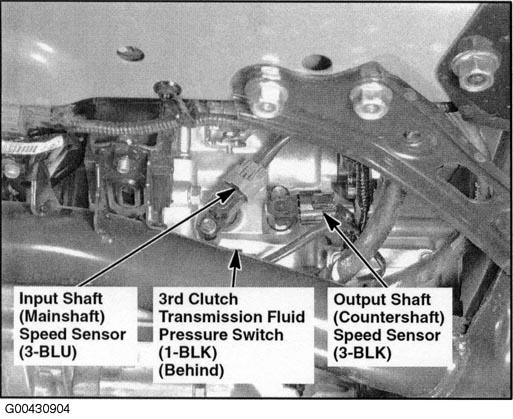

Fig 125: Transmission Housing

G00430904

Courtesy of AMERICAN HONDA MOTOR CO., INC.

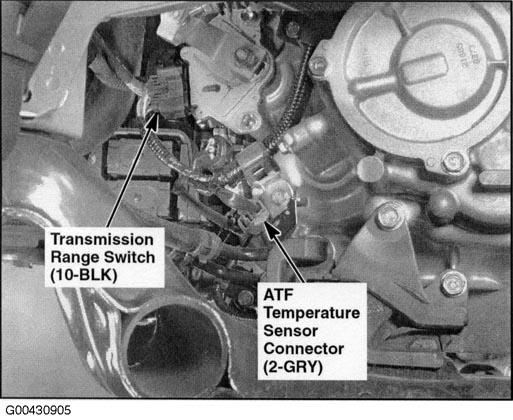

Fig 126: Transmission Housing

G00430905

Courtesy of AMERICAN HONDA MOTOR CO., INC.

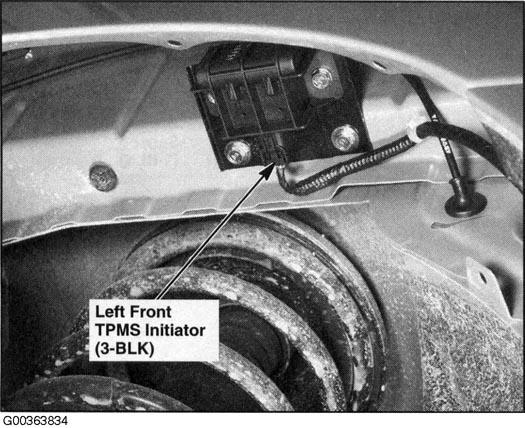

Fig 127: Behind Left Front Fender (Right Similar)

G00363834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

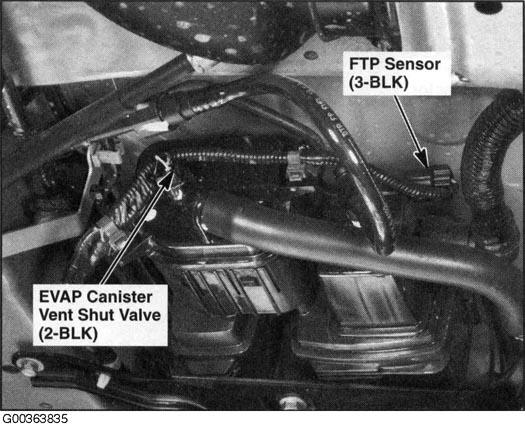

Fig 128: Under Left Side Of Floor

G00363835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

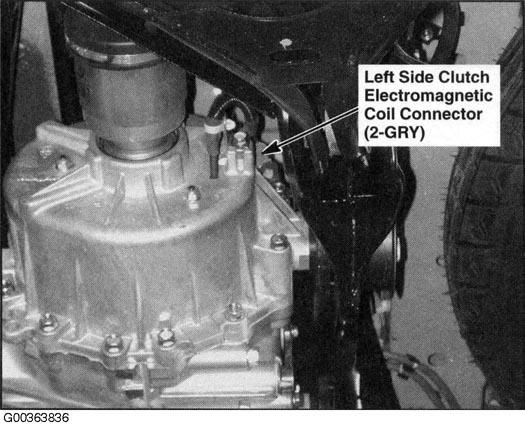

Fig 129: Rear Differential

G00363836

Courtesy of AMERICAN HONDA MOTOR CO., INC.

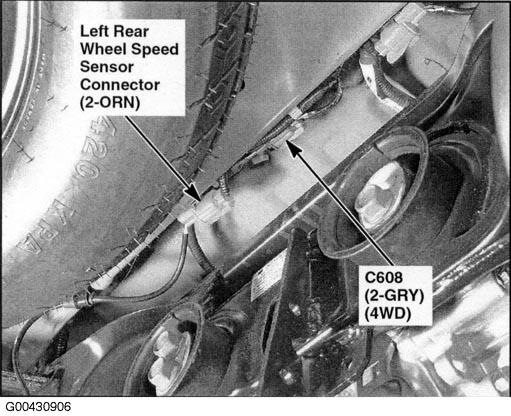

Fig 130: Under Rear Floor

G00430906

Courtesy of AMERICAN HONDA MOTOR CO., INC.

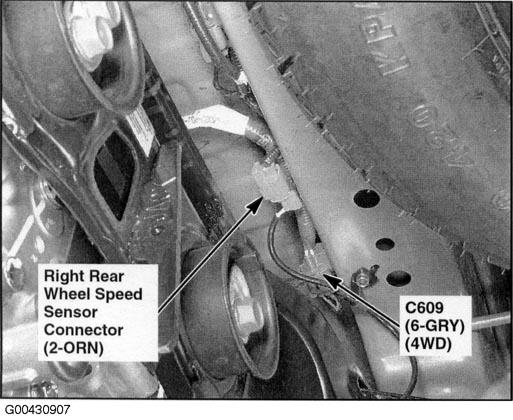

Fig 131: Under Rear Floor

G00430907

Courtesy of AMERICAN HONDA MOTOR CO., INC.

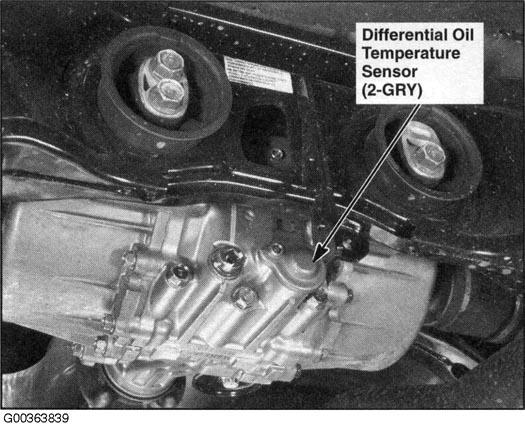

Fig 132: Rear Differential

G00363839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

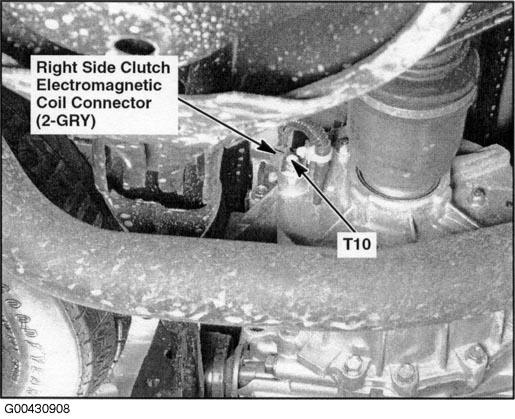

Fig 133: Rear Differential

G00430908

Courtesy of AMERICAN HONDA MOTOR CO., INC.

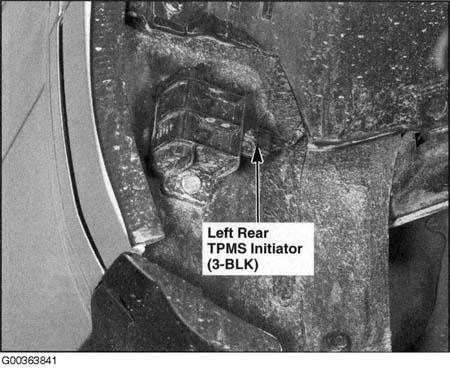

Fig 134: Front Of Left Rear Wheelwell (Right Similar)

G00363841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

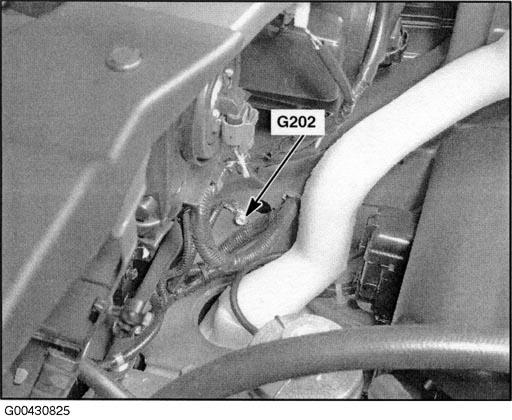

Fig 135: Right Side Of Engine Compartment

G00430825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

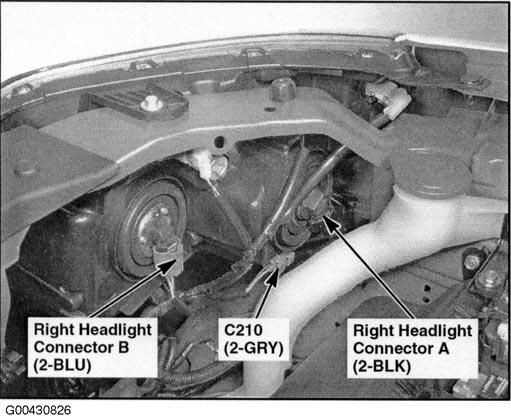

Fig 136: Right Front Of Engine Compartment

G00430826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

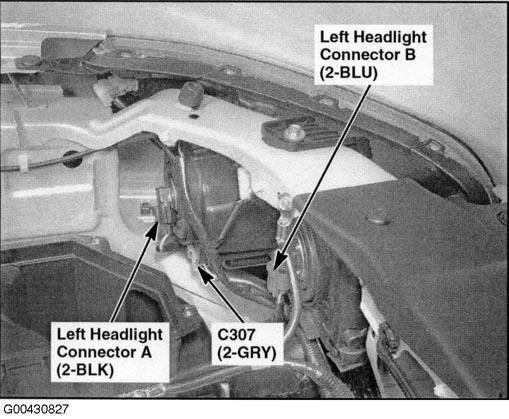

Fig 137: Left Front Of Engine Compartment

G00430827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

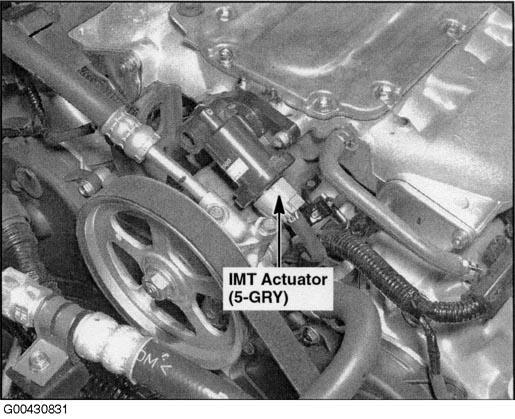

Fig 138: Front Of Engine

G00430831

Courtesy of AMERICAN HONDA MOTOR CO., INC.

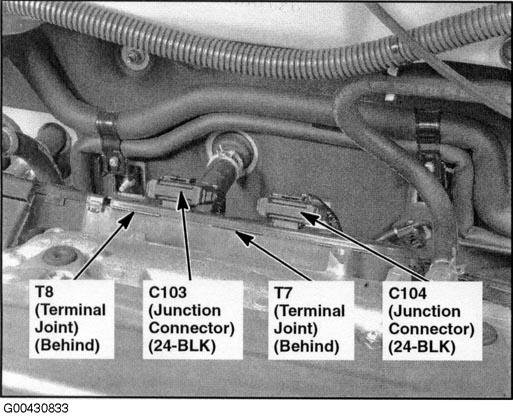

Fig 139: Middle Rear Of Engine Compartment (2WD)

G00430833

Courtesy of AMERICAN HONDA MOTOR CO., INC.

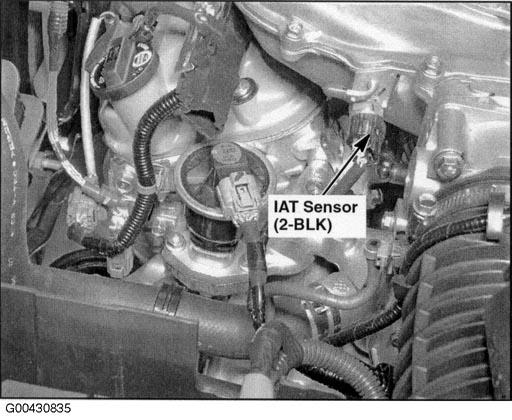

Fig 140: Left Rear Of Engine (4WD)

G00430835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

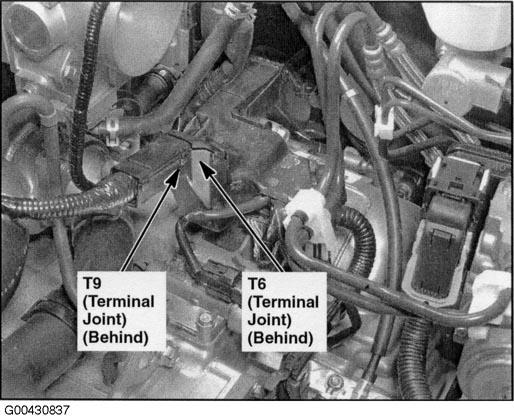

Fig 141: Transmission Housing (2WD)

G00430837

Courtesy of AMERICAN HONDA MOTOR CO., INC.

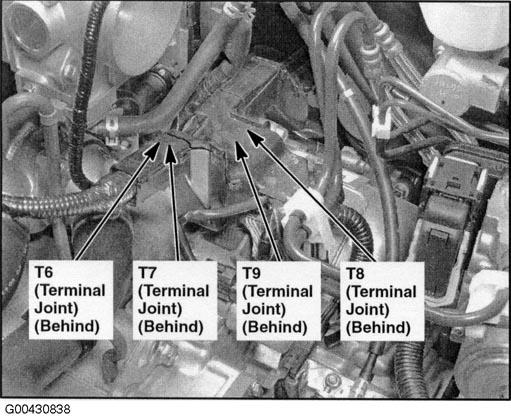

Fig 142: Transmission Housing (4WD)

G00430838

Courtesy of AMERICAN HONDA MOTOR CO., INC.

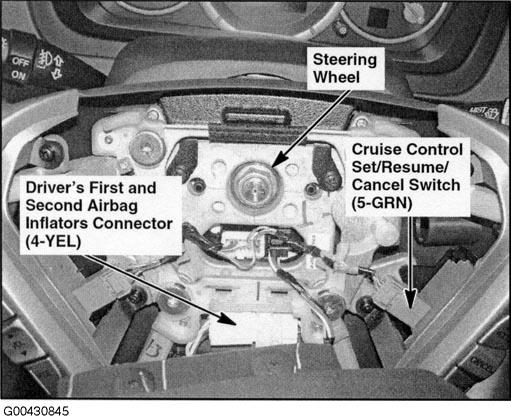

Fig 143: Inside Steering Wheel

G00430845

Courtesy of AMERICAN HONDA MOTOR CO., INC.

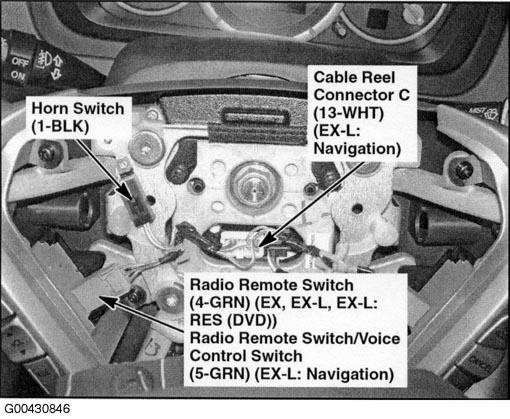

Fig 144: Inside Steering Wheel

G00430846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

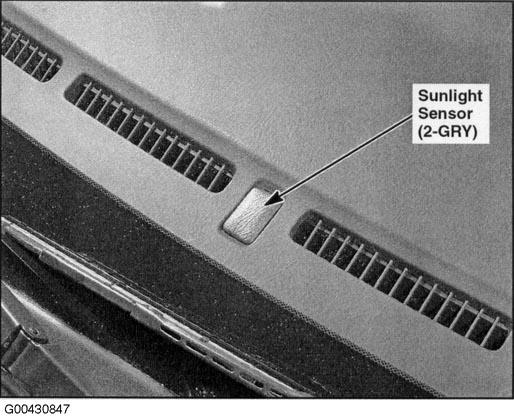

Fig 145: Top Center Of Dash

G00430847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

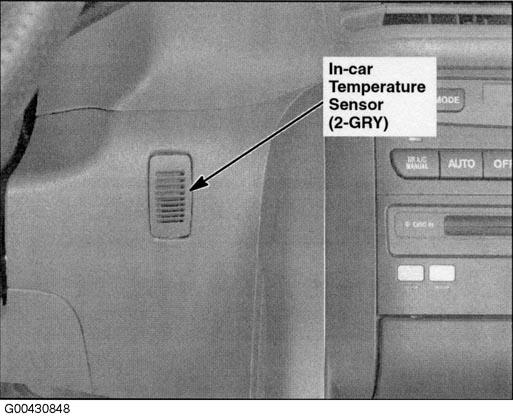

Fig 146: Lower Left Center Of Dash

G00430848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

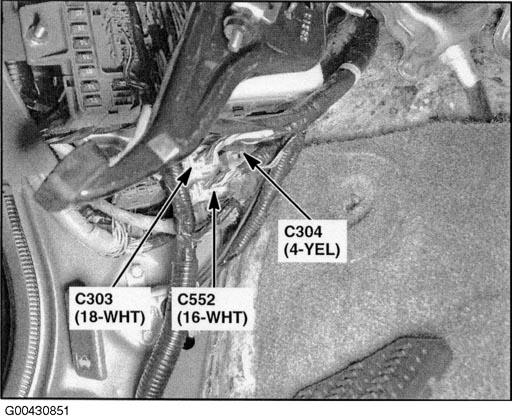

Fig 147: Behind Left Kick Panel (EX-L: RES)

G00430851

Courtesy of AMERICAN HONDA MOTOR CO., INC.

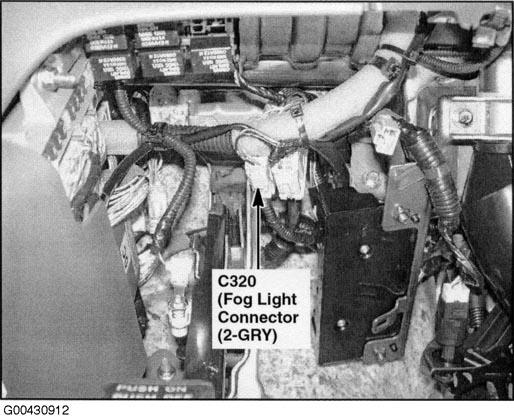

Fig 148: Under Left Side Of Dash (LX)

G00430912

Courtesy of AMERICAN HONDA MOTOR CO., INC.

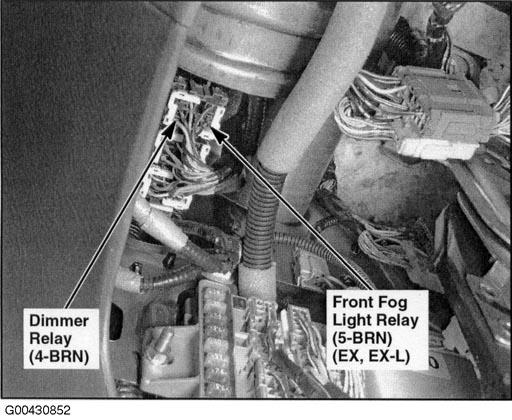

Fig 149: Under Left Side Of Dash

G00430852

Courtesy of AMERICAN HONDA MOTOR CO., INC.

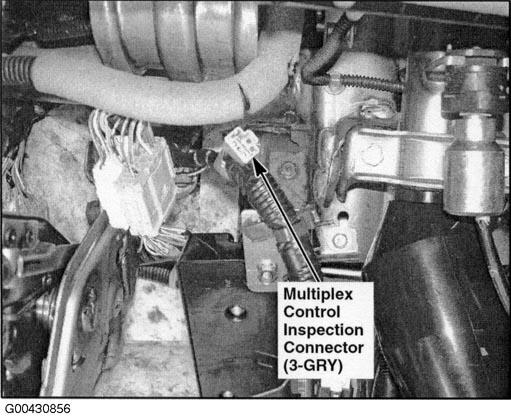

Fig 150: Under Left Side Of Dash

G00430856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

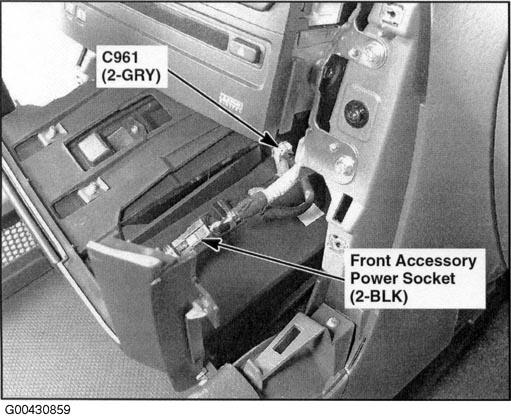

Fig 151: Under Middle Of Dash

G00430859

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 152: Behind Middle Of Dash

G00430860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

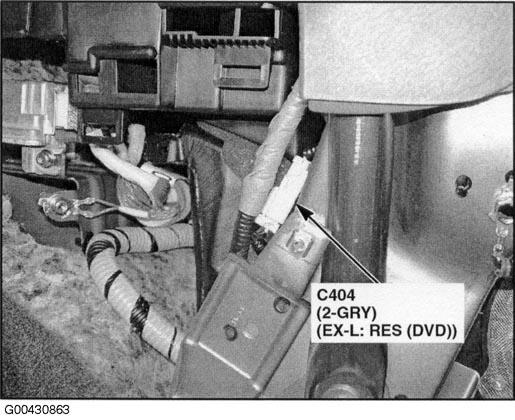

Fig 153: Under Middle Of Dash

G00430863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

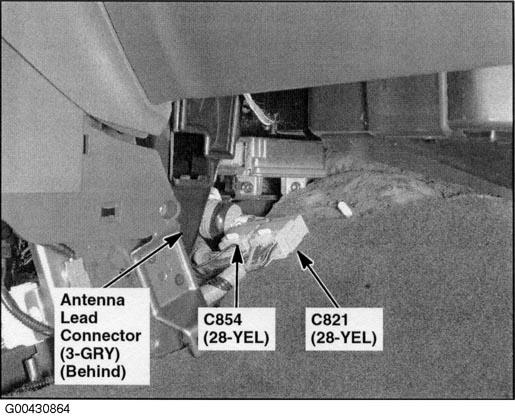

Fig 154: Under Middle Of Dash

G00430864

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 155: Right Side Of Center Console (2WD)

G00430867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

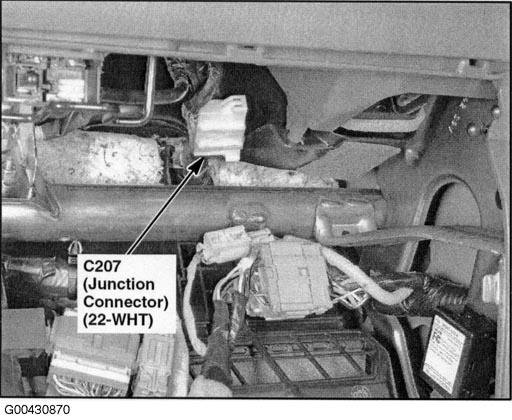

Fig 156: Behind Glove Box

G00430870

Courtesy of AMERICAN HONDA MOTOR CO., INC.

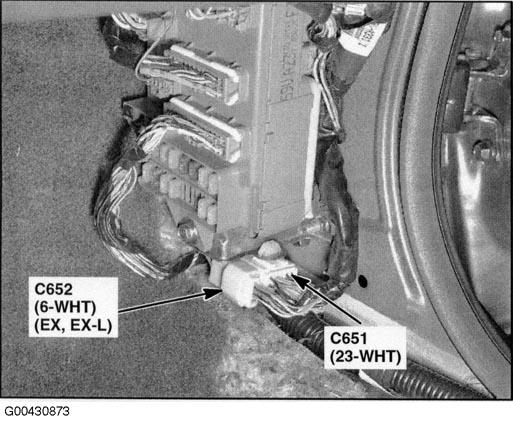

Fig 157: Behind Right Kick Panel

G00430873

Courtesy of AMERICAN HONDA MOTOR CO., INC.

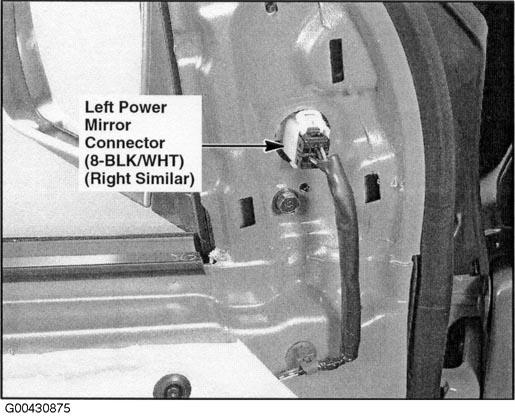

Fig 158: Driver's Door (Front Passenger's Similar)

G00430875

Courtesy of AMERICAN HONDA MOTOR CO., INC.

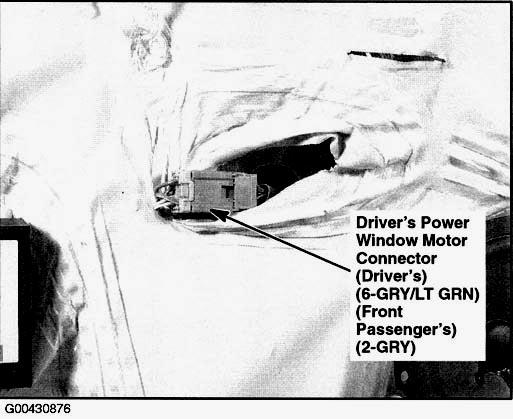

Fig 159: Driver's Door (Front Passenger's Similar)

G00430876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

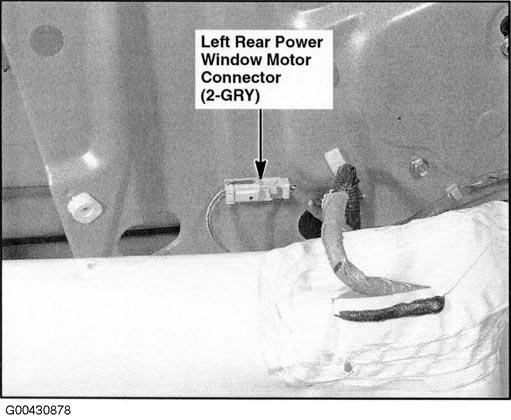

Fig 160: Left Rear Door (Right Similar)

G00430878

Courtesy of AMERICAN HONDA MOTOR CO., INC.

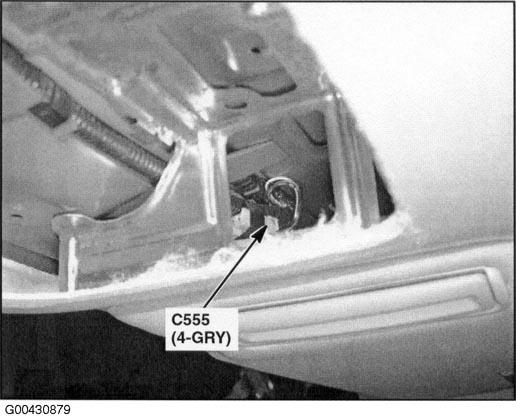

Fig 161: Front Middle Of Roof

G00430879

Courtesy of AMERICAN HONDA MOTOR CO., INC.

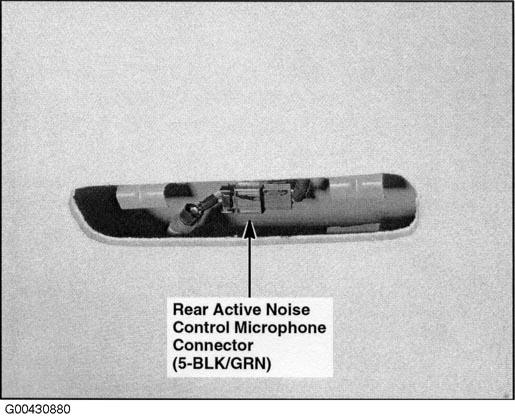

Fig 162: Rear Middle Of Roof

G00430880

Courtesy of AMERICAN HONDA MOTOR CO., INC.

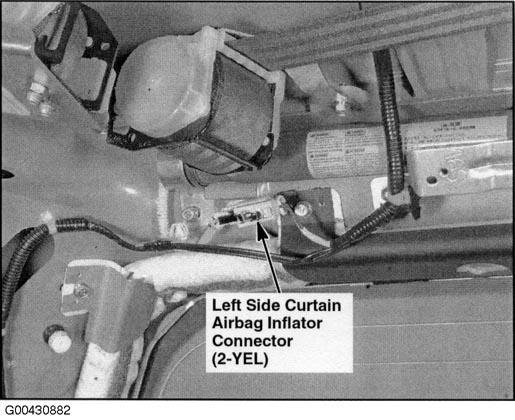

Fig 163: Left Rear Side Of Roof (Right Similar)

G00430882

Courtesy of AMERICAN HONDA MOTOR CO., INC.

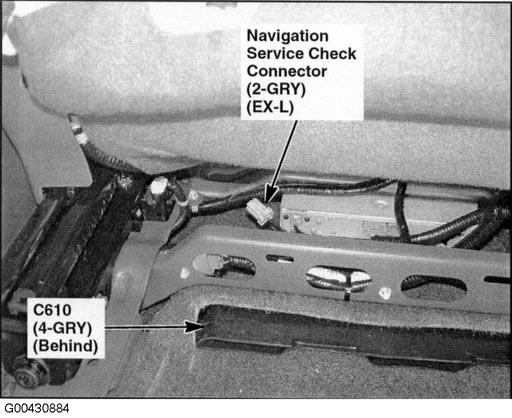

Fig 164: Under Front Passenger's Seat

G00430884

Courtesy of AMERICAN HONDA MOTOR CO., INC.

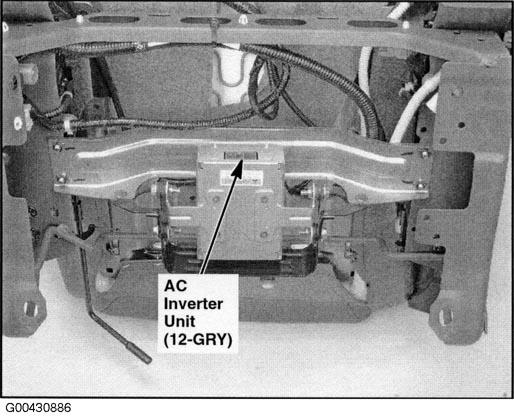

Fig 165: Under Front Passenger's Seat (EX-L: RES)

G00430886

Courtesy of AMERICAN HONDA MOTOR CO., INC.

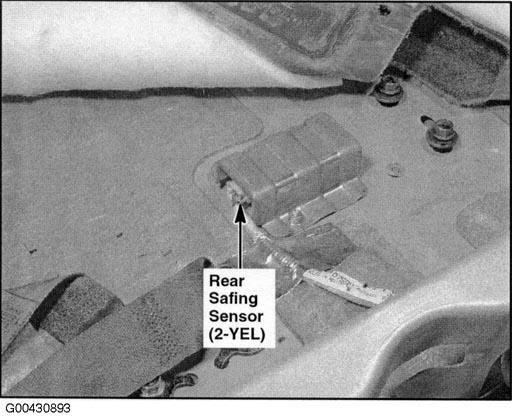

Fig 166: Middle Of Cargo Area

G00430893

Courtesy of AMERICAN HONDA MOTOR CO., INC.

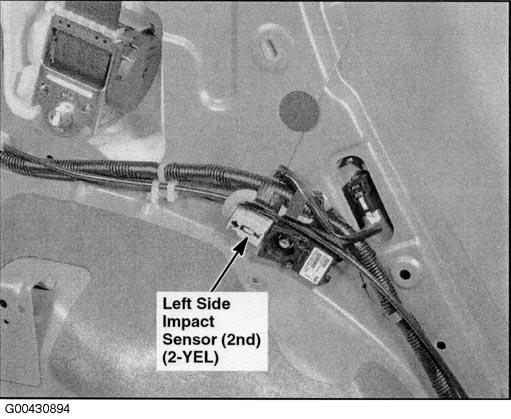

Fig 167: Left "C" Pillar (Right Similar)

G00430894

Courtesy of AMERICAN HONDA MOTOR CO., INC.

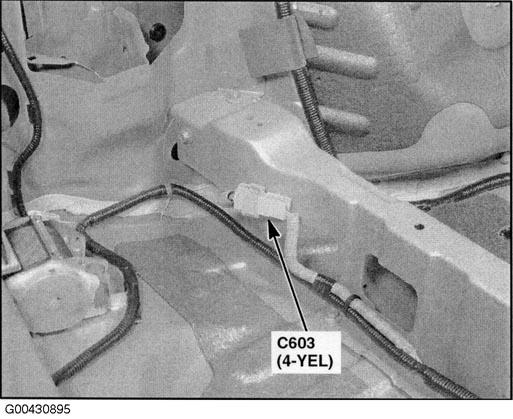

Fig 168: Left Side Of Floor

G00430895

Courtesy of AMERICAN HONDA MOTOR CO., INC.

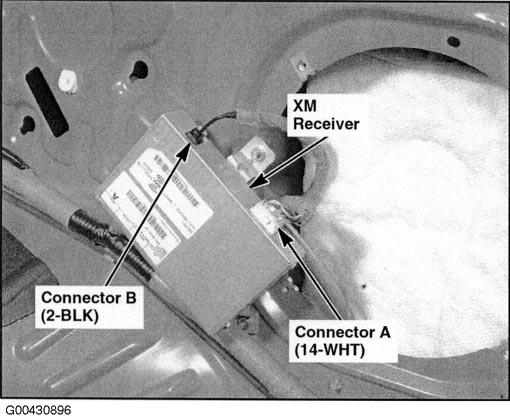

Fig 169: Right Side Of Cargo Area

G00430896

Courtesy of AMERICAN HONDA MOTOR CO., INC.

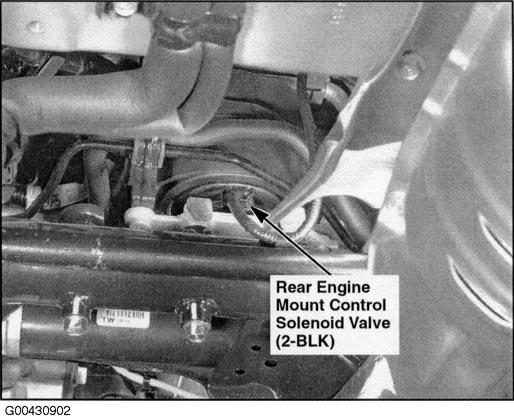

Fig 170: Rear Of Engine Compartment (2WD)

G00430902

Courtesy of AMERICAN HONDA MOTOR CO., INC.

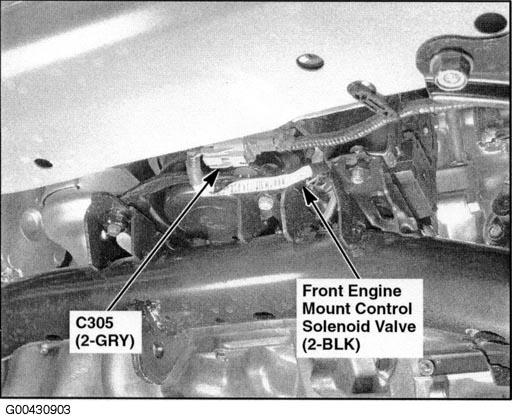

Fig 171: Front Of Engine Compartment (2WD)

G00430903

Courtesy of AMERICAN HONDA MOTOR CO., INC.

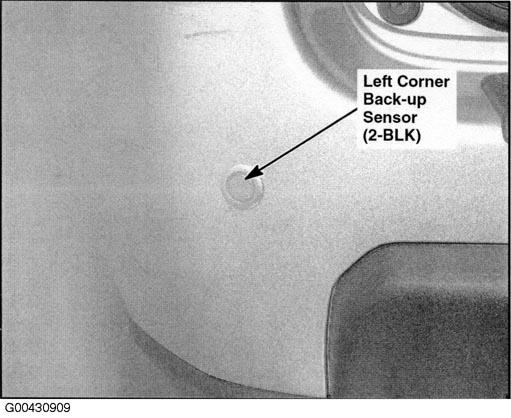

Fig 172: Left Side Of Rear Bumper (Right Similar)

G00430909

Courtesy of AMERICAN HONDA MOTOR CO., INC.

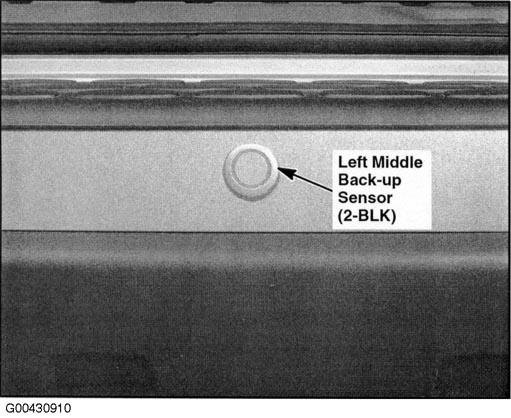

Fig 173: Left Side Of Rear Bumper (Right Similar)

G00430910

Courtesy of AMERICAN HONDA MOTOR CO., INC.

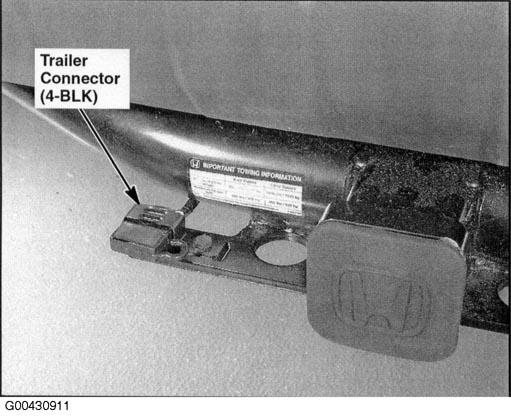

Fig 174: Center Of Rear Bumper

G00430911

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 175: Right Side Of Dash (Airbag Removed)

G00445674

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 176: Behind Right Kick Panel

G00445673

Courtesy of AMERICAN HONDA MOTOR CO., INC.
