Honda
>>
2007
>>
Pilot LX, 3.5 YF1
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Alternator Overhaul
>>
Exploded View
Exploded View

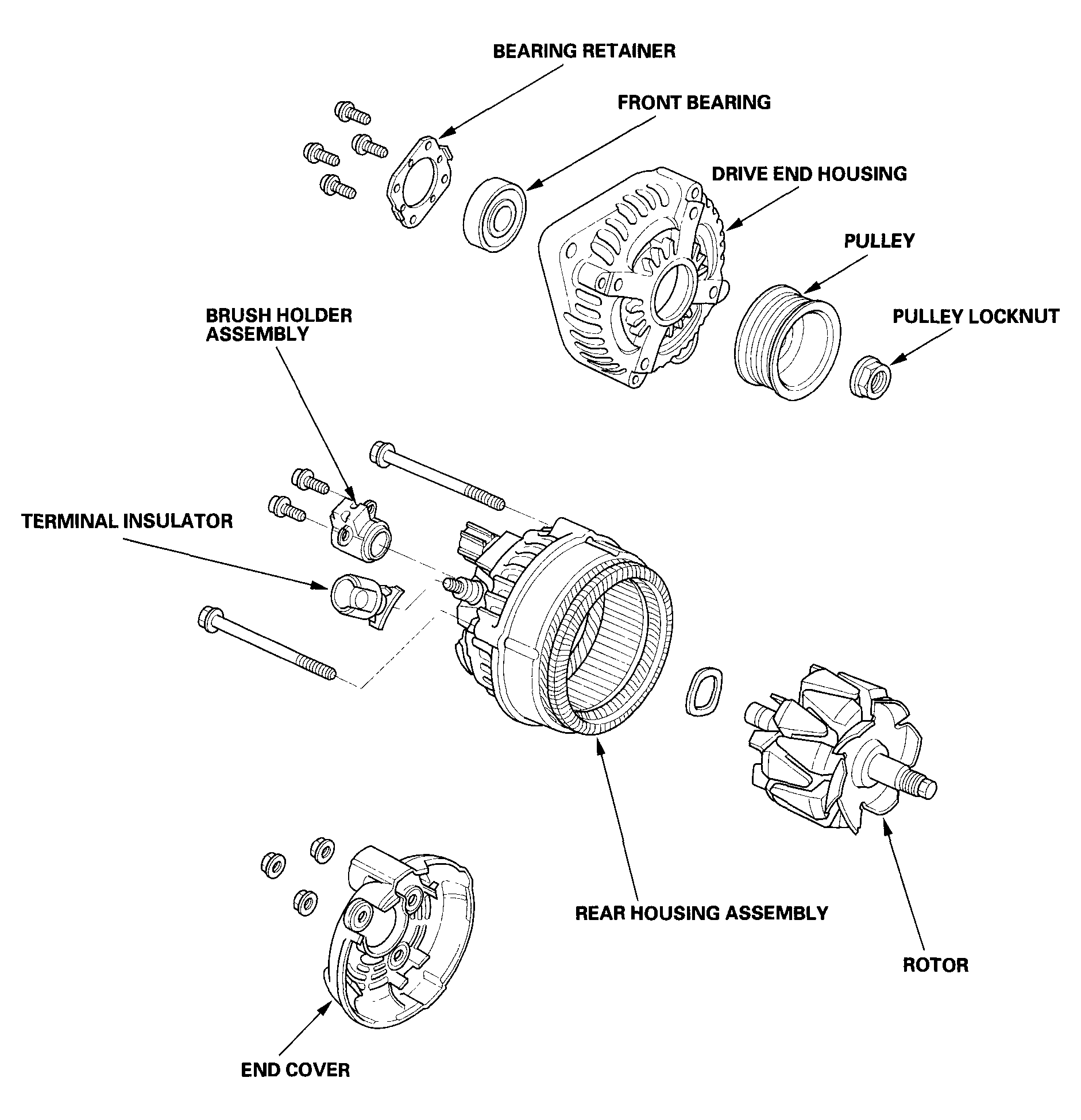

Fig 1: Exploded View Of Alternator Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
