Alternator Removal and Installation: Installation

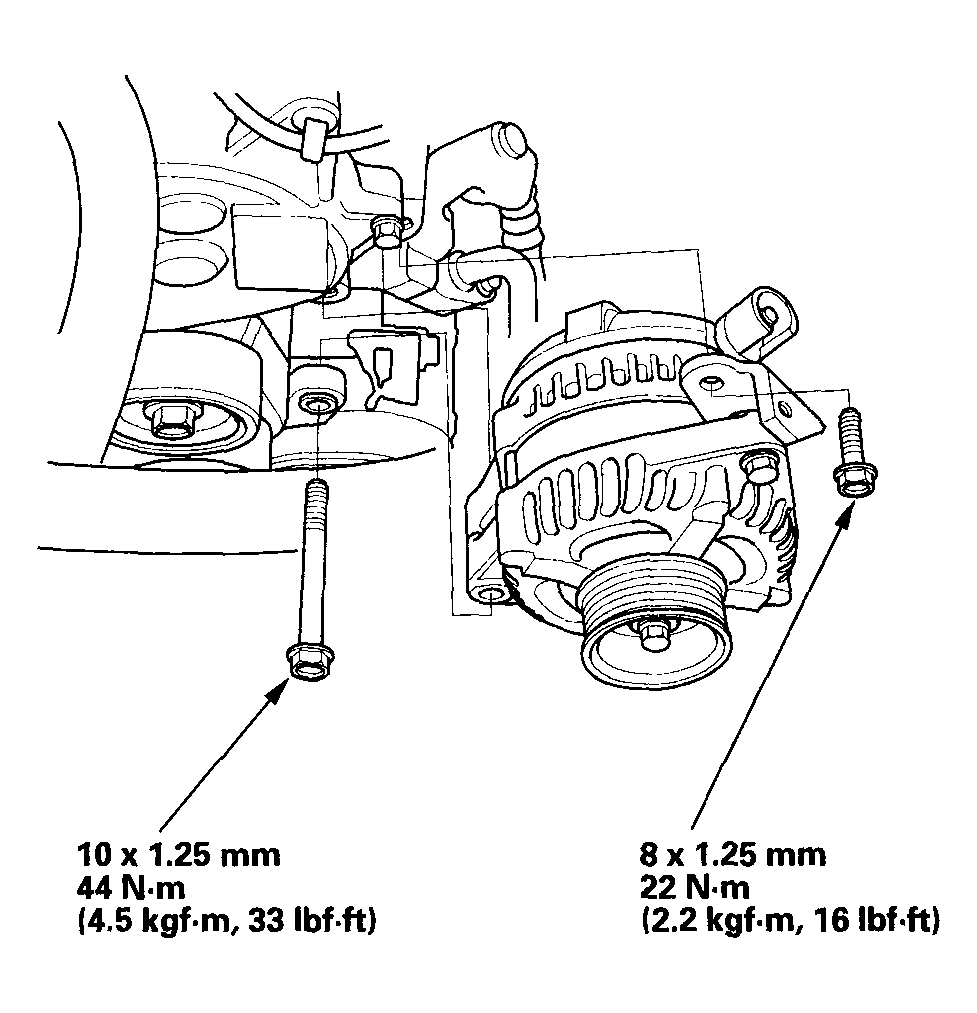

- Install the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

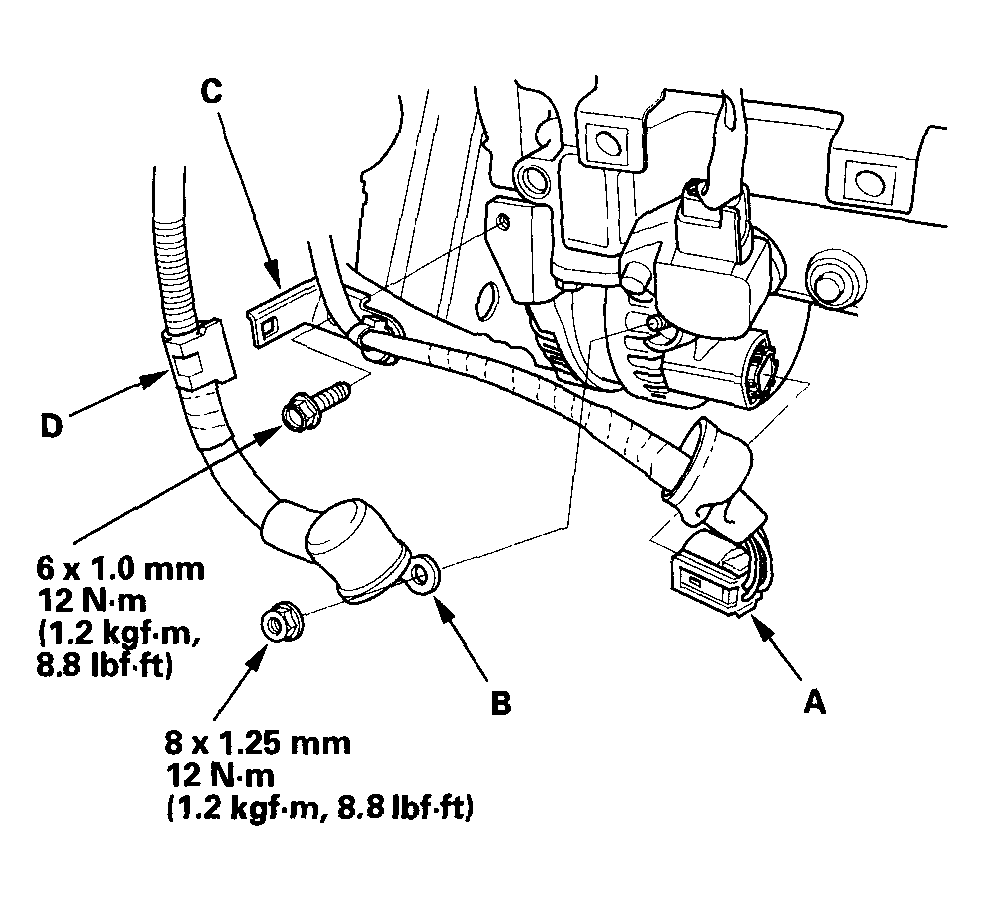

- Connect the alternator connector (A) and the BLK wire (B) to the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the bracket (C), then install the harness clamp (D).
- Install the drive belt (see DRIVE BELT REPLACEMENT
).
- Install the intake manifold cover (see step 1 in IGNITION COIL REMOVAL/INSTALLATION
).
- Connect the positive cable to the battery first, then connect the negative cable.
- Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets.
- Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT
).
- Set the clock (on vehivle without navigation).
