Passenger's Window Motor Test

Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector from the window motor.

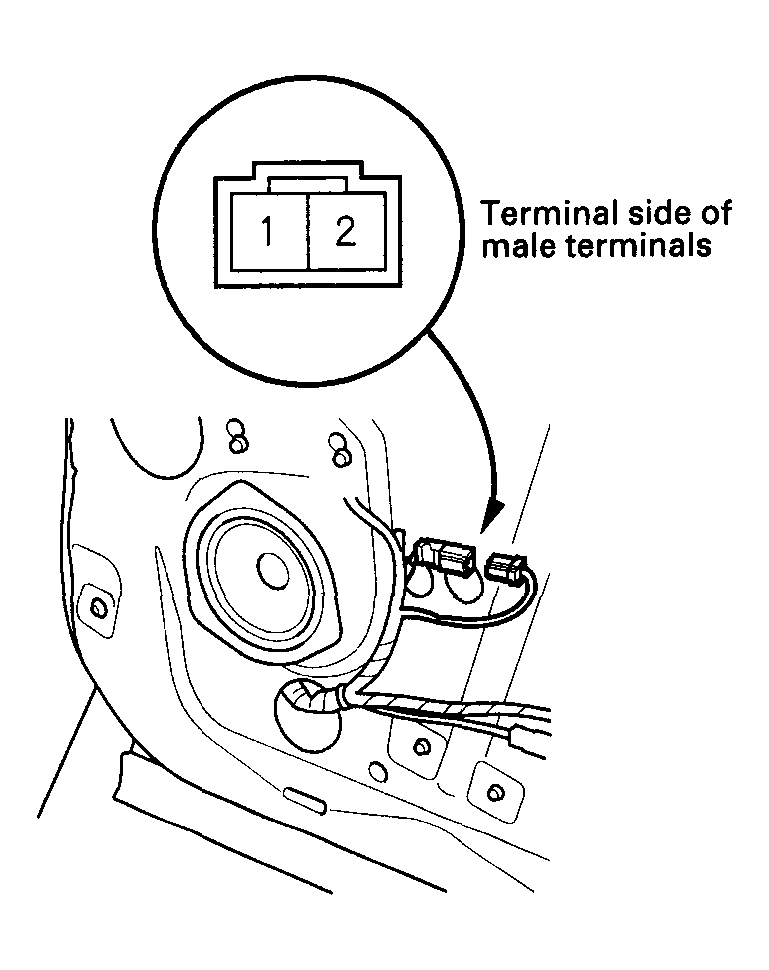

Fig 1: Disconnecting 2P Connector From Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power and ground according to Fig 2 . When the motor stops running, disconnect one lead immediately.

Fig 2: Connecting Battery Power & Ground Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
