ATF Cooler Hose Replacement

  1. Connect the cooler hoses (A) to the ATF cooler lines (B) and ATF cooler, and secure them with the clips (C).

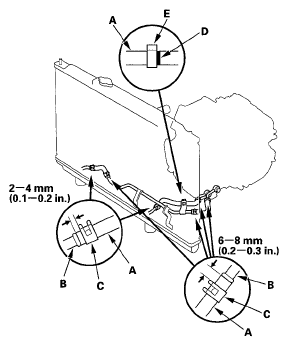

    Fig 1: Identifying Cooler Hoses, ATF Cooler Lines And Clips
    G05594095Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clamp the ATF cooler hose with the yellow mark (D) on the clamp (E).
