Front Bank (Bank 2)

  1. Remove the splash shield.
  2. Disconnect the front secondary HO2S 4P connector (A), then remove the front secondary HO2S (B).

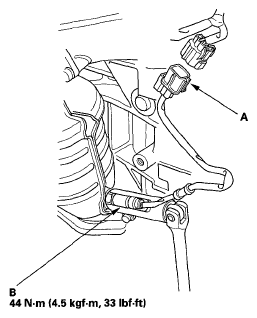

    Fig 1: Front Secondary HO2S With Torque Specifications
    G05593764Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal.
