Honda
>>
2007
>>
Pilot EX, 3.5 YF1
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Fan Controls
>>
Circuit Diagram
Circuit Diagram

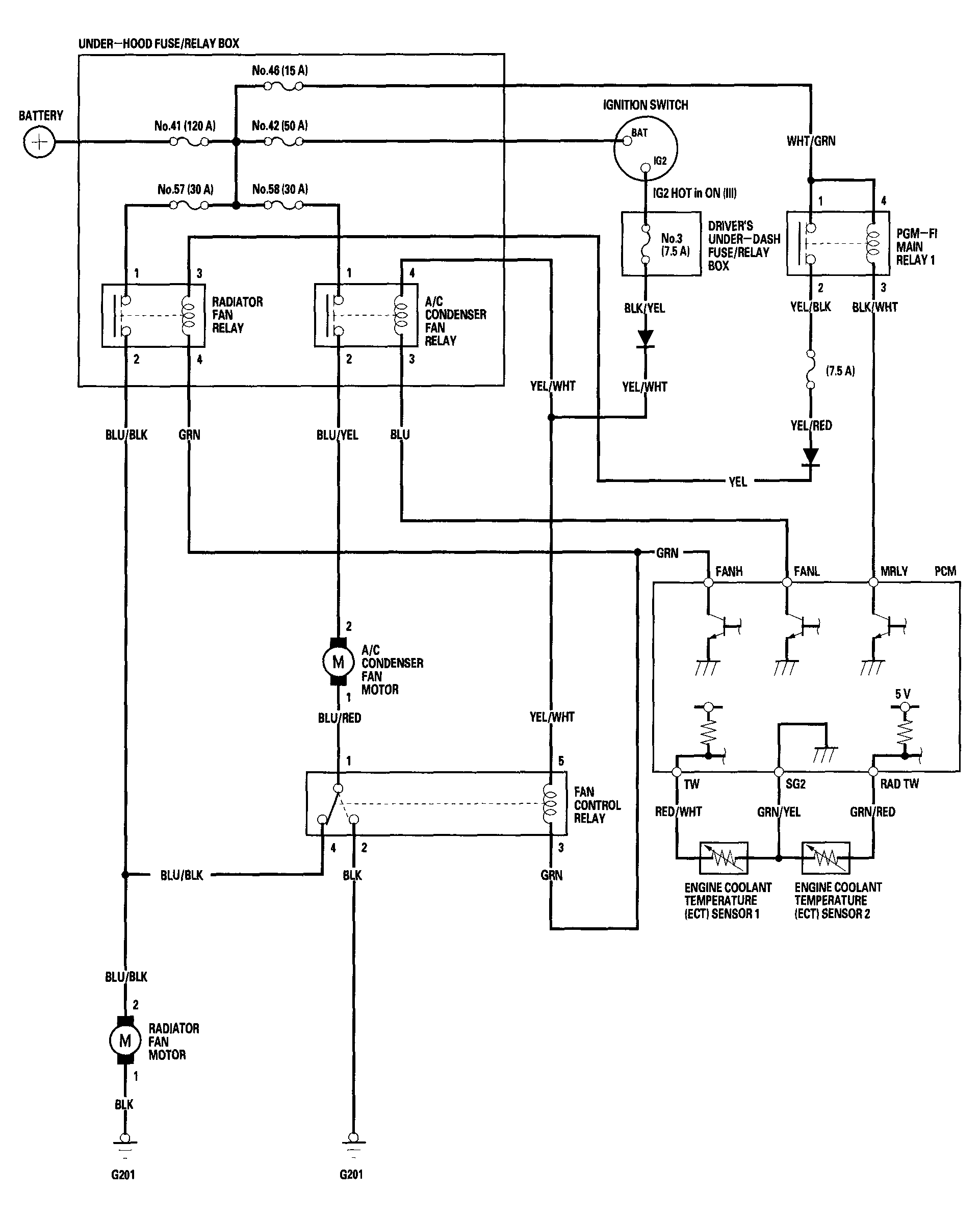

Fig 1: Identifying Fan Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
