J35Z1 Engine

  1. Inspect the belt for cracks and damaged. If the belt is cracked or damaged, replace it.
  2. Check that the auto-tensioner indicator (A) on the oil pump is not beyond the edge of the indicator rib (B) on the auto-tensioner. If the pointer is beyond the indicator rib, replace the indicator rib, replace the drive belt (see DRIVE BELT REPLACEMENT  ).

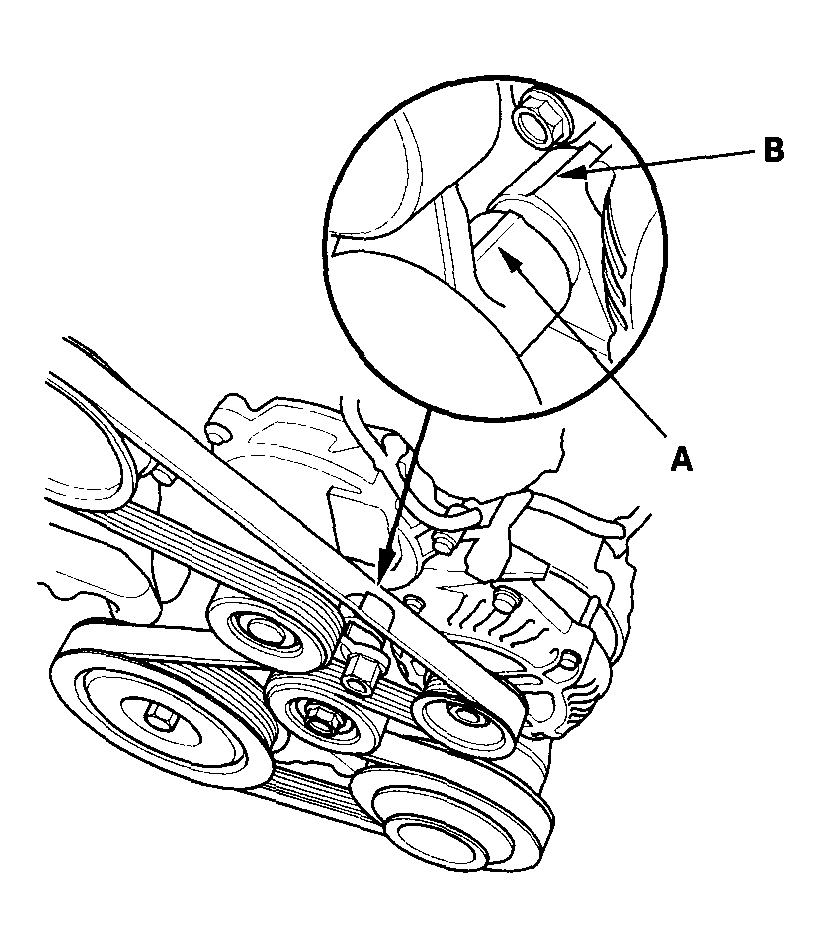

    Fig 1: Inspecting Drive Belt - J35Z1 Engine
    G04244466Courtesy of AMERICAN HONDA MOTOR CO., INC.
