J35A9 Engine

  1. Inspect the belt for cracks and damaged. If the belt is cracked or damaged, replace it.
  2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown in Fig 1. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT  ).

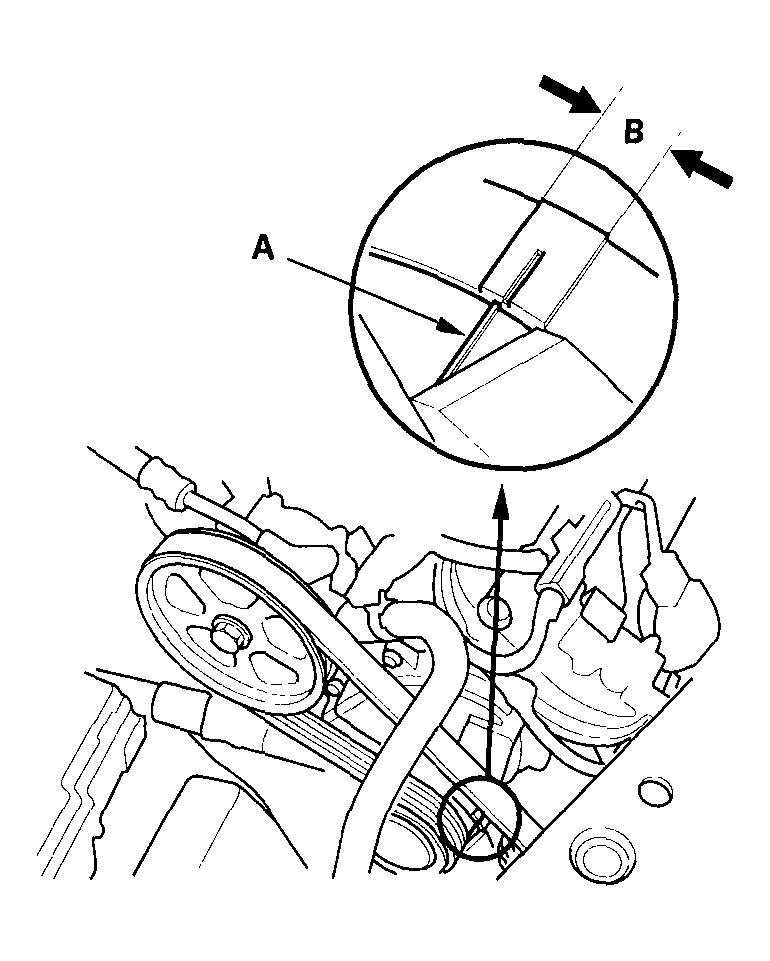

    Fig 1: Inspecting Drive Belt - J35A9 Engine
    G04244465Courtesy of AMERICAN HONDA MOTOR CO., INC.
