Center Console Latch Panel Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the console.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the center console armrests from both sides (see CONSOLE ARMREST REMOVAL/INSTALLATION ).
Remove the screws (A), and starting at the rear, pull out the center console latch panel (B) to detach the clips (C), then remove it.

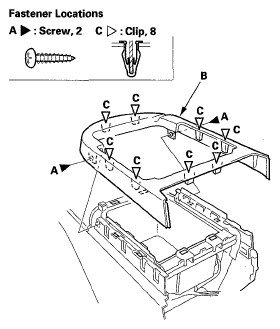

Fig 1: Identifying Screws, Center Console Latch Panel And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
