C707 Connector End View

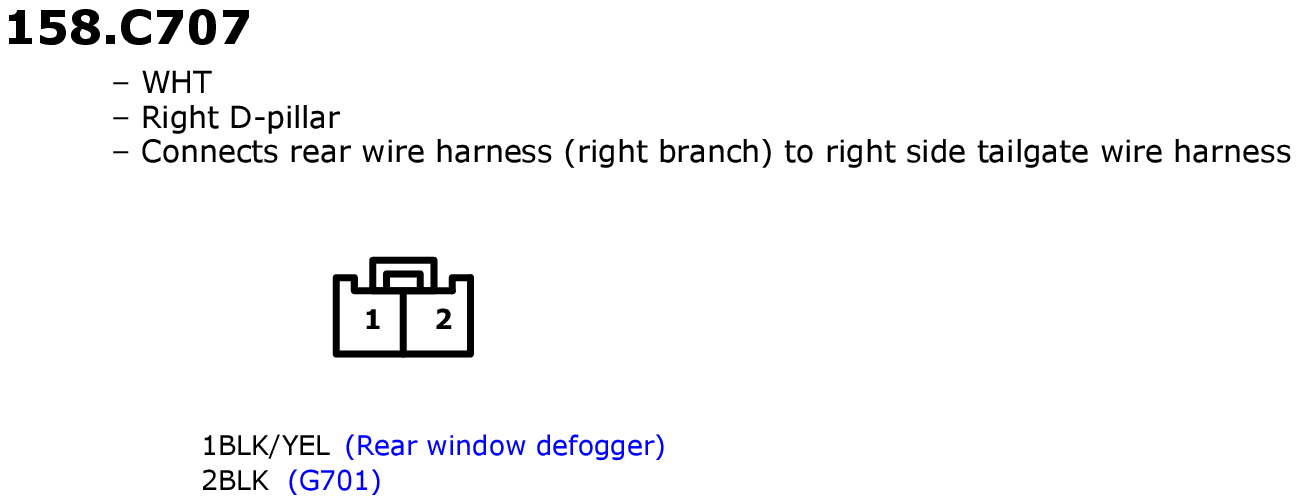

Fig 1: C707 Connector End View

GHHW4976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

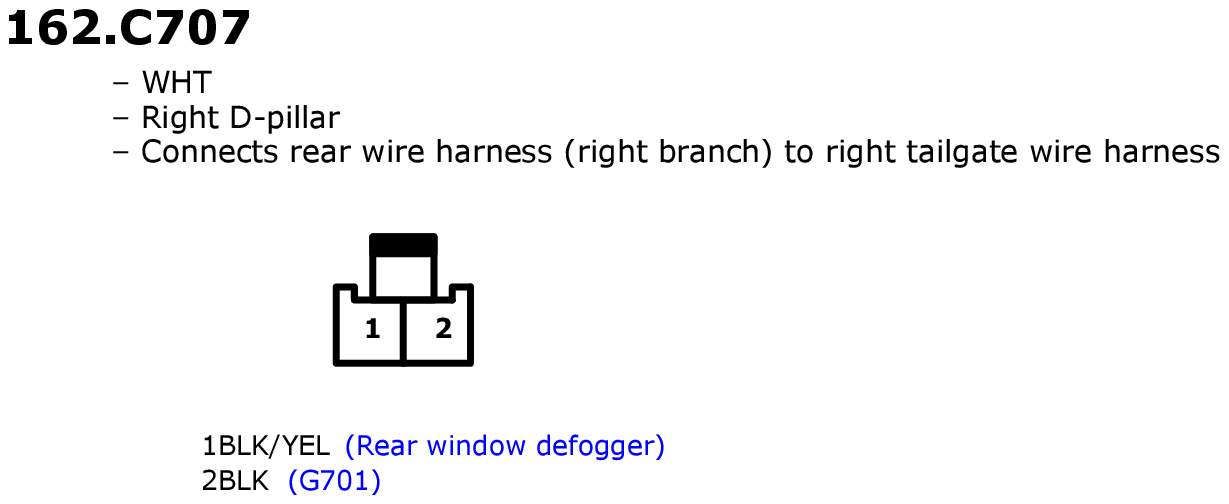

Fig 1: C707 Connector End View

GHHW5381

Courtesy of AMERICAN HONDA MOTOR CO., INC.
