OEM Connector End Views
>>
Connector End Views
>>
C601 Connector End View
C601 Connector End View

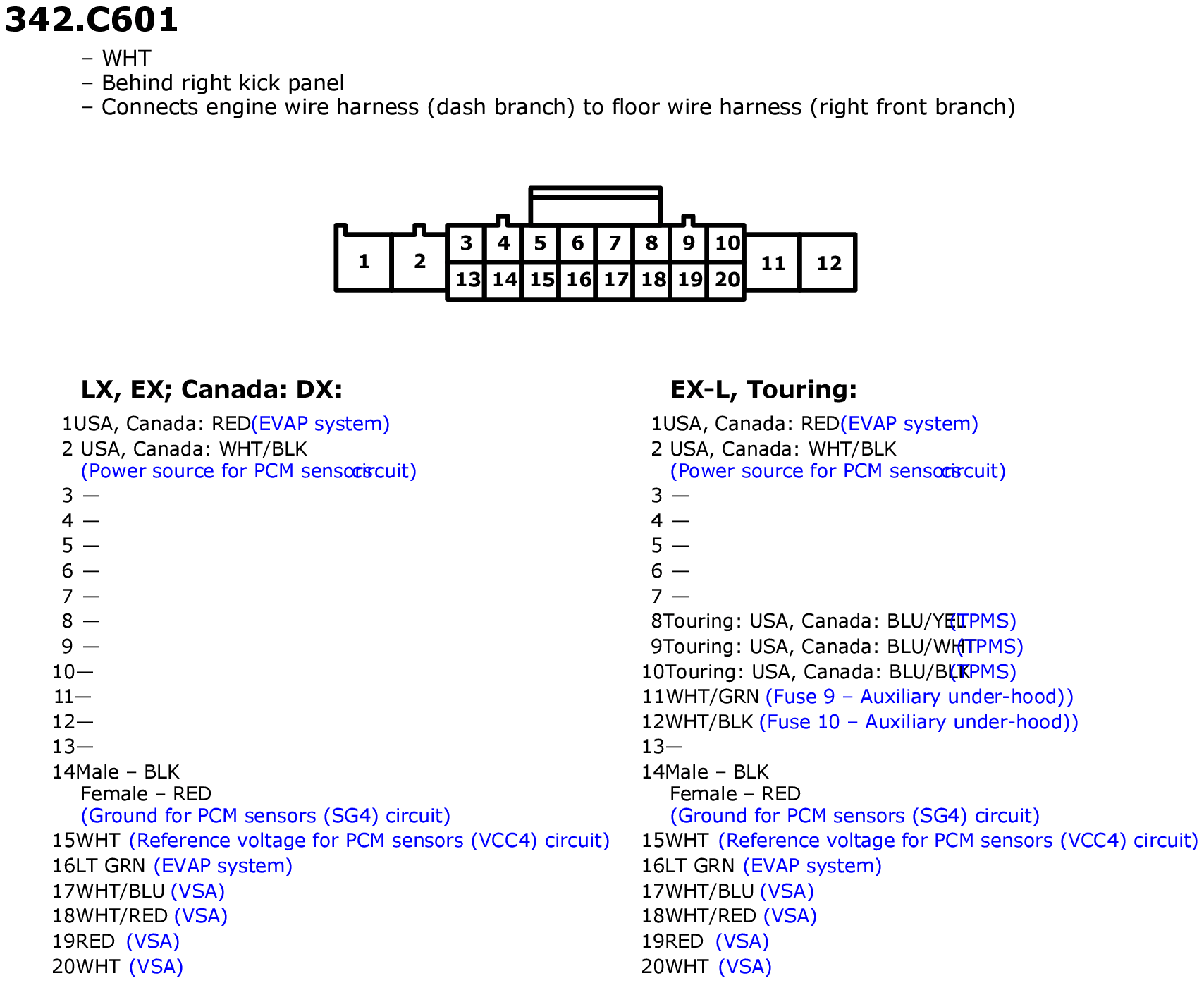

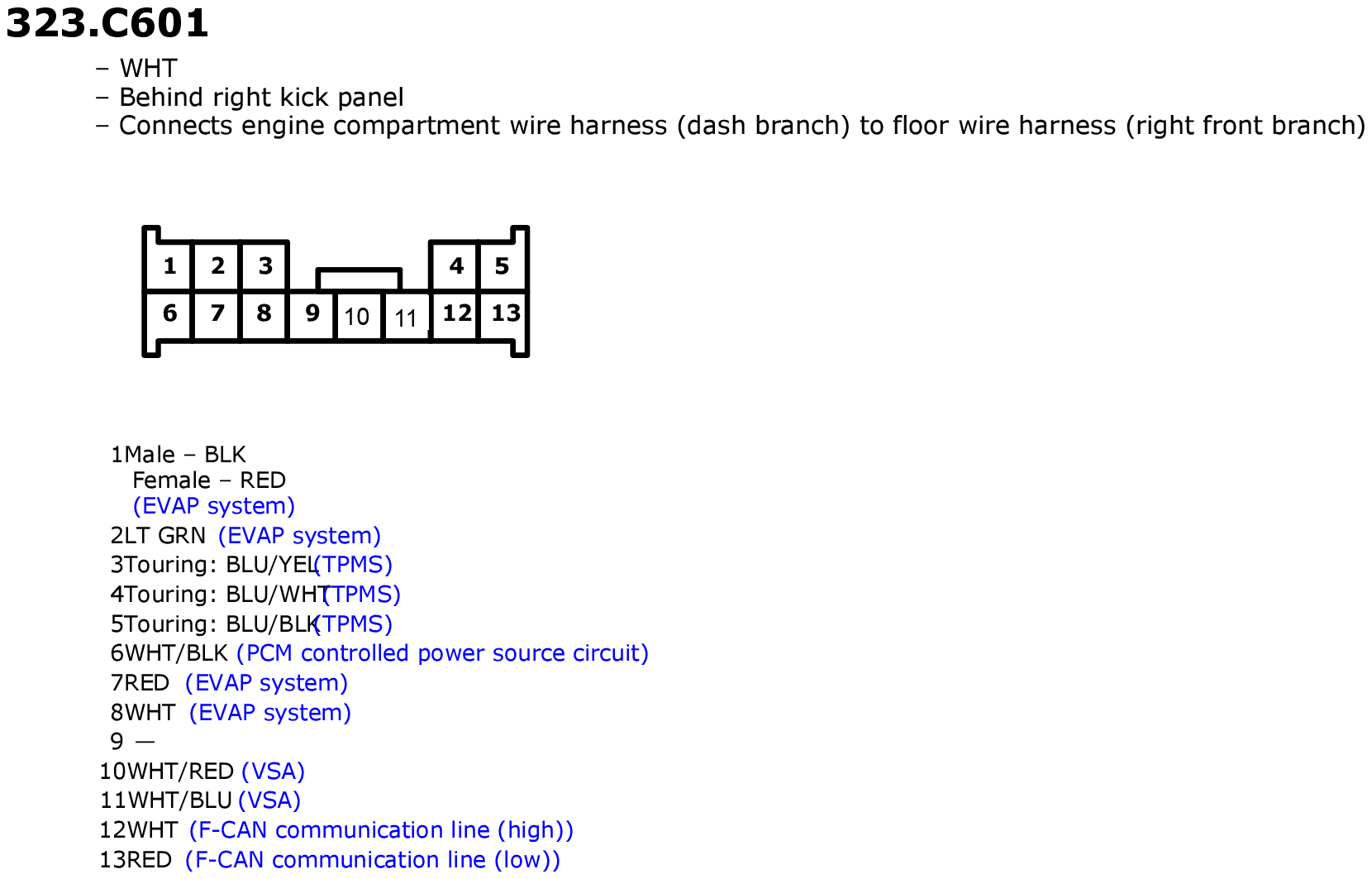

Fig 1: C601 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: C601 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
