Tailgate Weatherstrip Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

With power tailgate: Remove the left tailgate side trim (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).

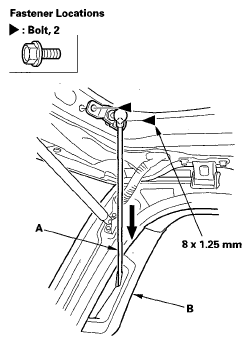

With power tailgate: Remove the pivot bracket mounting bolts, then push the power tailgate rod (A) in the quarter pillar trim (B).

Fig 1: Identifying Power Tailgate Rod And Quarter Pillar Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the tailgate weatherstrip (A) by pulling it out.

Fig 2: Identifying Tailgate Weatherstrip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Locate the painted alignment mark (A) on the tailgate weatherstrip (B). Align the painted mark with the alignment notch in the center of the tailgate opening, and install the tailgate weatherstrip all the way around. Slip the weatherstrip in under the lips (C) of both rear gutter covers (D). Make sure there are no wrinkles in the weatherstrip.

Fig 3: Identifying Alignment Mark On Tailgate Weatherstrip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With power tailgate: Fasten the pivot bracket (A) on the tailgate.

Fig 4: Pivot Bracket On Tailgate With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With power tailgate: Reinstall the left tailgate side trim (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Check for water leaks.
