Rear Individual Map Light Test/Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ceiling light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

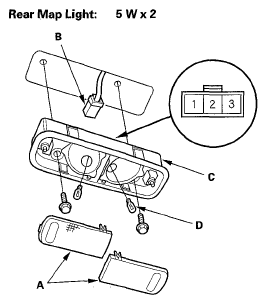

    Fig 1: Identifying Rear Individual Map Light
    G05487998Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting screws.
  4. Disconnect the 3P connector (B) from the housing (C).
  5. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 3 terminals with the left switch ON.
    • There should be continuity between the No. 1 and No. 2 terminals with the right switch ON.
  6. If the continuity is not as specified, check the bulb(s) (D). If the bulbs are OK, replace the light.
  7. Install the parts in the reverse order of removal.
