Cargo Area Light Test/Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

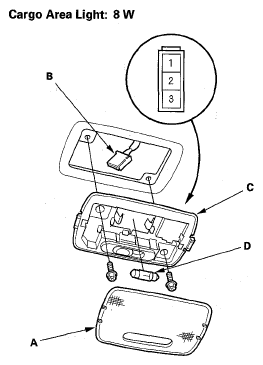

    Fig 1: Identifying Cargo Area Light
    G05487999Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting screws.
  4. Disconnect the 3P connector (B) from the housing (C).
  5. Check for continuity between the terminals in each switch position according to the table.
    • There should be continuity between the No. 2 and No. 3 terminals with the switch in the MIDDLE position.
    • There should be continuity between the No. 2 and No. 1 terminals with the switch in the ON position.
  6. If the continuity is not as specified, check the bulb (D). If the bulb is OK, replace the light.
