Front Door Latch Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Put on gloves to protect your hands.

Raise the glass fully.
Remove the door panel and inner handle (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Remove the plastic cover, as needed (see step 3 ).
Detach the rod fastener (see step 5).
Disconnect the outer handle rod from the outer handle (see step 6 ).
Disconnect the cylinder cable from the latch (see step 7 ).

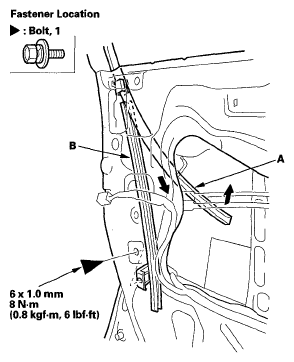

Pull the glass run channel (A) away as needed, and remove the bolt, then remove the center lower channel (B) by pulling it downward.

Fig 1: Glass Run Channel And Center Lower Channel With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

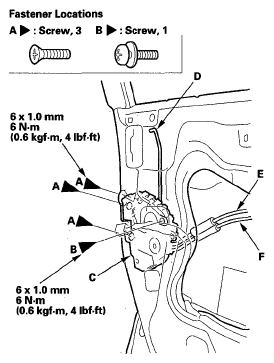

Remove the screws (A, B) securing the latch (C), then remove the latch through the hole in the door. Take care not to bend the outer handle rod (D), latch cable (E), and inner handle cable (F).

Fig 2: Screws, Latch, Outer Handle Rod, Latch Cable And Inner Handle Cable With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

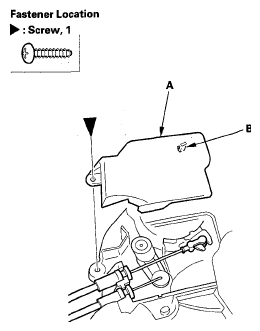

Remove the screw, then remove the latch protector (A) by releasing the hook (B).

Fig 3: Identifying Latch Protector And Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.

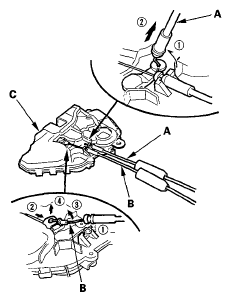

Detach the latch cable (A) and the inner handle cable (B) from the latch (C).

Fig 4: Identifying Latch Cable, Inner Handle Cable And Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch in the reverse order of removal, and note these items:
- Make sure that the actuator connector is plugged in properly, and that the cylinder cable and the outer handle rod are connected securely.
- Make sure the door locks and opens properly.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to sea! out water.
