Rear Differential Fluid Temperature Sensor Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the differential fluid (see REAR DIFFERENTIAL FLUID INSPECTION AND REPLACEMENT  ).
  2. Remove the differential fluid temperature sensor cover (A) and the differential fluid temperature sensor harness stay (B), then disconnect the differential fluid temperature sensor connector (C).

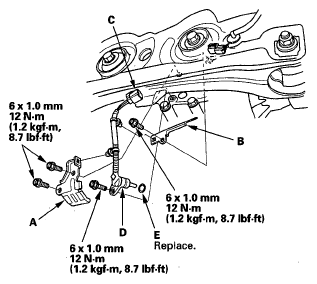

    Fig 1: Differential Fluid Temperature Sensor, Cover, Harness Stay And O-Ring With Torque Specifications
    G05486190Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the differential fluid temperature sensor (D).
  4. Install the differential fluid temperature sensor with a new O-ring (E) in the reverse order of removal.
  5. Refill the differential fluid (see REAR DIFFERENTIAL FLUID INSPECTION AND REPLACEMENT  ).
