Coolant Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine. Set the heater temperature control dial to maximum heat, then turn off the ignition switch. Make sure the engine and radiator are cool to the touch.
  2. Remove the radiator cap.
  3. Remove the splash shield (see step 31 on ENGINE REMOVAL ).
  4. Loosen the drain plug (A) and drain the coolant.
    Fig 1: Identifying Drain Plug
    G05484875Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install a rubber hose (A) on the drain bolt (B) located at the rear of the engine block, then loosen the drain bolt.
    Fig 2: Rubber Hose And Drain Bolt With Torque Specification
    G05484876Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. When the coolant stops draining, tighten the drain bolt. Remove the rubber hose.
  7. Tighten the radiator drain plug securely.
  8. Install the splash shield (see step 39 on ENGINE INSTALLATION ).
  9. Remove, drain, and reinstall the coolant reservoir.
  10. Fill the coolant reservoir to the MAX mark (A) with Acura Long Life Antifreeze/Coolant Type 2 (P/N OL999-9011 A).
    NOTE:
    • Always use Acura Long Life Antifreeze/Coolant Type 2 (P/N OL999-9011 A). Using a non-Acura coolant can result in corrosion, causing the cooling system to malfunction or fail.
    • Acura Long Life Antifreeze/Coolant Type 2 is a mixture of 50% antifreeze and 50% water. Do not add water.
      Fig 3: Identifying MAX Mark On Coolant Reservoir
      G05484877Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Pour Acura Long Life Antifreeze/Coolant Type 2 into the radiator up to the base of the filler neck.

    Engine Coolant Capacities (Including the coolant reservoir capacity of 0.7 L (0.19 US gal)):

    At Coolant Change: 7.3 L (1.93 US gal)

    After Engine Overhaul: 9.2 L (2.43 US gal)

    Fig 4: Pouring Acura Long Life Antifreeze/Coolant Into Radiator
    G05484878Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Start the engine. Hold the engine speed at 1,500 rpm until it warms up (the radiator fan comes on at least twice). Make sure the thermostat is open.
  13. Turn off the engine. Check the level in the radiator, and add Acura Long Life Antifreeze/Coolant Type 2, if needed.
  14. Set the climate control or heater control panel to maximum cool. Start the engine. Hold the engine speed at 1,500 rpm for 5 minutes, then turn off the engine.
  15. Check the level in the radiator, and add Acura Long Life Antifreeze/Coolant Type 2, if needed.
  16. Set the climate control or heater control panel to maximum heat. Start the engine. Hold the engine speed at 1,500 rpm for 5 minutes, then turn off the engine.
  17. Check the level in the radiator, and add Acura Long Life Antifreeze/Coolant Type 2, if needed.
  18. Set the climate control or heater control panel to maximum cool. Start the engine. Hold the engine speed at 1,500 rpm for 3 minutes, then turn off the engine.
  19. Check the level in the radiator, and add Acura Long Life Antifreeze/Coolant Type 2, if needed.
  20. Set the climate control or heater control panel to maximum heat. Start the engine. Hold the engine speed at 1,500 rpm for 3 minutes, then turn off the engine.
  21. Check the level in the radiator, and add Acura Long Life Antifreeze/Coolant Type 2, if needed.
  22. Repeat steps  18 through  21 until the coolant level does not change in the radiator, then install the radiator cap loosely.
  23. Set the climate control or heater control panel to maximum cool. Start the engine. Hold the engine speed at 2,500 rpm for 1 minute.
  24. Set the climate control or heater control panel to maximum heat, and select high speed heat mode on the rear control panel. Measure the temperature of the air from the rear floor vent for 2 or 3 minutes. Make sure the temperature is above the standard line of the graph as shown. If the temperature is below the standard line, repeat steps  18 through  21 several more times. Then loosely install the radiator cap and recheck.

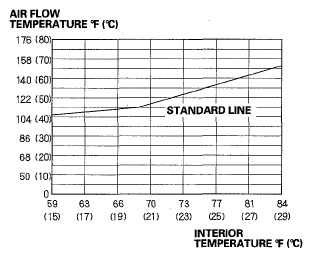

    Fig 5: Temperature Graph
    G05484879Courtesy of AMERICAN HONDA MOTOR CO., INC.
  25. With the engine idling, make sure you do not hear the sound of water flowing near the rear heater unit. If you hear water flowing, repeat steps  18 through  21 several more times.
  26. Install the radiator cap fully.
  27. Fill the coolant reservoir with Acura Long Life Antifreeze/Coolant Type 2 up to the MAX mark on the coolant reservoir, then add an extra 0.4 L (0.11 US gal) coolant.
  28. Clean up any spilled engine coolant.
  29. If the maintenance minder required to replace the engine coolant, reset the maintenance minder (see RESETTING THE MAINTENANCE INFORMATION DISPLAY ), and this procedure is complete. If the maintenance minder did not require to replace the engine coolant, go to step 30.
  30. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on HOW TO USE THE HDS (HONDA DIAGNOSTIC SYSTEM) ).
  31. Turn the ignition switch ON (II).
  32. Make sure the HDS communicates with the vehicle and the powertrain control module (PCM). If it doesn't communicate, troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).
  33. Select BODY ELECTRICAL with the HDS.
  34. Select ADJUSTMENT in the GAUGES MENU with the HDS.
  35. Select RESET in the MAINTENANCE MINDER with the HDS.
  36. Select MAINTENANCE SUB ITEM 5 RESET with the HDS.
  37. Turn off the engine. Check the level in the radiator, and add Acura Long Life Antifreeze/Coolant Type 2, if needed.
    NOTE: Removing the radiator cap while the engine is hot can cause the coolant to spray out. Always let the engine and radiator cool before removing the cap.
