Third Row Seat Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the body or tear the seat covers.

Detach the third row seat-belt from the detachable anchor.
Remove the front mounting bolt covers (A) from both front links.

Fig 1: Identifying Front Mounting Bolt Covers And Front Links
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front mounting bolts.

Fig 2: Front Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lift the seat cushion up.
Remove the rear mounting bolts while holding the seat cushion.

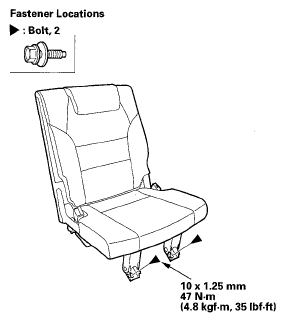

Fig 3: Rear Mounting Bolts And Seat Cushion With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the help of an assistant, remove the third row seat through the tailgate opening.
Install the seat in the reverse order of removal, and apply medium strength type liquid thread lock to the seat mounting bolts before reinstallation.
